    Item Type:RGB Controler

    Power Source:DC

    Wattage:0.8

    Model Number:H802SE

    Certification:CE,RoHS,CCC

    Connection Mode:GND-GND, CLK(D-)-CLK(D-), DAT(D+)-DAT(D+)

    Remote Distance:10m

    Features:wireless remote control

    Max. Load Power:5W

    Warranty:1 year

    Voltage:12V

    Applicable Lights:full color lights

    Controled Method:wireless remote or buttons

    Material:metal

    output ports number:4

    drive pixels number:6144



    1. Features

     (1). 4 ports drive maximum 6144 pixels.

     (2). SD card supports FAT32 and FAT16 format.

     (3). You can switch files, adjust brightness, set clock frequency and play speed by remote control or by four buttons.

     (4). Set DMX address for TM512, UCS512 and other DMX512 chips.

     3. Supported driver chips

     LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, APA102, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2811, WS2812, TM1803, TM1804, TM1809, TM1812, TM1829, TA9912, TM1913, TM1914, TM1926, WS2801, WS2803, DZ2809, P9813, P9816, SM16716, LD151x, LD153x, MBI6021, MBI6023, MBI6024, INK1003, LX1003, LX2003, LX2006, TLS3001, TLS3002, etc.

     Note: H802SE supports more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H802SE supports them all).

     4. Product Display



    Product Display

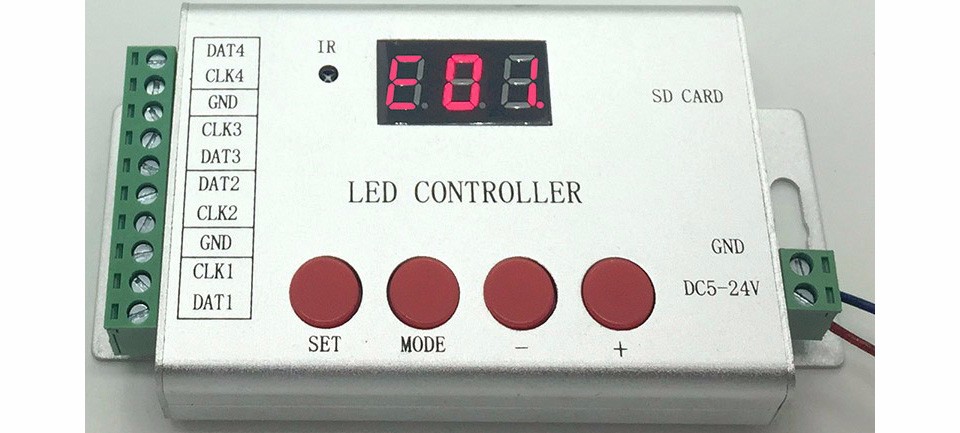

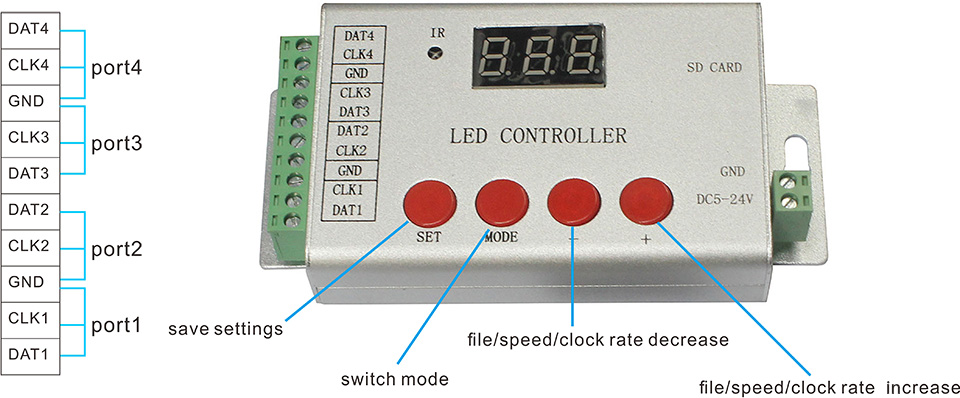

    GND, DAT: for WS2811, WS2812, UCS1903, SK6812, etc.

     GND, CLK: for APA102, etc.

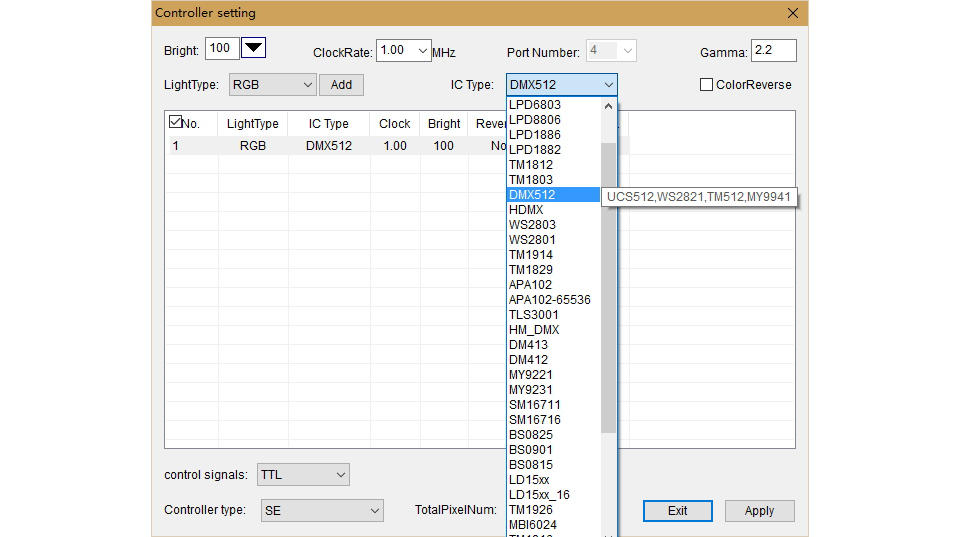

     When you choose DMX512 in software, DAT and CLK turn to D+ and D-




    5. Basic Workflow

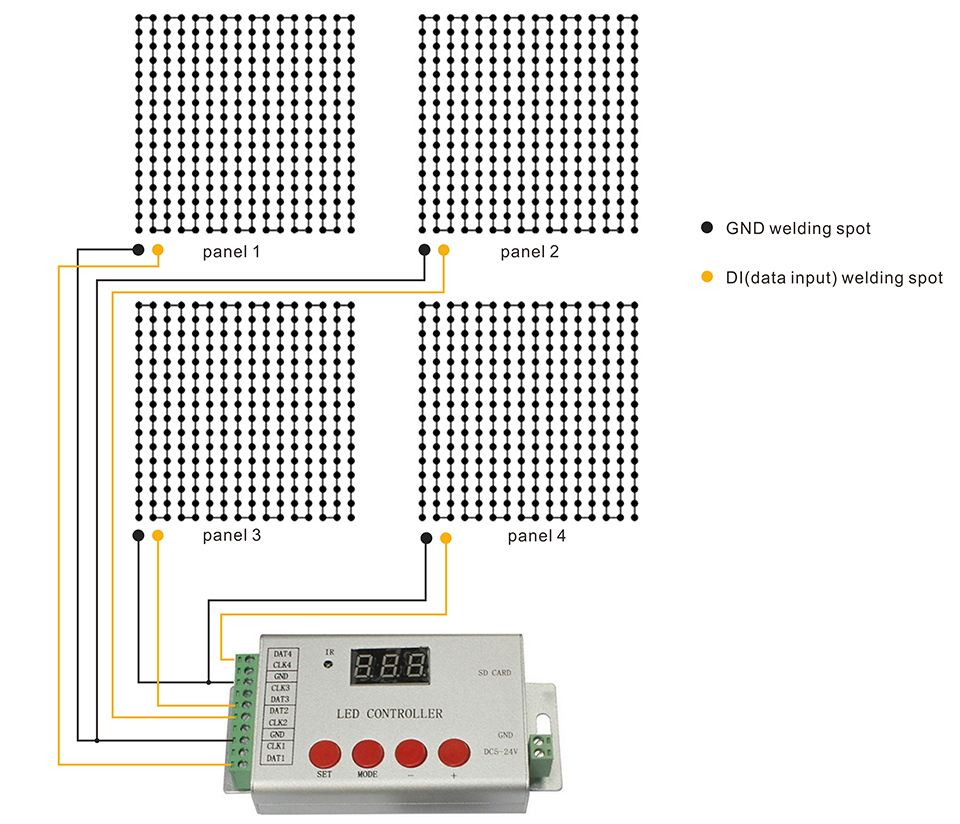

     Assume you have 4 pcs individual 16*16 (pixels) WS2812 panel, and want to put them together to make a larger display.

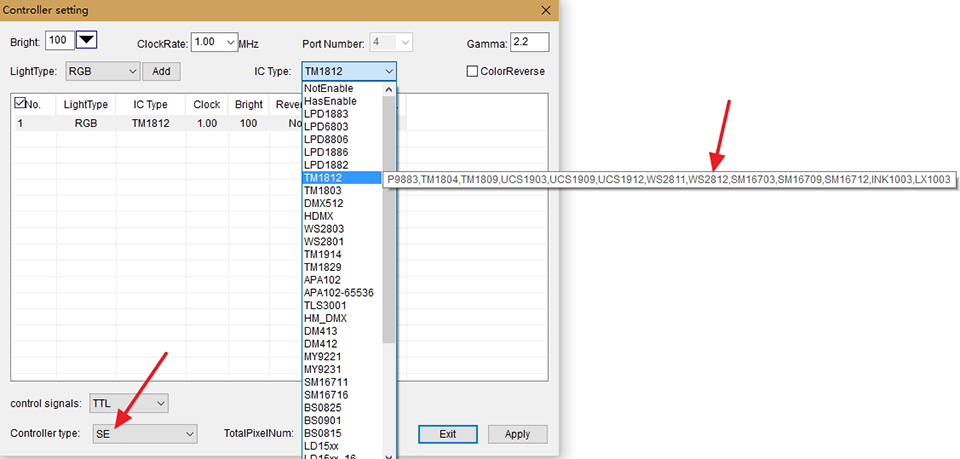

    Step 1: Use LED Build Software to program

     LED Build Software download:  https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ

     LED Build Tutorial Video download: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA

     Video especially for H802SE download: https://drive.google.com/open?id=0B1gzqyV6hfOgMU9xNXZYLXUwVDA

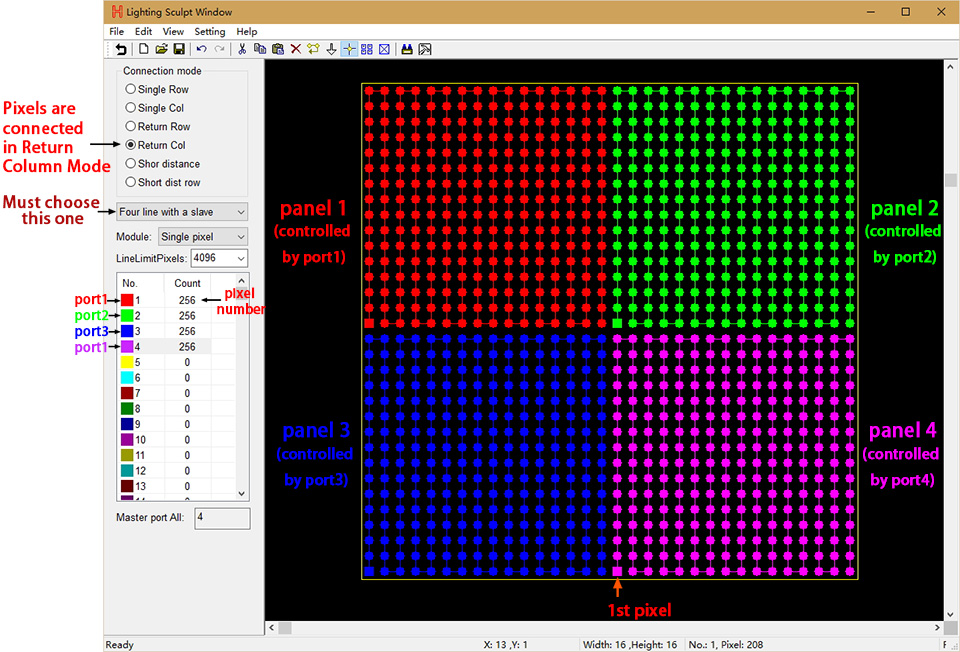

    (1). Place Pixels



    (2). Light Setting

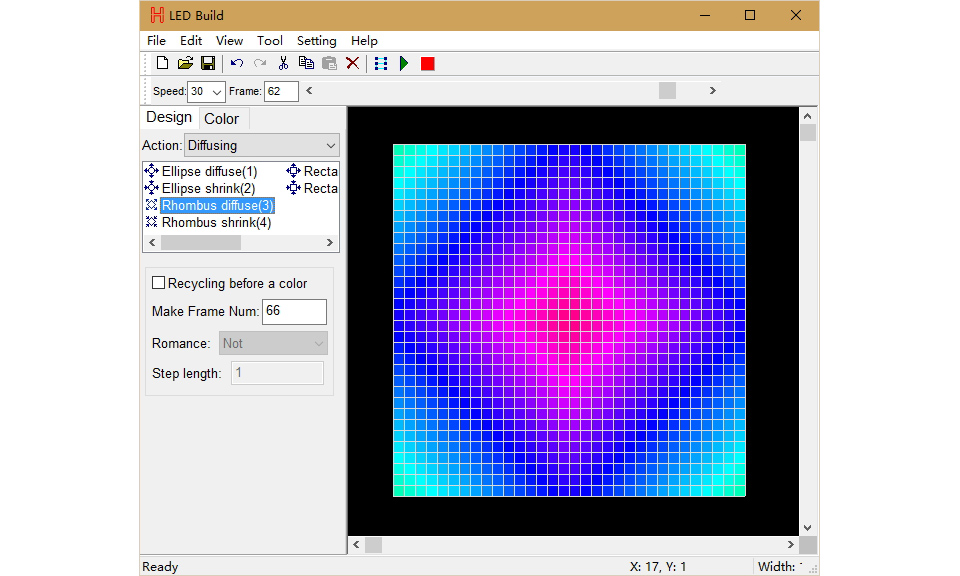

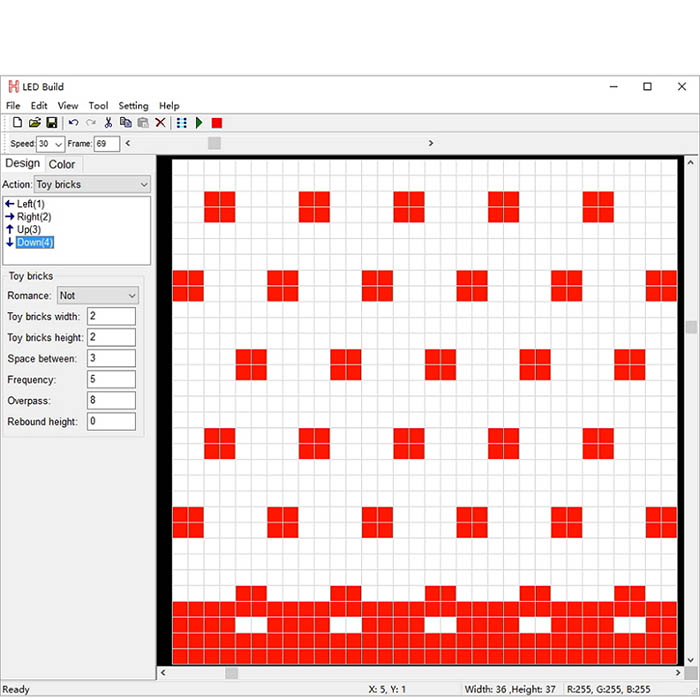

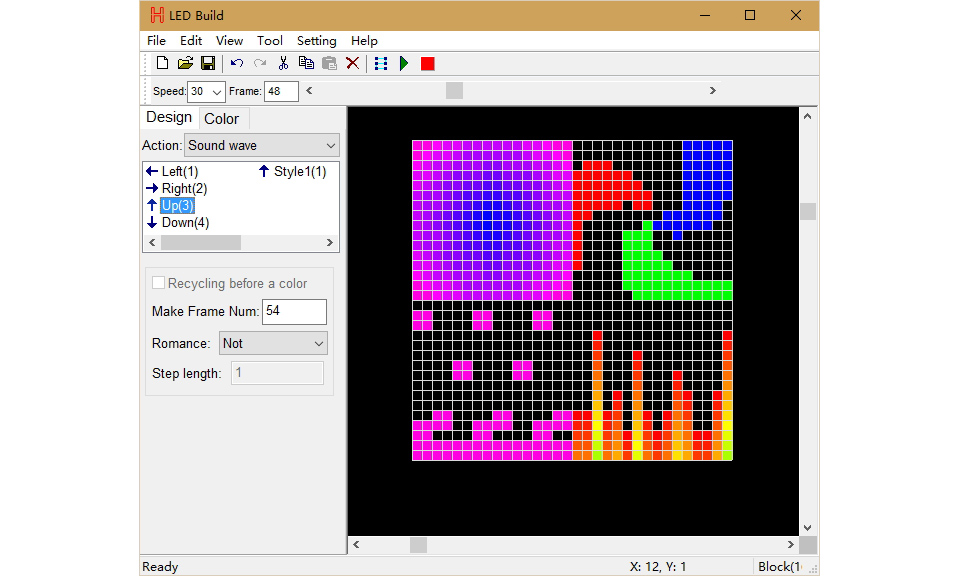

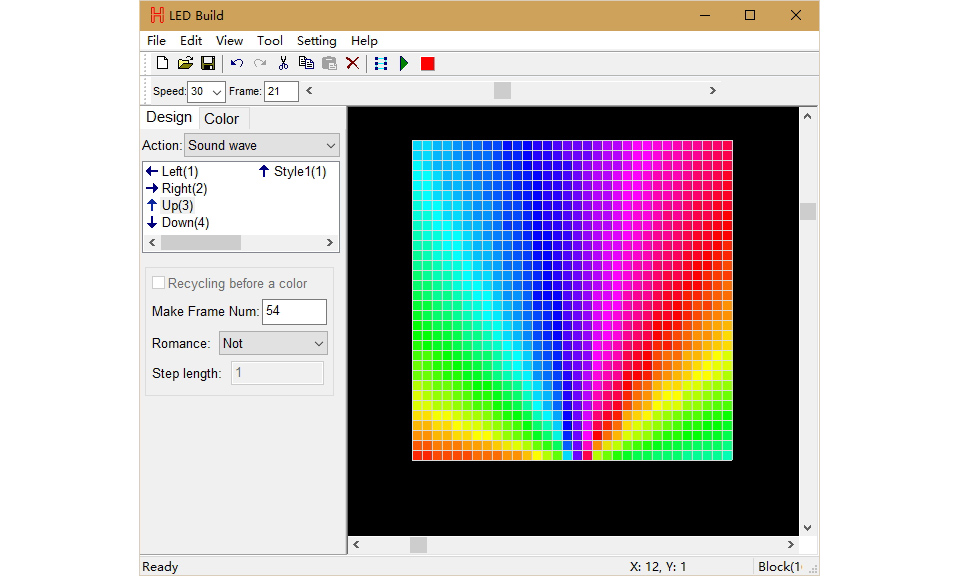

    (3). Make Effects

    Effect for each panel could be different

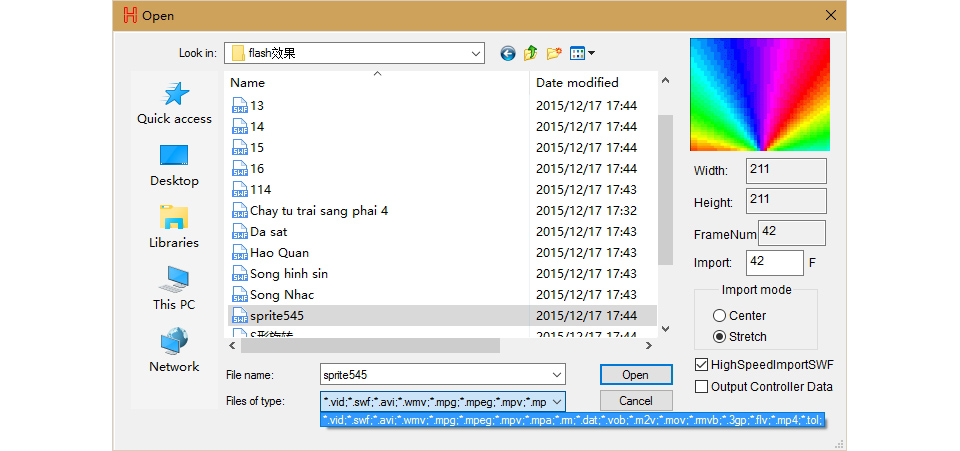

    You can also import video

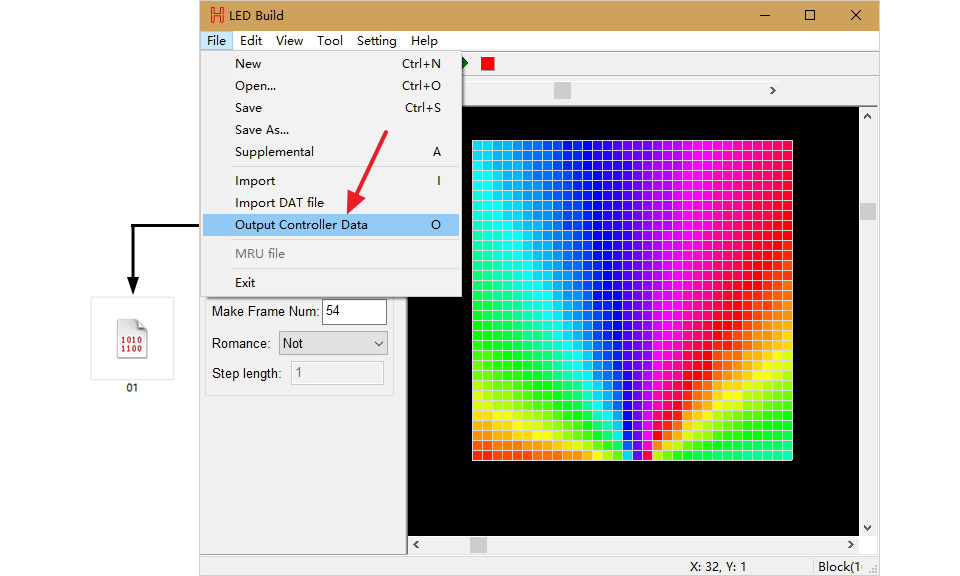

    (4). Output controller data and put it into SD card

    For more details, please refer to the video post above.

    6. Set DMX address for DMX512 chips (TM512, UCS512, etc)

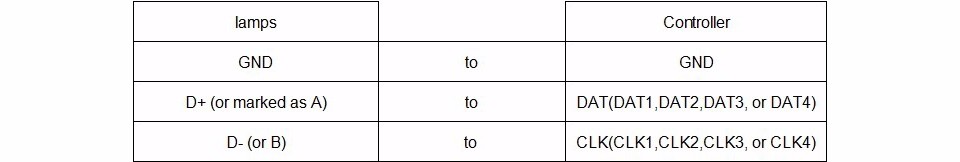

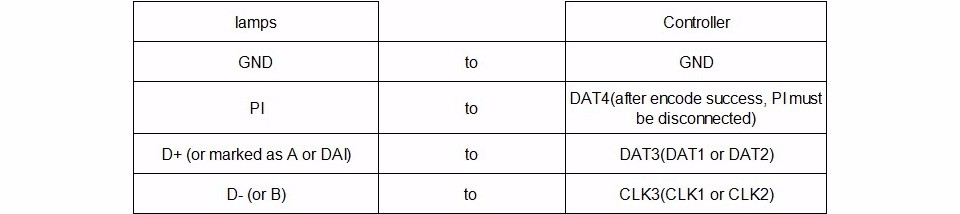

    Connection:

    UCS512
    For other chips

    Workflow:

    Use buttoons

    Step 1. Power controller on with or without SD card.

    Step 2. Press "MODE", then press "+" or "-" to choose chip.

      TM512 and UCS512: C01

       DMX512AP: C03

       SM1651x: C04

      UCS512C: C06
    Step 3. Press "MODE" to set channel number occupied by each chip, press "+" or "-" to modify.


    Step 4. Press "MODE", enter the starting chip number(which chip you want to start encoding with).

    Step 5. Then press "SET". After a few seconds, UCS512 and TM512 lamp will turn white then green. Repower lamps, address will be updated.





    H802SE can encode for 800 pixels each time.

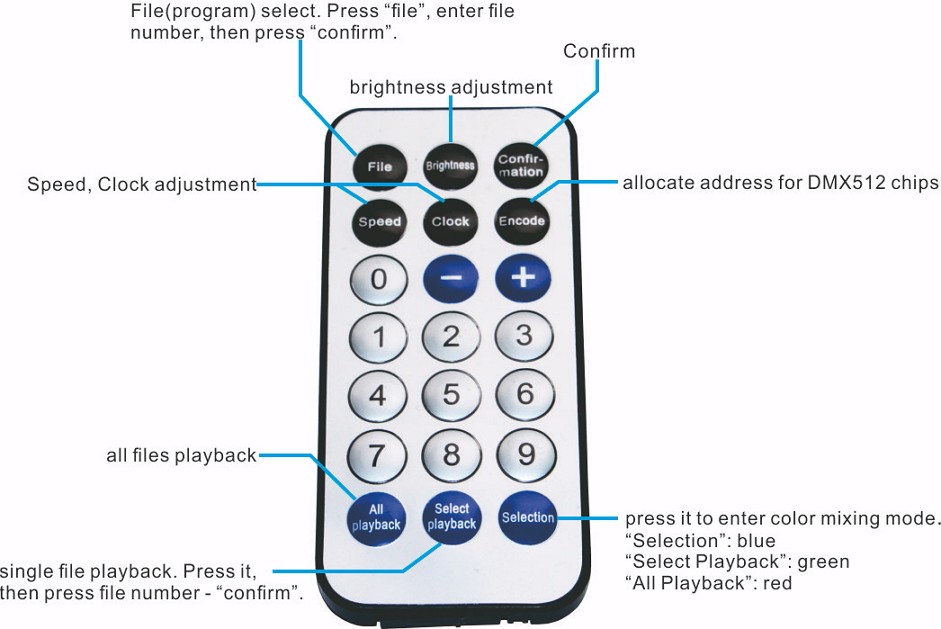

    Use remote control


     Press "Encode" to enter step 2, use those digital buttons to set chip type.

     Press "+" to enter step 3, set channel number with digital buttons.

     Press "+" to enter step 4, set starting chip number with digital buttons.

     Then press "confirm".

     Remember to repower the lamps.

     7. Specifications

    Input Voltage:   DC 5~24V

    Power Consumption:   0.8W

    Control Pixels Number:   6144

    Weight:   0.15KG

    Dimension:   L132 x W71 x H24

    Carton Size:   L150 x W82 x H38

    8. Techinical Support
