DC5V,Max 2048 pixels,M-1000 Series Pixel Module Full Color Music Controller Support Voice Control with SD Card for Programmable/Addressable IC LED Lighting
1. Support music control and the lighting effect can change according to the rhythm of the music.

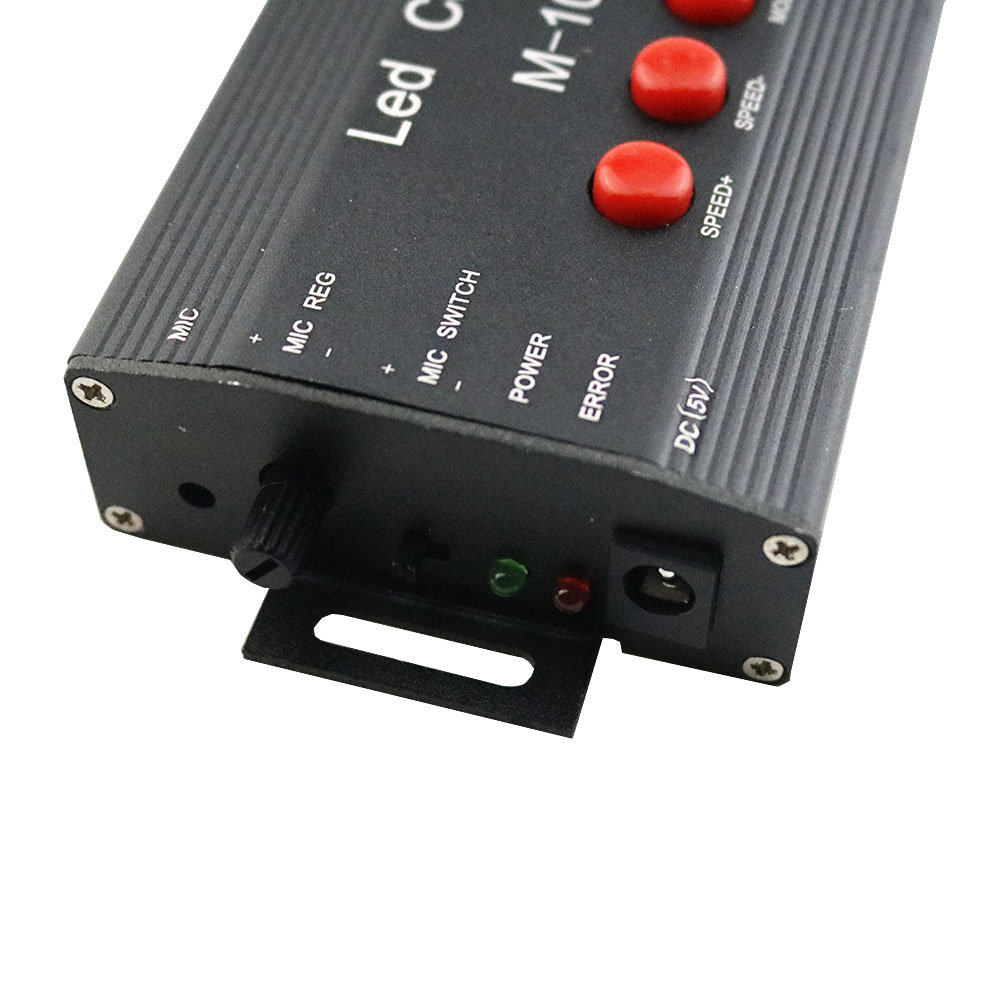

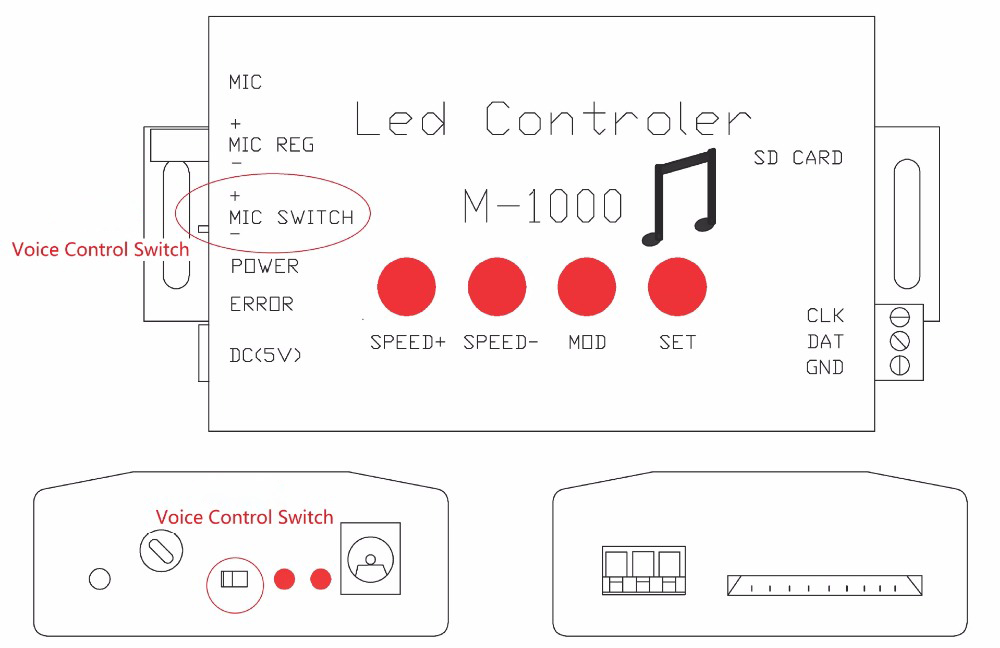

2. Support switch between voice control and non-voice control.

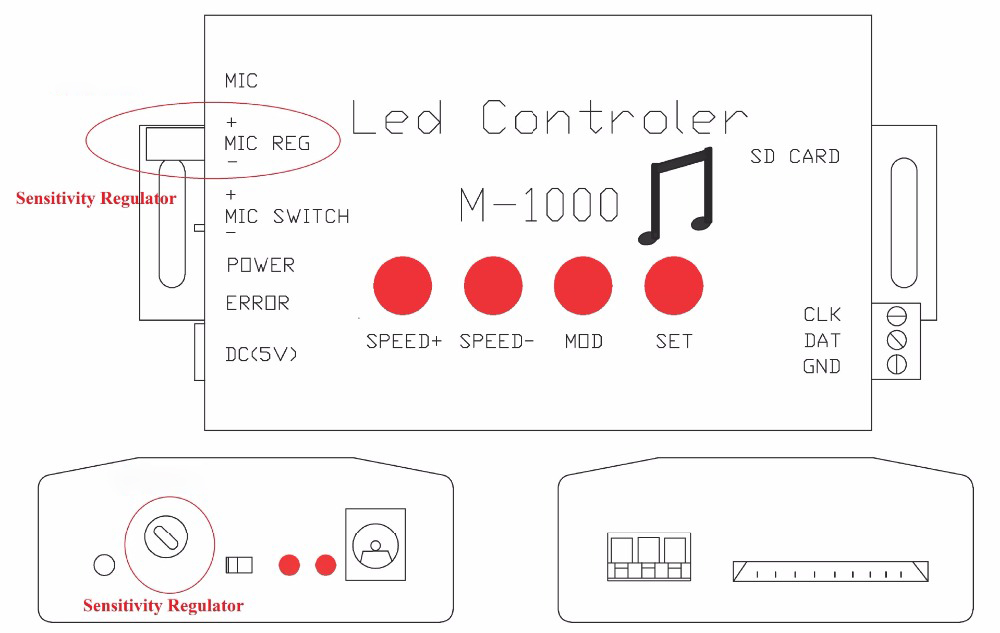

3. Support the sensitivity control of voice control.
4. After the end of the music, the lights will be darkened during the interval time.
5. 32-65536 level grayscale control, software Gamma correction processing.
6. Support various point, line and surface light sources, support various rules and irregular processing.
7. The controller has single output, the port can carry a maximum of 2048 pixels.
8. Offline control, playback content stored in SD card.
9. M-8000 can store up to 16 files, which can be successively copied to SD card.
10. Stored in SD card effect should be named successively: XX_00. BIN, XX_01.BIN, XX_02.BIN.
11. Compatible with single and double line IC, CLK clock line need not be connected when connecting single line IC LED lights.
12. This M-1000 controller runs at DC 5V.

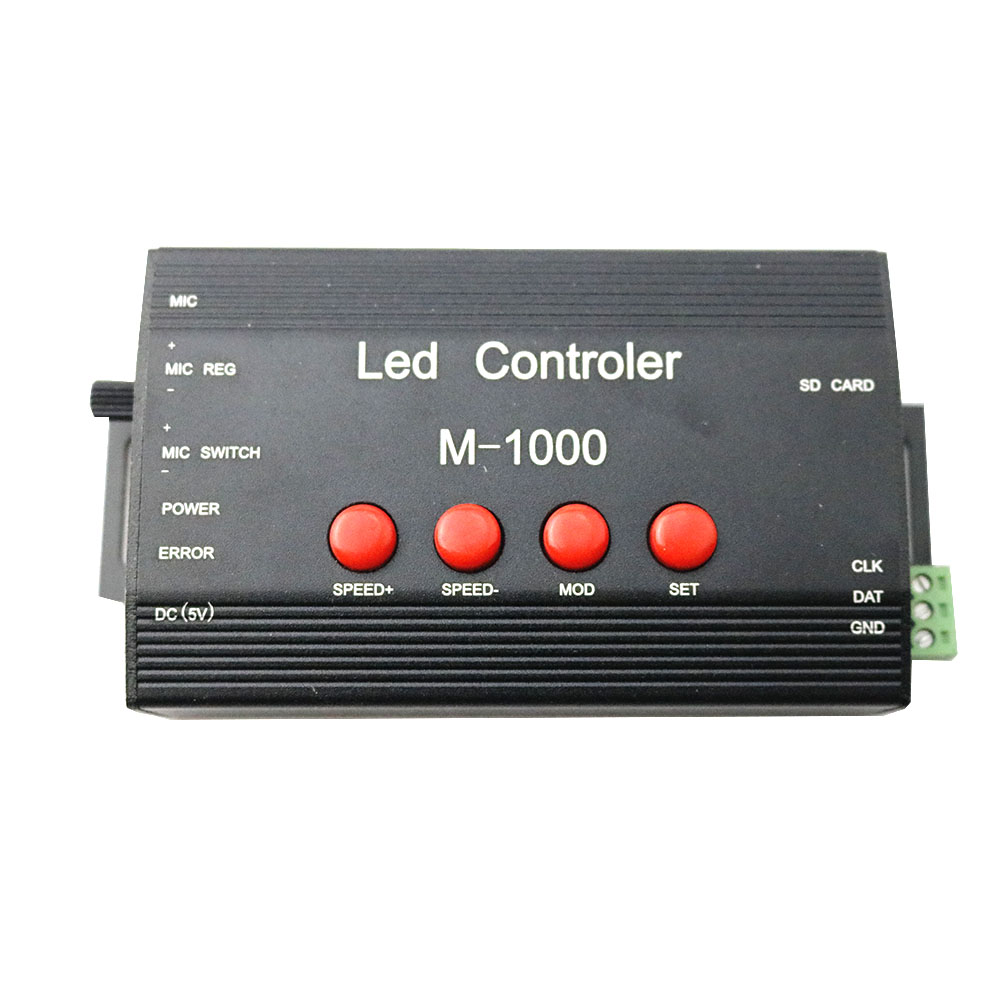

Model Number: M-1000
Item Type: RGB Dream color Music Controler
Warranty: 3 years
Voltage: DC5V 1 channel
Working temperature: -30°C ~ +85°C
Working voltage: DC5V

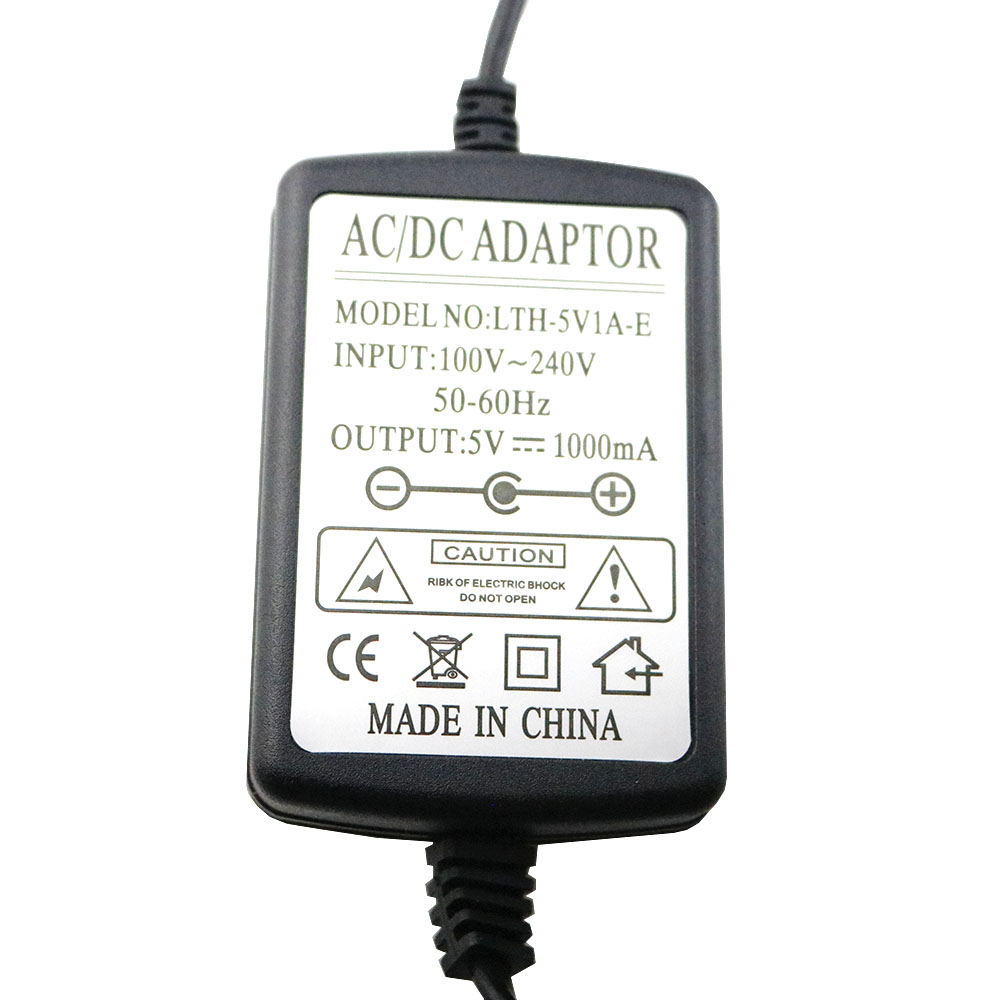

Input Voltage: 110-240V AC

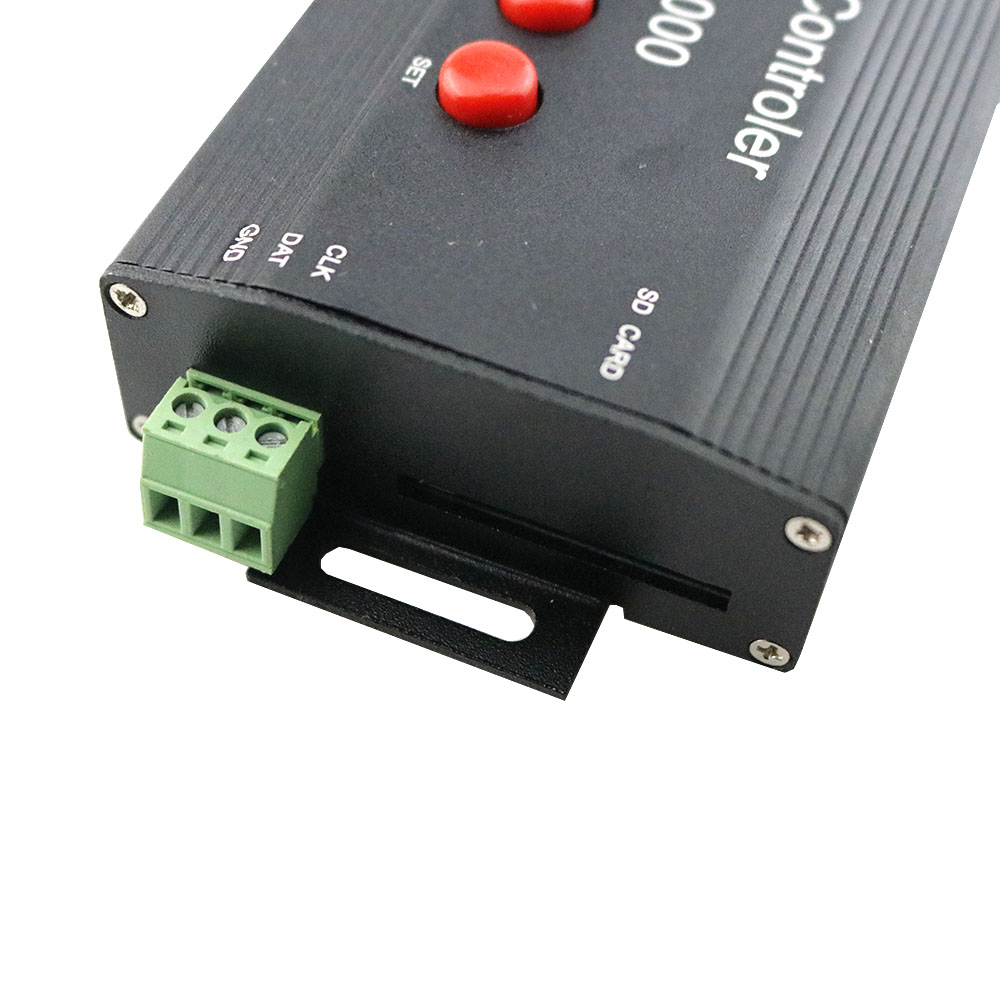

Signal port: 3pin connect port
Memory card type: SD card suggest using high-speed SD card
Memory card Format: FAT
Memory card Store file: *.led
Supply voltage of this product is 5 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

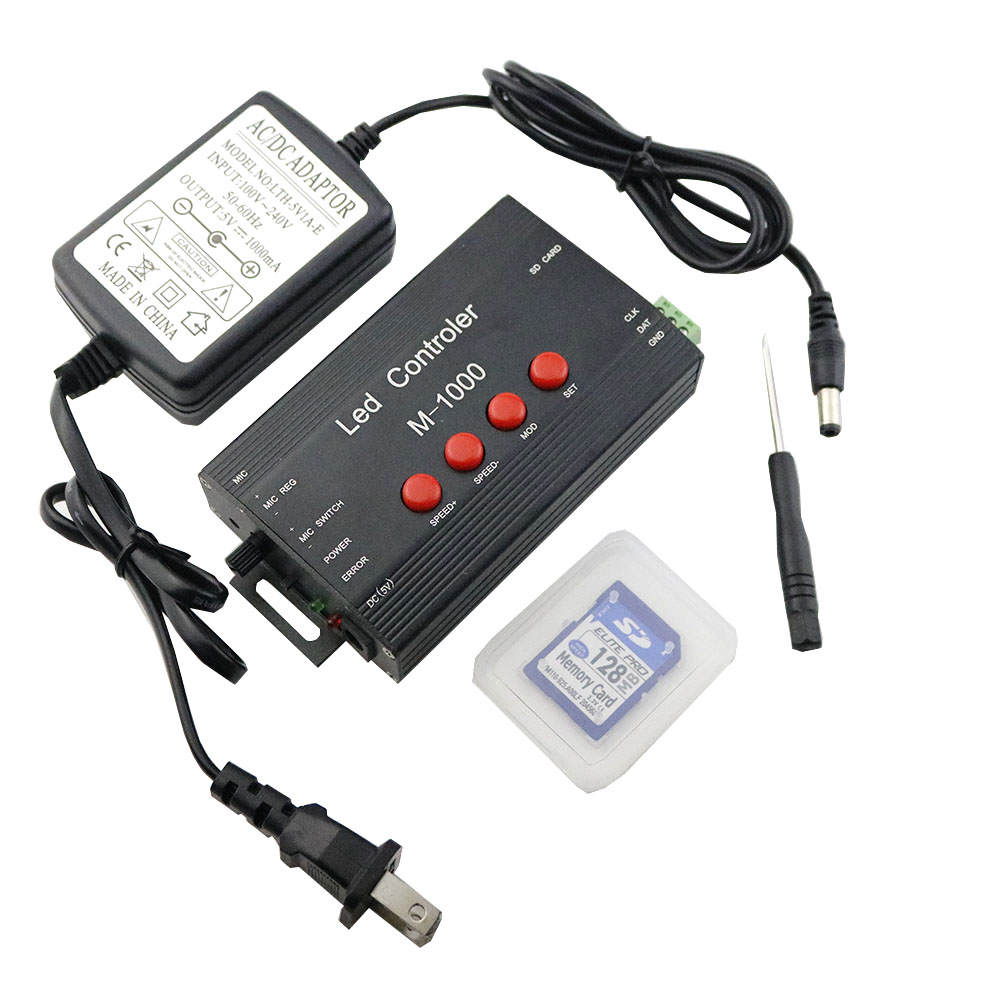

1x M-1000 controller

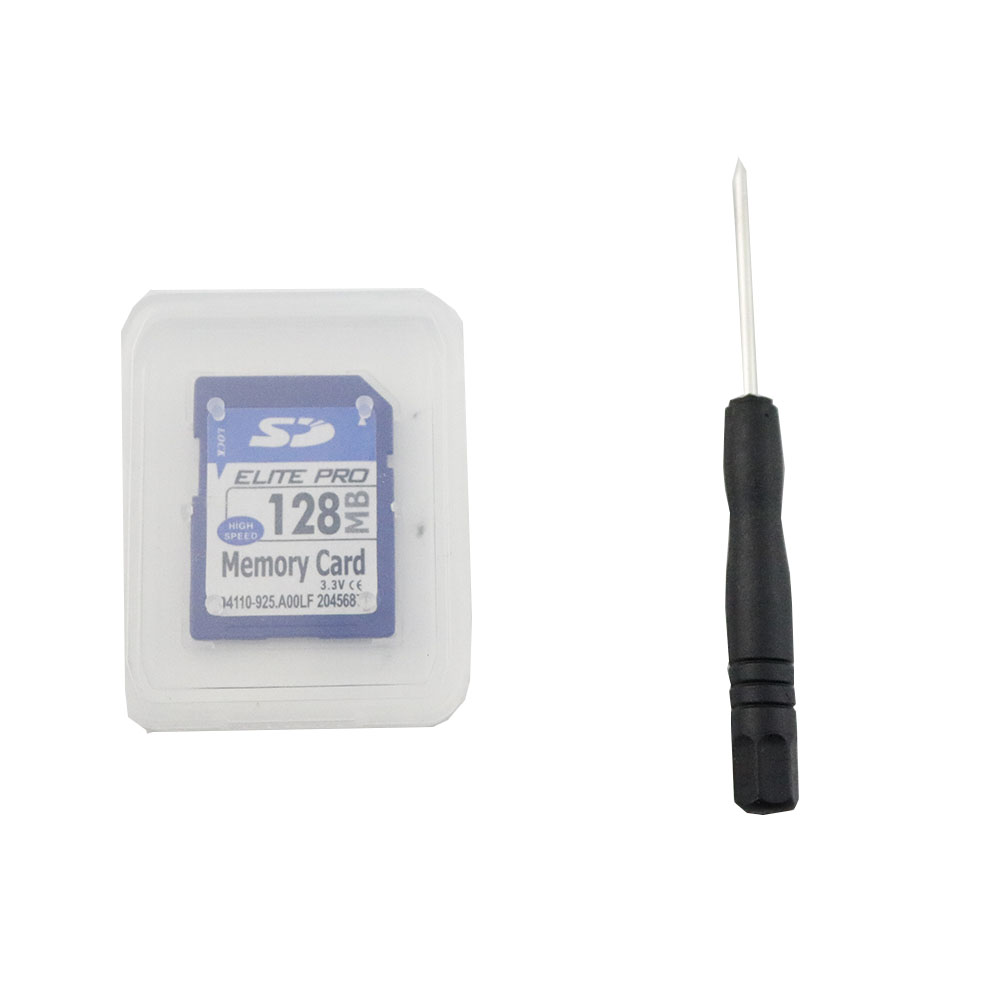

1x SD Card
