DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip
  • DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip
  • DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip
  • DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip
  • DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip
  • DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip

DC12-24V led controller support WS2812,WS2811,APA102,DMX512,etc.1 port control 4096 pixels,wireless controller,remote control For digital pixel led strip

Model: CONFULL-H805SB

$49.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applied to:



Qty Discounts Off Price
1-4
$49.98
5-9
$47.48
10-19
$44.98
20+
$39.98
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Power Source:DC

    Certification:CE,RoHS,CCC

    Applicable Lights:lamps with driver chips

    Controled Method:SD card

    Voltage:12-24V

    Remote Distance:10M

    Warranty:1 year

    Features:infrared receiver

    Max. Load Power:100W

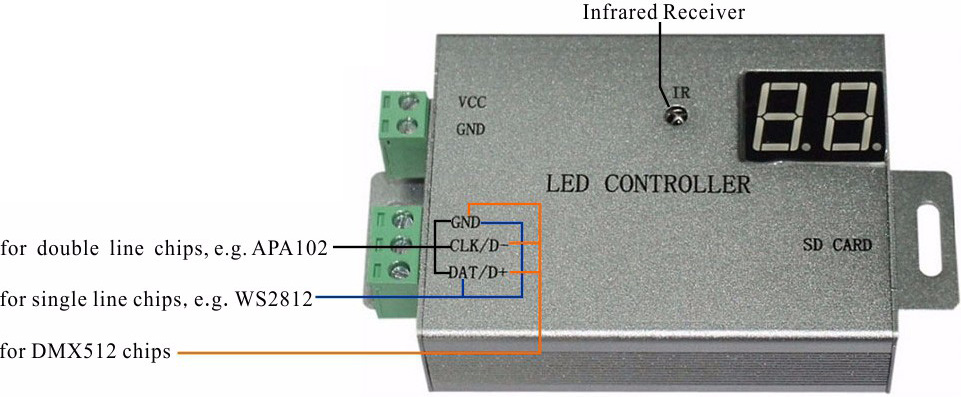

    Connection Mode:GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)

    Model Number:H805SB

    Material:metal

    Wattage:1

    drive pixels number:4096

    port number:1



    The strip in video is WS2812B RGBW.

    1. Features

    (1). One port drives maximum 4096 pixels.

    (2). SD card supports FAT32 and FAT16 format, stores maximum 64 files(format is .dat).

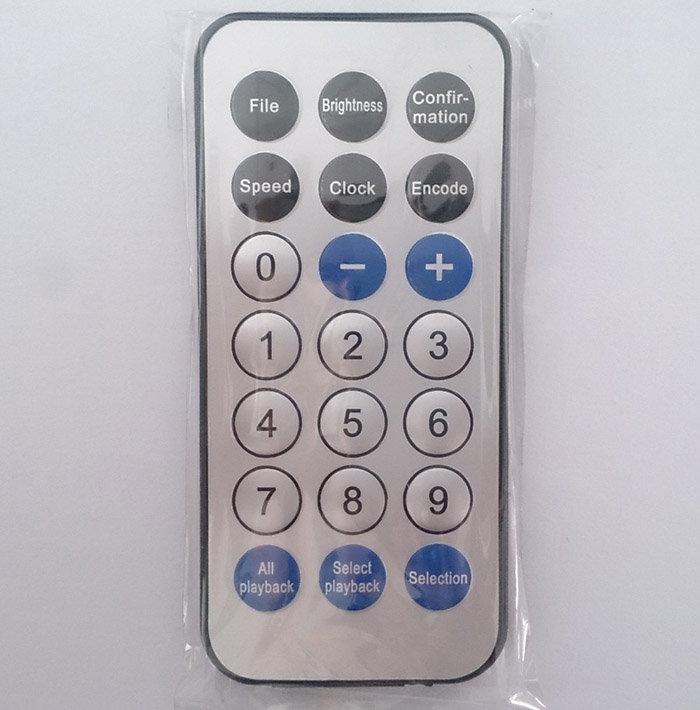

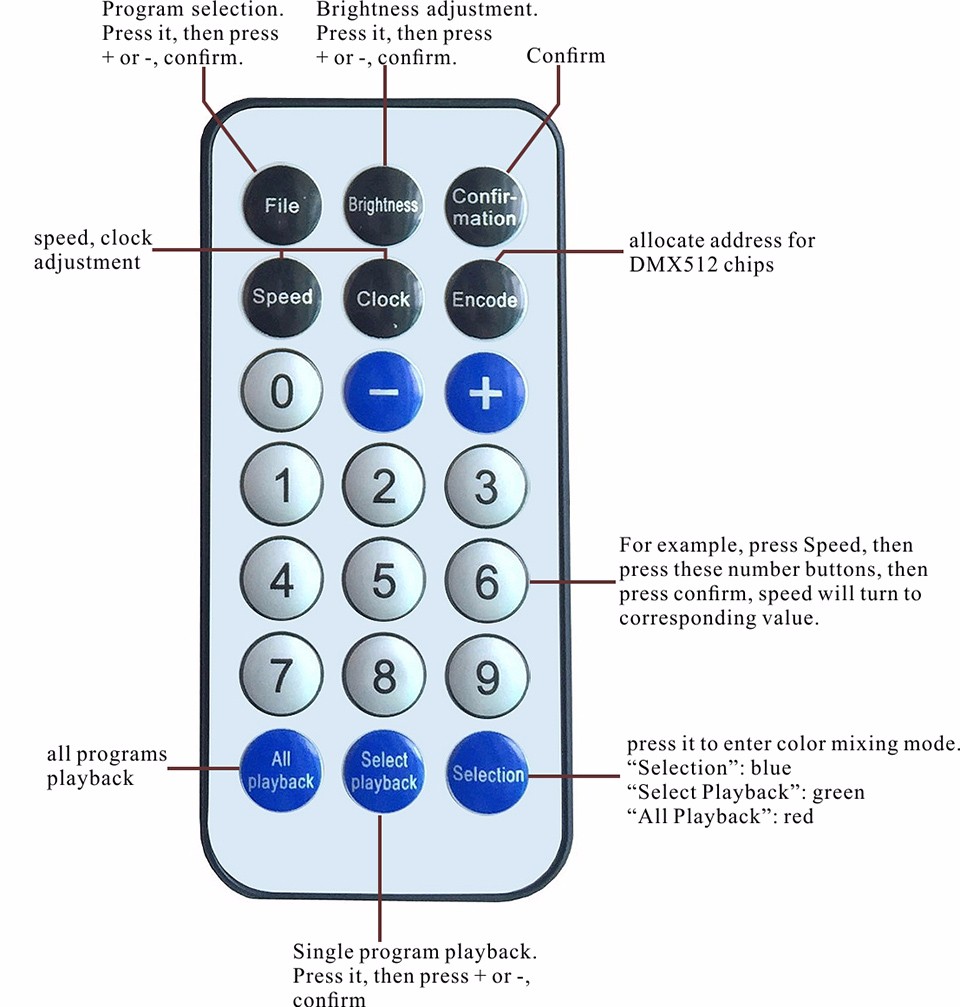

    (3). You can switch files, adjust brightness, set clock frequency and play speed by remote control.

    (4). H805SB supports dozens of chips

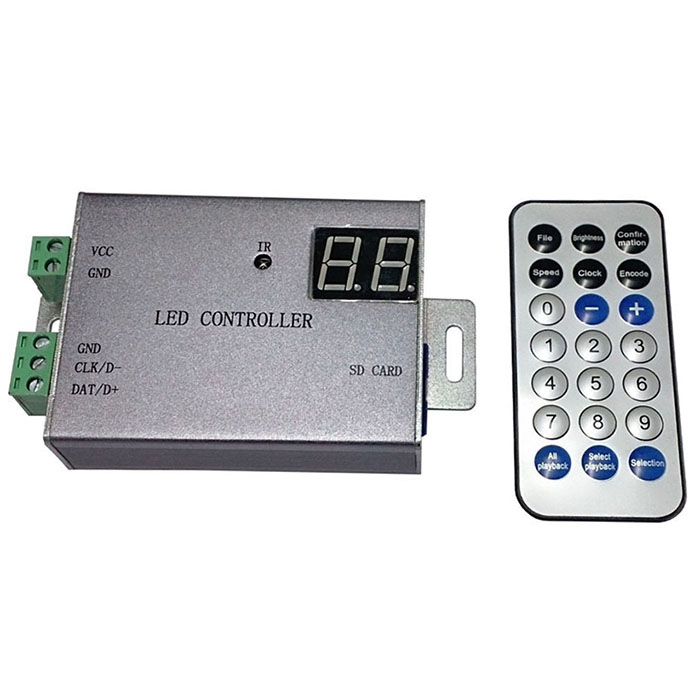

    2. Product Display






    3. Supported Driver Chips

      LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, UCS1903, UCS1909, UCS1912, WS2811, WS2812, TM1803, TM1804, TM1809, TM1829, TM1812, TA9912, TM1913, TM1914, TM1916, TM1926, SM16711, INK1003, LX1003, LX2003, LX2006, TLS3001, TLS3002, LPD6803, LPD8806, LPD6813, DMX512, HDMX, APA102, APA104, UCS6909, UCS6912, WS2801, WS2803, DZ2809, P9813, P9816, P9823, SM16716, LD151x, LD153x, MBI6021, MBI6023, MBI6024, etc.

      Note: H805SB can support more than the chips listed above(some chips have the same sequence diagram, for example: UCS512 and WS2821 have the same protocol(DMX512), H805SB supports them all).


    4. Workflow

      For example you have a 32*32 (pixels) WS2812 panel

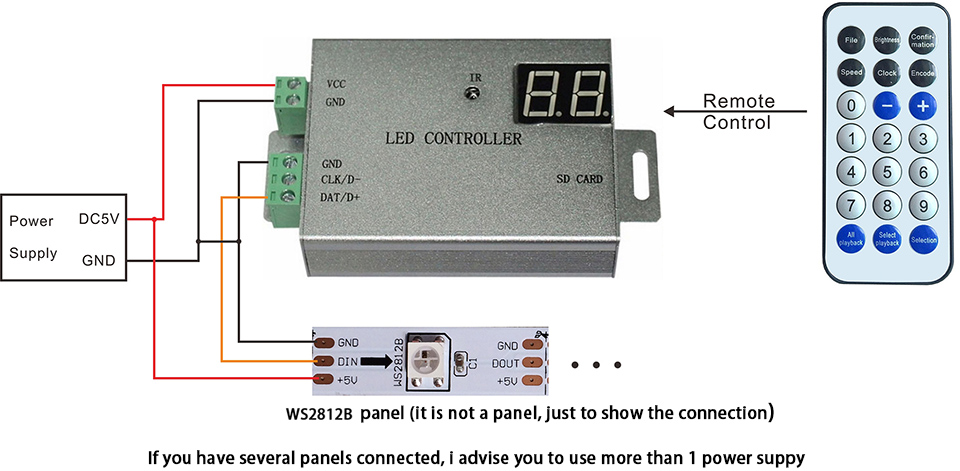

      Step1. Set them up

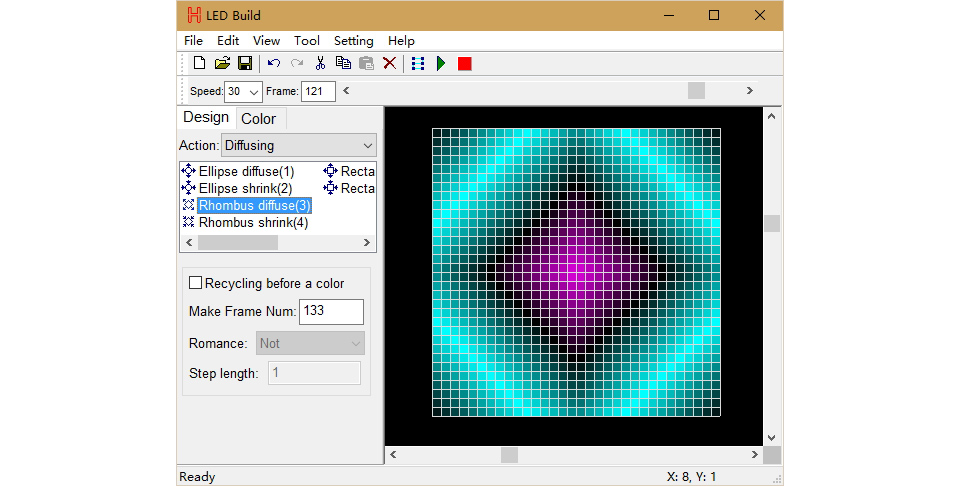

    Step2. Program with LED Build Software

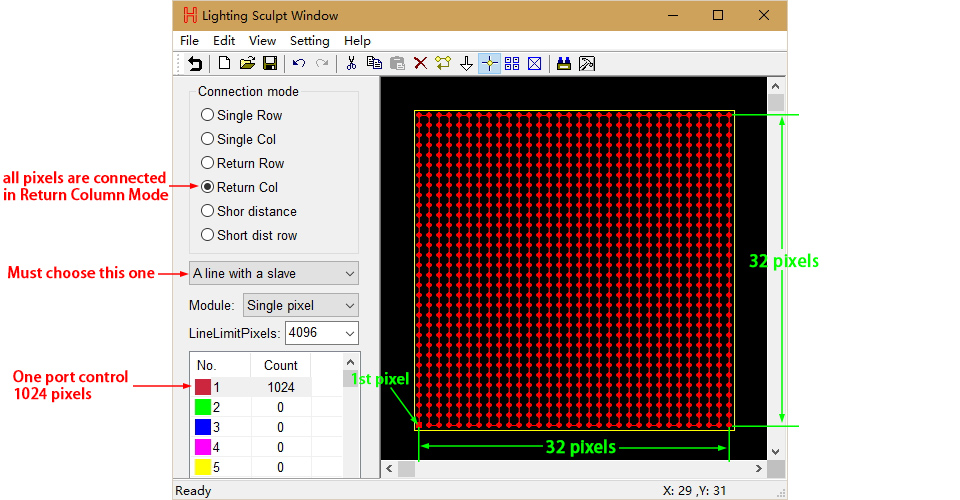

     (1). Place Pixels

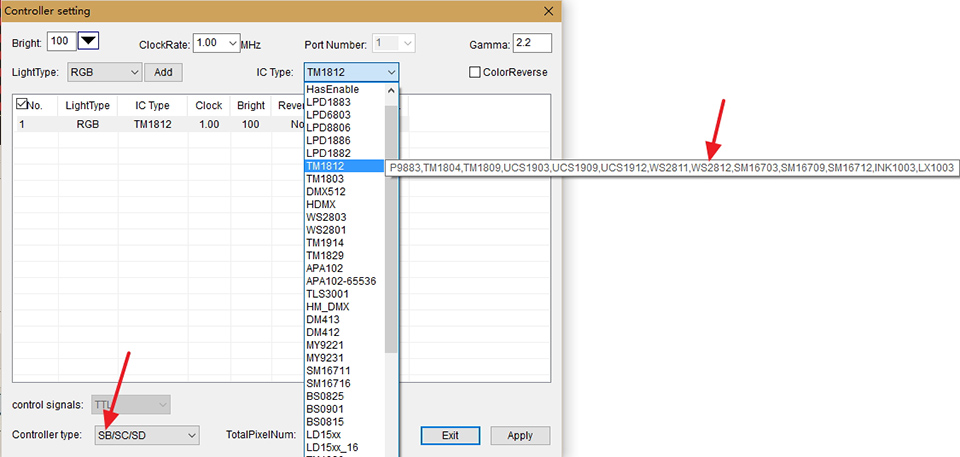

    (2). Light Setting


    (3). Make Effects

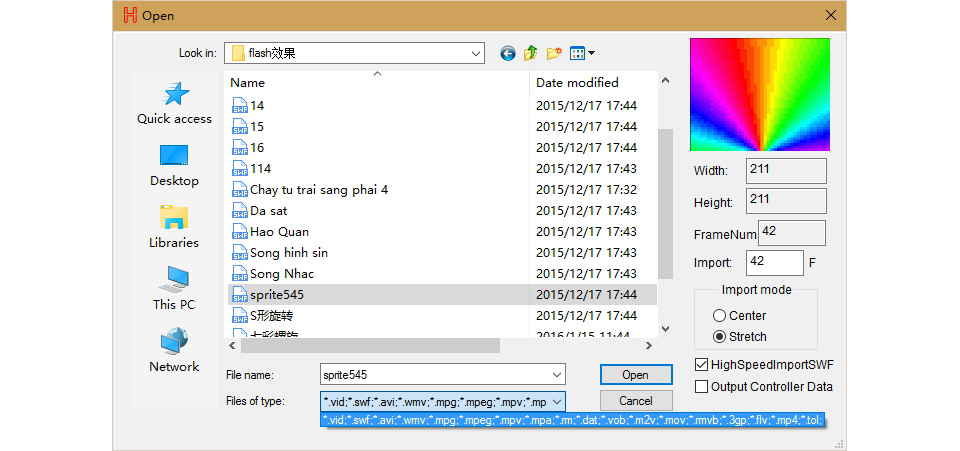

    you can import video as well

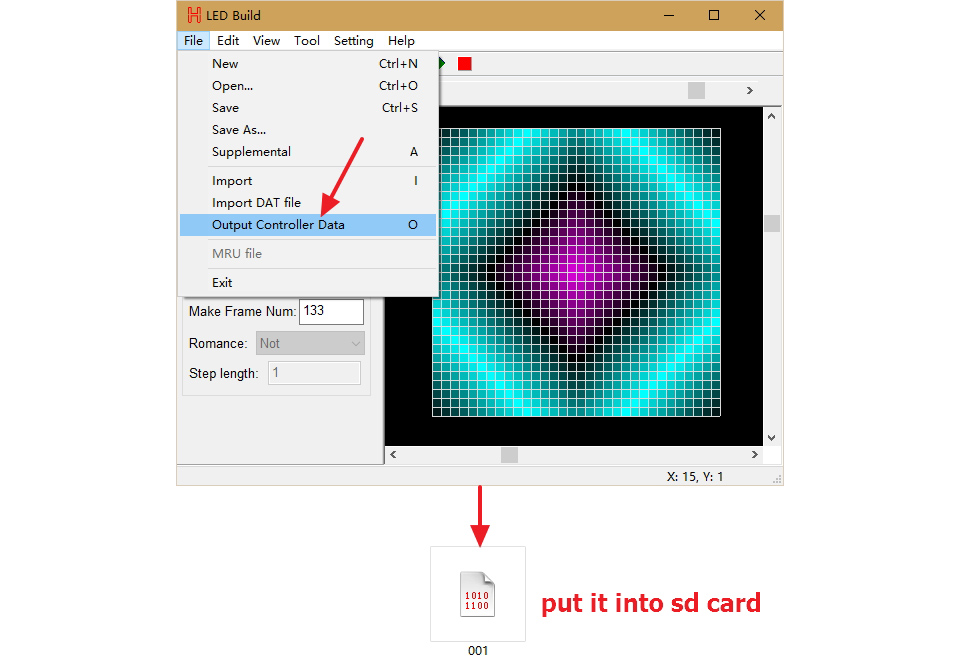

    (4). Output controller data and put it into SD card

    Step3. Power them up

      Power controller and panel up, you should be able to control them by remote control

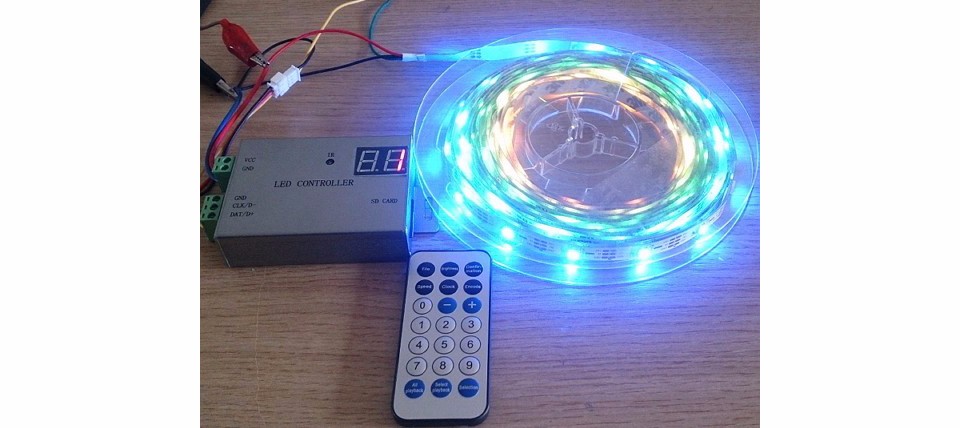

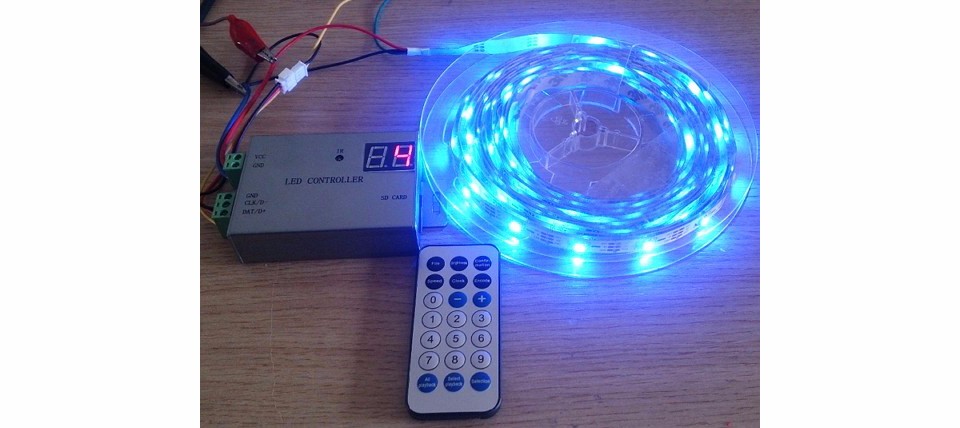

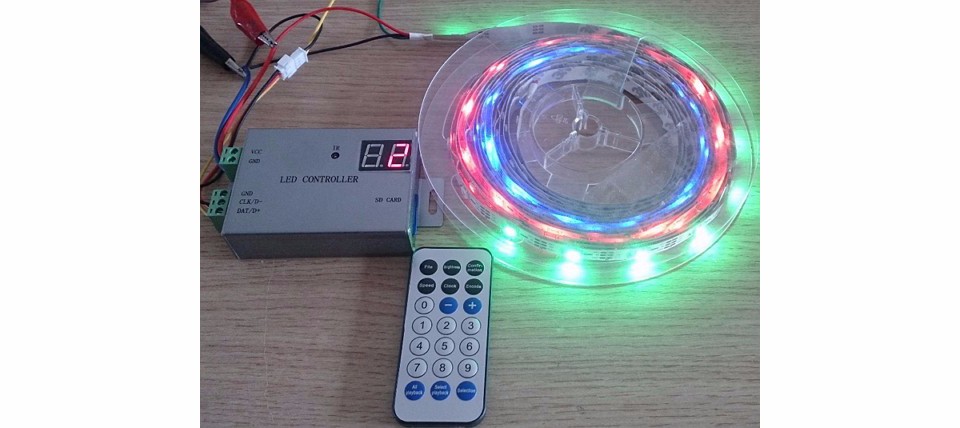

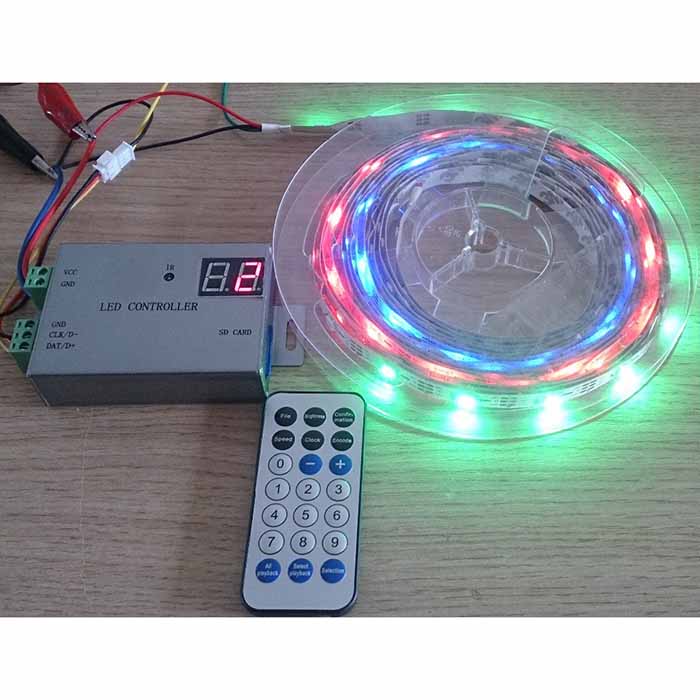

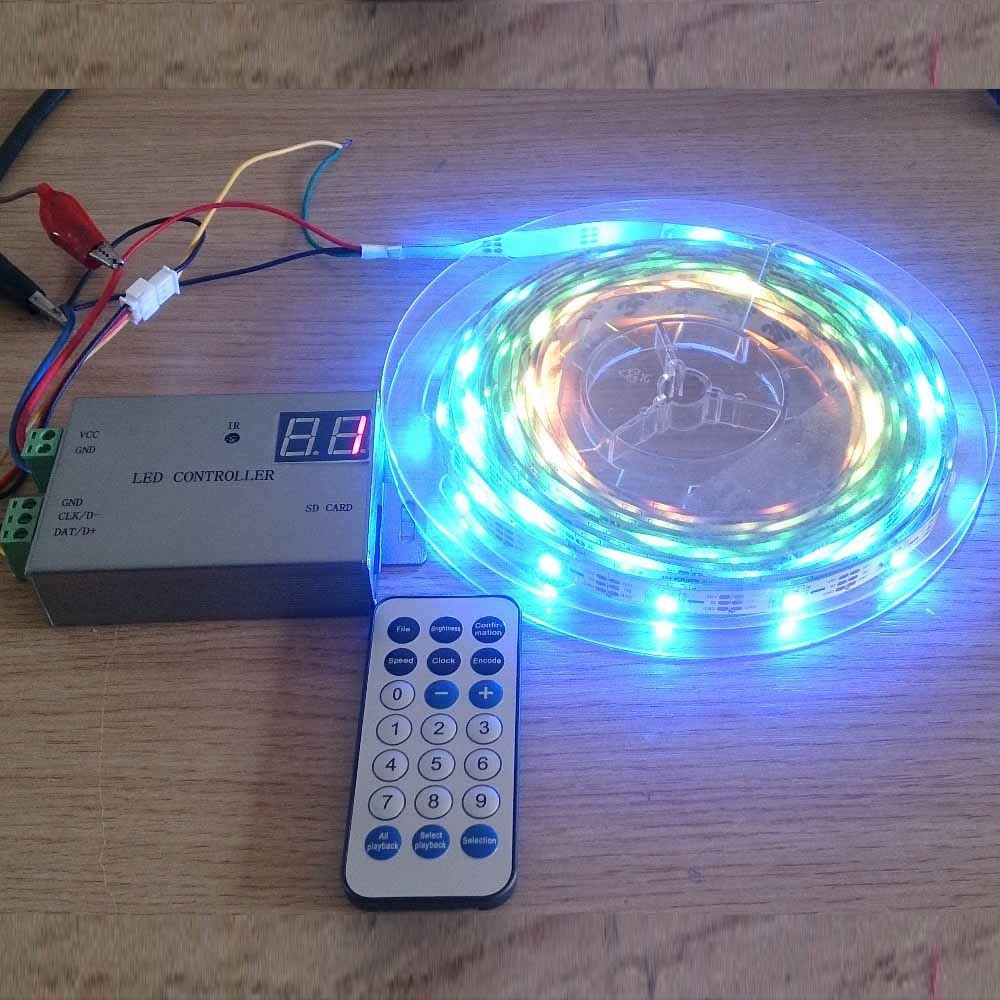

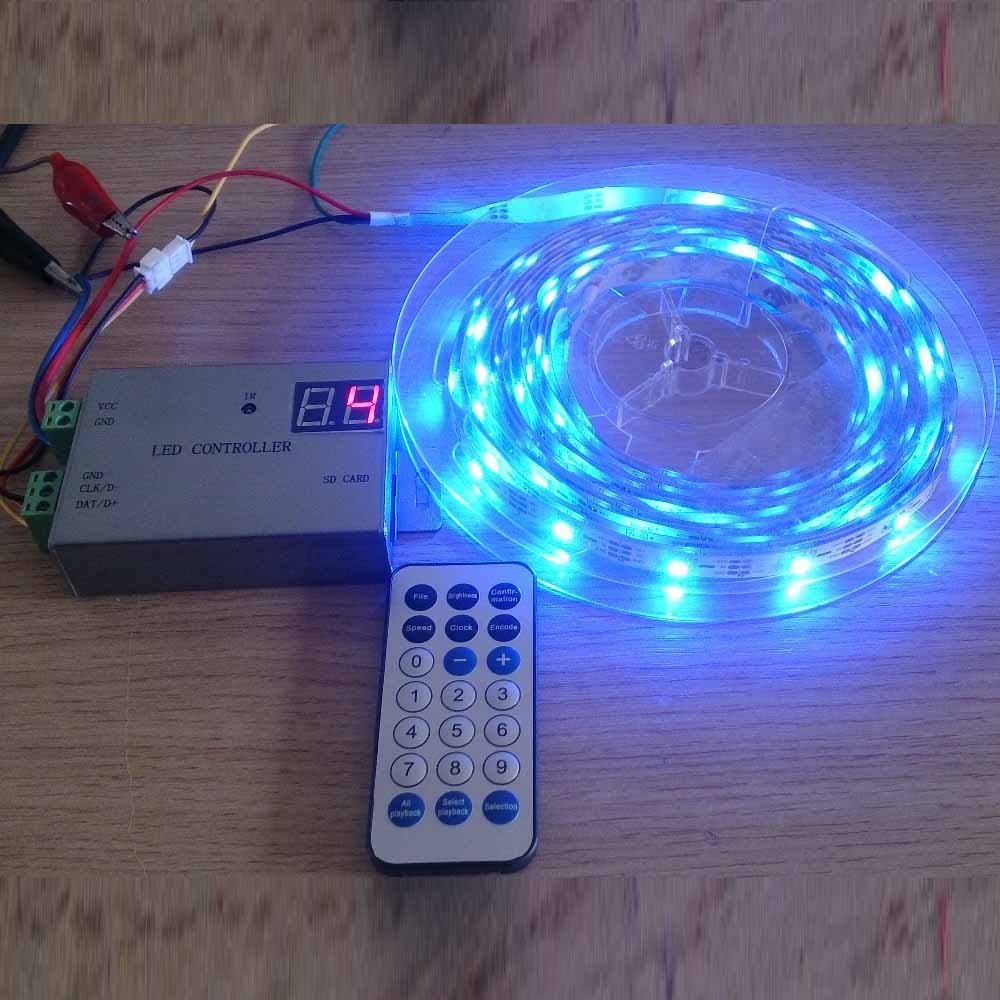

      5. Real Shot

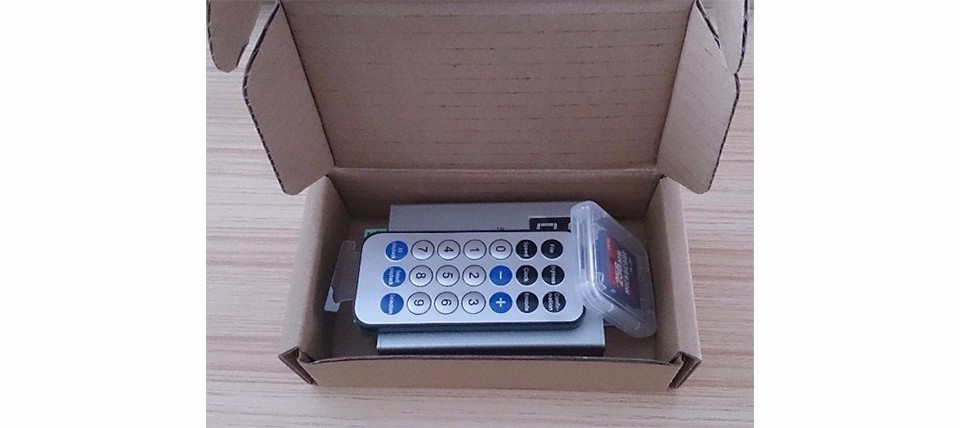

    6. Package Include:
    7. Specifications

      Input Voltage:   DC 5~24V

      Power Consumption:   0.8W

      Drive Pixels Number:   4096

      Weight:   0.3KG

      Dimension:   L70 x W45 x H19
