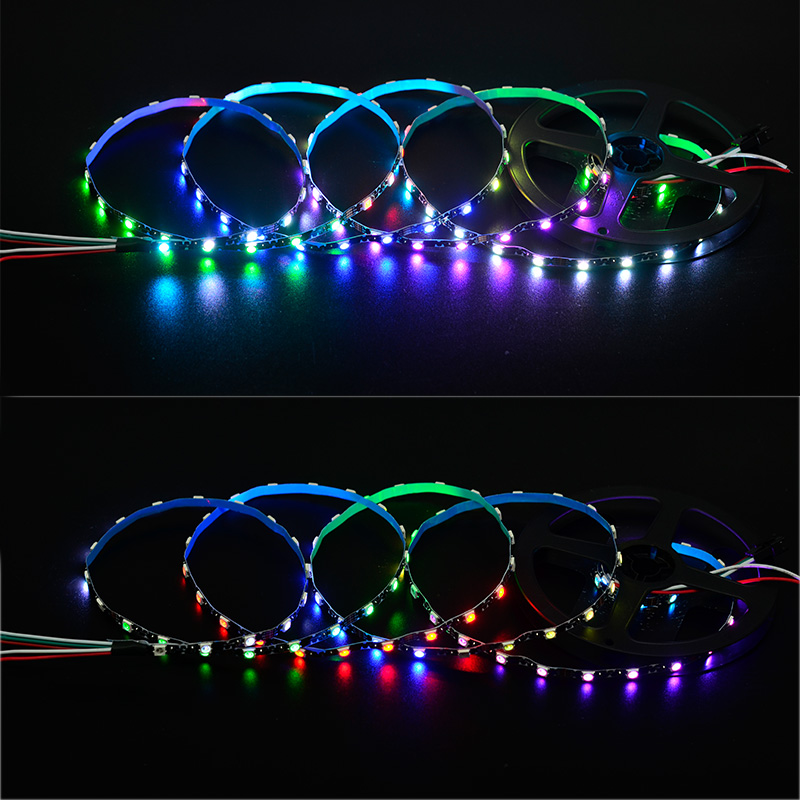

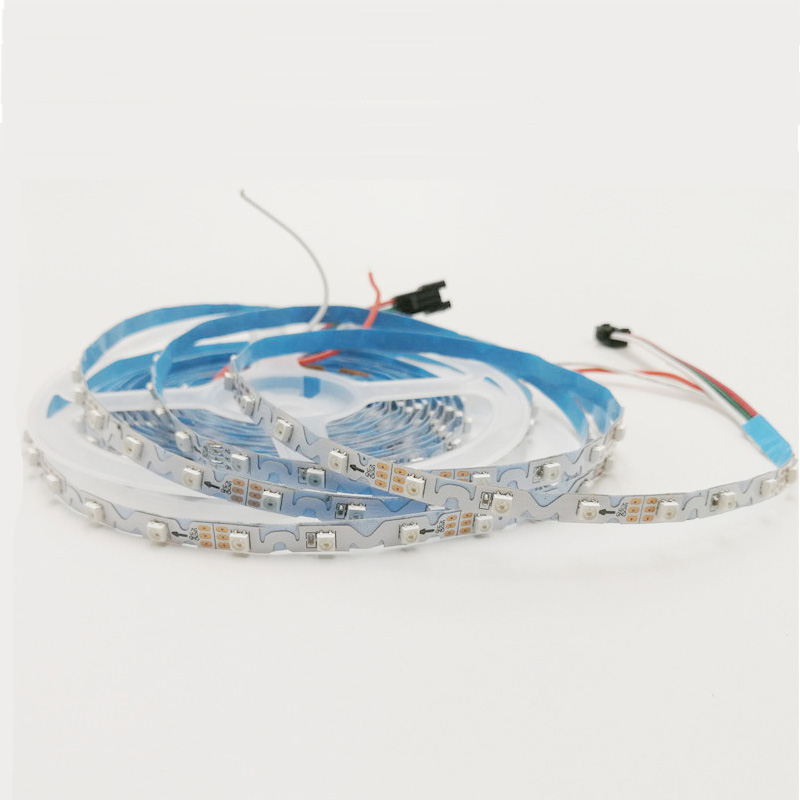

SK6805(Similar to SK6812) SMD2427 S Shape 60LEDS/M DC5V Ultra Slim 5MM-Wide Digital Intelligent Addressable LED Strip Lights
1. There are 60 Addressable RGB LEDs per meter, and 5mm wide for 60 LEDs/meter, DC5V input, and you can control each LED individually! This is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
2. Each pixel has 256 gray levels
3. The unique design of the FPC circuit board has no holes, no glue, and no leakage, and the board surface is simple and not easy to fail
4. It can be cut between each group: according to the length of use, it can be cut at the connection point of any unit to become a new circuit, and the back can be easily fixed with 3M backing adhesive.
5. Humanized reserved connectors at both ends, better and more convenient to use.
6. The luminous brightness of the product exceeds the highest of the same type of lamp beads that can be used to generate the highest light effect: such as flashing, chasing, horse racing, running water, burst flash, gradual change, meteor, jumping, clockwise running, counterclockwise running, monochrome running, color-changing Horse racing, single chase from beginning to end, running water, simulated lightning, etc .; the changing effect of this light bar is not limited to the current 300 built-in effects of the controller, which can be written according to customer needs; it can be displayed in the form of a screen, text, letters, Pictures, animations, etc.
7. Environmental protection and safety: Adopt a high-quality bright SMD2427 LED. It has the characteristics of low power consumption, low heat generation, no glare and impact resistance. Low voltage DC 5V power supply, high safety, and reliability.
8. Rich and diverse colors can be adjusted arbitrarily through the controller according to customer needs.
9. Long life span: The average life span is 50,000 hours.
10. It is convenient and free to cut and weld: each group of LEDs can form a loop, which can be arbitrarily cut off and welded along the upper tangent line to meet the requirements of various light bar lengths required by customers.
11. Softness: The soft FPCB board is used as the substrate, which can be freely docked, bent, cut and fixed on the uneven surface.
12. Light and thin: suitable for installation in narrow spaces.
SK6805 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (70% more energy saving than the neon), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC5V
Power: 4.5 watt/meter, 22.5 watt/roll
LED Chip Model: SMD 2427
LED resource: SK6805 LED
IC Type: SK6805 IC (1 IC drives 1 led chip)
Q'ty of LED: 60 leds/Meter Available
Q'ty of IC: 60 pixel /Meter
Cuttable: every LED is cuttable
Dimensions: L500cm(196.85 in ) x W0.5cm(0.19 in ) x H0.25cm(0.1 in )
FPC color: WHITE PCB
Protection rate: Non-waterproof
Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,

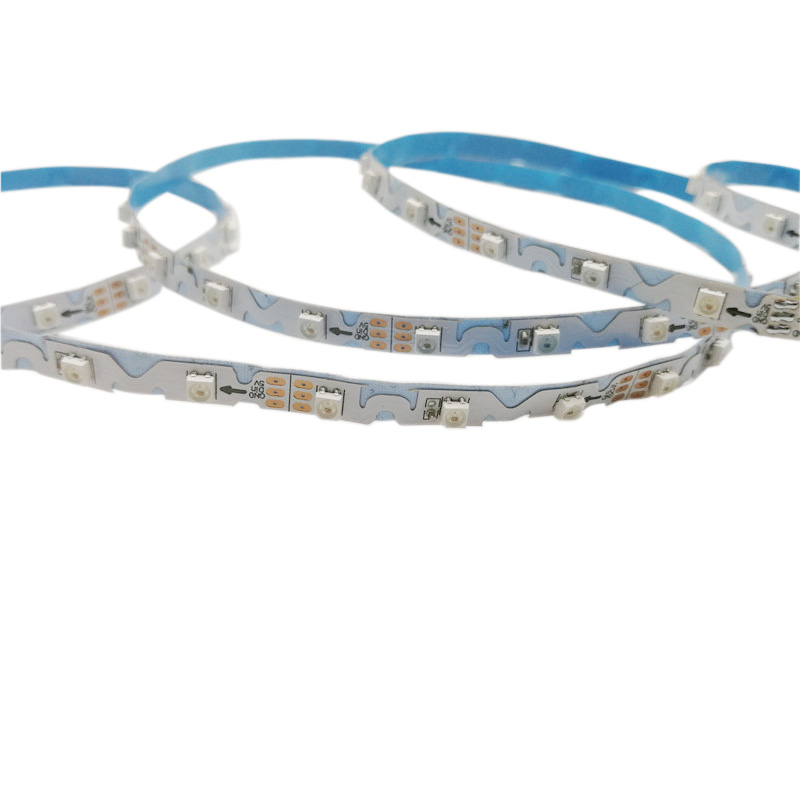

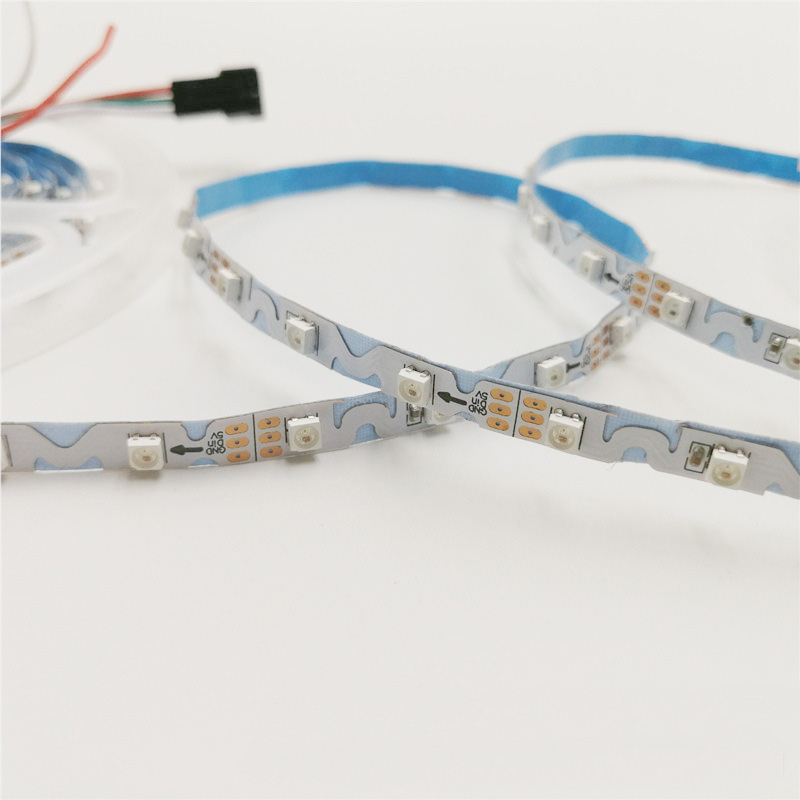

The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.
LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.
Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.
Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.
ISO9001 / 2 management model: to ensure that each product 100% qualified factory.
Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
