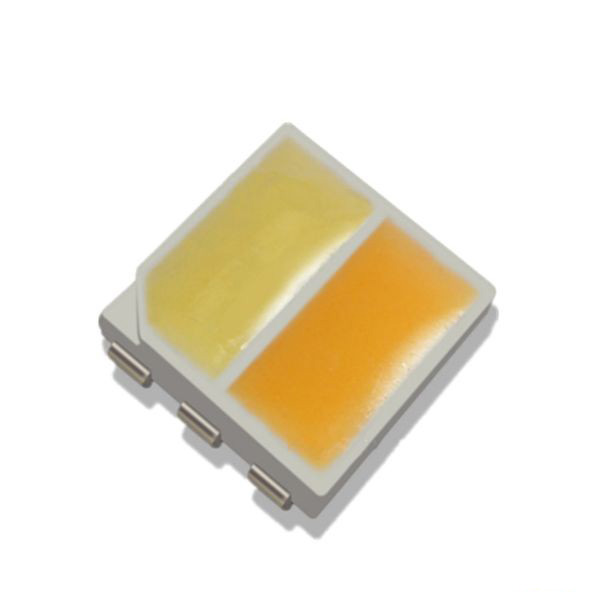

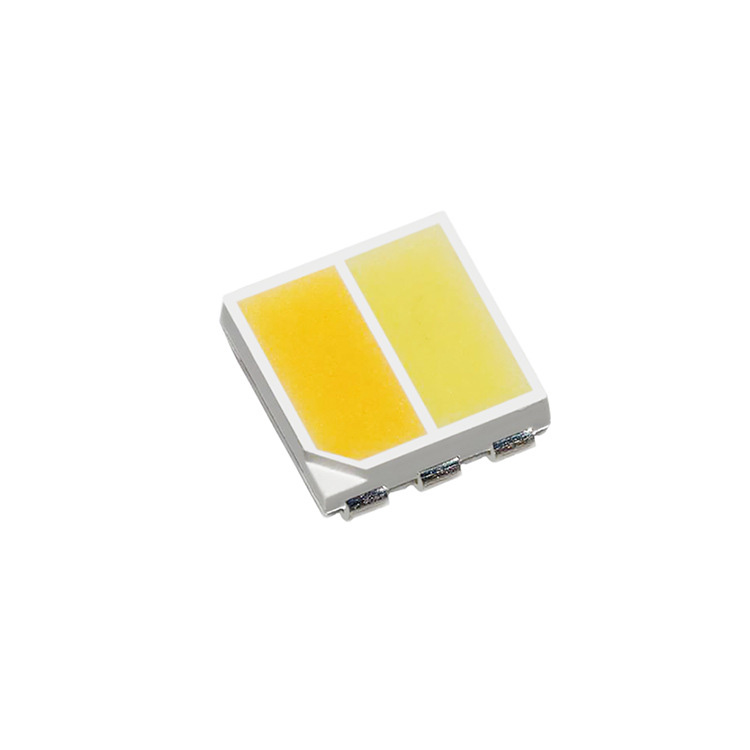

Super Bright CCT 5050SMD LED Chip - DIY LED Chip - 500PCS By Sale
The TOP 5050 series is available in soft red, orange, yellow, green, blue and white. Due to the package design, the LED has a wide viewing angle and optimized light coupling by inter reflector. This feature makes the SMT TOP LED ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premium.
The 5050 Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc.
Colorless clear window.
Ideal for backlight and light pipe application.
Wide viewing angle.
Suitable for vapour-phase reflow, Infrared reflow and wave solder processes.
Computable with automatic placement equipment.
Available on tape and reel
The product itself will remain within RoHS compliant Version.
Super bright SMD5050 LED
Standards and Certifications
LED Type: SMD5050
Luminous Color: CCT
Forward Voltage: 3.0-3.8V
Forward Current: 100mA
Color Temperature: 3000K+6000K
LED Chips: Epistar

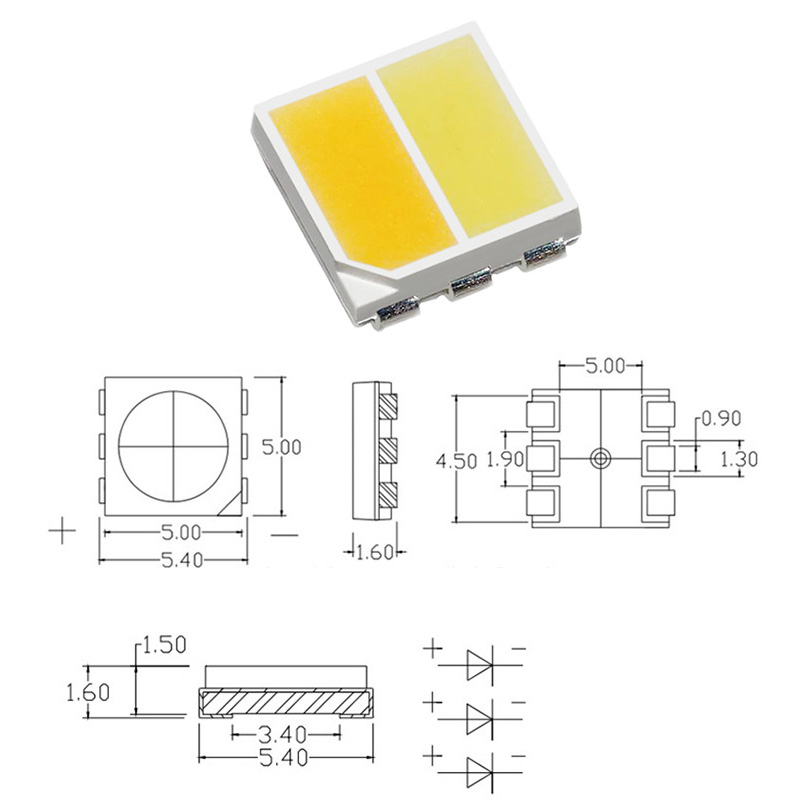

Product Size: 5.0*5.0*1.6cm/0.20*0.20*0.06in
Application: Advertising sign
PCB Color: White Available
Material: Copper Bracket
Waterproof Rating: NO
LED Quantity: 500pcs
Operating Temperature(℃): -40 - 85°C
1* 500pcs Epistar 5050 CCT LED chip
