Double Row DC12V 5050SMD 600LEDs CCT LED Strip Lights - Pure White+Warm White Super Bright Series
►Universal dual white color temperature super bright white Waterproof optional 5050 SMD LED high power flexible LED strip lights. Our 5050 CCT tunable white brightest led strip soft and easy bent for installation. Available in 5 meters (197 in) flexible led light strips with adhesive backing and can be stuck just about anywhere. This white lght led strip can be cut into 12-LED segments, so you could cut a different length for your led strip lighting project and request.
►This CCT LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12V DC operation. Color temperature can be adjusted with Dual white CCT led strip light controllers (sold separately) from 2500K warm white to 6800K cool white. - Connect LED Dual white CCT Dimmers.
►This CCT tunable 12V white led strip is outdoor waterproof optional for outdoor led lighting projects. - IP20 vs IP65 vs IP67 vs IP68 waterproof LED strip
IP65, IP67, and IP68 outdoor waterproof led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strip lights and have requirements on the white light color temperature, please note when placing the order.
►Before buying CCT tunable LED strip lights, the following LED strip knowledge you need to know:
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

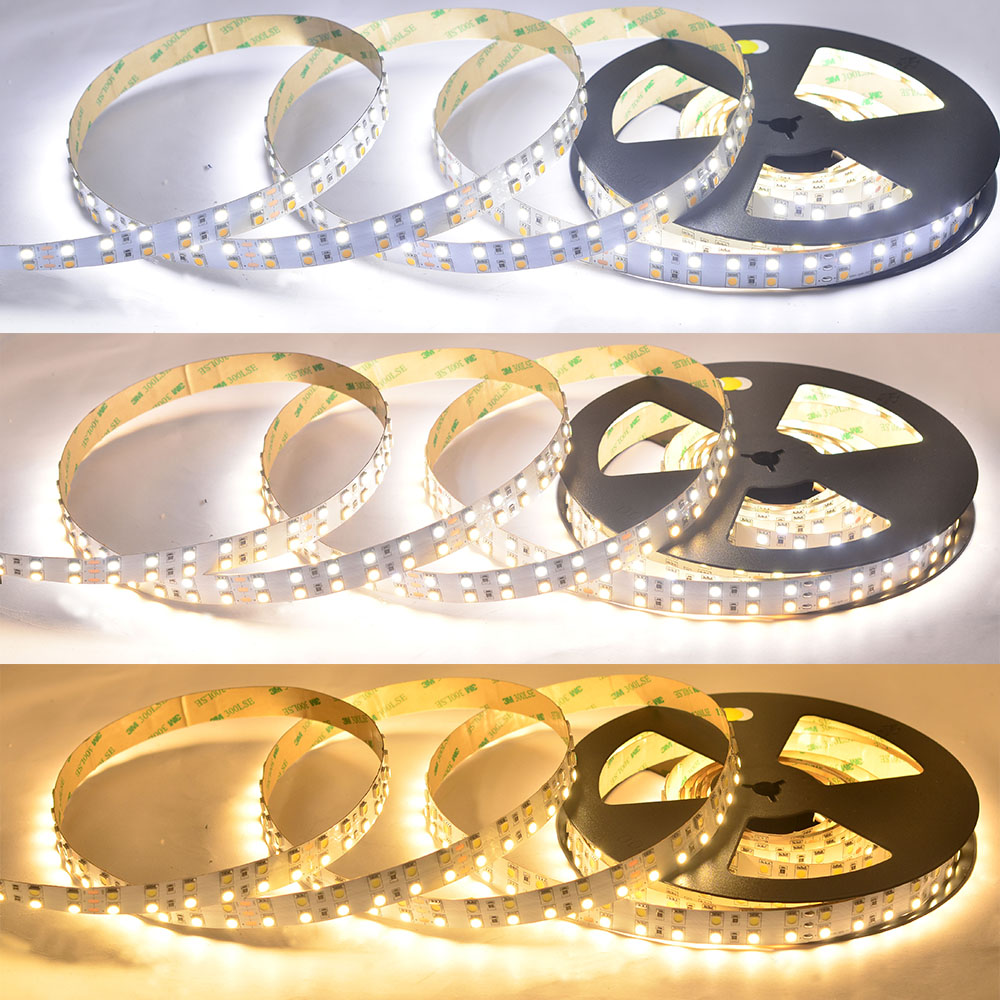

Light Color: Warm White+Daylight White

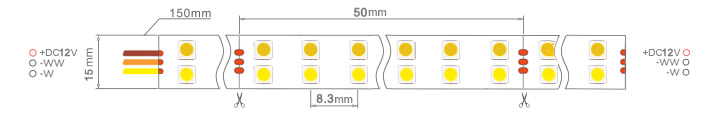

Dimension: 16.4ft/roll, every 12 PCS LED can be cut
LED Quantity: 600 LEDs per 5meter (16.4 ft) [300 daylight white leds + 300 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.2cm(0.07 in )
Input Voltage(V): 12V DC
Working Power: 6A 144W /16.4ft Max
Lamp Luminous Flux(lm): 18~20lm/LEDs 2700lm/16.4ft 165lm/ft 18.75lm/w

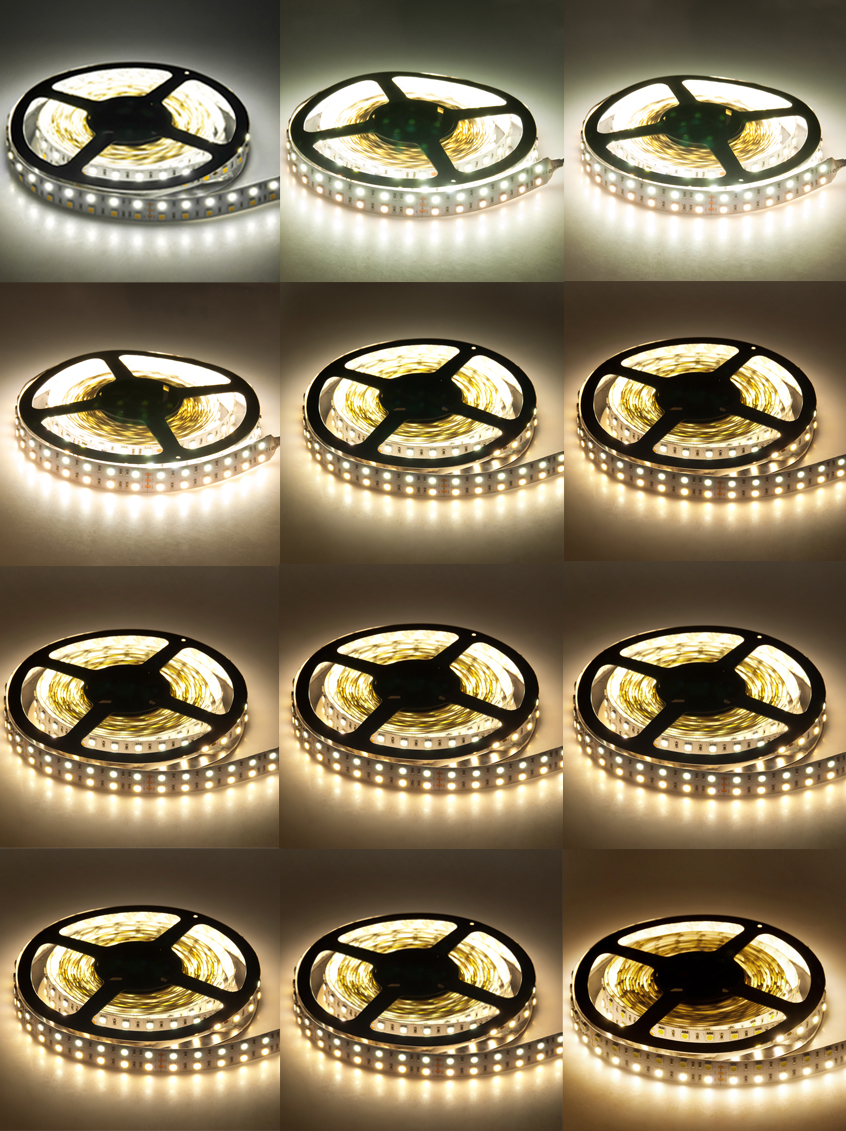

Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 200Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com
This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►RF wireless LED controller controls multiple CCT color changing LED white light with CCT RF remote connection method:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

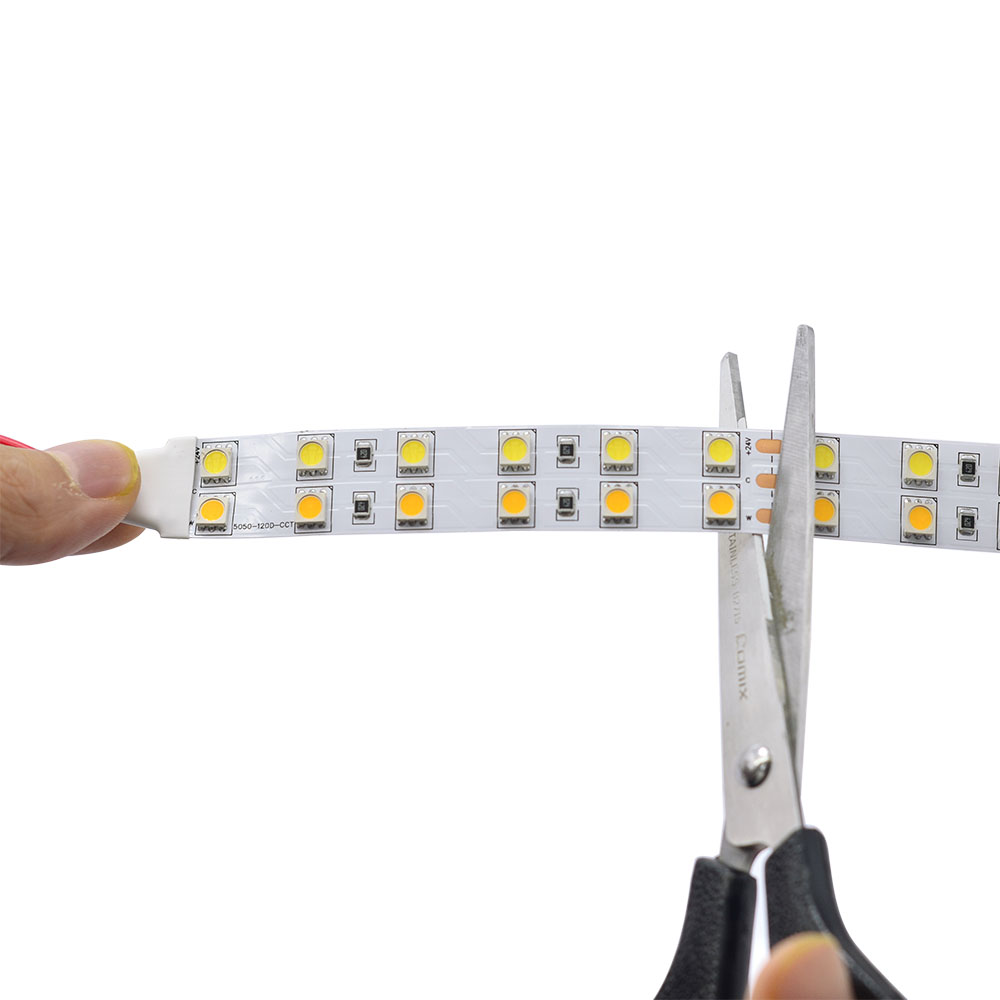

|You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
You can know the all LED light colors in led strip lights: How to choose the right color for your led strip lights?
