SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights

Model: SK6812-SIDE-144W8
SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights
  • SK6812 RGB DC5V 8MM 144LEDs/m 4020 Side Emitting Individually Addressable LED Strip Lights

Select Specifications:

Starting at: $120.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

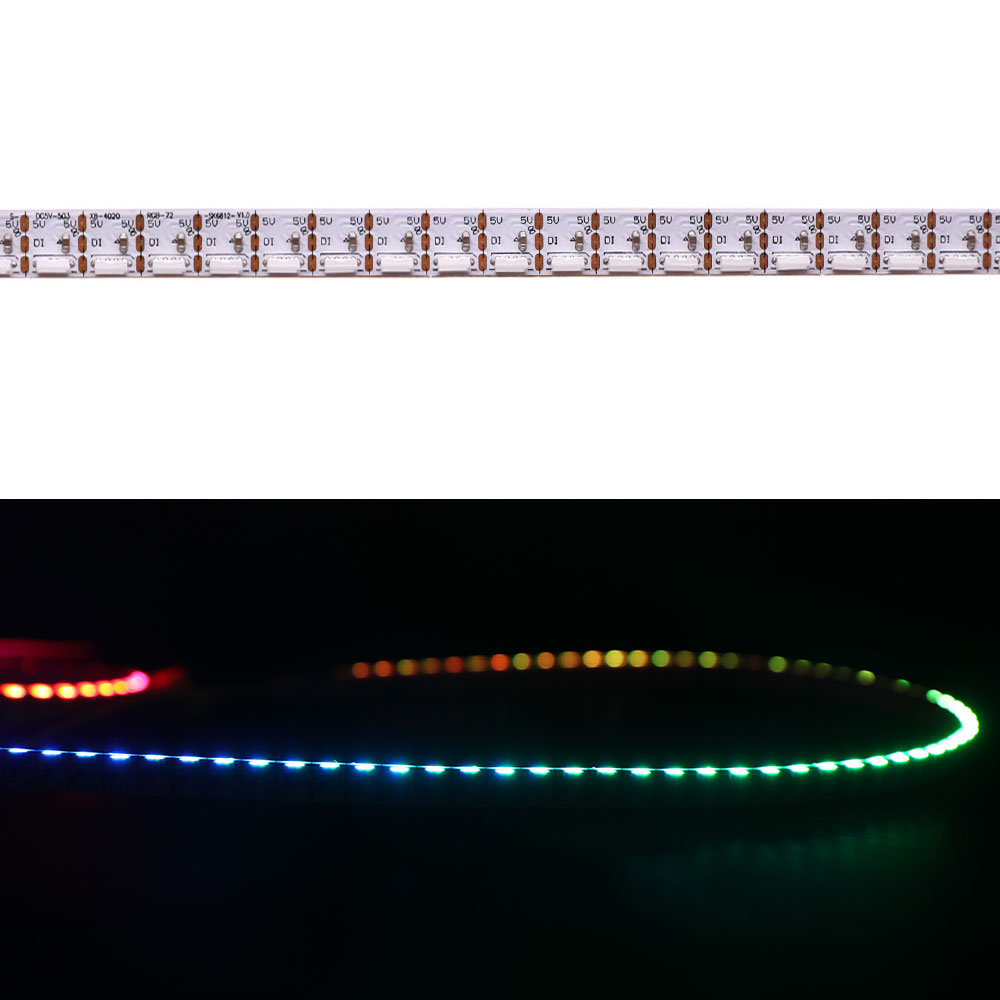

    The SK6812 RGB 144LEDs/m side emitting addressable LED strip light is controlled by the SK6812 IC chip, which is energy-saving and power-saving, super bright color rendering, and uniform light emission. A variety of dynamics can be presented through the SPI controller. Easy for installation with 3M adhesive.

    Advantages

       Super long life, and good wire conductivity.

       Using 4020 high-brightness lamp beads, low-voltage high-brightness without stroboscopic.

       Flexible cutting (single LED can be cut): each 6.9mm has a cutable mark, each lamp bead contains a built-in IC, which is individually addressable, each LED can be cut, and the large pad is convenient for secondary use.

       A variety of waterproof options, the waterproof casing is made of high-quality PVC outsourcing rubber material, with high light transmittance, pressure resistance, abrasion resistance and high temperature resistance.

       Three-core light-emitting design, high-precision double solder joints and large-width PCB circuit board, perfect light effect, stable and non-glaring light.




    SK6812 Chips Specifications Download



    Standards and Certifications







    Specifications

    LED Type: SMD4020 Side-Emitting RGB LED Strip
    IC Type: SK6812(built inside the 4020 side-emitting SMD RGB LED)
    Working Voltage: DC5V
    Power: 14W/m
    Lumen/LED: 14lm/LED

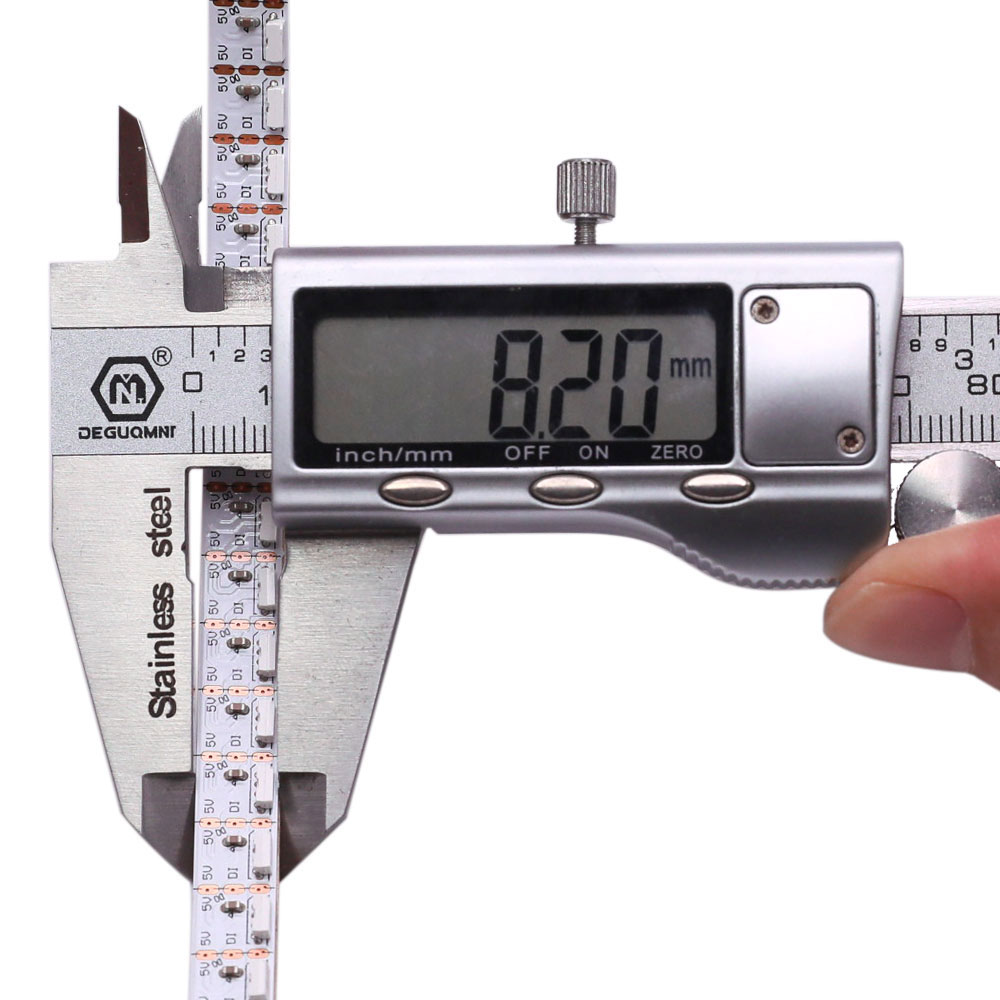

    Product Dimention: L500cm(197 in ) x W0.8cm(0.3 in ) x H0.25cm(0.1 in )
    Waterproof Rating: IP20/IP67
    Lifespan: 50,000Hours+
    Terminal Wire Length: 120mm
    Certification: UL, CE, EMC, ISO, ROHS
    Pixels: 144/meter(1 IC drives 1 LED)
    Density: 144 LEDs/m
    Lumen/Meter: Red(149lm), Green(398lm), Blue(91lm)
    FPCB Color: White
    Working Temperature: -25℃~60℃

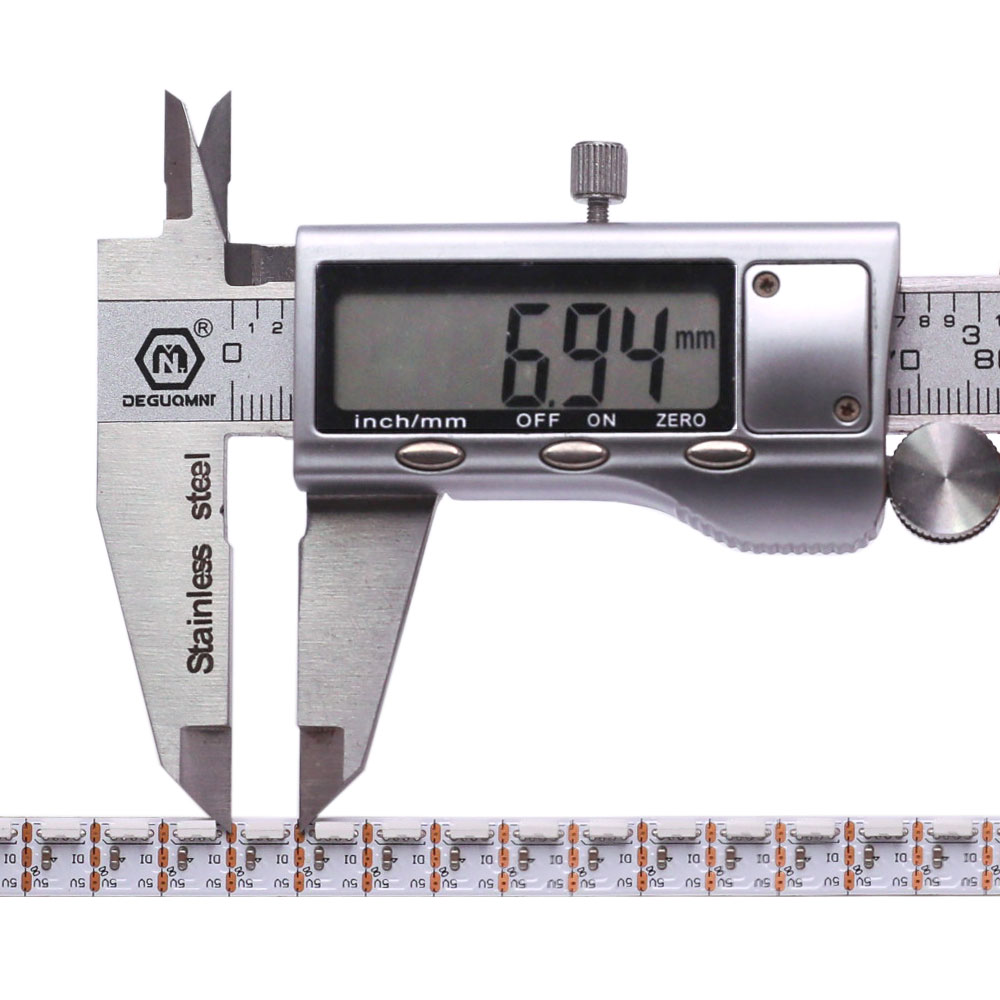

    Cuttable Length: 6.9mm/0.31in(Every LED is cuttable)
    Beam Angle: 120 degree
    LED Color: Full color RGB




    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);




    Installation Instruction

    create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg

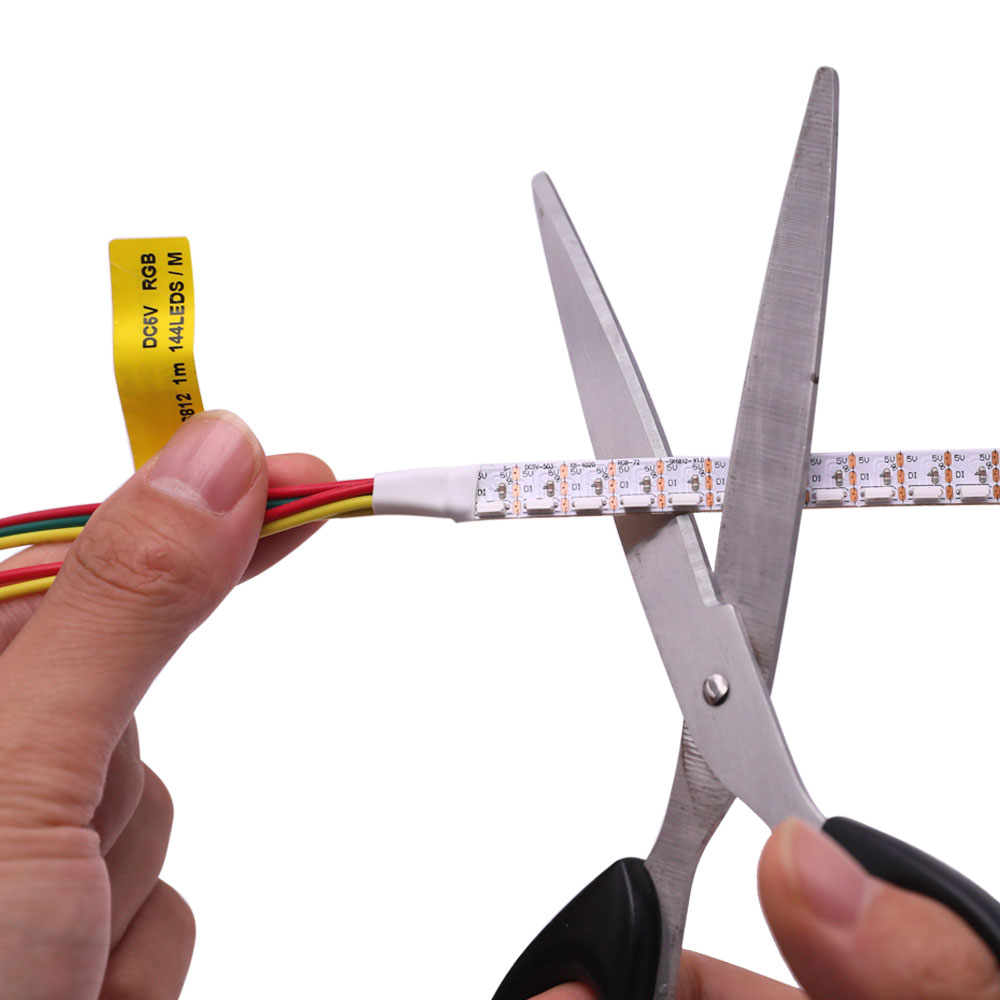

     You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces.  The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights.   IP67/IP68 type which will come with mounting brackets.




    How to connect and control

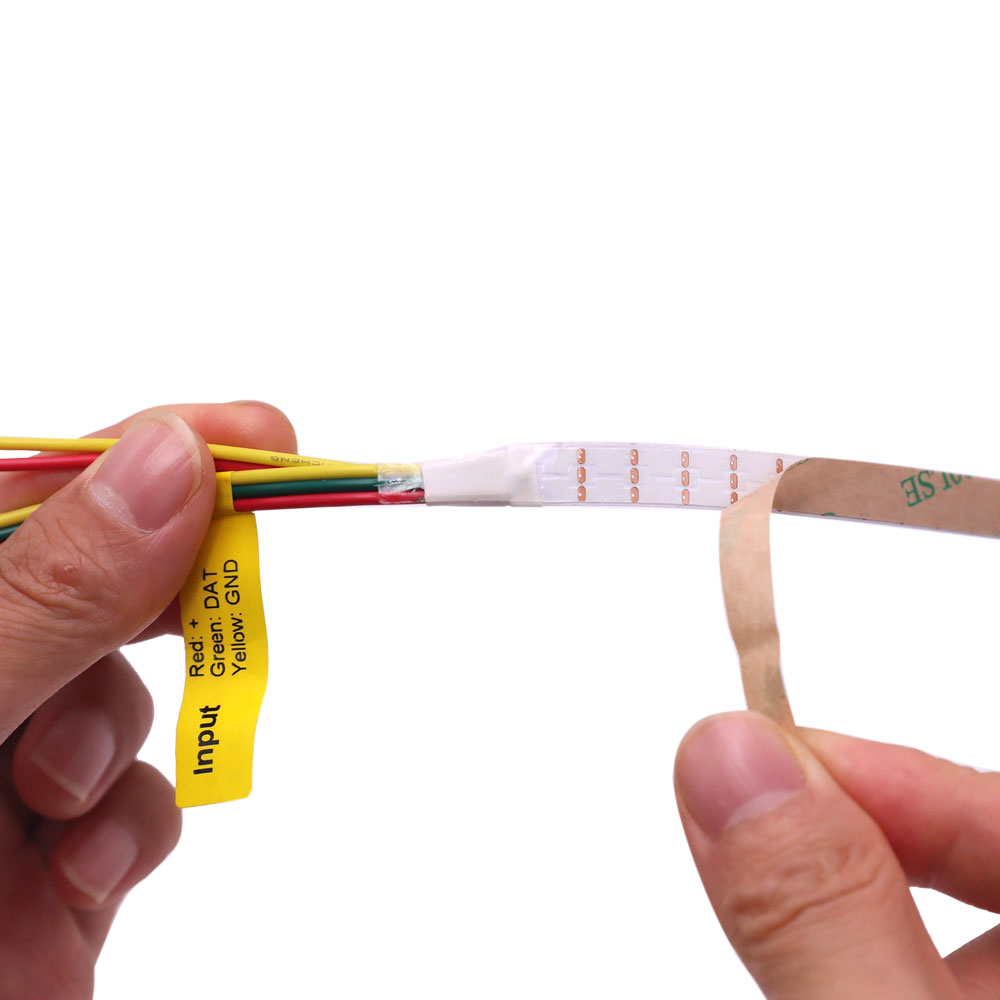

    Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data (one V+ pin, one GND pin, and one data pin). That means you need 3 pins to control the strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

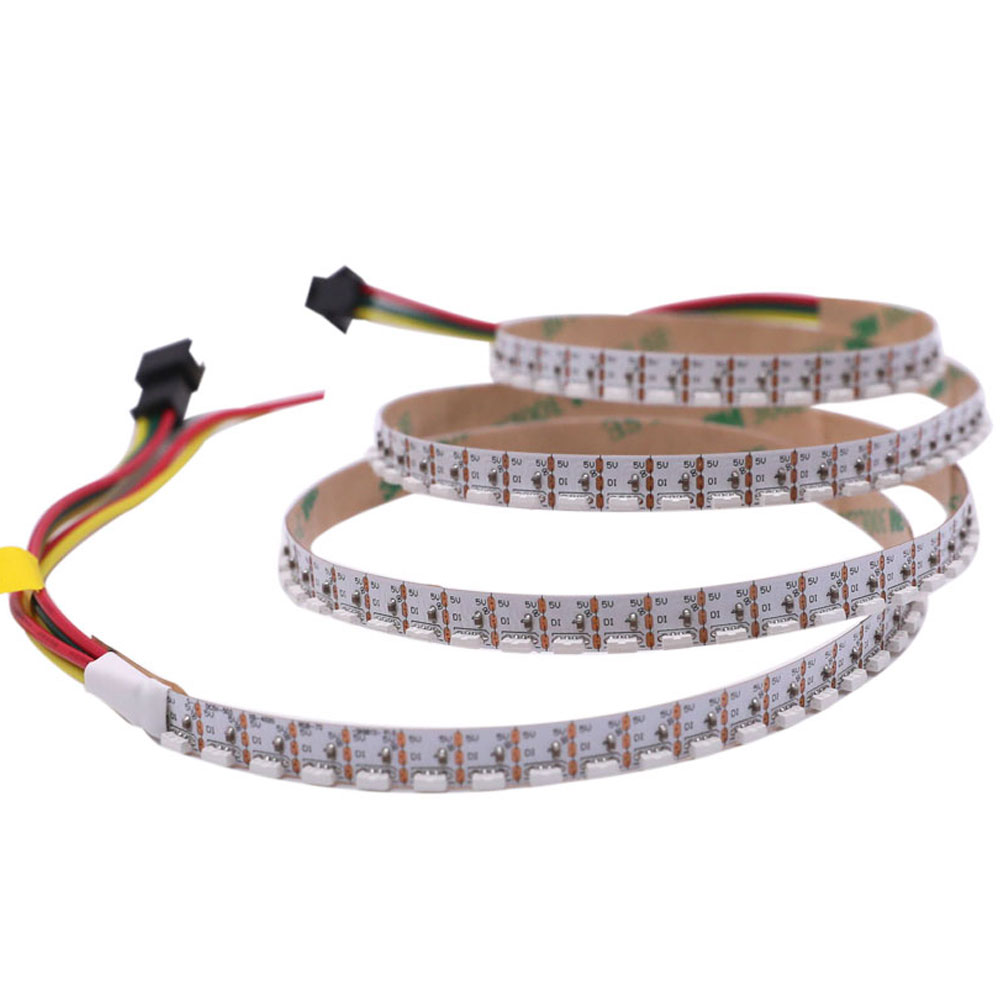

    This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 5V power supply.

    This is our recommended SPI controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.

    Related reading: Ultimate Guide to Choosing the Right Addressable LED Strip

    How to wire addressable led strips?




    Applications

    These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration
