Round Suspended Light LED Aluminum Profile Channel For 12mm Flexible LED Strip Lights
- $15.00 $12.9913% off
- $59.98 $19.9867% off
- $37.98 $25.9832% off
$15.00 $12.9913% off

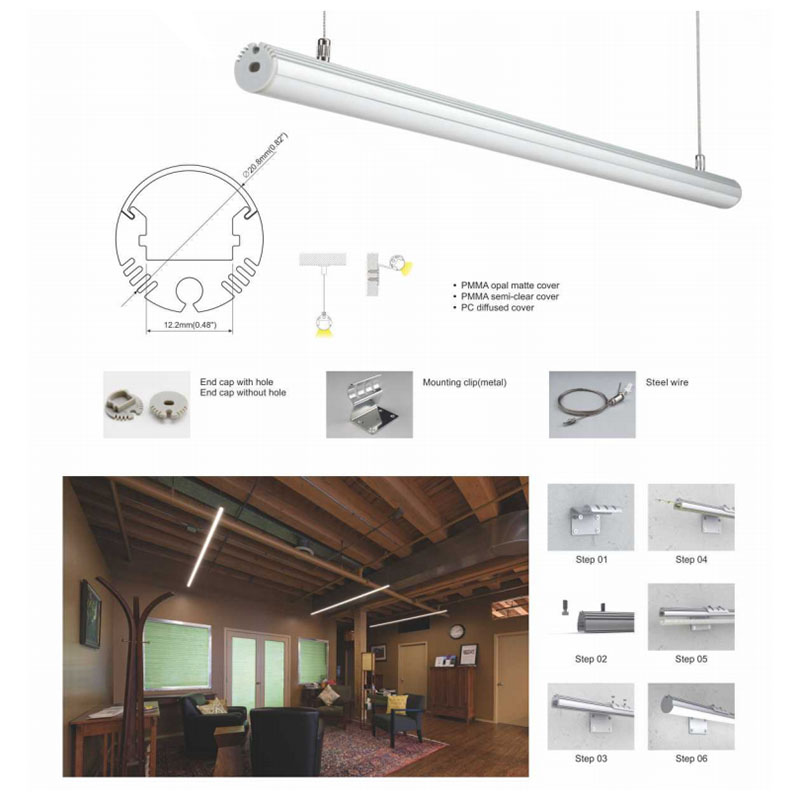

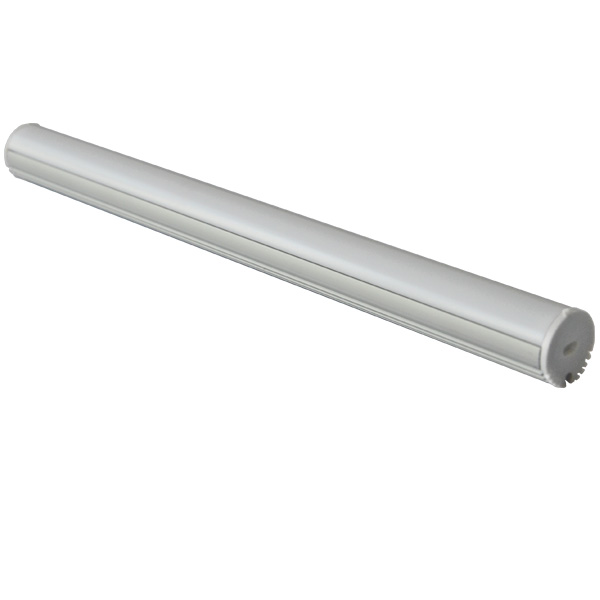

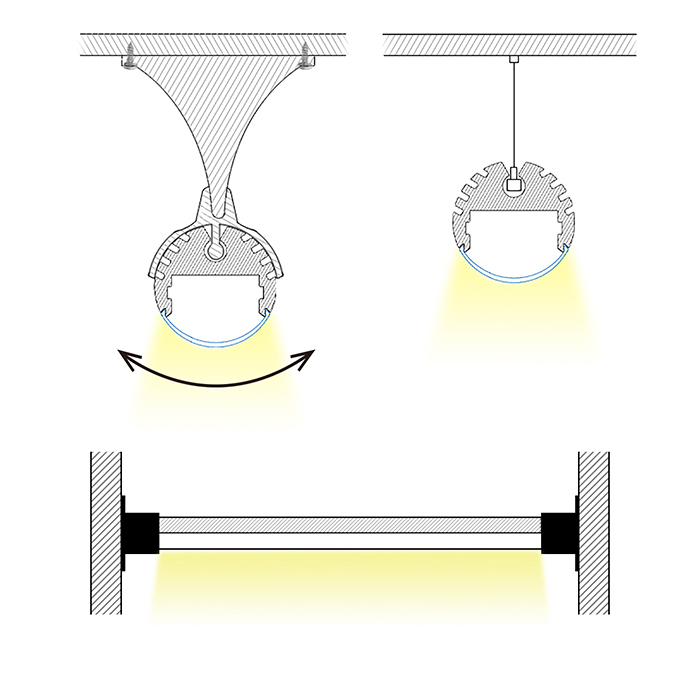

This round aluminum channel with a 12mm inner width, made of high-quality 6063-T5 aluminum alloy, can be suspended as a linear pendant light. Compatible with low-voltage RGBW led strip lights, the aluminum LED diffuser channel plays a role in led heat dissipation, led strip protection, and better led lighting distribution. Comes with the end caps and mounting clips, the led profile can be used in home lighting and commercial lighting projects. End cap with wire hole lets the led light strip through the channel aluminum connect to the led controller or led dc power supply, to power or control the led strip lighting.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

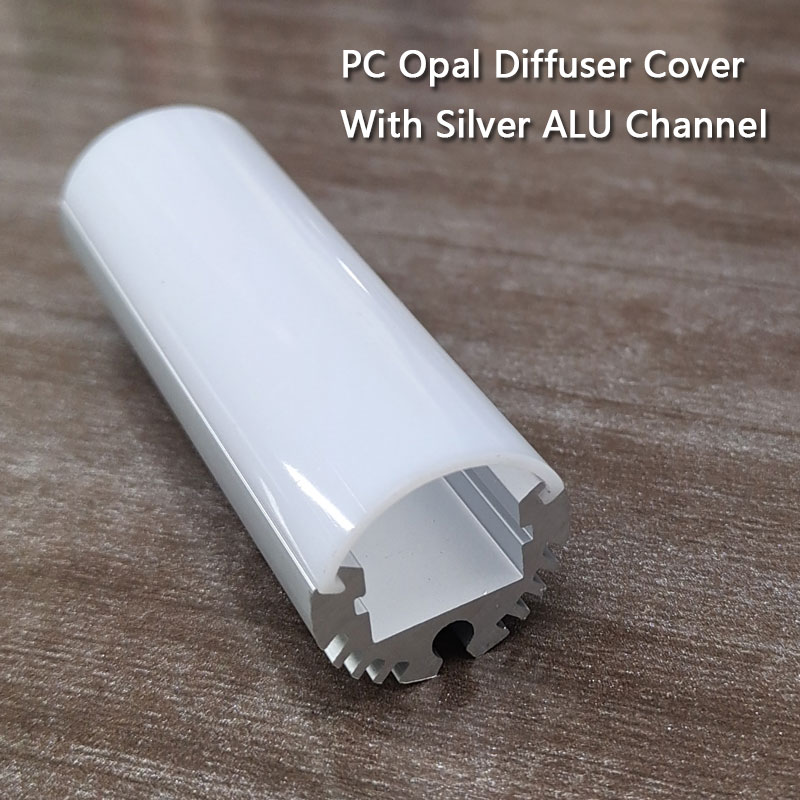

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser|

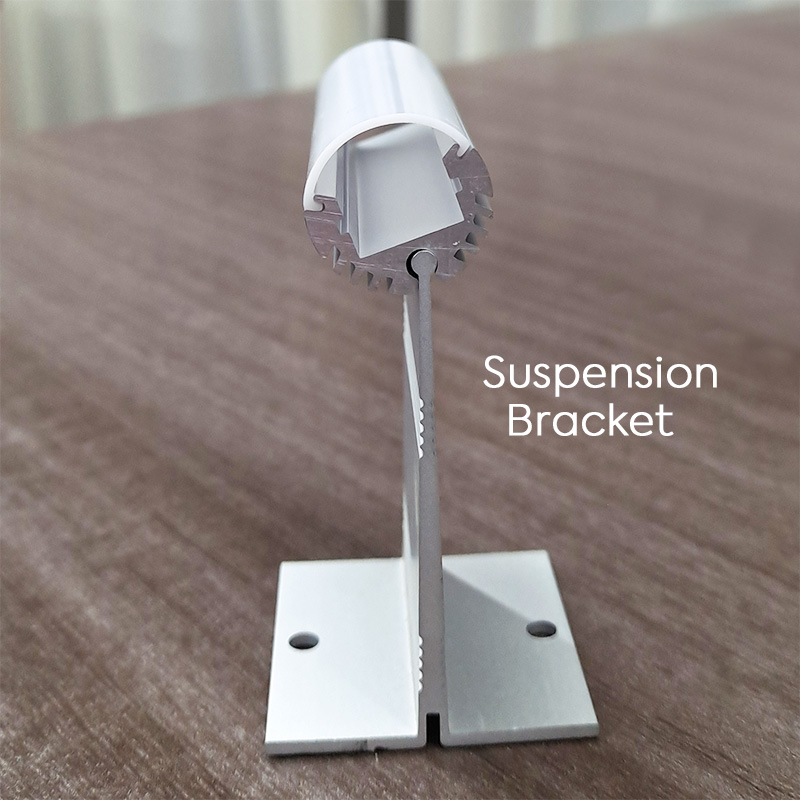

|Accessory||End cap without hole, end cap with wire hole, mounting clips, suspended steel cable (optional), suspension bracket (optional)|

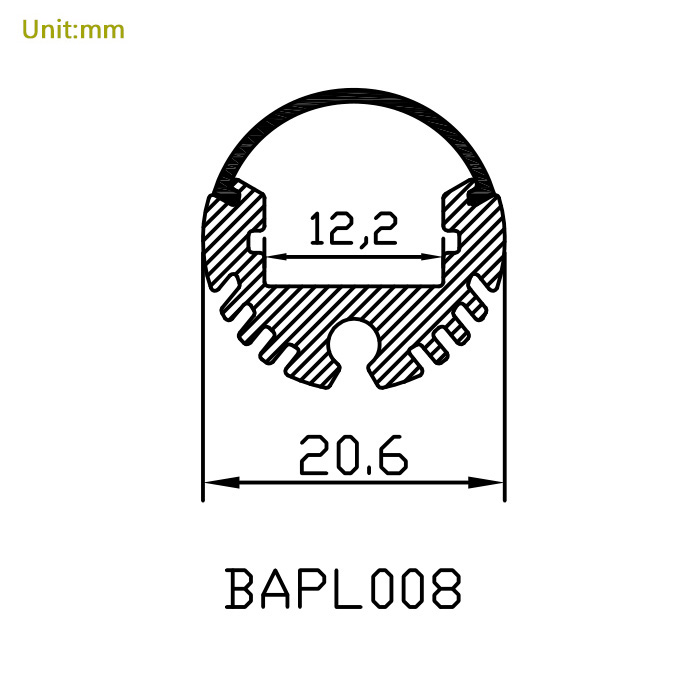

|Apply to||8mm, 10mm, or 12mm flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel

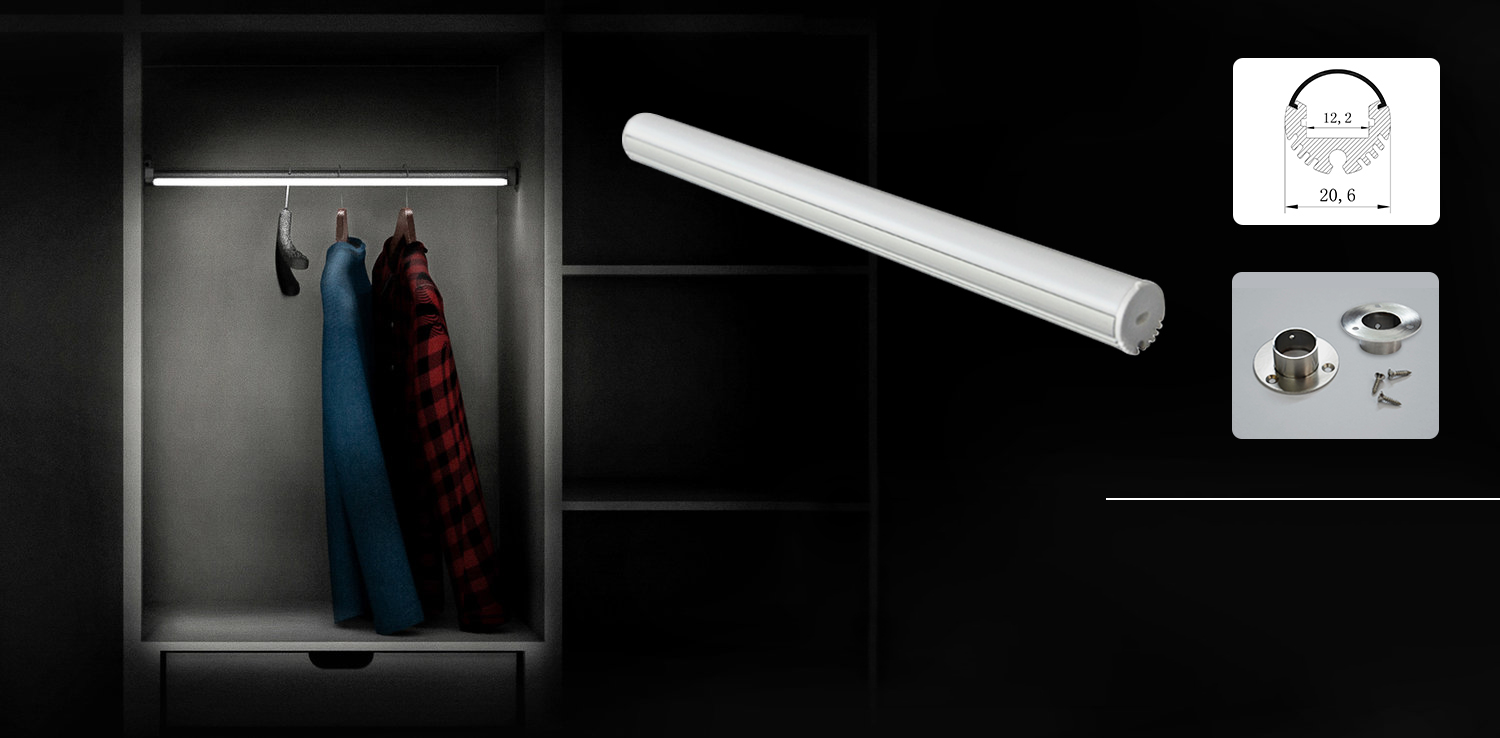

1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
