LED Aluminum Corner Channel Diffuser For 12mm LED Light Strips

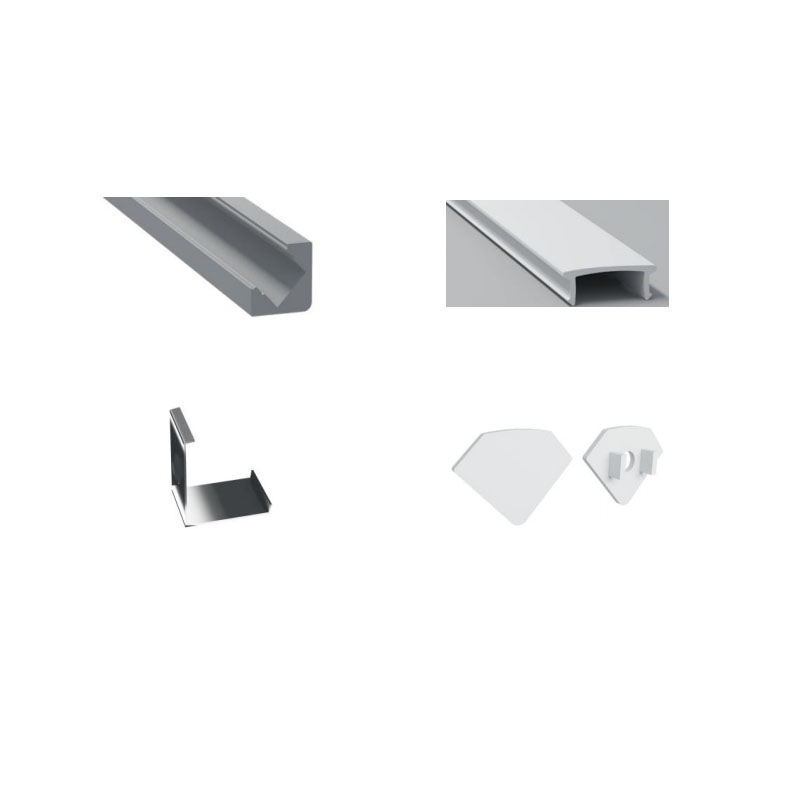

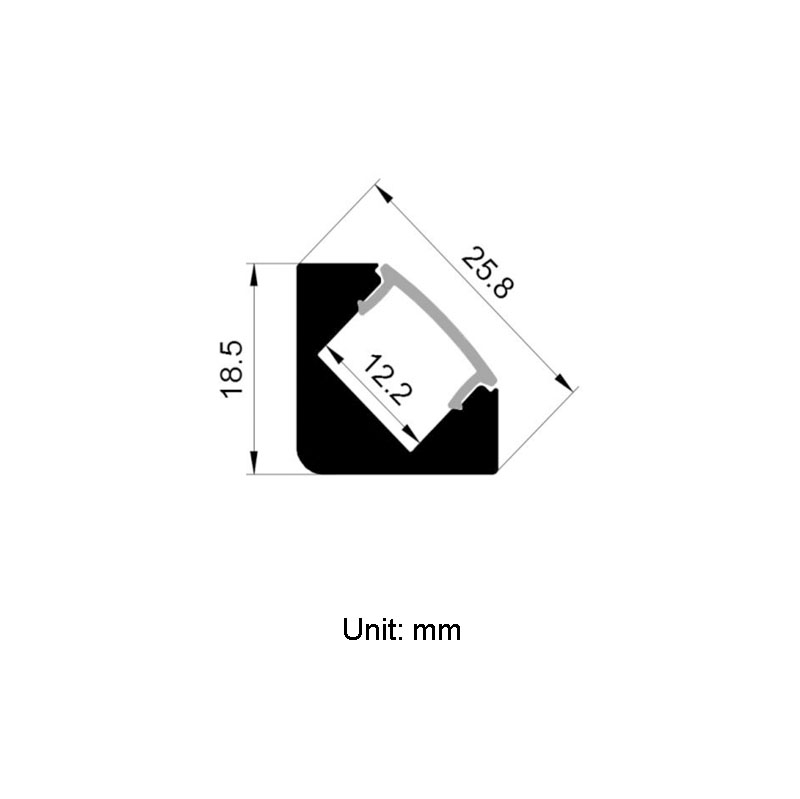

With 12.2mm/0.48in inner width, this corner-mounted led profile is suitable for low-voltage addressable white light led strips. This corner shape led aluminum channel made of high-quality 6063-T5 aluminum alloy, contains a sliver, white, or black aluminum channel, a PC/PMMA led diffuser, two end caps, and two mounting clips per meter. Different led light diffuser provides different lighting effect, it can smooth led light output and achieve no light spots effect with a right led light strip. Aluminum profiles for led strip lighting work as a heat sink and protect the led strips from dust, moisture, and external damage. 1m or 2m aluminum led strip channel can be selected, you can cut the aluminum led strip lighting channel to any length for your residential or commercial linear lighting project. For customizing length, please feel free to contact us.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||12mm flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
