Product Information
Create flawless, dot-free linear lighting in any corner with the FLNLT-ST1616 Silicone Corner LED Channel Diffuser. Its unique 90-degree V-shape profile is specifically engineered for clean corner installations, while the 16x16mm square tube provides a substantial, modern neon aesthetic. Designed for top-emitting light, this flexible channel transforms any standard 10mm wide LED strip into a smooth, uniform line of light with a 90° beam angle. Constructed from durable, food-grade silicone, it resists yellowing, withstands extreme temperatures, and is UV-resistant. When paired with the included end caps, it achieves an IP67 waterproof rating, making it a reliable choice for both indoor architectural accents and outdoor decorative lighting projects. This flex tube light diffuser is the professional solution for elegant corner illumination.
Key Features
Purpose-Built Corner Profile
Features a 90-degree shape to fit perfectly into interior or exterior corners for seamless architectural lighting.
90° Top-Emitting Illumination
Directs light outwards from the top surface, creating a focused and uniform neon glow ideal for cove and accent lighting.
Premium Food-Grade Silicone
Offers excellent durability, flexibility, and resistance to UV rays and extreme temperatures (-30°C to 200°C) without yellowing.
IP67 Weatherproof Design
When properly sealed with the included end caps, the channel protects the LED strip from dust and water for reliable outdoor use.
Dotless Lighting Effect
The milky white diffuser smooths the output from individual LEDs, achieving a continuous, hotspot-free line of light, especially with COB led strip.

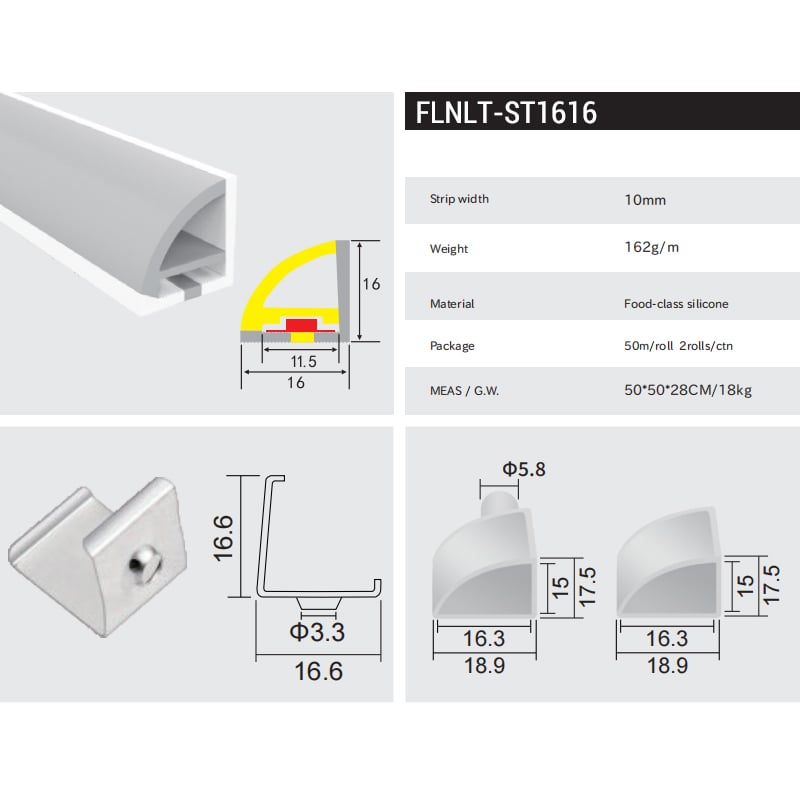

Product Specifications
| Parameter | Details |
|---|---|
| Model | FLNLT-ST1616 |
| Tube Material | Food-grade Silicone |
| Lighting Direction | Top-emitting |
| Beam Angle | 90° |
| Profile Shape | 90° V-Shape for Corners |

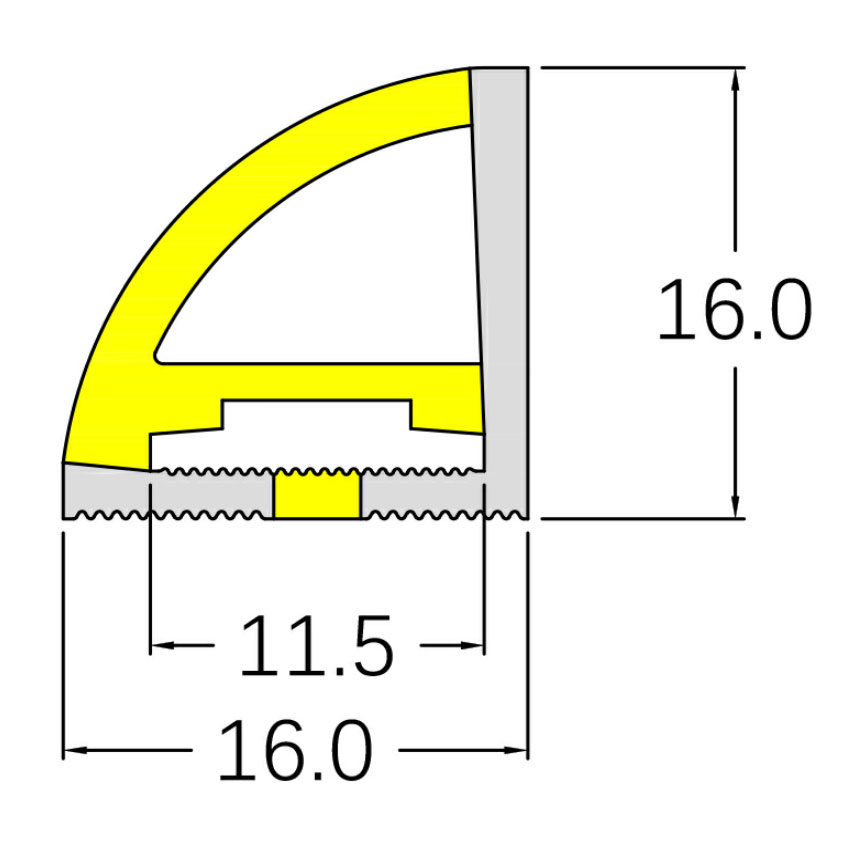

| External Dimensions | 16mm x 16mm (0.6in x 0.6in) |
| Inner Width | 11.5mm (0.45in) |
| Max. LED Strip Width | 10mm (0.39in) |
| Compatible LED Strip Types | Single Color, COB, CCT, RGB, RGBW, RGBCCT, Addressable |
| Available Lengths | 1m (3.28ft), 2m (6.56ft), 5m (16.4ft), or Whole Roll (up to 50m) |
| Working Temperature | -30°C to 200°C |
| Waterproof Rating | IP67 (with sealed end caps) |
| UV Resistant | Yes |
| Warranty | 1 year |
Ideal for Seamless Corner Lighting
How to Assemble and Install
- Select an LED strip light with a PCB width of 10mm or less.
- Attach a string or guide wire to the end of your LED strip.
- Feed the string through the silicone channel from one end to the other.
- Gently pull the LED strip through the channel until it is fully seated inside.
- Apply silicone sealant (not included) to the end caps and press them firmly onto both ends of the tube to create a waterproof seal.
- Secure the channel in the desired corner using the provided mounting clips at regular intervals for a stable installation.
- This product is a silicone channel and does not include an LED strip light. Purchase a 10mm strip separately.
- The model FLNLT-ST1616 is specifically designed for surface mounting with clips. It is not compatible with aluminum channels or flexible profiles.
- To achieve the IP67 waterproof rating, end caps must be sealed with a suitable silicone adhesive.
- If you are new to this process, you can learn more here: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
What's in the Box
- ✓1 x Silicone LED Strip Diffuser Corner Channel (Model: FLNLT-ST1616) in your selected length
- ✓A set of End Caps (half with hole for wiring, half without)
- ✓Mounting Clips (quantity depends on length; choose 'Neon Tube + Clips' option to include)
Frequently Asked Questions
Q: What is the main advantage of this corner channel?
A:Its primary advantage is the 90-degree V-shape profile, which is specifically designed to fit perfectly into corners for a clean, professional installation without any gaps.
Q: What kind of LED strip should I use for the best effect?
A:Any LED strip up to 10mm wide will fit. For the most uniform, dotless neon effect, we highly recommend using a COB led strip.
Q: What is the longest continuous length I can order?
A:This diffuser is available in pre-cut lengths of 1m, 2m, and 5m. You can also order a whole roll without cuts, with a maximum length of up to 50 meters.
