Corner Channel Aluminum LED Profile For 10mm LED Strip Lights

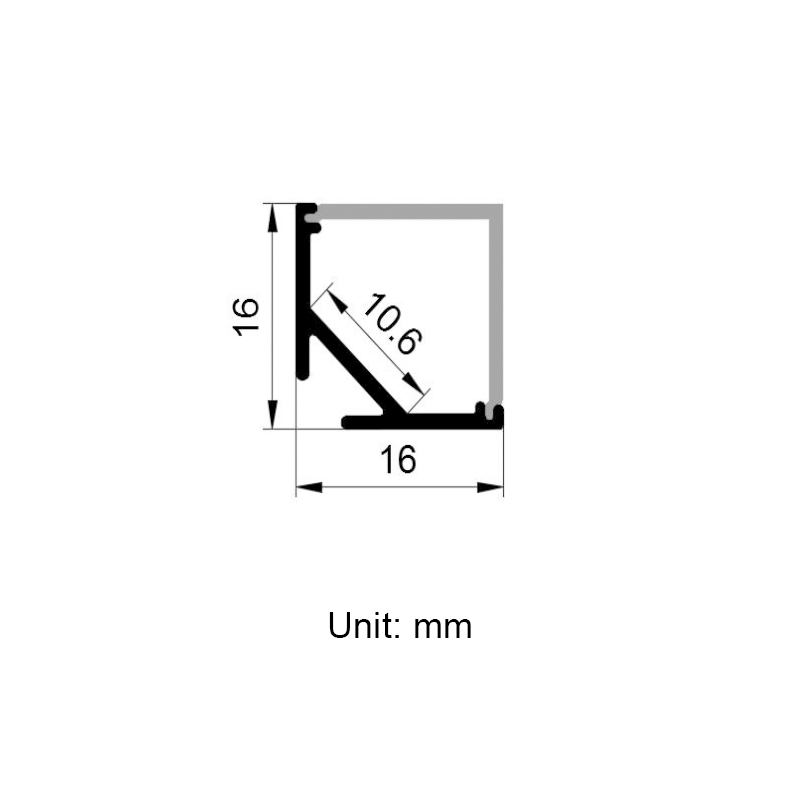

The square corner-mounted led aluminum profile is made of high-quality 6063-T5 aluminum alloy material with silver anodized oxidation surface treatment. With a 10mm inner width, this aluminum channel is perfect for low-voltage 2110 white led strip lights. LED strip lighting with led profile to get better heat dissipation and achieve much better diffusion effects. You can choose the different led diffusers to get a different lighting effect, PC diffuser or PMMA diffuser, clear, semi-clear, or opal matte material. Aluminum channels with different colors are suitable for different styles. With end caps and mounting clips, the aluminum led channels can be selected for your indoor led linear lighting project, cabinets, furniture, dry walls, kitchens, offices, etc.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

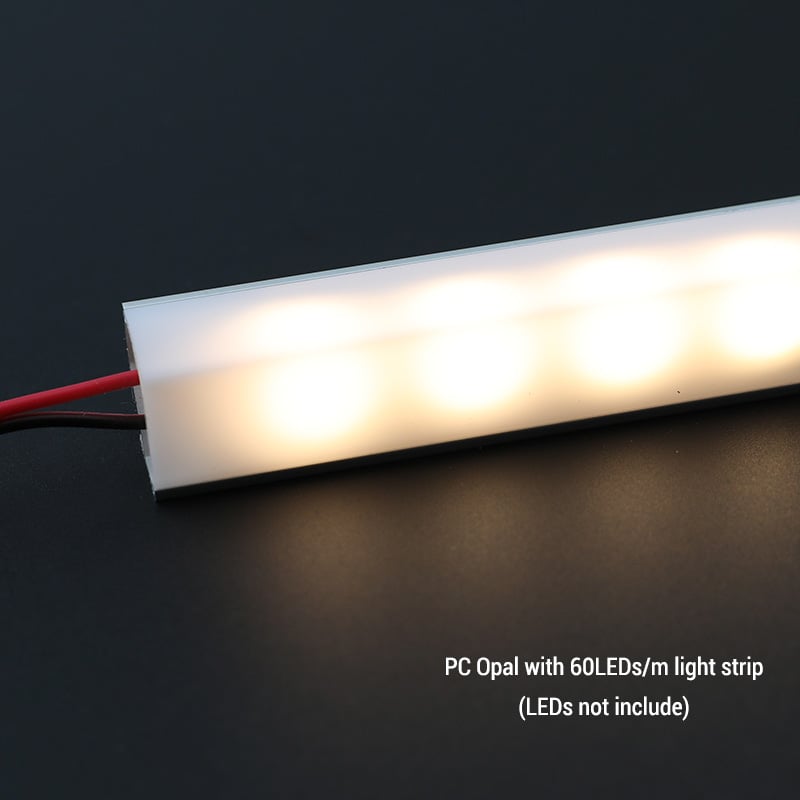

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

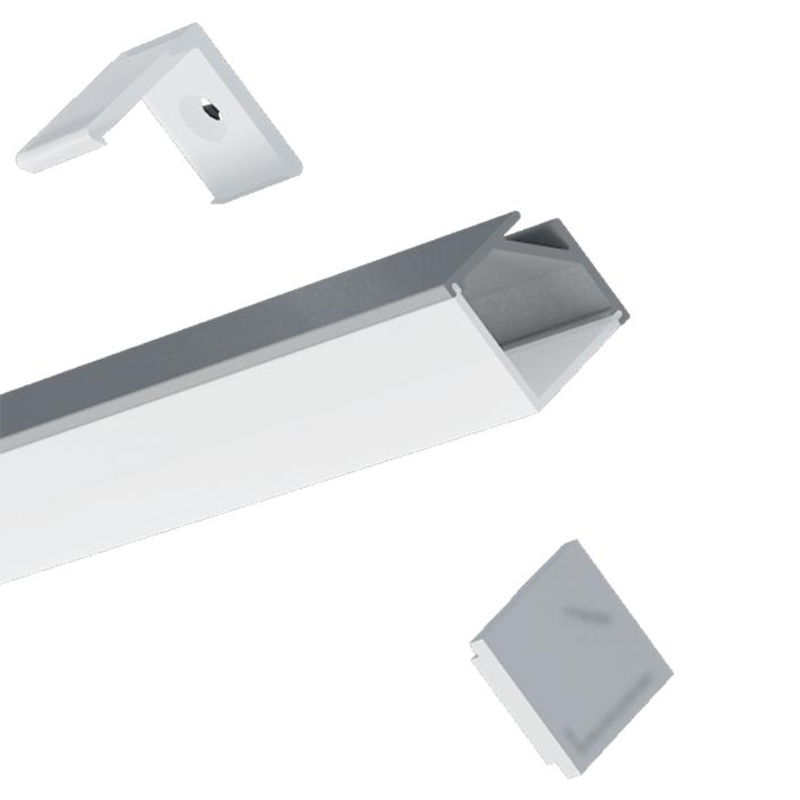

|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||8mm, or 10mm flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
