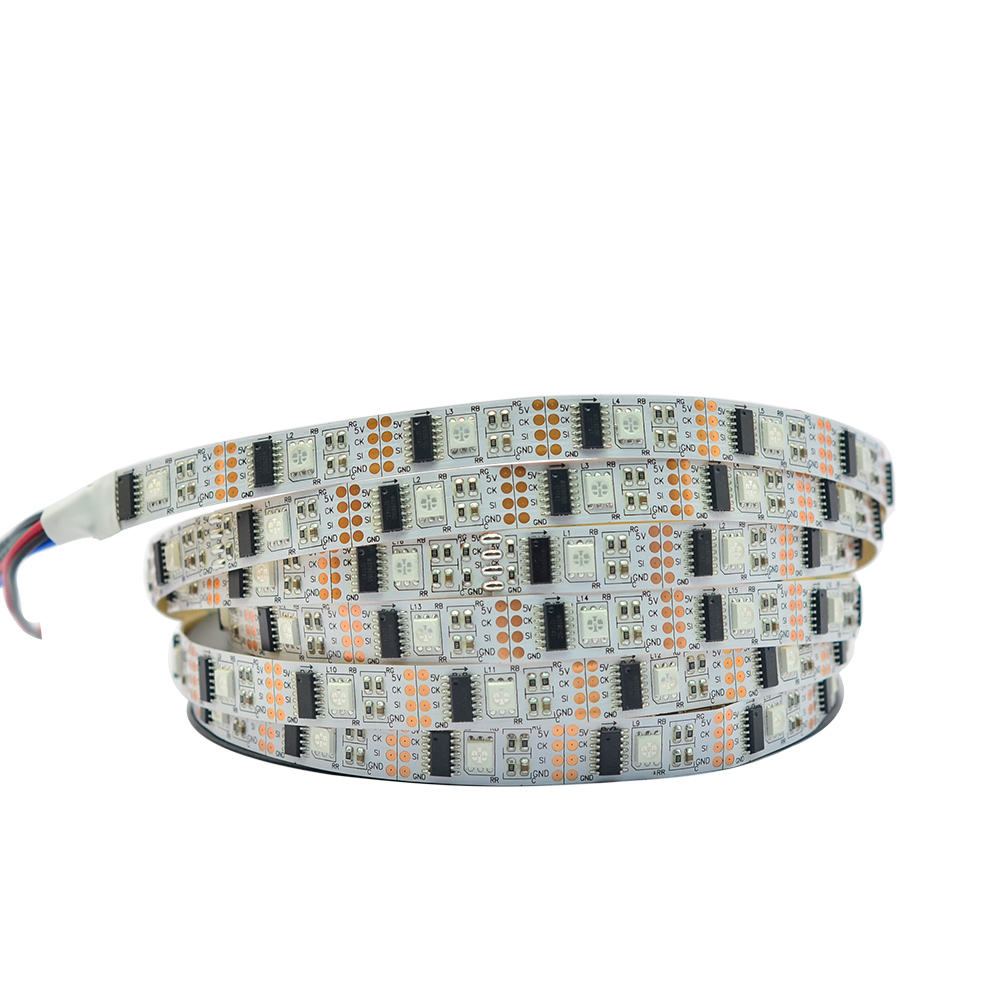

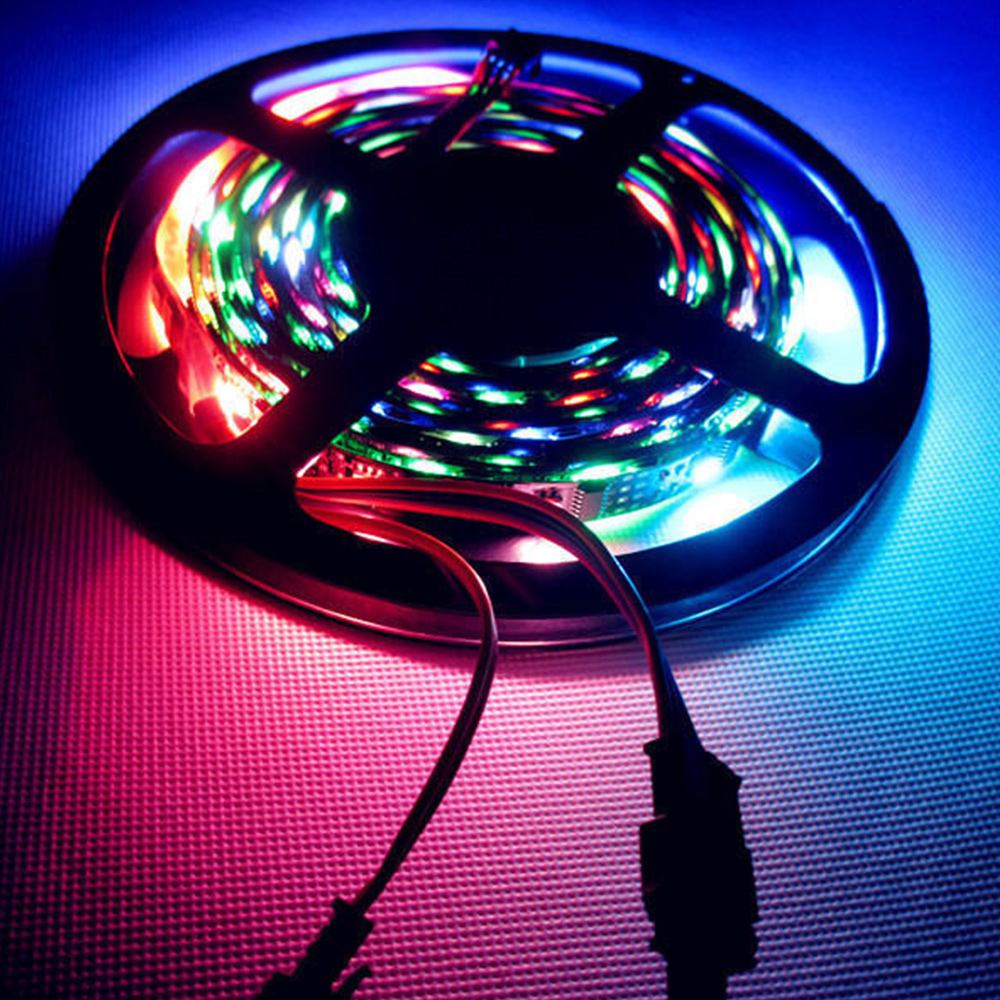

WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale

Model: DCFLS-IP20-WS2801X160
WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale
  • WS2801 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 160LEDs 16.4ft Per Reel By Sale

Select Specifications:

Select PCB Color :

Select Operating Voltage :

Starting at: $63.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$63.98
5-9
$62.70
10-14
$60.78
15+
$58.22
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Feature

    1. Universal WS2801 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 160 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2801 IC chip control, 5meter(16.4ft) Per Reel By Sale.

    2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

    3. This strips soft and easy bent for installation. Available in 5 meters (196.8 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). can be cut into 1-LED segments, so you could cut a different length for your project and request.

     4. The led strip has low light decline and long lifespan,LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.

    5. The 5VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.



    WS2801 Chips Specifications Download



    Standards and Certifications




    Product Specification

    LED Strip Type:  SMD 5050   DreamColor 160LEDs/16.4ft

    LED Chip:  WS2801 IC super brights Chip

    Working Temperature:  -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:  -40°F (-40°C) ~ 176°F (80°C)

    Dimension:  16.4ft/roll, every 1 PCS LED can be cut

    LED Quantity:  32 LEDs per 1meter (3.28 ft)

    Dimensions:  L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )

    Input Voltage(V): 5VDC

    Working Power: 10W/M,  50W/16.4ft  Max

    Lumen Per LED: 20~22Lumen   3520lm Max /16.4ft

    FPCB Color:  WHITE/BLANK

    Water Proof:  Non-Waterproof  or Waterproof IP65 (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

    Lifespan:  50,000+hours

    Warantty: 3 years

    Wavelength NM(RGBY):  2000-2500mcd

    Beam Pattern: 120 degree

    Note: Size of IP20: 12mm W* 2.5mm H, Size of IP65: 12mm W * 4mm H, Size of IP67: 14mm W * 4mm H.


    Applications

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration

    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    Installation Instruction

    create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg

     You can cut the strip every few inches,                      The back of the strip is fitted with a strong                    IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements

    to many different surfaces.





    More videos please pay attention YOUTUBE SuperLightingLED Channel
