DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control

Model: CONFULL-SP639E
DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control
  • DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control
  • DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control
  • DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control

Select Specifications:

Starting at: $7.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$7.98
10-49
$7.58
50-99
$7.42
100+
$6.78
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Check this SP639E Addressable RGBW Controller for your 3-pin addressable RGBW led strip lights. It can control SK6812 RGBW, SM16704 RGBW, TM1814 RGBW (NOT COMPATIBLE), UCS2904 RGBW, and WS2814 RGBW. Support smartphone Bluetooth APP control and RB3/RC3 RF 2.4G remote control.

    Search "BanlanX" in App Store or Google Play to find the APP, or scan the QR code to download and install. The compatible RF remote supports one-to-many control and many-to-one control, one RF remote can control multiple controllers, each controller can bind up to 5 remotes. Available with unified control and 4-zone control.



    Features

    ● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.

    ● Support cell phone microphone, player streaming, and on-board microphone for music capture.

    ● Support dynamic effect collection and collection list loop.

    ● Support custom effects.

    ● Support multiple on/off animation effects.

    ● Support calibration channel sequence and timing switch.

    ● Support OTA firmware upgrade.

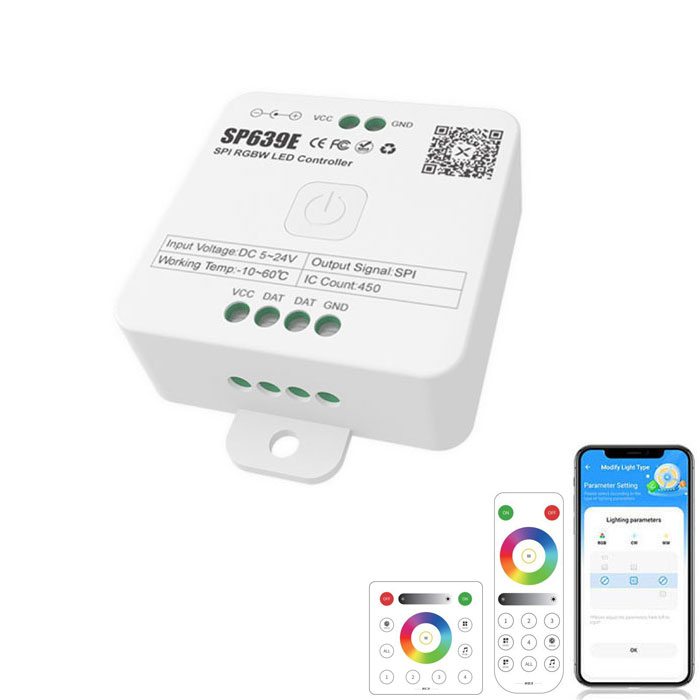

    SP639E SPI LED Addressable RGBW Controller



    SP639E Manual Download PDF

    RB3 & RC3 Remote Control Manual Download PDF



    Standards and Certifications

    CE FCC RoHS ISA SGS ISO

    Product Specification

    Product Name:  SP639E Addressable RGBW LED Controller
    Max Control Pixels:  450pcs
    Input Voltage:  DC5-24V
    Working Current:  1mA-10mA
    Control Method:  Mobile APP "BanlanX" + RF Remote (only support RB3 and RC3)
    Mobile System:  Andriod 4.4/ IOS 10.0 or higher
    Dimensions:  78mm*56mm*20mm
    Working Temperature:  -20℃ ~ 60
    IP Rating:  IP20



    SP639E SPI LED Addressable RGBW Controller app function

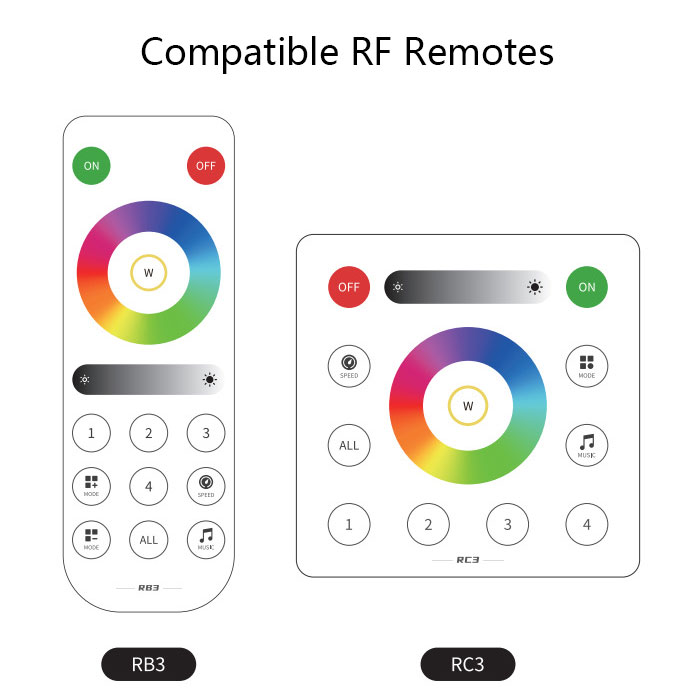

    SP639E LED Controller remote

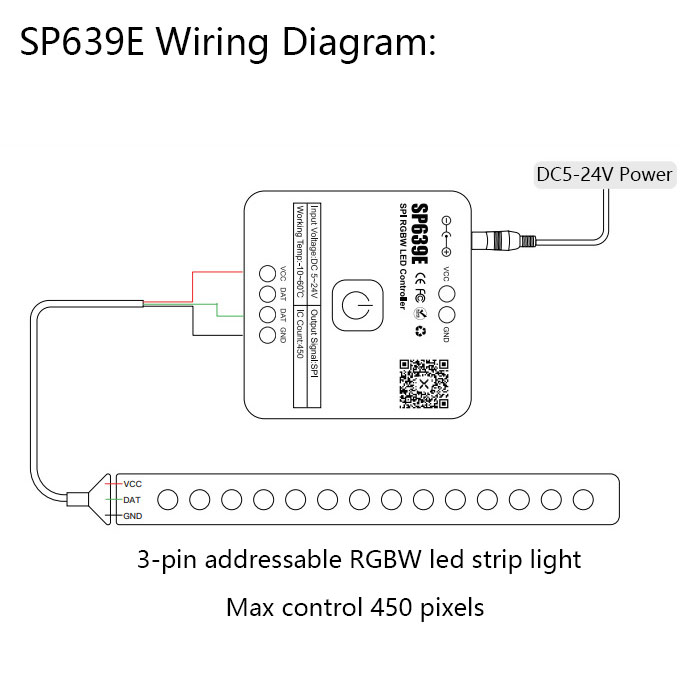

    SP639E LED Addressable RGBW Controller Wiring diagram

    DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote ControlDC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote ControlDC5-24V SP639E SPI LED Addressable RGBW Controller Bluetooth APP & RF Remote Control
