DC5-24V, LED Digital WIFI DMX512 Controller, 2048 Pixel, APP Control by Android devices, Can be Connect Addressable,DMX512 Programmable LED lights

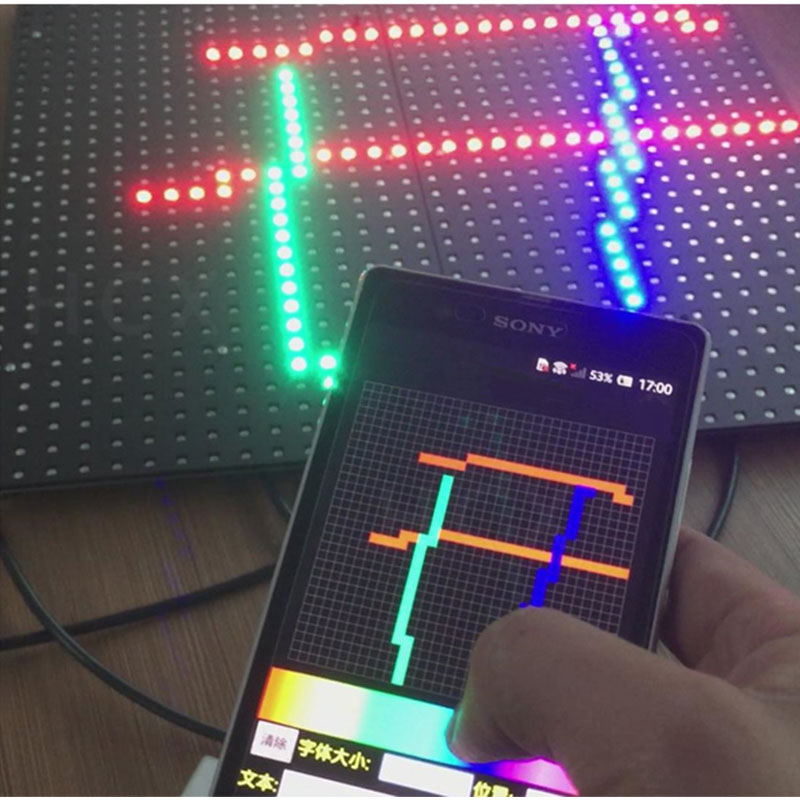

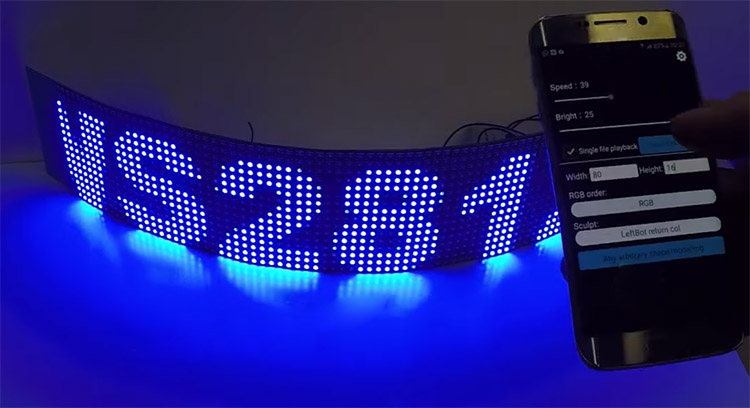

This LED-WiFi dream color programmable controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more Substantial. You can connect your android to H806SB via WLAN to control led lights, this is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 25m,

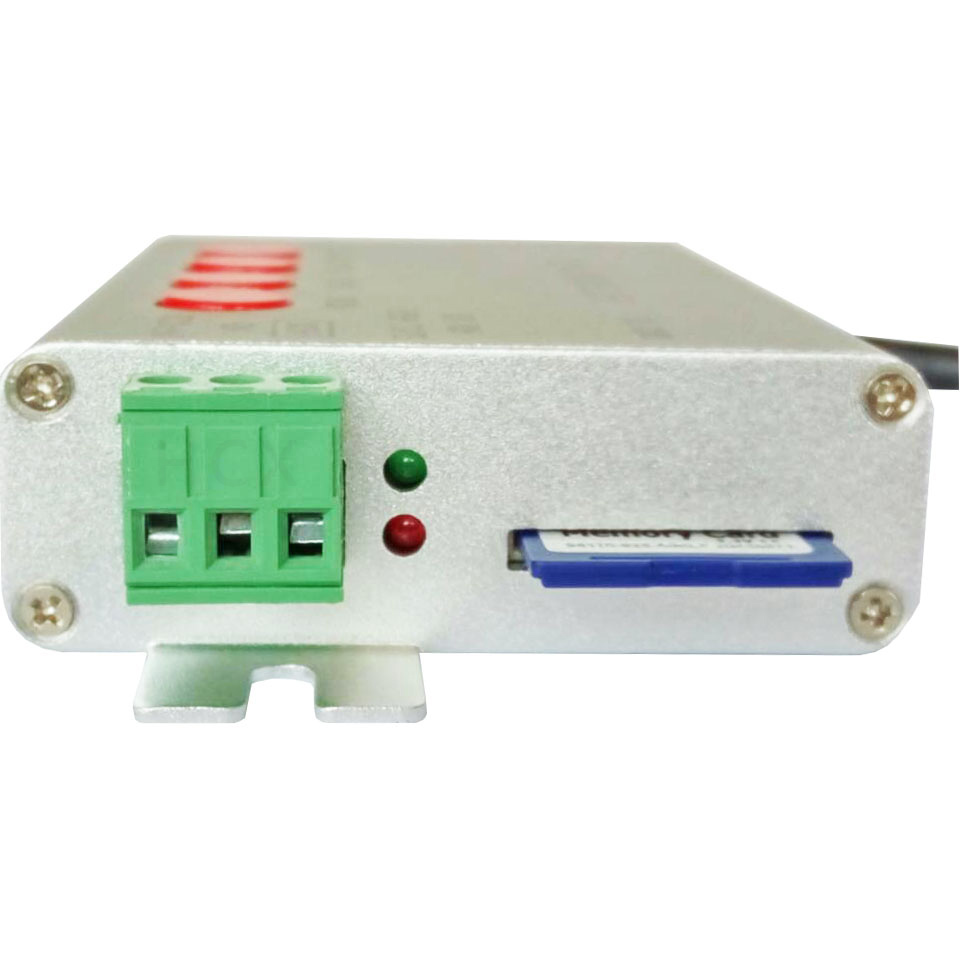

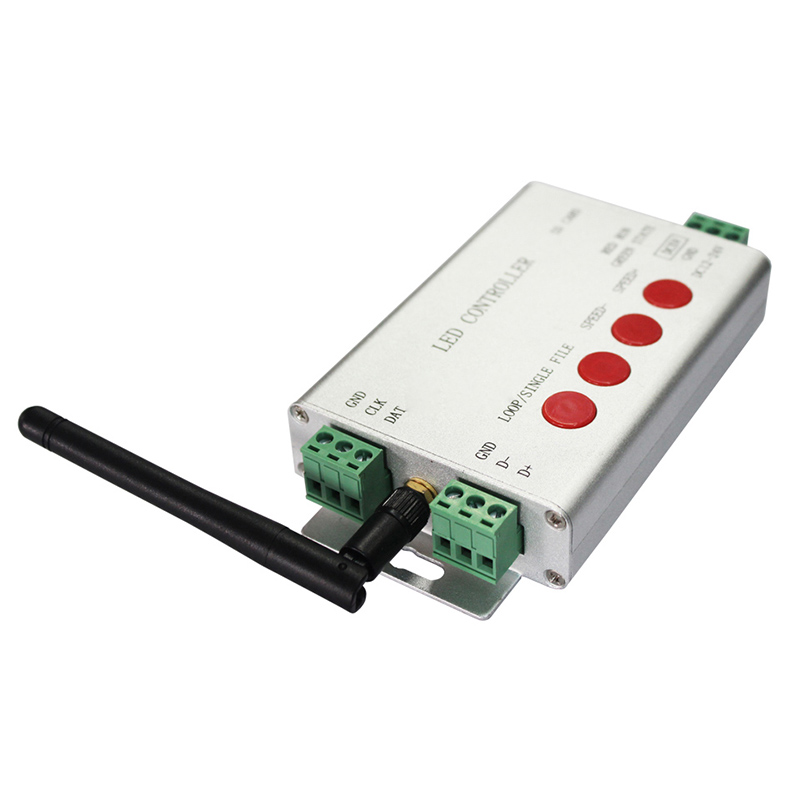

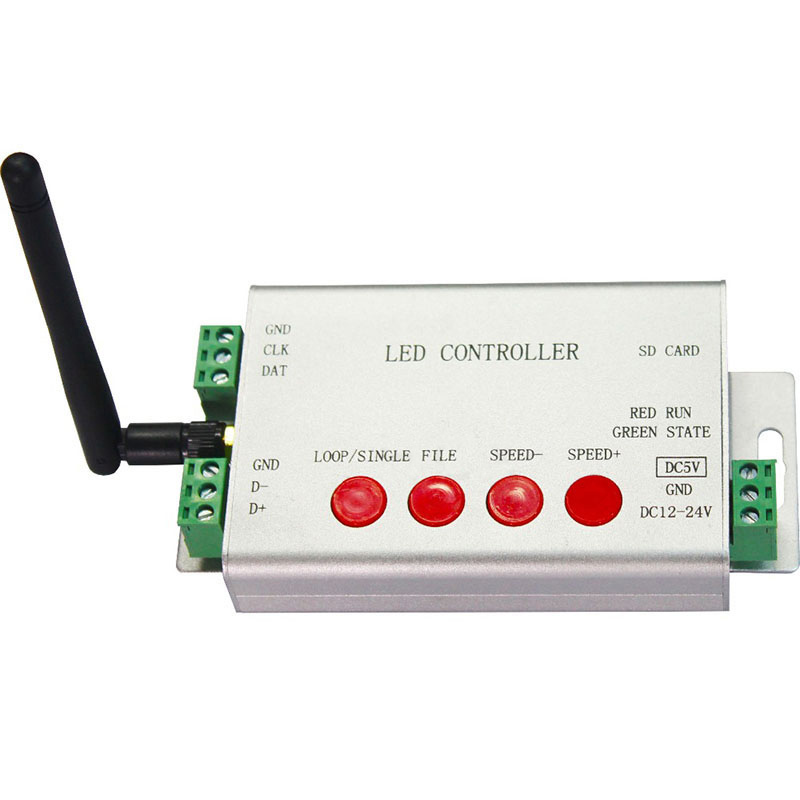

DC5V or DC12~24V input. One port controls maximum 2048 pixels. the digital controller supports dozens of single-line and double-line chips. You can also use four buttons to set play mode, switch files, increase or decrease speed.
Item Type: Dream color wifi programmable Controller
Input Voltage: DC5~24V
Number of pixels: 16~2048 pixel
Speed Control: 32 adjustable
Memory: Automatic memory function
LED sequence: Arbitrarily set
Synchronous mode: wire cascade synchronization
Control mode: APP or RF315/433M
Music Control: The environment or the mobile phone music
Apply For: Android device only
The chip supported as below:
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1 x LED WIFI DMX Controller
1 x User Manual
1X 128M SD card
