WS2811 DC12V 150LEDs White/Warm White Programmable LED Strip Lights, Addressable Digital Flexible LED Strips, 5m/16.4ft Per Reel By Sale

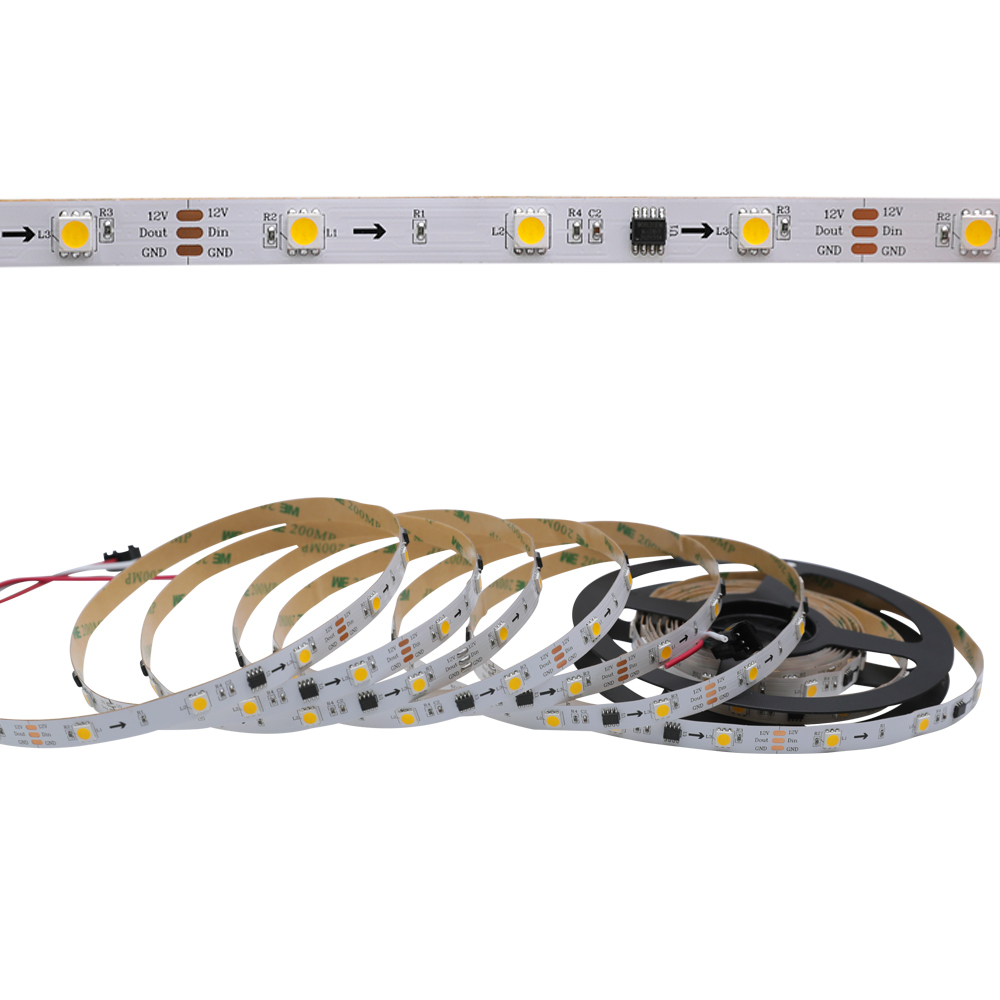

1. This WS2811 Daylight white/Warm White DC12V 30 LEDs/m Programmable Led Strip Lights with pure color, 5050 daylight white/ warm white FPC board on the back of 3M glue, easy to install, can be cut into 3-LED segments, so you could cut a different length for your project and request.WS2811 IC chip control, 5meter(16.4ft) Per Reel By Sale.
2. Low energy consumption, high brightness, The performance is stable and can do waterproof processing unique line technology and high standards of anti-static, to ensure the life of the light bar and the use of quality with plastic deck, easy to install seismic, maintenance normal life of 50,000 hours.
3. The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration, pool, disco, bar, karaoke, and other atmosphere lighting.
4. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
WS2811 Chips Specifications Download
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

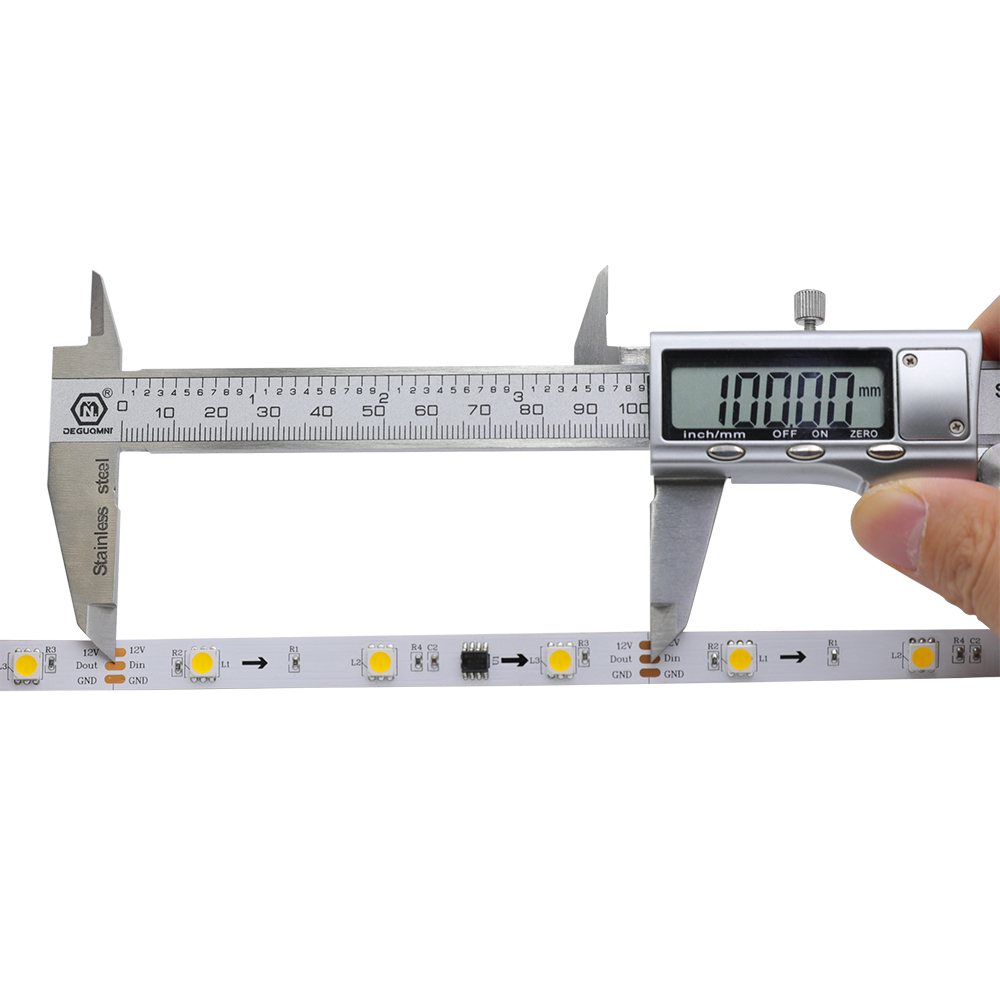

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 10 LEDs per 1meter (3.28 ft)

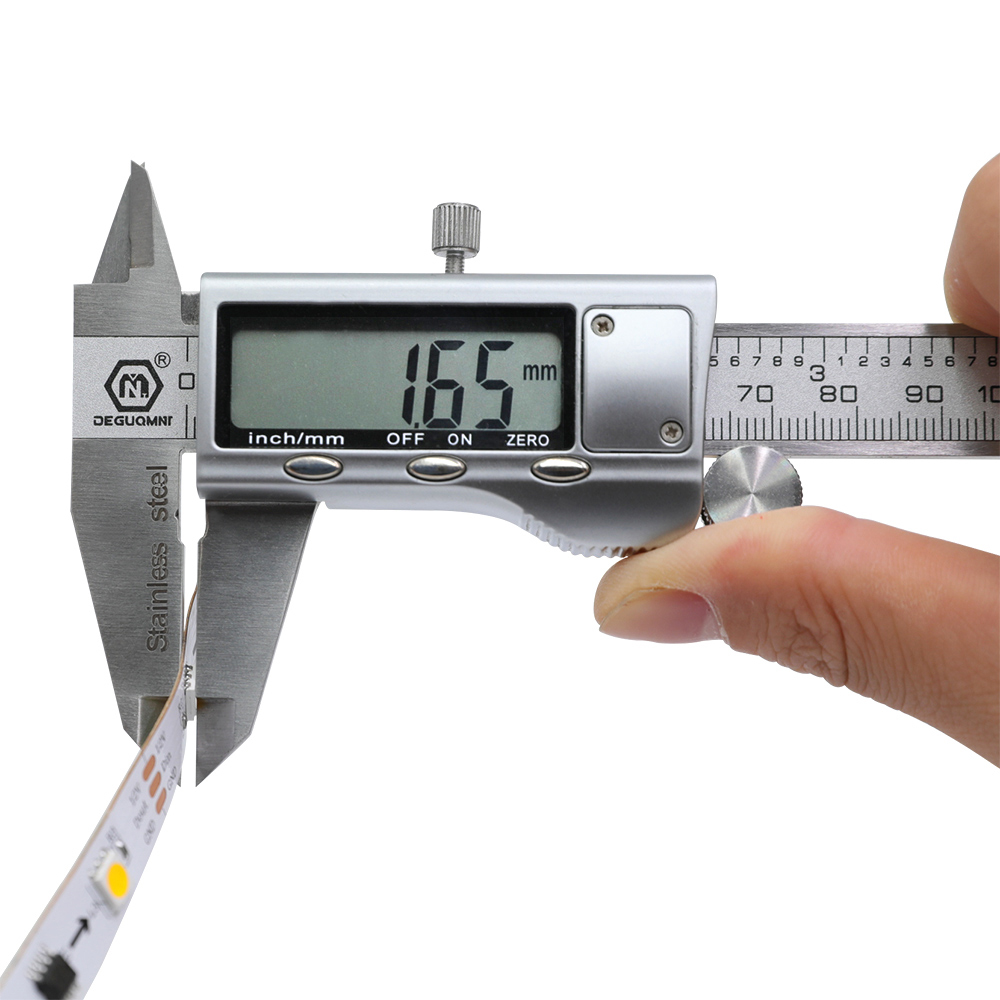

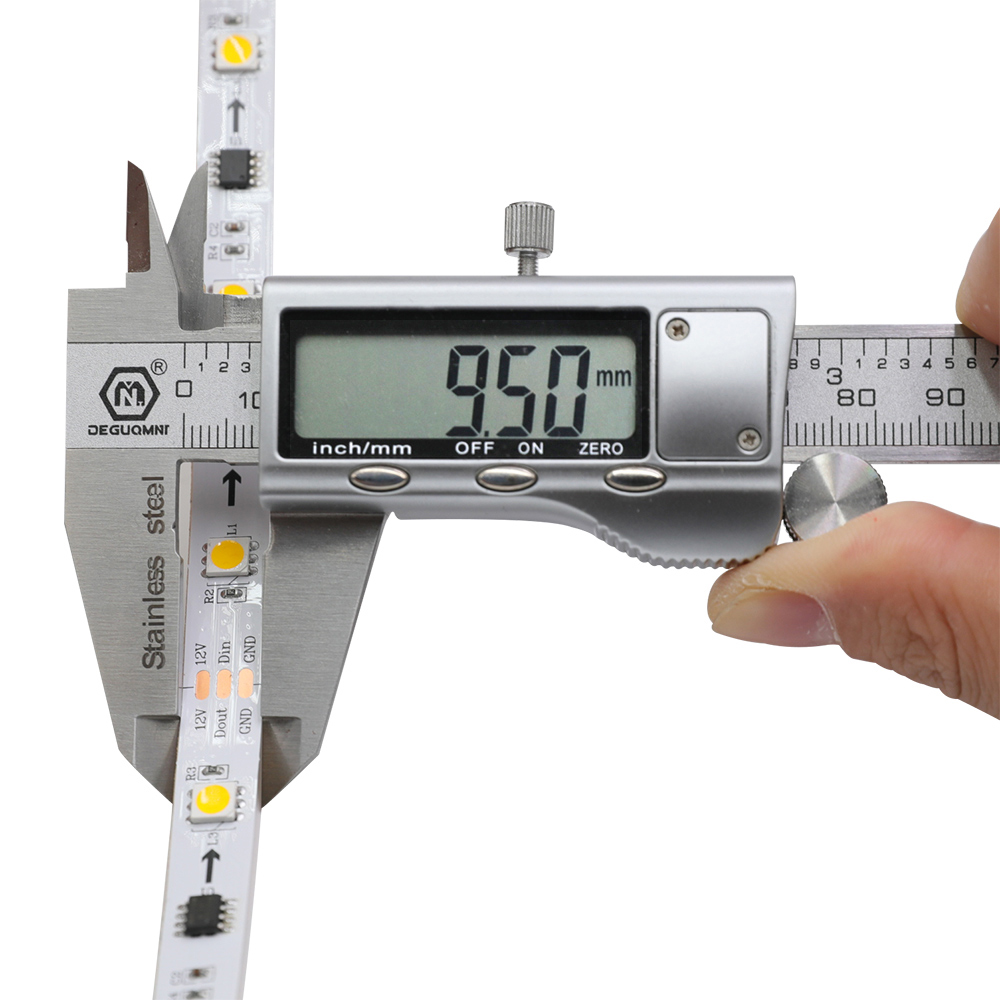

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 45W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: Non-waterproof or IP65/IP67/IP68
Warantty: 3 years

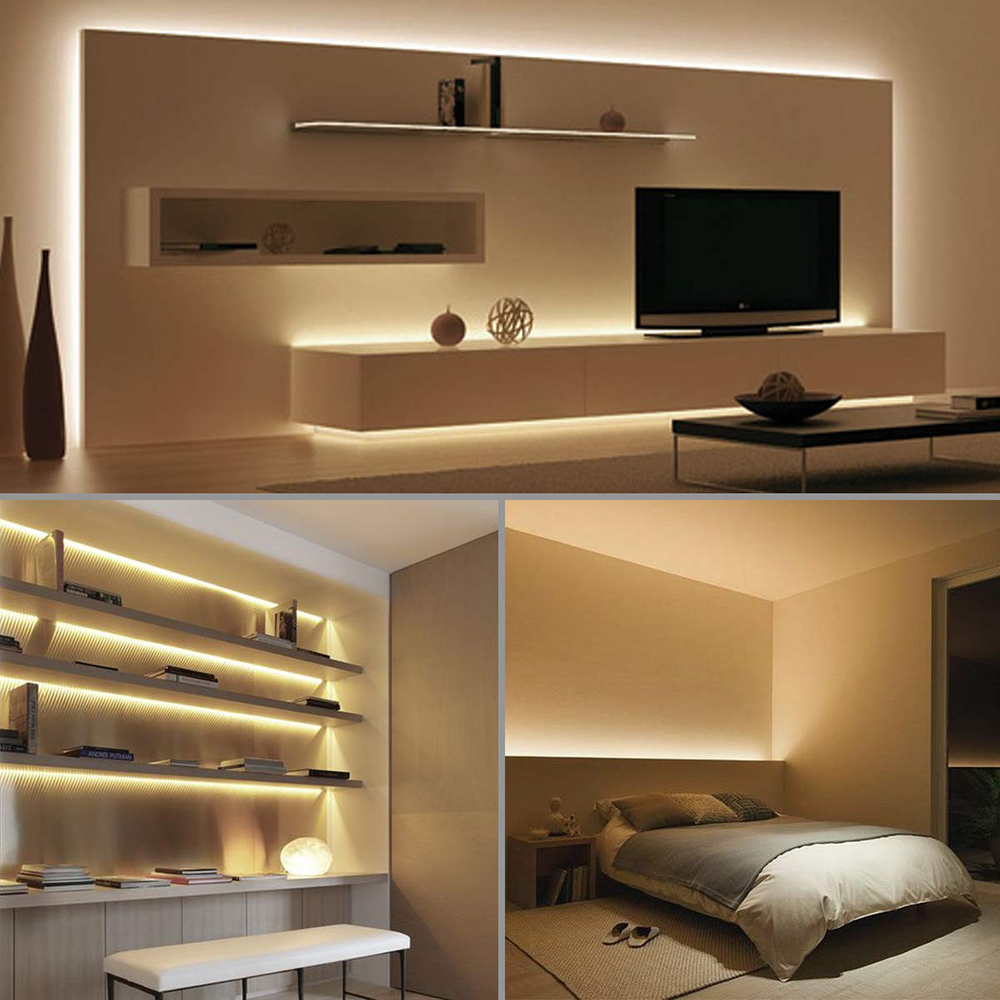

LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

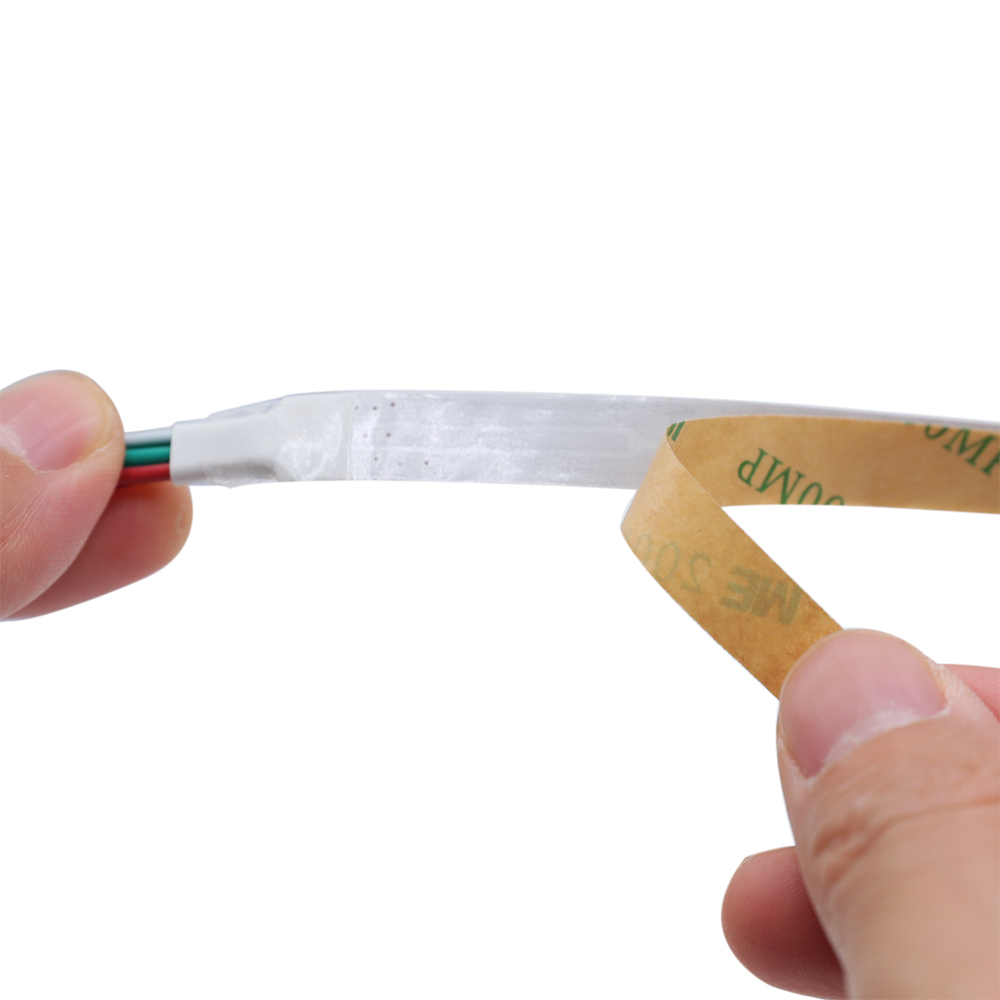

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
