Product Information

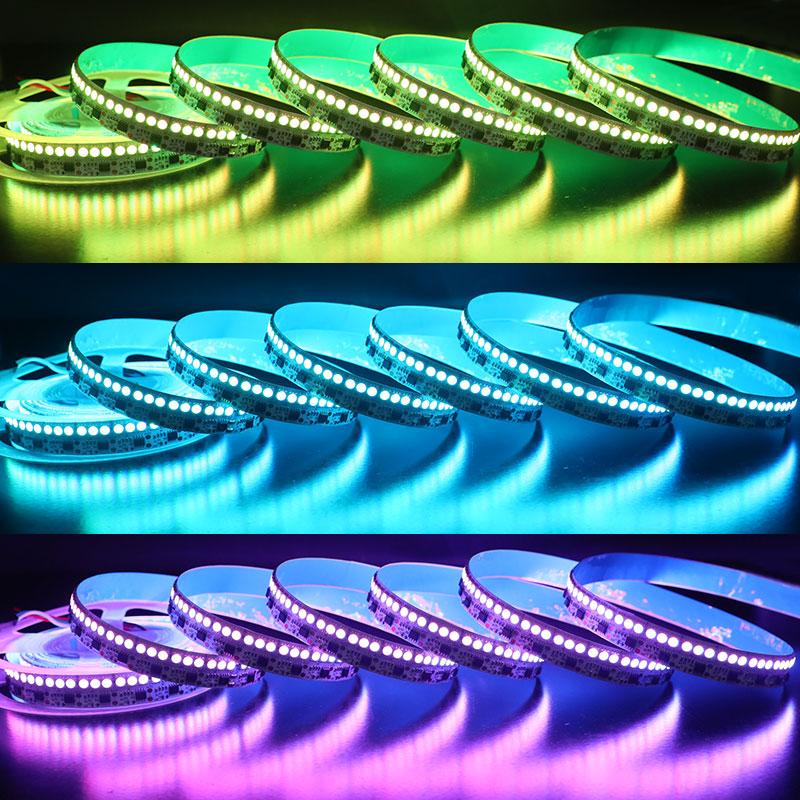

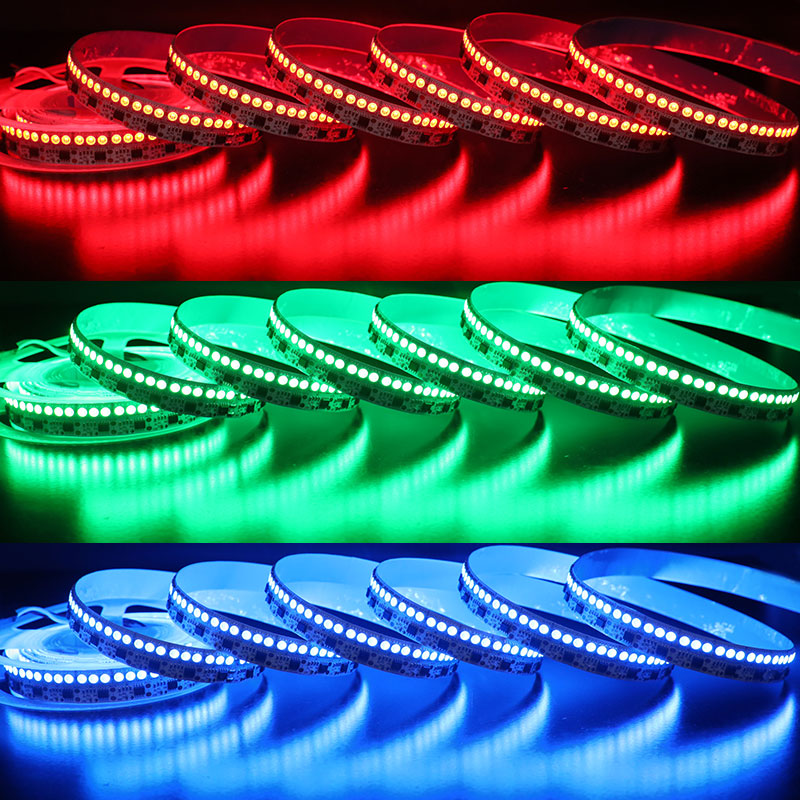

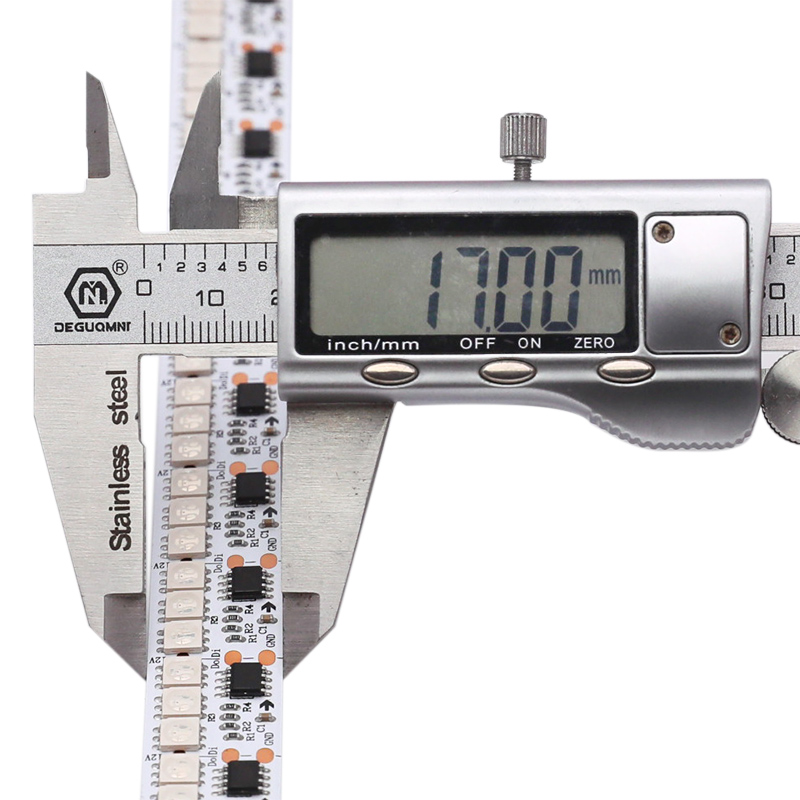

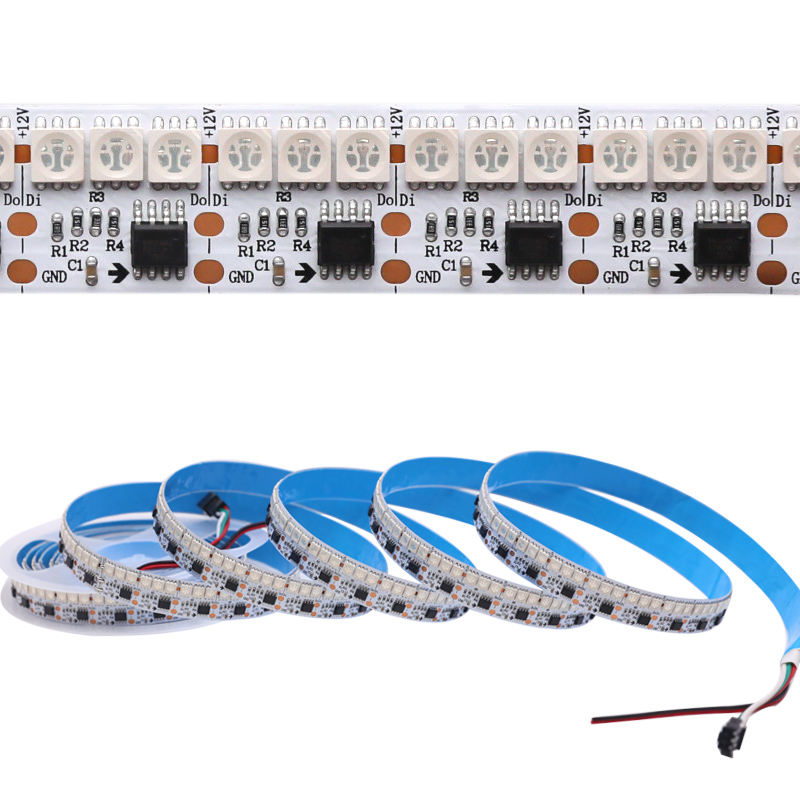

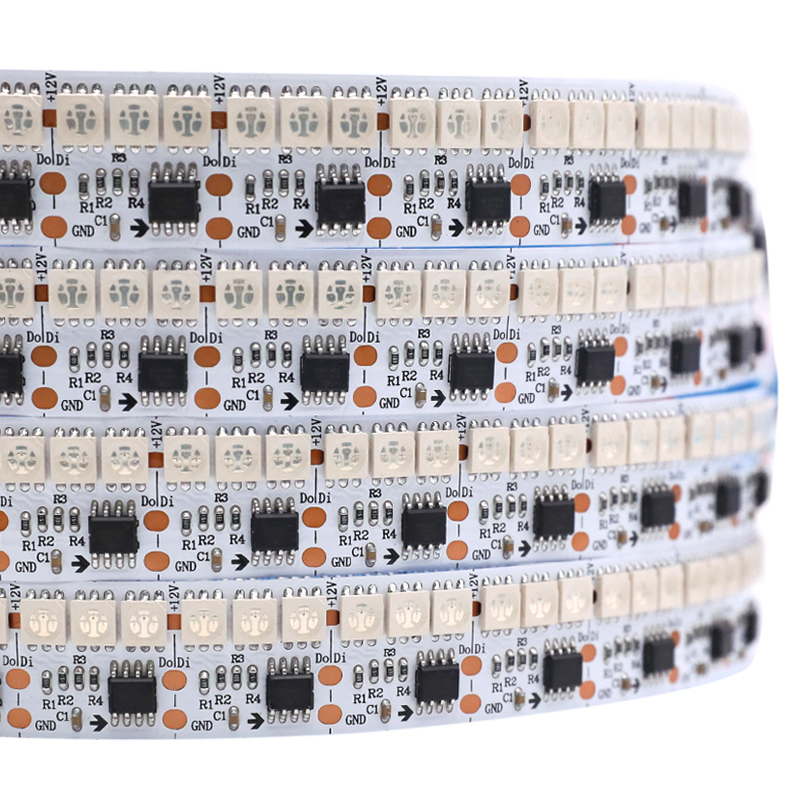

A 180LEDs/m highest density WS2811 12V even lighting ARGB led strip, LEDs and electronics are discharged side by side with a PCB width of 17mm (0.67 inches). This lighting design allows for higher LED density to be achieved, resulting in more uniform dream color lighting. The high density WS2811 LED strip gives a more even light whether installed directly or with neon tube or aluminum profile housings.

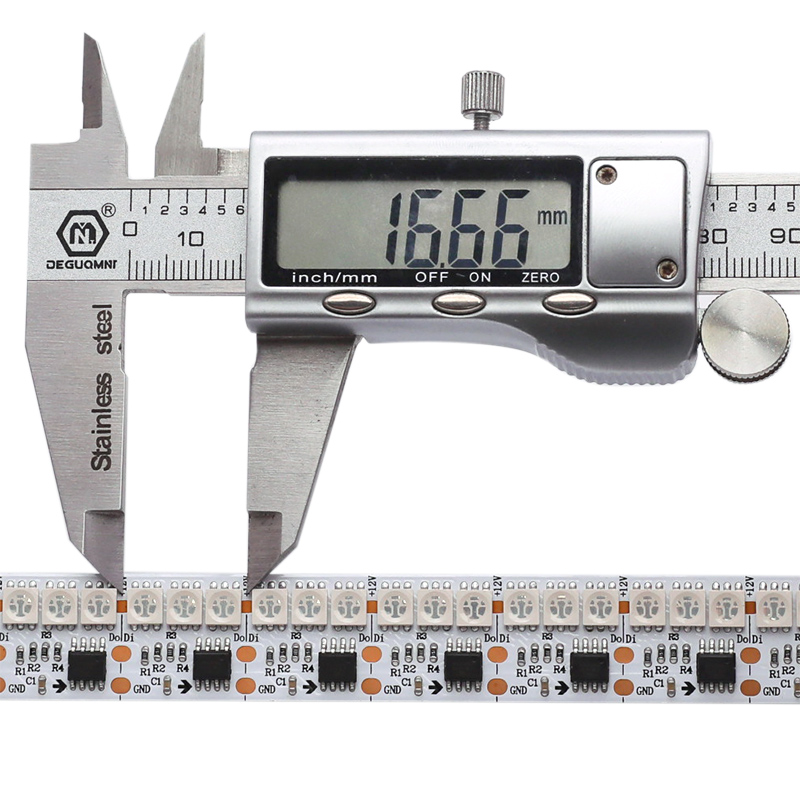

LEDs are controlled by WS2811 external ICs, 12V drive, one WS2811 IC controls 3 5050 LEDs, 16.66mm cuttable. The 12V WS811 strip light comes with 3pin JST connectors and 2pin power wires on both ends, follow the signal arrows to connect the addressable led controller and make multiple runs.

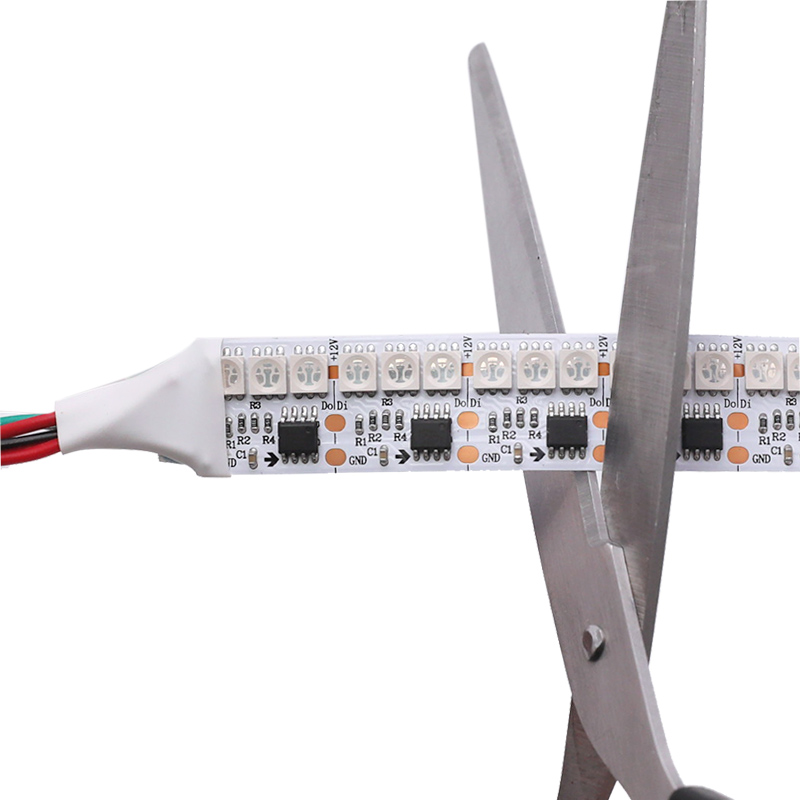

Due to the density of the WS2811 ARGB led strip is too dense, you can only connect the cut light strip by soldering. 5m/16.4ft per roll.
Kit: CONFULL-SP638E Bluetooth addressable led strip controller, LRS-200-12 Meanwell led power supply.
WS2811 Datasheet Download
Product Specification
| Light Strip Type: | 12V WS2811 ARGB LED Strip |
| LED Chip: | SMD5050 + External WS2811 IC |
| Input Voltage: | DC12V |
| Power: | 25W/m, 125W/16.4ft Max. |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color: | Addressable RGB |
| PCB Width: | 17mm/0.67" |
| LED Quantity: | 180 LEDs/m, 900 LEDs per roll |
|
IC Quantity:
|
60 ICs/m, 300 ICs per roll
|
|
Cut Unit:
|
3 LED can be cut (16.66mm)
|
| Waterproof Rating: | Non-waterproof IP20, Outdoor Waterproof IP67 |
| Strip Length: | 5m/16.4ft |

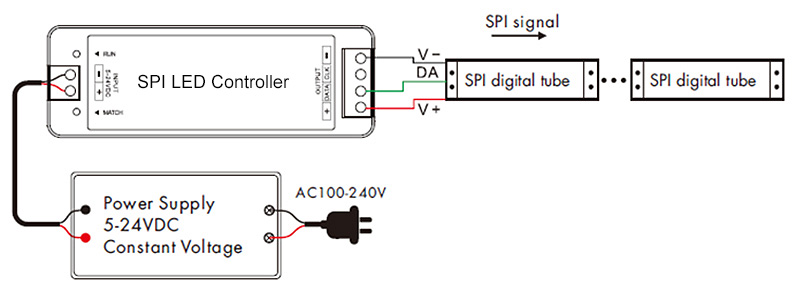

How To Wire 3 Pin WS2811 ARGB LED Strip?
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for DCFLS-12V-WS2811X180W17Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
DC24V/12V High Density COB Color Chasing Lights Addressable RGB LED St…£18.20
DC24V WS2811 SMD5050 Double Row Addressable RGB LED Strip 168LEDs/m£22.75

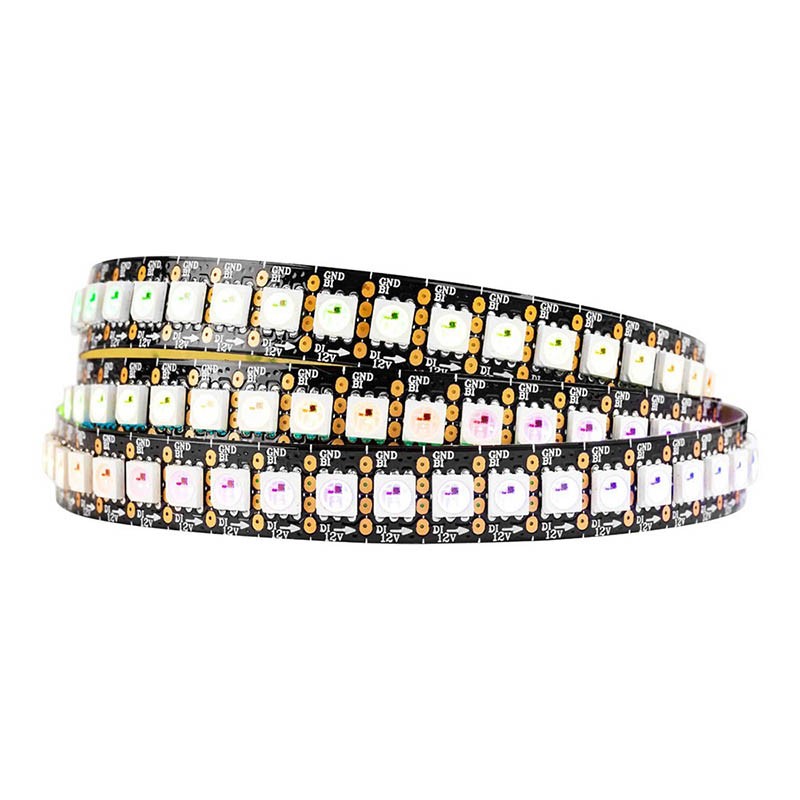

DC12V WS2815 (Upgraded WS2812B) 1M 144 LEDs Individually Addressable D…£9.09
