Waterproof Aluminum LED Profile For 12mm LED Strip Lights

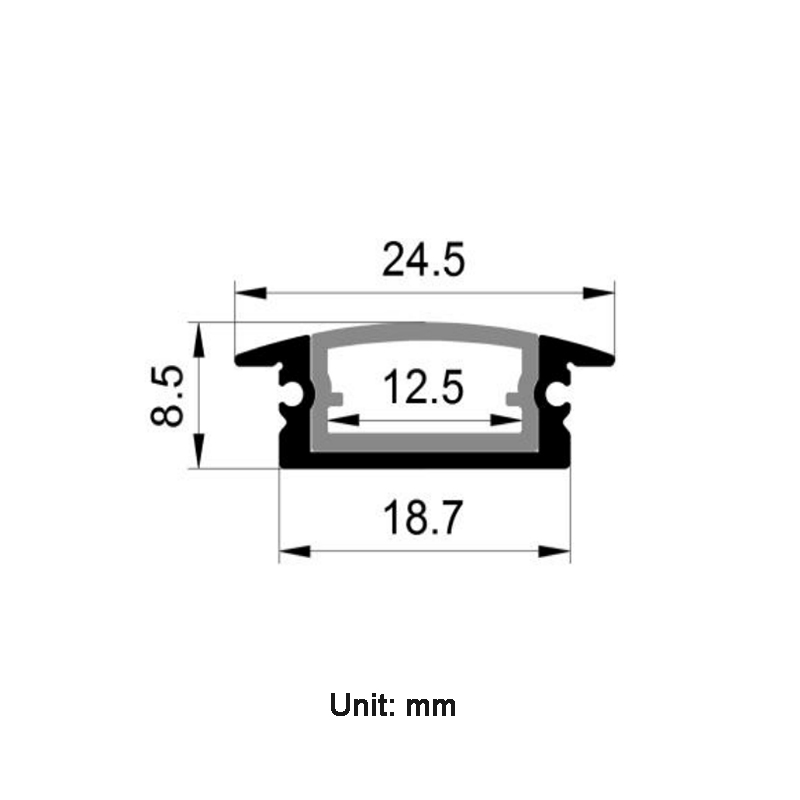

Check this waterproof aluminum led profile for led strip lights with IP65 waterproof grade. 12.5mm/0.49in inner width, this aluminum led channel is suitable for addressable white/WWA led strip lights, equipped a PC light diffuser to soft and smooth LED light output (PMMA led diffusers need to contact us to constomize). The standard length of the aluminum led profiles is 1 meter, silver, white, or black led aluminum channel diffuser with end caps and mounting clips to make the installation more easily, is ideal for adding light to your residential and commercial linear lighting LED projects if you have waterproof requirements.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

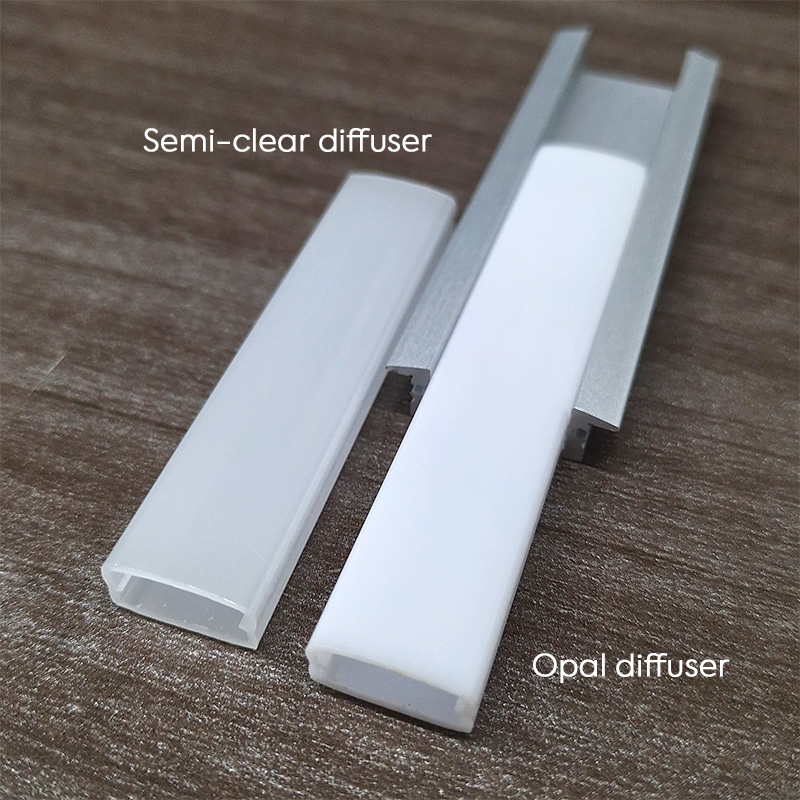

|LED Diffuser||PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

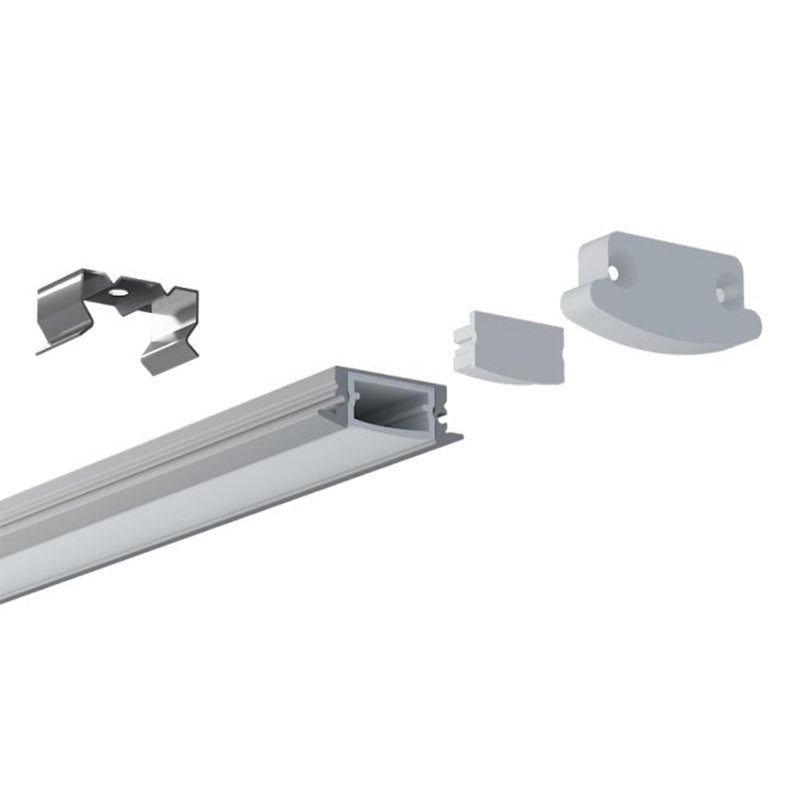

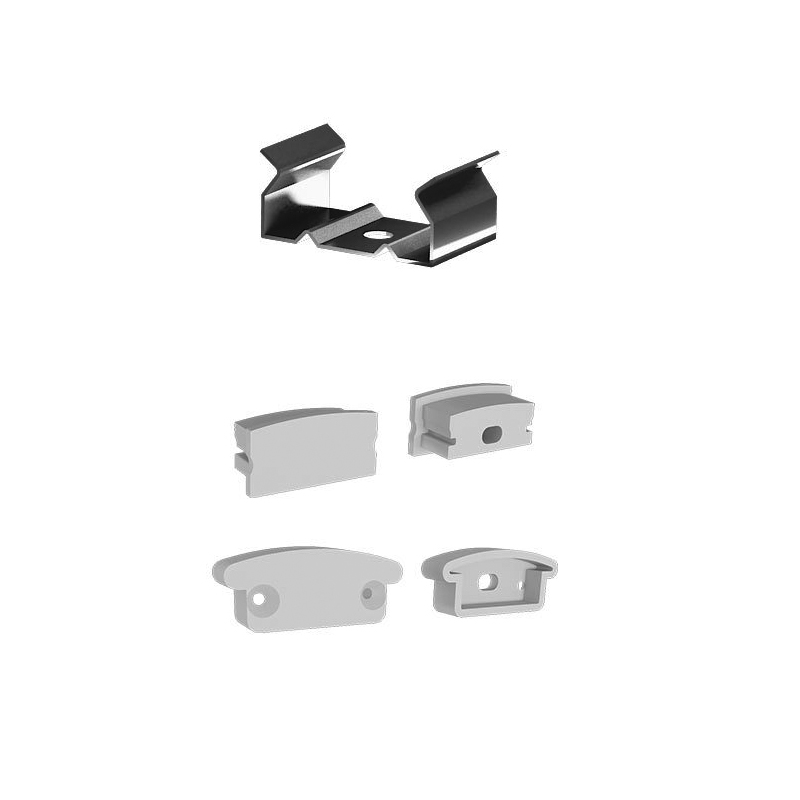

|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||5050/2835/2216/3014/3528/5630/5730 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
