Product Information

Elevate your lighting projects with our high-performance WS2811 Addressable RGB LED Strip. Engineered for reliability and ease of installation, this strip features a high density of 72 LEDs per meter, delivering vibrant, seamless color transitions. Designed with a 24V power system, it is the ideal choice for long-run installations where consistent brightness and minimal voltage drop are critical.

While we also offer 8mm versions of the 24V 72 LEDs/m WS2811 strip, this 10mm wide PCB provides a significantly larger surface area. The extra 2mm allows for superior heat dissipation, extending the lifespan of the 5050 LEDs. A wider copper trace reduces internal resistance, ensuring more stable performance during peak brightness.

Each 5-meter roll comes pre-soldered with 3-pin JST SM connectors on both ends. This allows for effortless "daisy-chaining" of multiple rolls and quick connection to your LED controller without the need for immediate soldering.

Ideal Applications

Architectural perimeter lighting

Under-cabinet and cove lighting

Stage and event production

Large-scale DIY LED matrices or signage

Standards and Certifications

24VDC

Product Specification

Voltage: DC 24V

IC Type: WS2811 (External IC)

LED Type: 5050 RGB SMD

LED Density: 72 LEDs/meter (360 LEDs per 5m roll)

IC Pixel: 12 ICs/meter (60 ICs per 5m roll)

Cutting Unit: 6 LEDs per segment

PCB Width: 10mm

Length: 5 Meters / Roll

Connectivity: 3-Pin JST SM connectors on both ends

How to control addressable LED strips?

Controlling the LED color and brightness changes of addressable LED strips requires compatible addressable LED controllers. These addressable light strips are compatible with SPI protocol and can use SPI controller. The SPI controller has built-in multiple programmed control programs, which can realize a variety of control effects(Flowing water, chasing, jumping, etc.). Support different control methods, WiFi, Bluetooth, remote control, smart phone, voice control, music rhythm, etc. Find the SPI controller you want in our addressable dream color LED controller category.

When selecting the SPI controller, pay attention to the pixels and the operating voltage of the light strip. If the pixel of the SPI controller is smaller than the pixel of the addressable LED strip, it will be impossible to control the extra pixel light of the light strip. For more information about addressable LED controllers and more wiring content, please read: How to wire addressable led strips?

LED controller and power supply are inseparable to enjoy the addressable LED strip. Addressable light strips, SPI controllers and power supply are an integral part of the operation. First, choose the power supply classification according to the voltage, 5V power supply, 12V power supply or 24V power supply. Secondly, the required power supply is obtained according to the power of the light strip. How to calculate the power of the power supply based on the power of the LED strip? The power of the power supply must be at least 1.2 times the power of the light strip to extend its service life. The longer the light strip, the greater the power consumption and the higher the power wattage. If you have waterproof and rainproof requirements for the power supply, you can directly find the corresponding category to view.

The SPI controller is plug and play. If you need other accessories such as 3-pin light strip extension cord or the LED connector, you can find them in the accessories category.

addressable led strip wiring diagram

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for WS2811-RGB-5050X360

PDFWS2811-RGB-5050X360 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

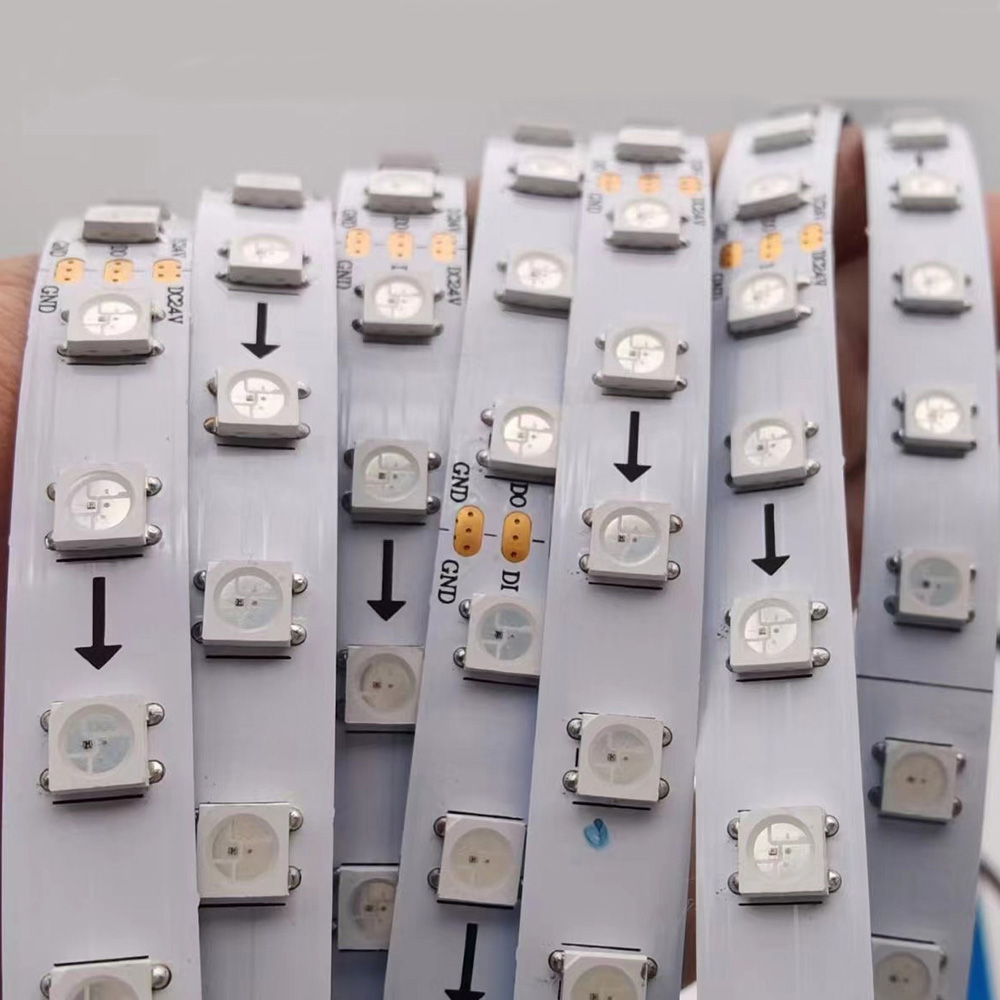

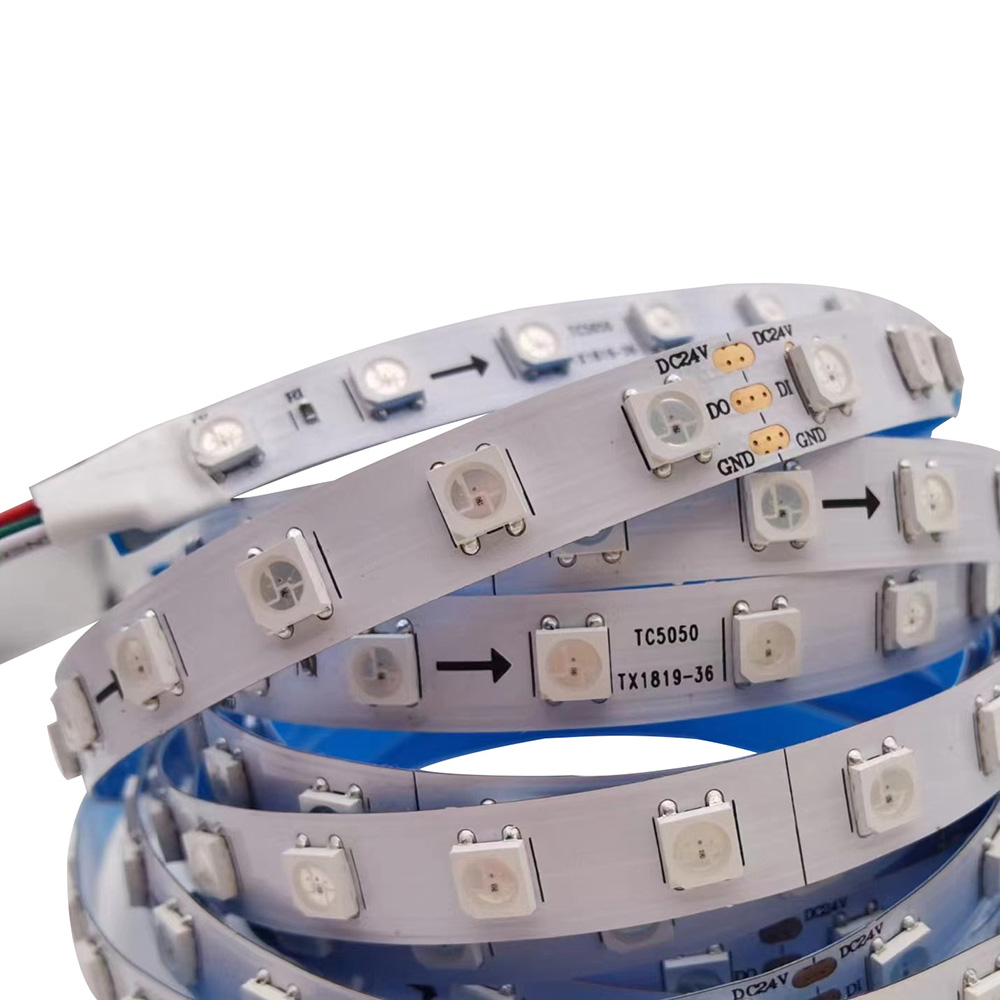

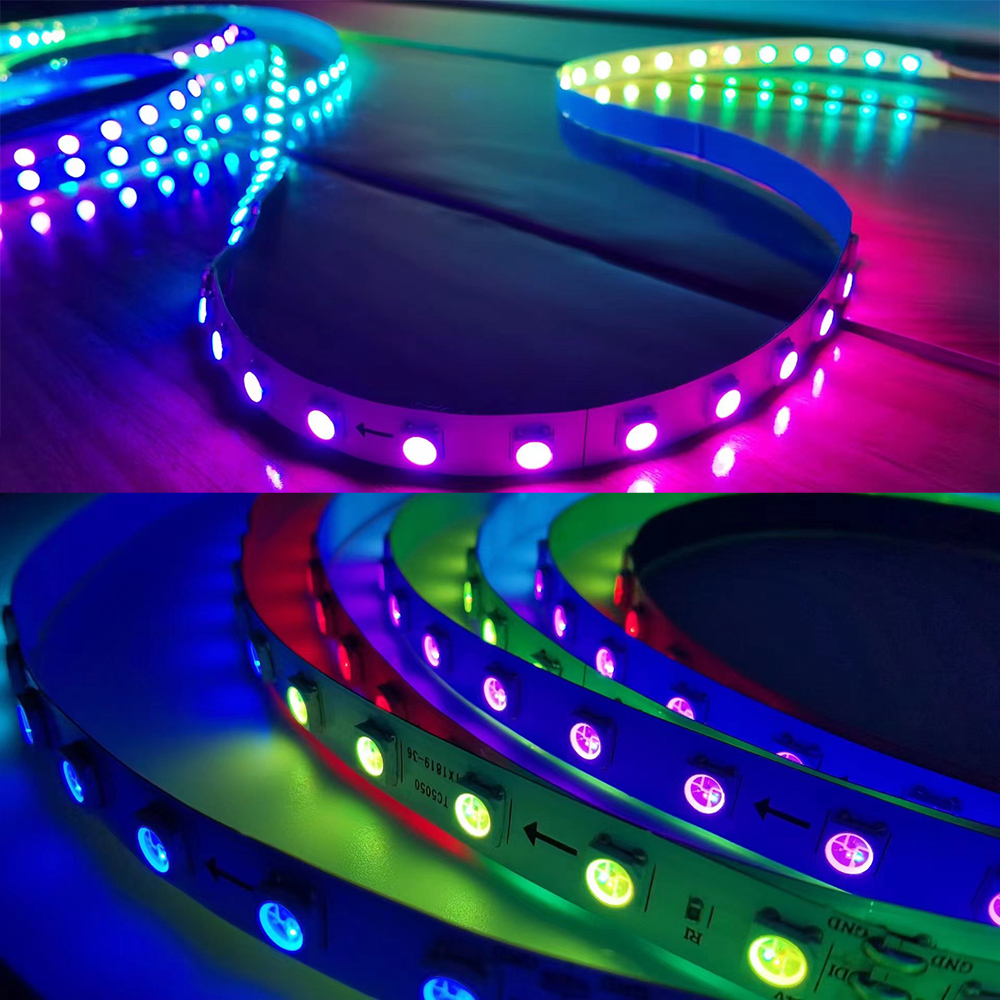

DC24V WS2811 Addressable RGB LED Strip Lights - SMD5050 360LEDs 16.4Ft

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - With Brackets · Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Outdoor Silicone Tube IP67 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in) · LED density 72LEDs/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
