24V 12V Addressable RGB LED Strip 3-Pin TM1934 2835 SMD Lights
16.4ft addressable 2835 RGB led strip for sale. 96 or 120 LED density, brighter than low density led strip lights.
This strip light is 3-pin addressable RGB, only one data line to transmite signal. When an LED is damaged, the RGB LED lights after it will also not work. This is the data transmission method for all single signal addressed led strips.
The addressable RGB light strip with 96LEDs/m is narrow 6mm PCB width, 12V DC input, 32 pixels per meter, one IC controls 3 RGB lights (1 pixel = 3 LEDs). And it cunsumes 17.52 watts each meter.

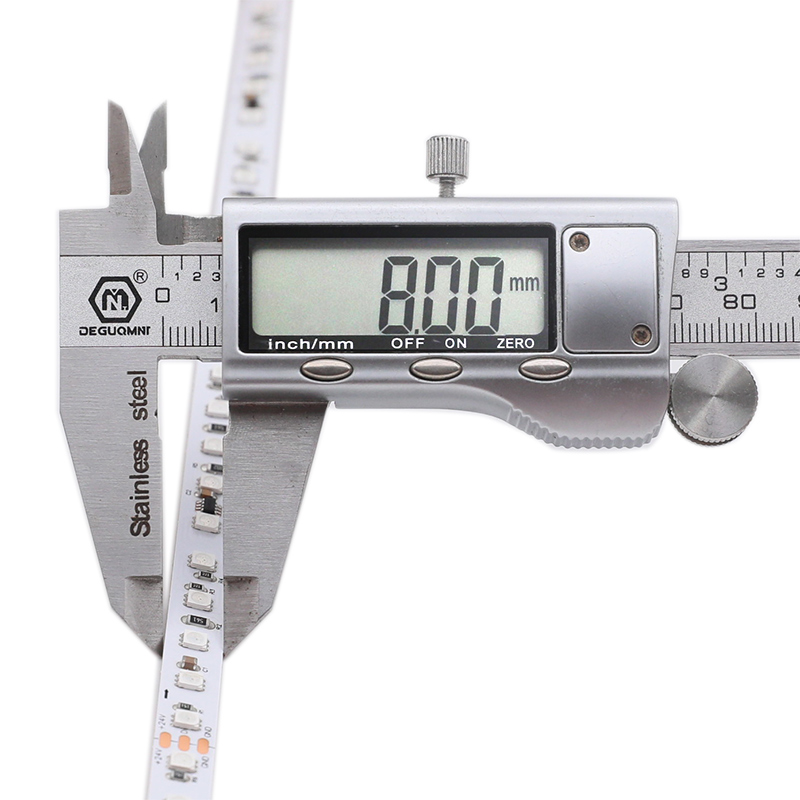

The addressable RGB strip light with 120LEDs/m is 8mm wide, 24V low voltage input, every meter has 20 pixels, 6 LED lights are controlled by one FW1934A IC (1 pixel = 6 LEDs). And running a 1m this strip needs 23.4W power.
When choosing the led strip power supply, the wattage of the addressable RGB light strip should not exceed 80% of the power supply capacity. And it requires an addressable RGB led controller to achieve various lighting effects.
Standards and Certifications
|LED Strip Type:||Addressable RGB LED Strip|
|LED Chip:||SMD2835 + FW1934A IC|
|Input Voltage:||DC12V, DC24V|
17.52W/m - 96LEDs/m,
23.4W/m - 120LEs/m
|LED Color Temperature:||RGB Dream Color|
6mm - 96LEDs/m,
8mm - 120LEDs/m
|LED Quantity:||96/120 LEDs/m, 480/600 LEDs per roll|
32 ICs/m - 12V - 96LEDs/m,
16 ICs/m - 24V - 96LEDs/m,
20 ICs/m - 24V - 120LEDs/m,
40 ICs/m - 12V - 120LEDs/m

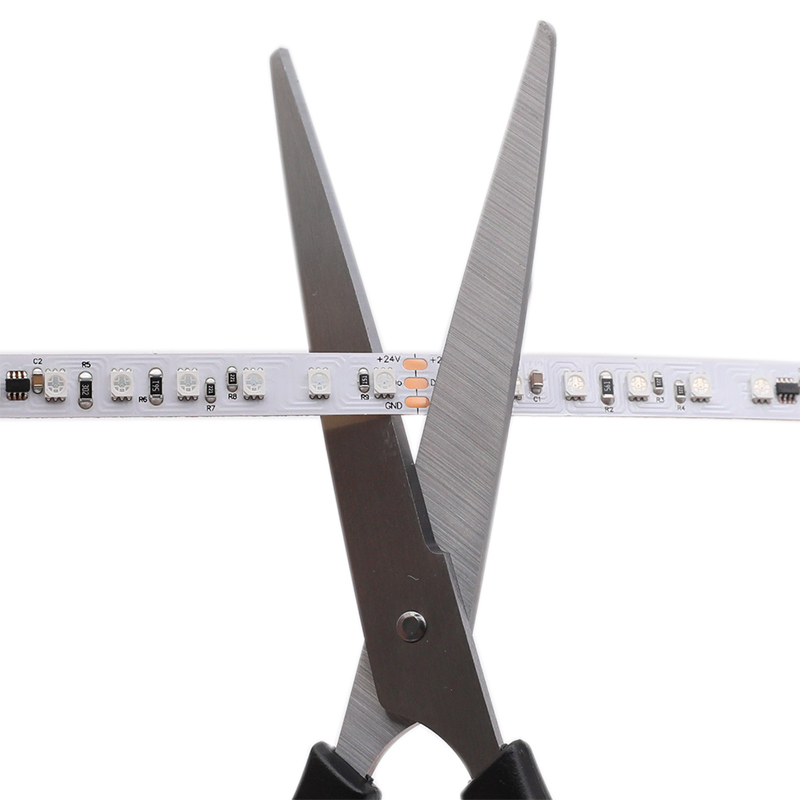

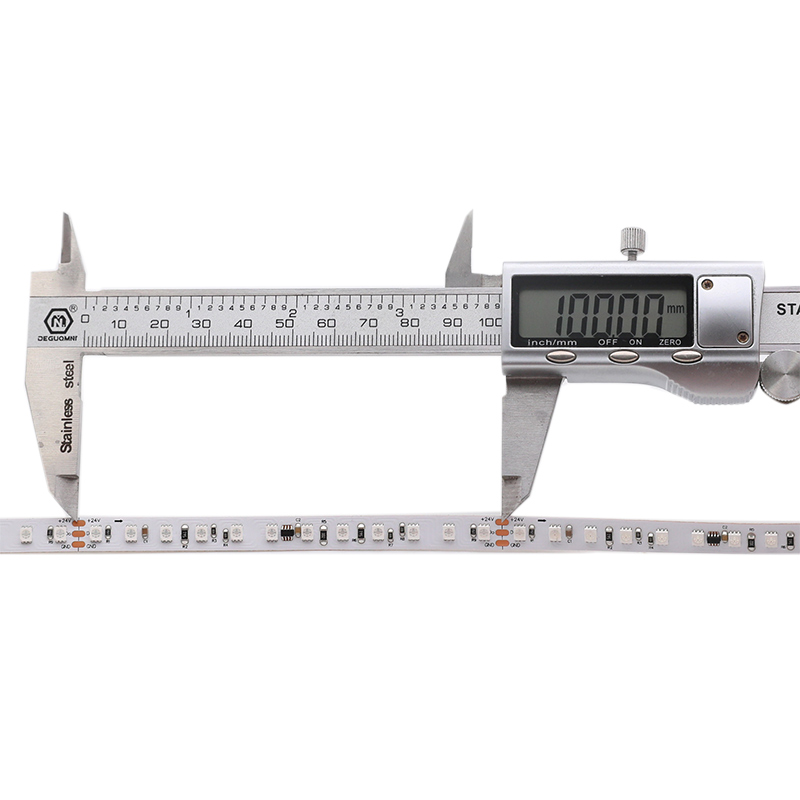

31.25mm - 12V - 96LEDs/m,
62.5mm - 24V - 96LEDs/m,
50mm - 24V - 120LEDs/m,
25mm - 12V - 120LEDs/m
|Waterproof Rating:||Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68|
