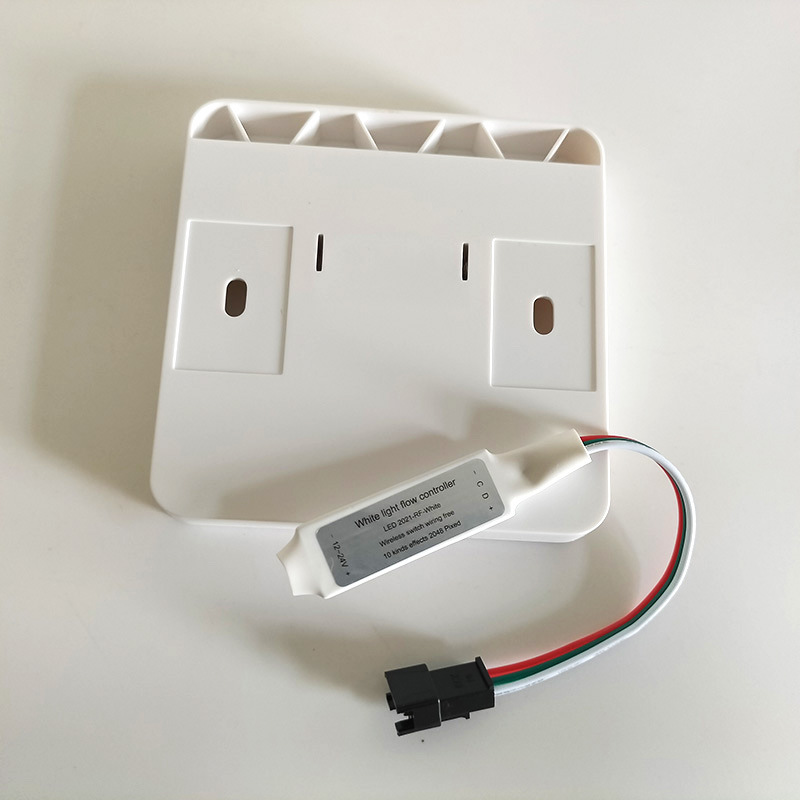

LED White Light Flow Water Mini Controller With RF Control Panel
Low-voltage addressable white light flow mini LED controller with control panel, 10 kinds of water flow modes, water flowing from both ends to the middle, water flowing from the middle to both ends, meteor trailing, chasing horses, etc. The default is 80 pixels, and the maximum can be adjusted to 2048 pixels. When in use, place the indicator light of the remote control switch downwards. The first button: the speed is reduced by 10 levels in the power-on state, and the brightness is reduced by 10 levels in the shutdown state. The second button: power on/off. The third button: 10 modes to switch.
Addressable LED Strip Lights Guide:
Standards and Certifications
|Number Of Control Points||Up to 2048 pixels|
|Remote Control Distance||15 meters|
|Battery Model||27A 12V|
|Effect Mode||10 kinds|
Controller adjustment method
When the light is off, long press the third button to enter the adjustment point menu. At this time, press the first button to increase the points, and press the third button to decrease the points. Long press to quickly adjust. After adjustment, press the on-off button to save and exit. The default factory is 80 pixels, and the maximum can be adjusted to 2048 pixels.
Code matching: long press the power button within 5 seconds after the controller is powered on, the light bar will flash slowly 3 times.
Clear code: press and hold the power button within 5 seconds after the controller is powered on, the light bar will flash 3 times quickly.
1: Turn on the light and the water is always on, turn off the light and return.
2: Turn on the lights and the water is always on, turn off the lights and flow downstream.
3: The water flowing from the two ends to the middle is always on, and the lights are turned off and the water flows back to the two ends.
4: The water flowing from the middle to the two ends is always on, and the two ends of the light are turned off to return to the middle.
5: The running water is always on (with breathing gradient), shut down and return.
6: 60CM meteor trailing.
7: 120CM trailing water at both ends.
8: 5 IC chasing horses.
9: 2 IC chasing horses.
10: Chasing horse racing + meteor trailing.
