WS2813 5mm/0.20in Width 300LEDs 16.4Ft Breakpoint-continue Individual Addressable RGB LED Strip Light
WS2813 Addressable LED Strip Light Advantages
WS2813 addressable led strip WS2813 intelligent control LED light source integrates the control circuit and RGB chip into the 5050 component package, is an intelligent control LED light source that internally includes an intelligent digital port data latch and signal to reshape amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
WS2813 adopts dual data interface communication, WS2813 addressable LED strip light has 4 pins: V+ pin (+5V), GND pin (GND), and data pin (DO and BO), V+ and GND pins are connected to the LED power supply to power the LED strip, and the data pin is connected to the LED controller.
Double signal line has the advantage of continuous transmission at a breakpoint. Single LED does not light up and will not affect the lighting use of other LEDs. As long as there is no damage to other adjacent LEDs, the remaining LEDs will continue to work normally.
WS2813 has a refresh rate of 2000 Hz, which can produce excellent display effects without flickering in high-definition cameras.
1.Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working
2.Individually addressable: Every 1 IC control 1 led, can be made into a high-density high-definition display; every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors
3.Waterproof IP67: the ribbon light is covered with a silicone protective sleeve, which can protect it well and makes it easy to clean
4.Wide compatibility. Works great with Arduino, Adafruit NeoPixel Library, Fast LED library, and Raspberry Pi, etc.

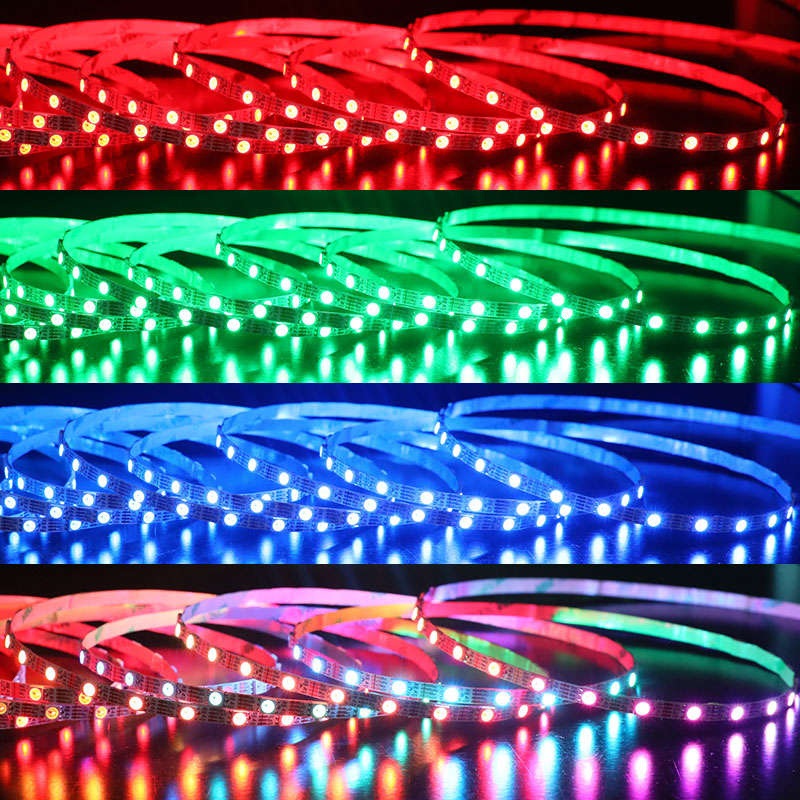

5.Have the dream color effect, single-flow, gradient, chase, scan, and other full-color effects; Splicing to achieve text movement and video animation and other dynamic effects;
6.2unce double cooper PCB board is flexible can be bend and cut, which can achieve a certain curvature and length of the modeling screen.

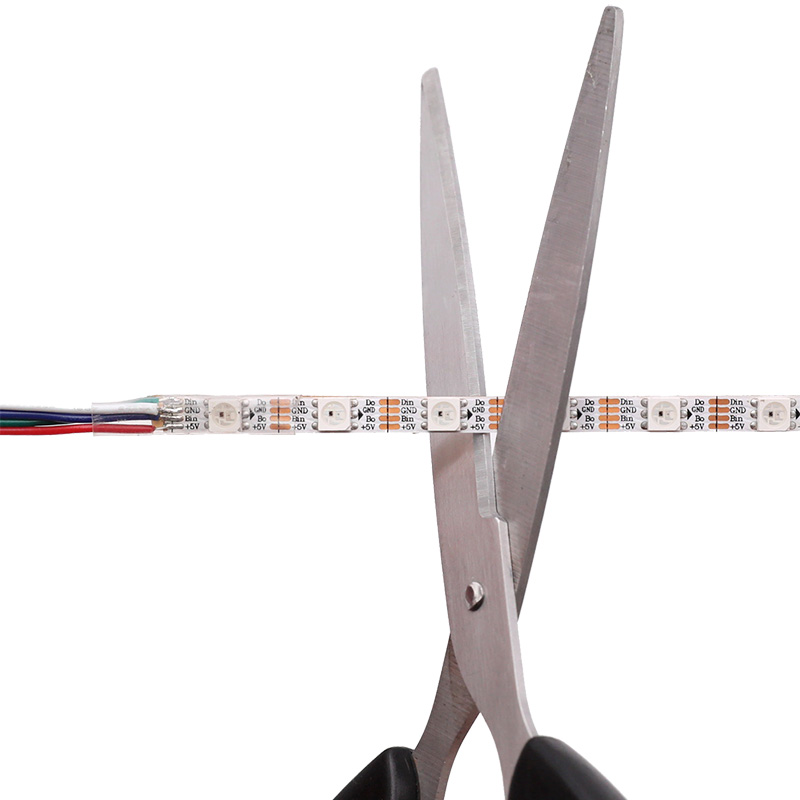

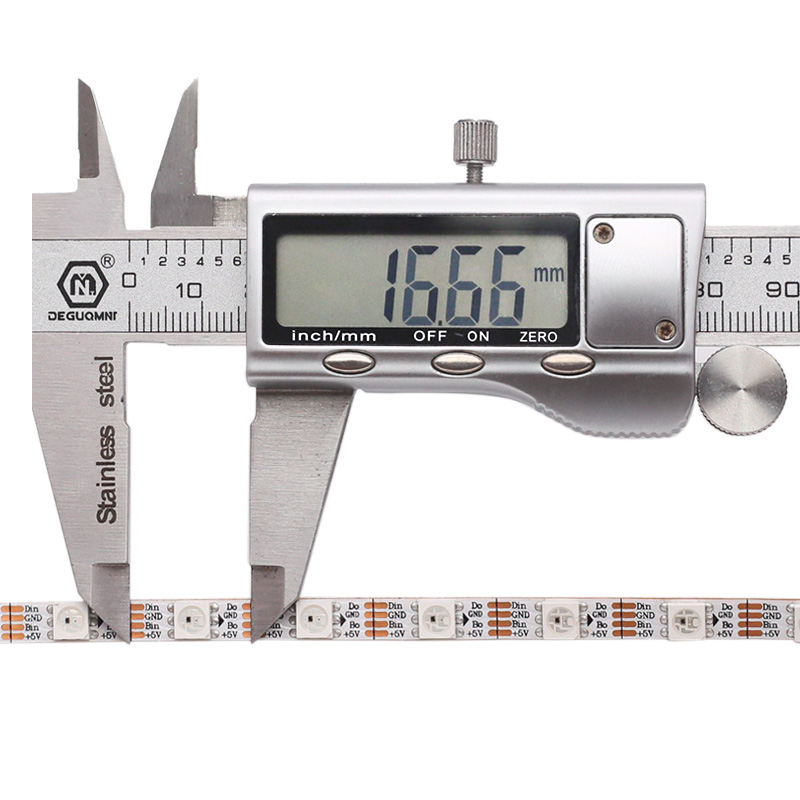

7.Ever 1 LED can be cut, there is cut lines every 1 led, 60LEDs/M. 5V low voltage inputted, don’t over 6V, otherwise, you will destroy the entire strip.
8.Controller System：SD controller, DMX controller, Artnet, and so on. (SPI protocol)
9.Installing: screw+silicon clip and 3M adhesive on backside for sticky
300 Addressable RGB LEDs
High-quality SMD5050 LED chip
Customize IP67 waterproof
Single LED cuttable, individually addressable
DC5V low voltage, safety, and stability
Multiple dynamic color chasing effect
3M tape, easy installation
2000 Hz refresh rate
Dual signal lines breakpoint continuous
5mm/0.20in ultra-narrow Programmable LED light strip
Standards and Certifications
LED strip type: Addressable RGB
LED Chip: WS2813 IC super brights Chip
IC type: SMD5050
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Quantity: 60 LEDs per meter (3.28 ft)
IC Quantity: 60 IC per meter (3.28 ft)(individual addressable)

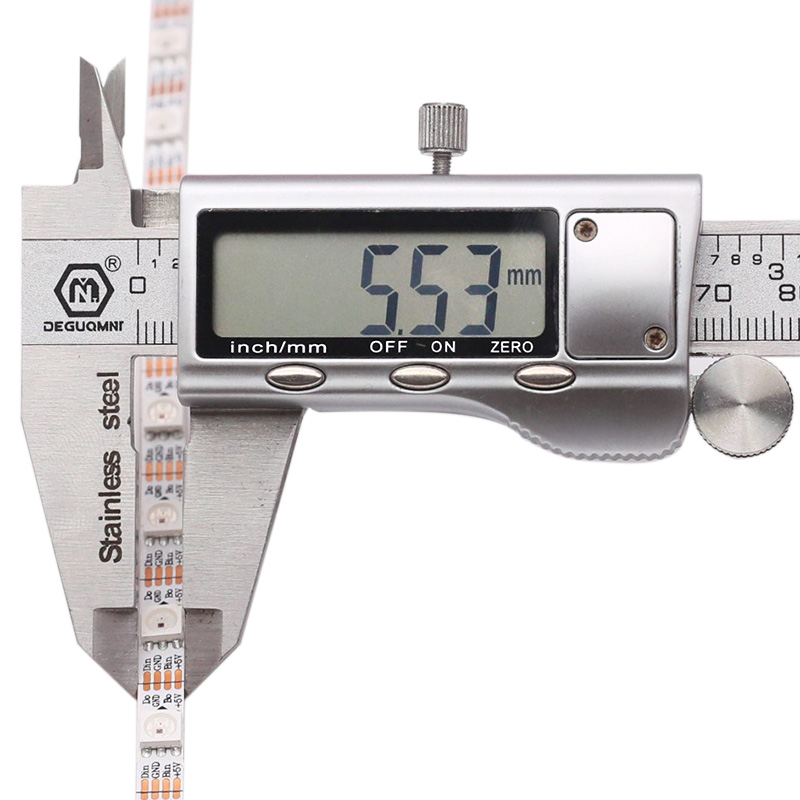

PCB Board: 5mm/ 0.20in
Input Voltage(V): 5VDC
Working Power: 18W/3.28ft, 90W/16.4ft Max
Beam Pattern: 120 degrees
WaterProof: Non-waterproof IP20, waterproof IP67 optional.
Warantty: 2 years

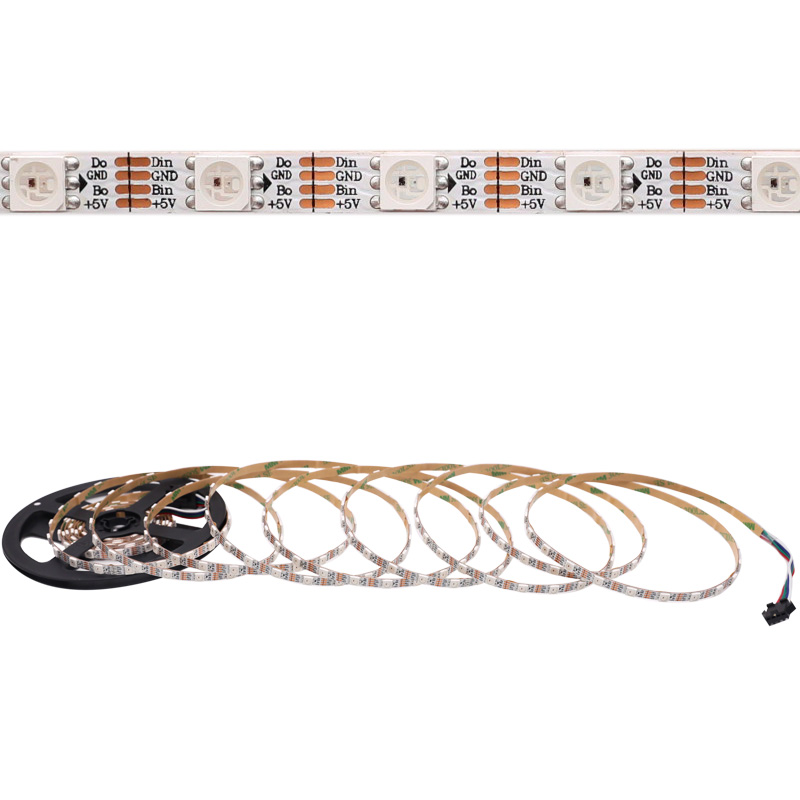

1* 5mm/0.20in 60LEDs/m led strip light
The following is the description of the kit optional
If you choose LED Strips, we will send you 1* WS2813-5V-5050RGBX60
If you have some requirements of other LED power adapter, you can visit our DC5V waterproof led power adapter

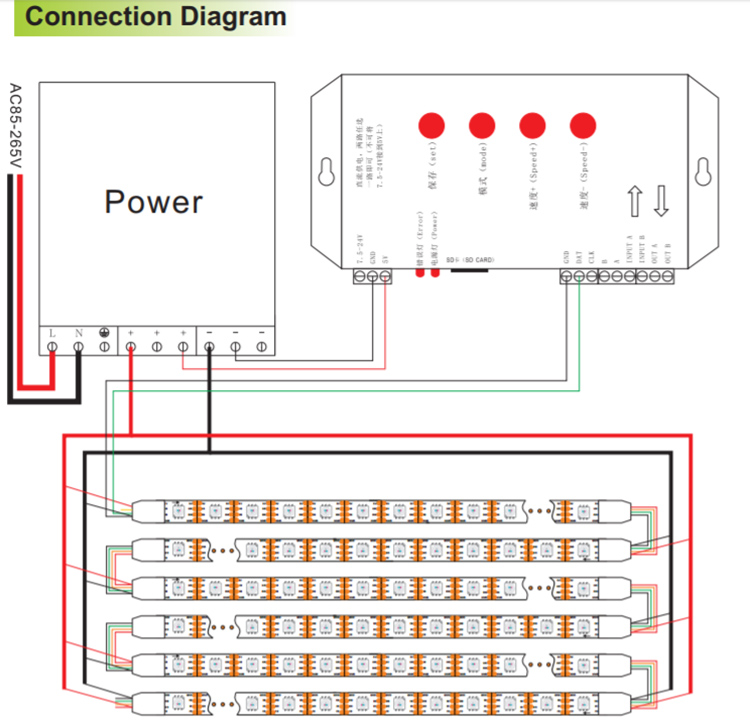

How to connect and control
The WS2813 led strip has 4 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 4 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 4-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 5V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
