Special Price: $90.98
Our dual row 365nm UV light strip offers superior UV light, which is close to the visible violet but invisible to the naked eye. This 365 nm black light LED strip uses 365nm UV LEDs, which can stimulate precise photoreactions. Therefore, it is widely applied in fluorescence testing, UV curing and medical sterilization.
Compared with single row UV LED strip, this dual row 365 nm LED light emits higher intensity light, improving the effectiveness of specialized UV applications. The UV light 365 nm LED strip is 5 meters long. Our dual row LED strip uses 5050 LED chips, with 120LEDs per meter. This bendable FPC-based UV 365 nm LED strip boasts a 50mm/1.96’’ interval, making it adapts to various installation needs. The PCB width is 15mm/1.96’’. This 12V 365 nm blacklight LED strip should works with 12VDC power supply.
The 365 nm UV LED strip is minimally harmful to humans, but long-time exposure can still cause harm. Therefore, we advise avoiding long-time exposure to the UV light.
The kit includes a 5-meter 365nm LED UV strip and a LRS-200-12 power supply.
Features:
1. dual row 365nm LED light, suitable for fluorescence testing, UV curing and medical sterilization.
2. 5050 LED chips120 LEDs per meter.
3. 15mm width, flexible to adapt to different installations.

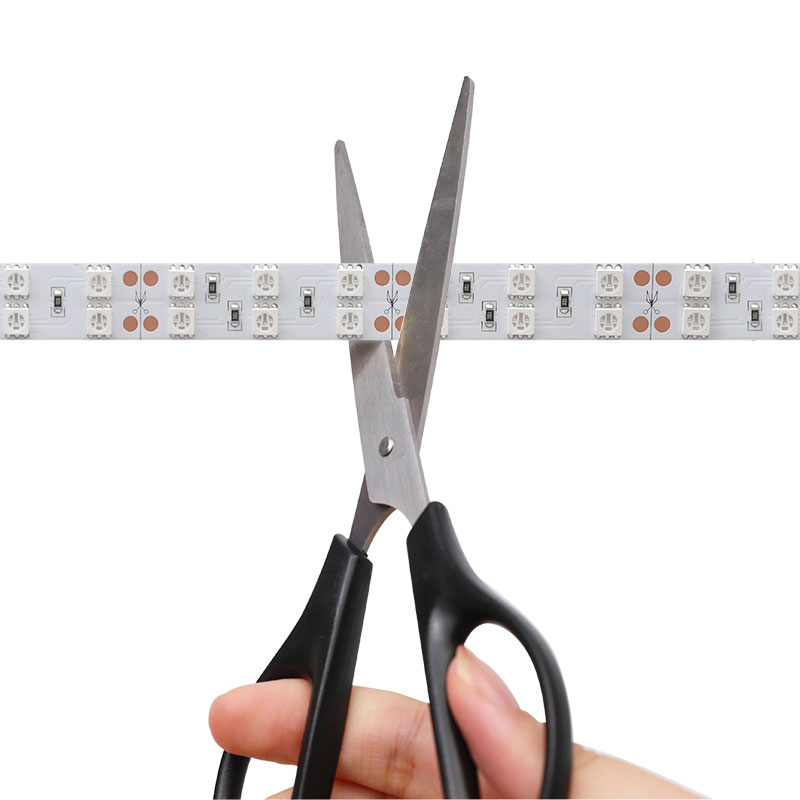

4. The cut inteval is 50mm/1.96’’.
5. The actual power due to voltage drop along the strip is not the same as the theoretical power.
Standards and Certifications
Product Specifications
| LED Strip Type: | 12V 365nm UV Light LED strip |
| Input Voltage: | DC12V |
| Actual Power: |
20W/m, 96w/16.4ft max
|
| Light Color: | Purple UV Light |
| Wavelength: | 365nm |
| Strip Length: | 16.4ft (5m) |
| LED Quantity: | 120 LEDs per meter, 600 LEDs/Roll |
| Lifespan: | 50,000+ hours |
| Dimensions: | L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in ) |
| Waterproof Rating: | Non-Waterproof IP20, Waterproof Resistant IP65, Outdoor IP67 IP68 |
| Beam Pattern: | 120 degree |

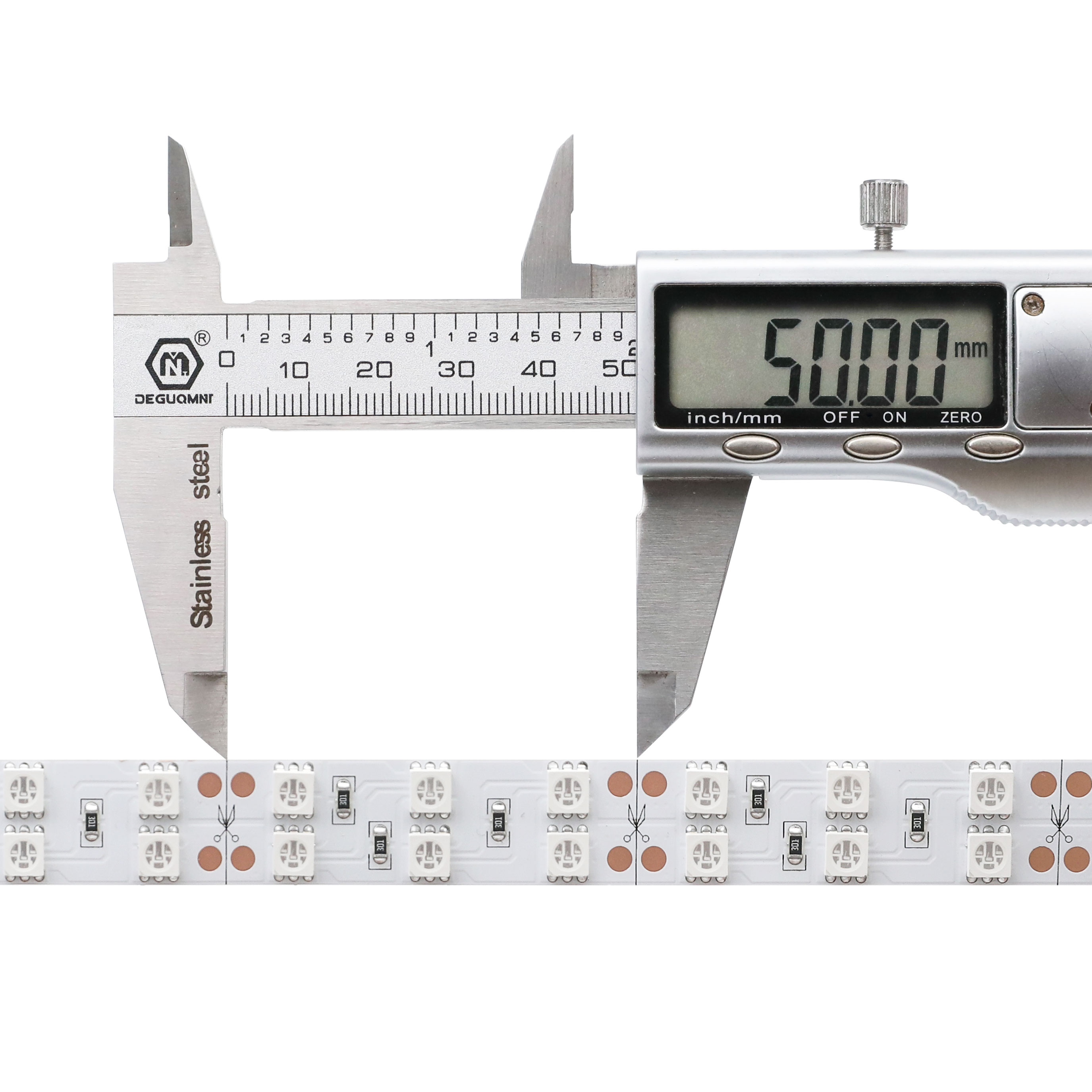

| Cuttable: | 50mm/1.96’’ |

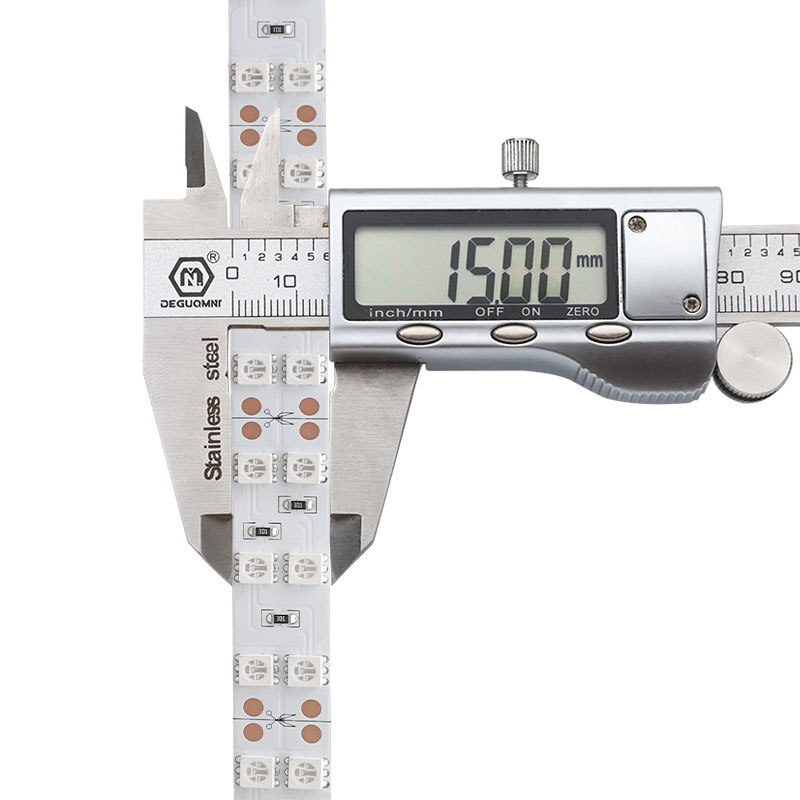

| PCB Width: | 15mm/0.59'' |
| Lumen: | 16-17 lm/LEDs 9600lm/16.4ft |
How to power 12V UV led strip?
