Product Information
Unleash the power of ultraviolet light with our professional-grade DC24V UV LED Strip Light. This versatile strip is engineered for both technical applications and creative lighting, available in two distinct UV-A wavelengths. Choose the 365-370nm option for tasks requiring high UV efficacy with minimal visible light, such as resin curing, counterfeit detection, and forensic analysis. Select the 395-405nm version for vibrant, decorative black light effects perfect for parties, artistic displays, and themed environments.
Featuring a high density of 120 LEDs per meter, this strip provides exceptionally uniform and continuous UV illumination. The flexible 8mm wide PCB can be cut every 50mm and comes with a strong adhesive backing for easy installation. A compatible 24V power transformer is required for operation. For projects with different voltage requirements, we also offer a 12V UV LED strip.
Key Features
Dual UV Wavelength Options
Choose between 365-370nm for professional applications or 395-405nm for decorative black light effects.
High-Density & Uniform Light

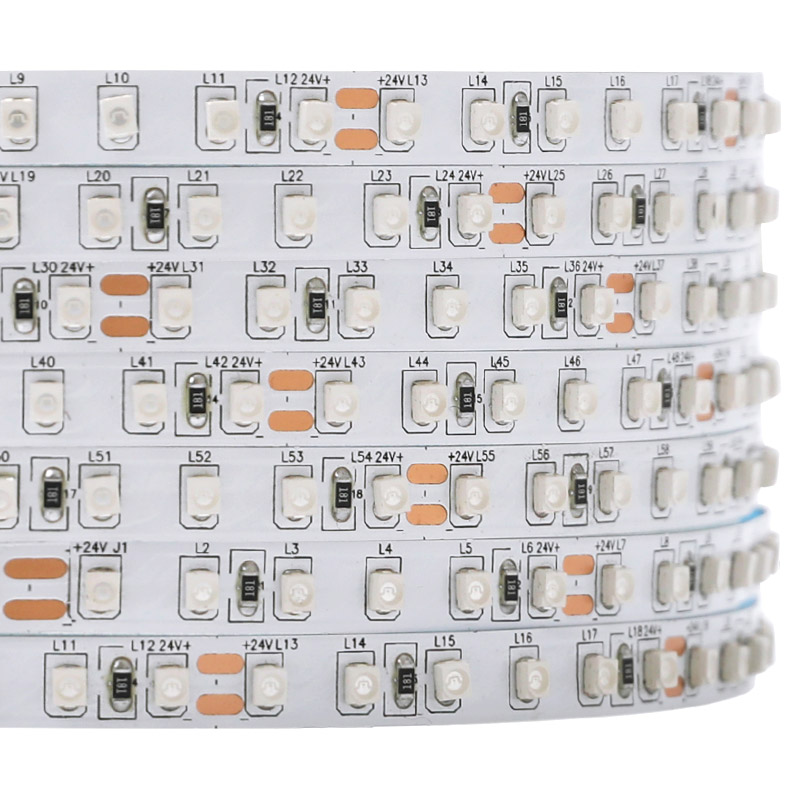

Packed with 120 SMD 3528 LEDs per meter for a smooth, even UV output without distracting hotspots.
Flexible & Customizable
Easily cut every 6 LEDs (50mm) and install on curved or flat surfaces with its strong adhesive backing.
Multiple Environment Options
Select from non-waterproof IP20, splash-proof IP65, outdoor-rated IP67, or fully submersible IP68.
Choice of PCB Color
Available with a white or black PCB background to seamlessly blend into your installation surface.
Technical Highlights

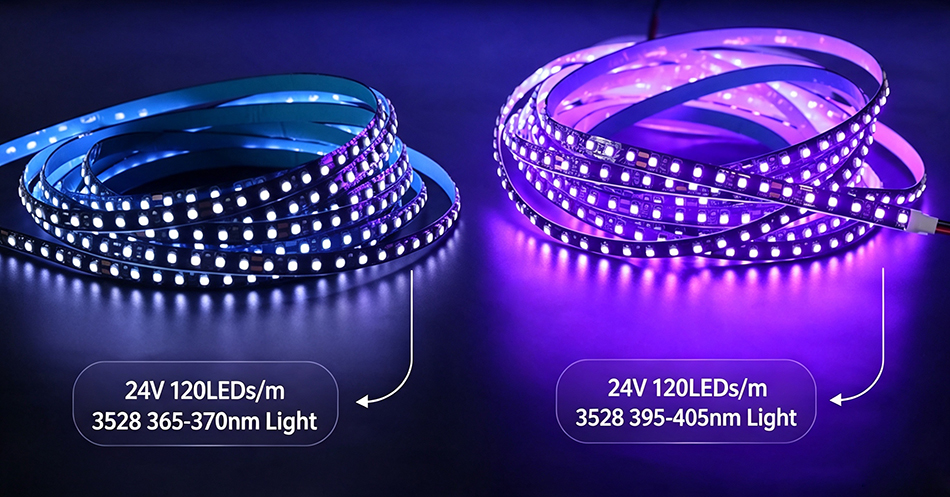

- The 365-370nm wavelength strip emits a faint, bluish-white light, prioritizing UV-A output over visible light for professional tasks.
- The 395-405nm wavelength strip produces a distinct and vibrant violet glow, ideal for creating powerful black light effects.
- Engineered for a long lifespan of over 50,000 hours, ensuring reliable performance.
- Operates on an efficient and safe DC24V low-voltage system.
Product Specifications
| Parameter | Details |
|---|---|
| Model | FSLSR-24V-3528X600UV |
| Input Voltage | DC 24V |
| Wavelength Options |
 365nm-370nm or 395nm-405nm |
| Visible Light Appearance | 365nm: Bluish White | 405nm: Violet |
| Power Consumption | 10W/meter (50W/16.4ft roll) |
| LED Type | SMD 3528 |
| LED Quantity | 120 LEDs/meter (600 LEDs/roll) |
| Strip Length | 16.4ft (5 meters) |
| PCB Width | 8mm (0.31in) |
| PCB Color Options | White, Black |
| Cutting Unit | Every 6 LEDs (50mm / 1.96in) |
| Beam Angle | 120° |
| Adhesive Backing | Yes |
| Waterproof Rating Options | IP20 (Non-Waterproof), IP65 (Surface Glued), IP67 (Silicone Tube), IP68 (Underwater) |
| Lifespan | 50,000+ hours |
Application Scenarios
How to Install & Use This LED Strip
- Ensure the installation surface is clean, dry, and free of dust or oils.
- Measure the required length and carefully cut the strip along the designated copper cut marks.
- Connect the strip to a compatible DC24V power supply. For brightness control, wire a single color dimmer between the power supply and the strip.
- Peel off the protective film from the adhesive backing.
- Firmly press the strip onto the prepared surface, ensuring full contact.
- UV light can be harmful with prolonged direct exposure to eyes and skin. Avoid staring directly into the LEDs.
- This strip requires a DC24V power source. Do not connect it directly to a 120V/220V outlet.
- For runs longer than 5 meters, power may need to be injected from both ends to avoid voltage drop.
Frequently Asked Questions
Q: What is the main difference between the 365nm and 405nm versions?
A:365nm is a purer UV-A light with less visible output, ideal for professional tasks like curing and detection. 405nm emits a visible violet light, making it perfect for decorative black light effects at parties or events.
Q: What do the strips look like when turned on?
A:The 365nm strip has a faint, bluish-white glow, as most of its energy is in the non-visible UV spectrum. The 405nm strip has a much brighter, distinct purple/violet glow.
Q: What kind of power supply do I need?
A:You need a DC24V power supply. For a full 5-meter roll, which consumes 50W, we recommend a power supply with a capacity of at least 60W to ensure stable performance.
Q: Can I cut this strip to a shorter length?
A:Yes, absolutely. The strip is designed to be cut at the designated marks, which are located every 6 LEDs, corresponding to a 50mm (1.96-inch) segment.
Q: Is this UV light safe for skin and eyes?
A:UV-A light, like that from this strip, can be harmful with prolonged and direct exposure. It is strongly recommended to avoid staring into the LEDs and minimize direct skin exposure.
Q: Which waterproof rating should I choose?
A:Choose IP20 for dry indoor locations. IP65 is splash-proof for areas like kitchens. IP67 is for outdoor use where it might be exposed to rain. IP68 is for applications where the strip will be fully submerged in water.
