365nm 12 Volt 2835 UV LED Strip High Density 240 LEDs Per Meter

Name: 365nm 12 Volt 2835 UV LED Strip High Density 240 LEDs Per Meter
Brand: SuperLightingLED
SKU: 365NM-12V-2835X240UV
Price: 70.98 USD
Availability: InStock

Model: 365NM-12V-2835X240UV Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $85.98 $70.9817% off

Qty Discounts Off Price
1-9 $70.98	10-19 $69.56	20-49 $68.14	50+ $66.72
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select Power:

Select PCB Width:

10mm (0.39in)

Select Input Voltage:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

This 12V Ultra High Density UV LED Strip has a wavelength of 365nm. It is widely used in a variety of professional applications such as industrial curing, fluorescence detection and medical sterilization. Our 365nm UV LED strip has 240pcs 2835 LEDs per meter. This high-density LED bead arrangement can produce uniform UV radiation. Therefore, this 365nm LED black light strip can effectively disinfect and solidify.

This 365nm blacklight LED strip is five meters per roll. We offer two power options: 0.2W/LED and 0.5W/LED, meeting different energy efficiency requirements. The 365nm UV curing light strip is cut every three LEDs (12mm/0.47''), supporting user to cut it according to their needs. In addition, this filtered 365nm UV light can be bent to fit irregular mounting surfaces. The operating voltage of the 365nm UV LED light strip is 12VDC for safe operation.

The 365nm wavelength UV blacklight can accurately activate photoinitiators in glues, inks and other photosensitive materials, especially used in 3D printing, glue curing, industrial coating curing and other fields.

Please note that the "+" mark on the PCB of the 12V 365nm led light strip refers to the negative port, "-" on the PCB is positive port.

0.2W/LED vs 0.5W/LED: Although this 10mm high-density UVA light strip uses 0.2W and 0.5W UV LED beads, the total power of the 5-meter UV strip is not simply 0.2W / 0.5W multiplied by the number of LEDs.

Due to resistance limitations and the inevitable voltage drop in LED series connections, the actual power of the entire light strip is between 60W and 120W (single-sided power input).

Our engineering team is available to customize the power output of the UV LED strip light according to your requirements. Please contact us for customization.

Features of the flexible UV light strip:

1. Powered by low voltage DC 12/24 volts, choose a 12V/24V meanwell power supply here. The model number of the power supply inside the kit we provide is LRS-200-12, LRS-200-24 or waterproof 12V 200W, waterproof 24V 200W.

2. 365nm wavelength, which is widely applied in glue curing, industrial coating curing and other fields.

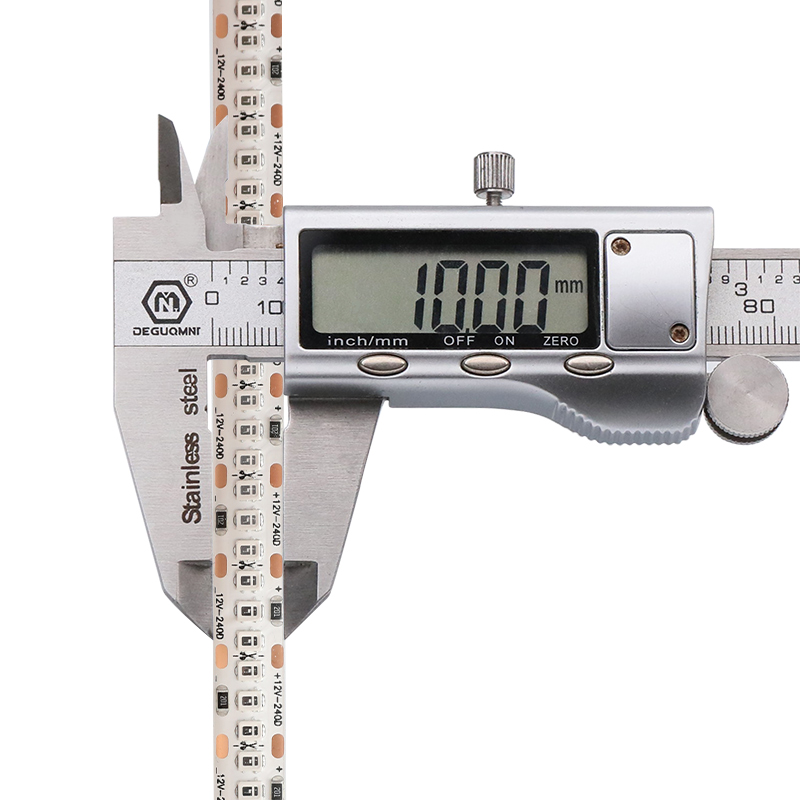

3. 10mm width, ideal for compact installation spaces

4. The cut unit is 12mm/0.47'', every three LEDs can be cut.

5. The actual power due to voltage drop along the strip is not the same as the theoretical power.

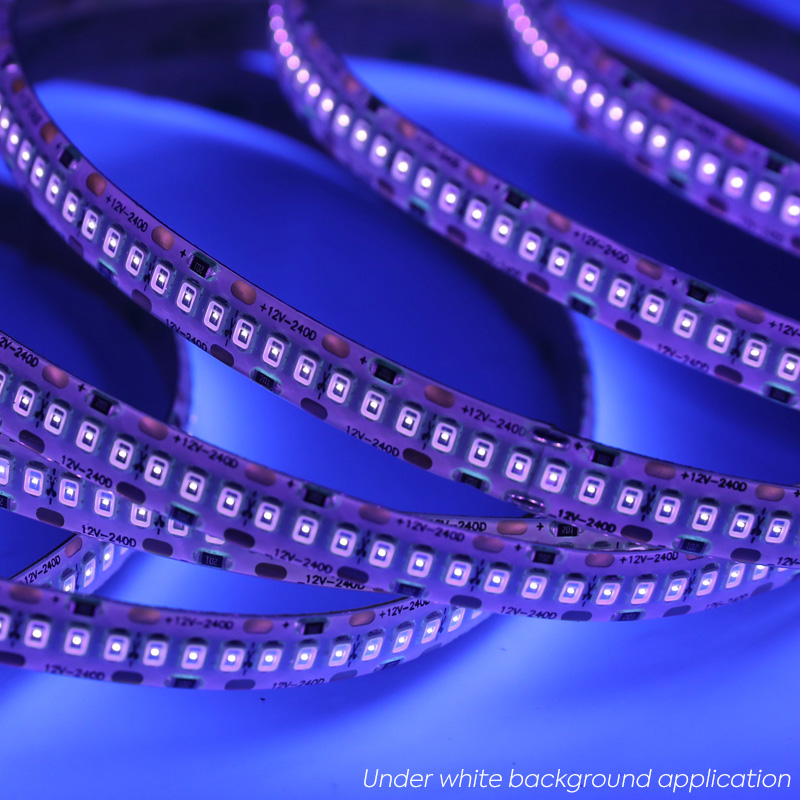

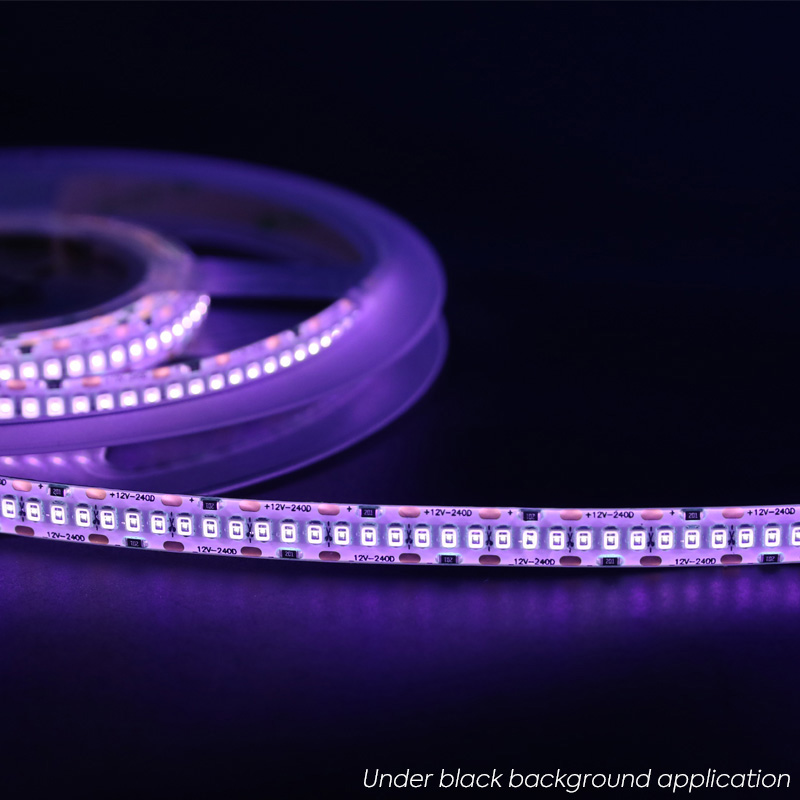

365nm 12 Volt 2835 UV LED Strip High Density 240 LEDs Per Meter Effects

Standards and Certifications

Product Specifications

LED Strip Type:	12V 365nm UV Lightstrip
Input Voltage:	DC12V, DC24V
Actual Power:	60W/Roll for 0.2W, 120W/Roll for 0.5W
Light Color:	Purple UV Light
Wavelength:	365nm
Cut:	12.5mm/0.49'', 3 LEDs For DC12V; 25mm/0.98", 6 LEDs For DC24V
LED Quantity:	240 LEDs per meter, 1200 LEDs/Roll
Lifespan:	50,000+ hours
Dimensions:	L500cmW1.0cmH0.25cm
Waterproof Rating:	Non-Waterproof IP20, Waterproof Resistant IP65, Outdoor IP67 IP68
Beam Pattern:	120 degree

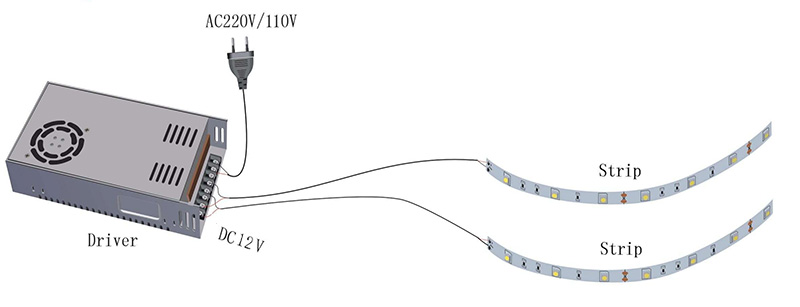

How to power 12V UV led strip?

how to connect led strip to meanwell 12V led power supply

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for 365NM-12V-2835X240UV

PDF365NM-12V-2835X240UV product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

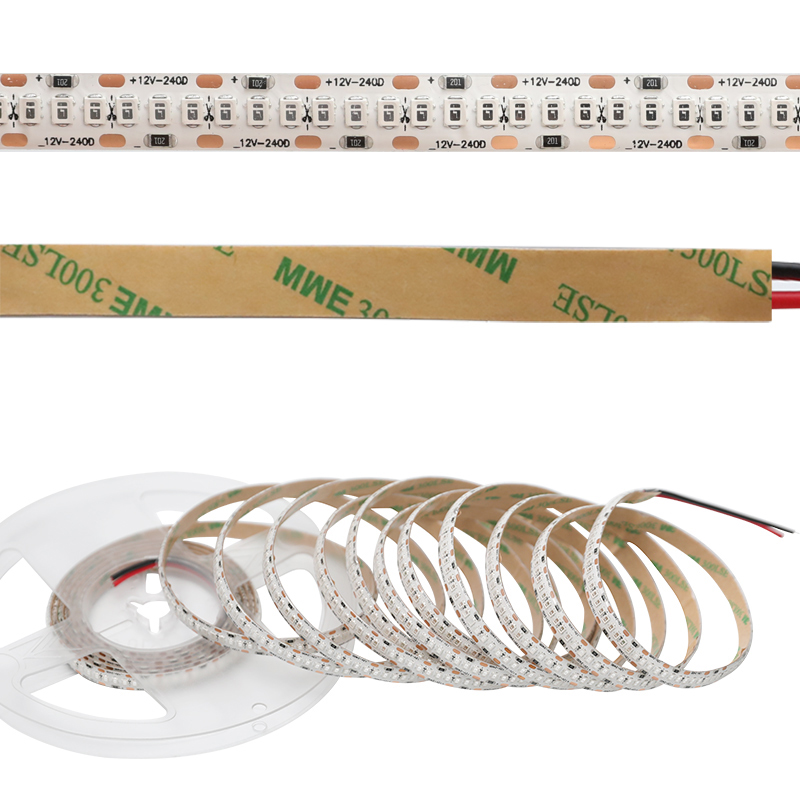

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?

This model is offered in DC24V · DC12V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

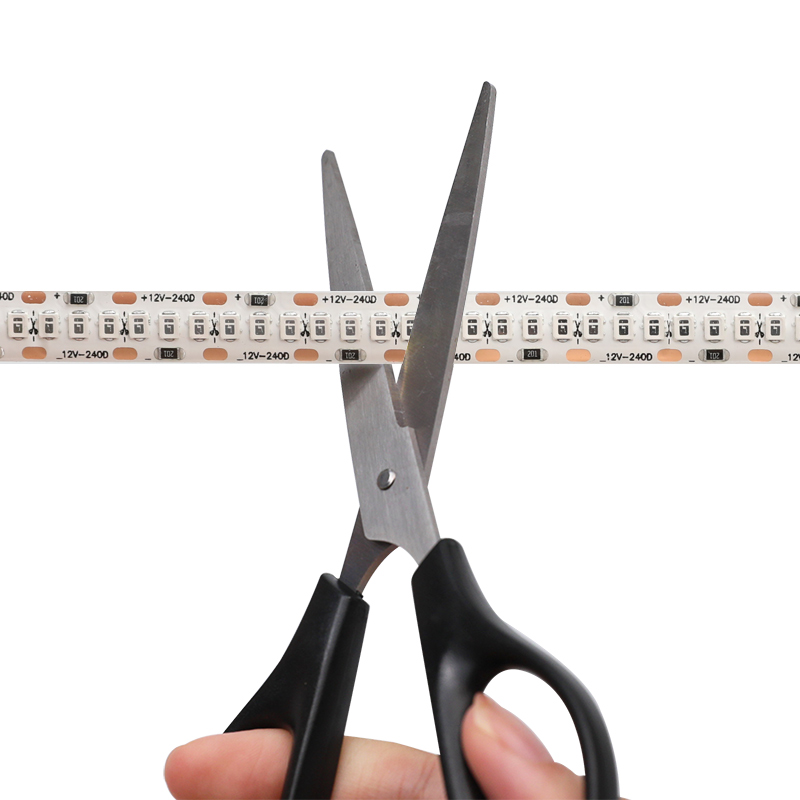

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
