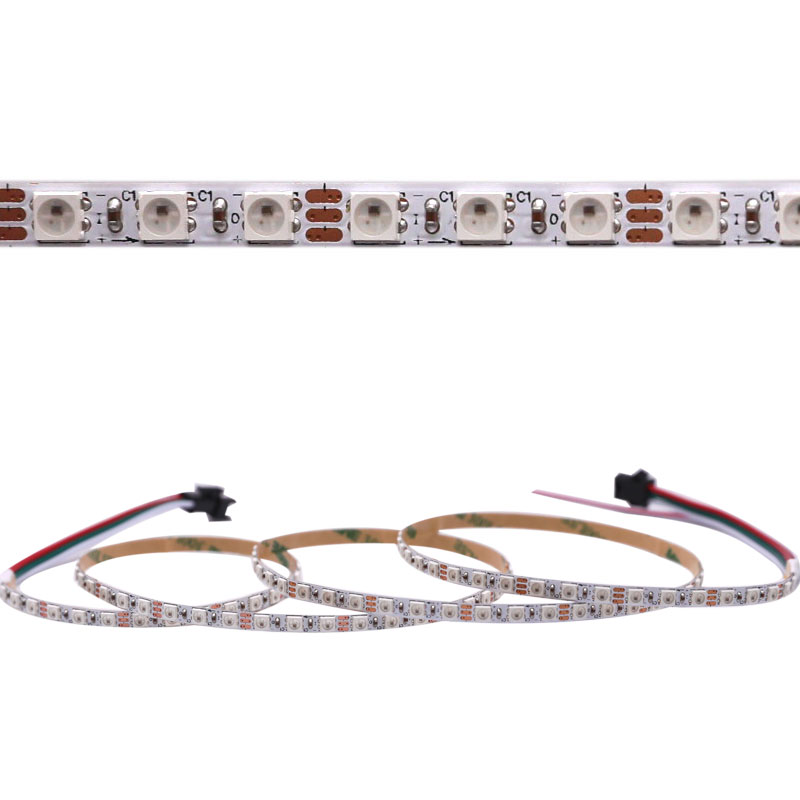

DC12V UCS1903 120LEDs/m High Brightness 5mm Super Narrow 3535 SMD Individually Addressable RGB Digital LED Strips Lights

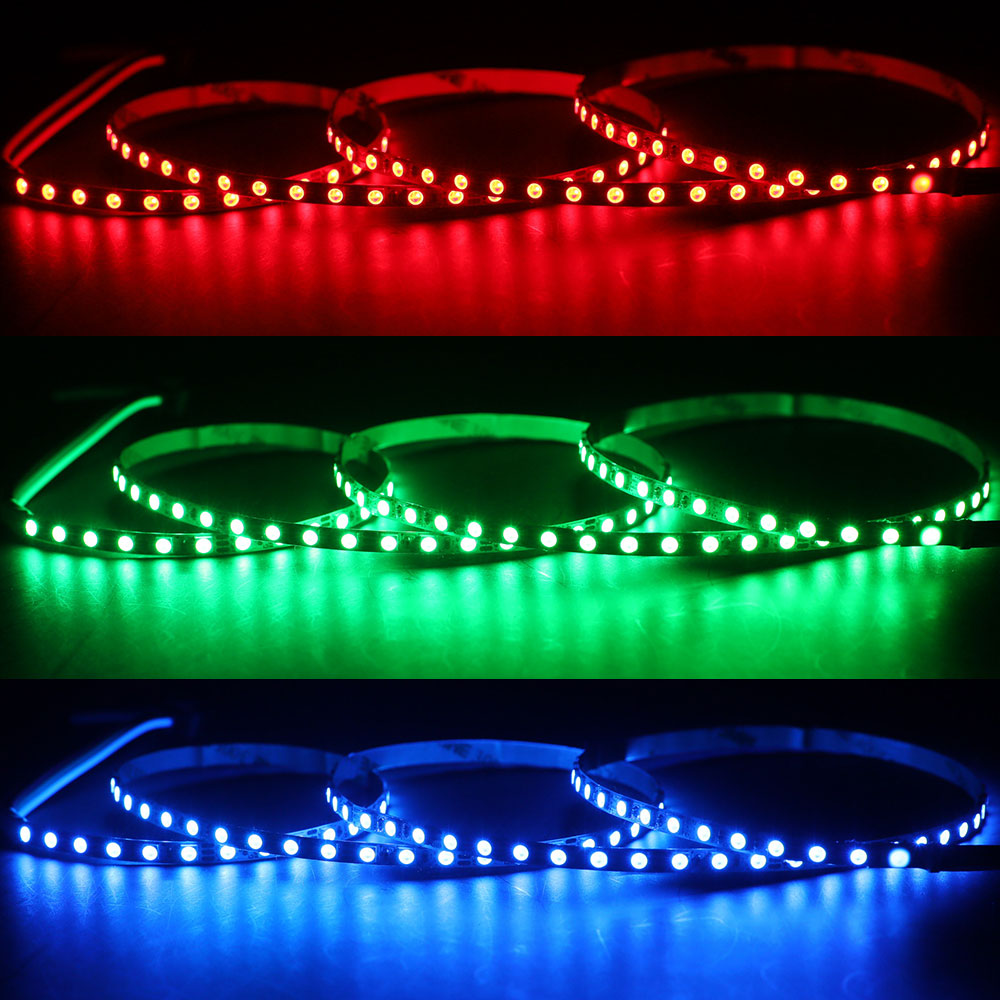

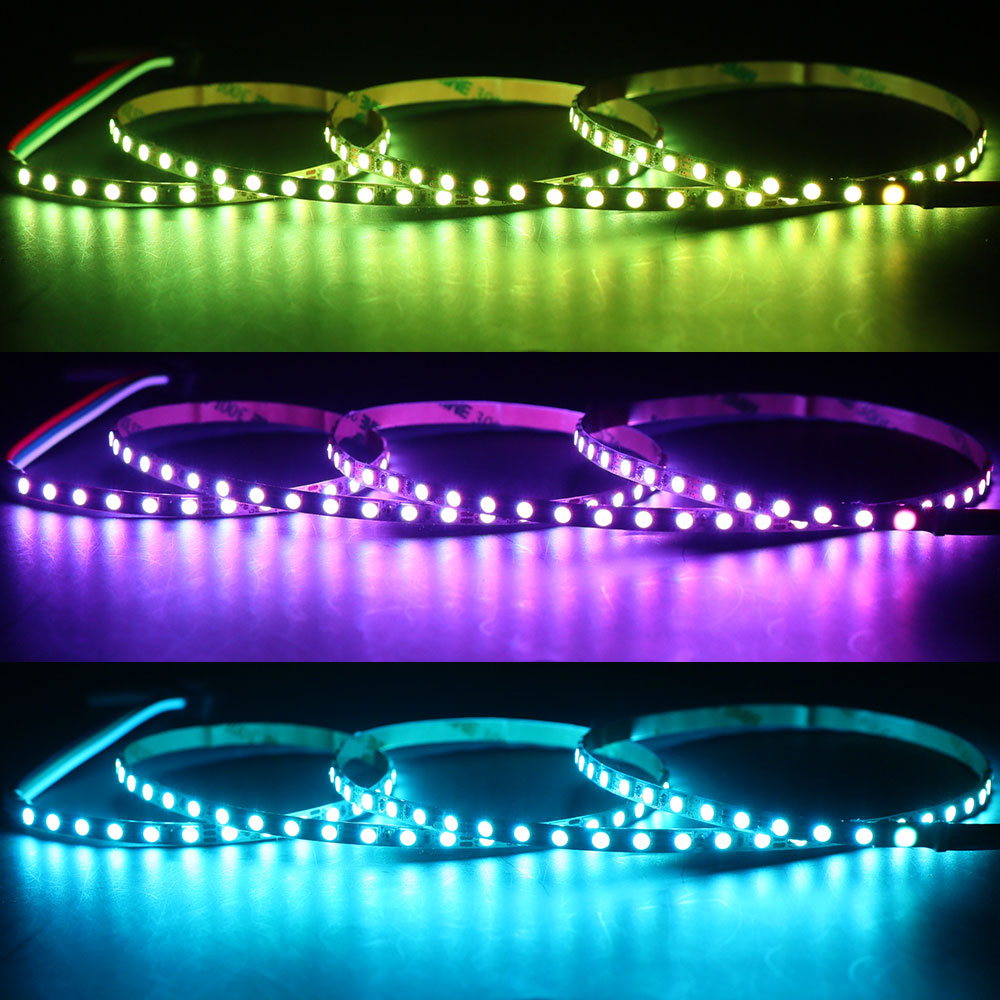

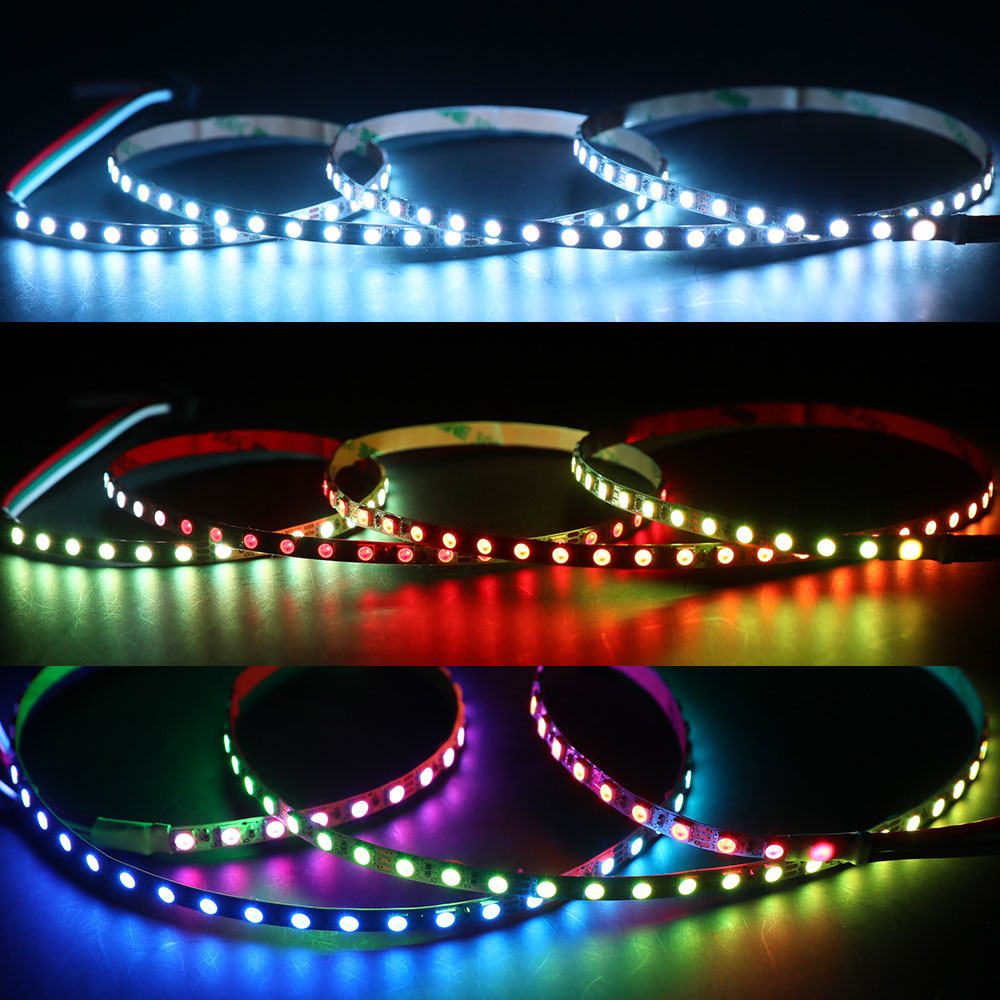

1. Universal UCS1903 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased Non-waterproof flexible LED light strip with 450 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. UCS1903 IC chip control. 5meter(16.45ft) Per Reel By Sale.

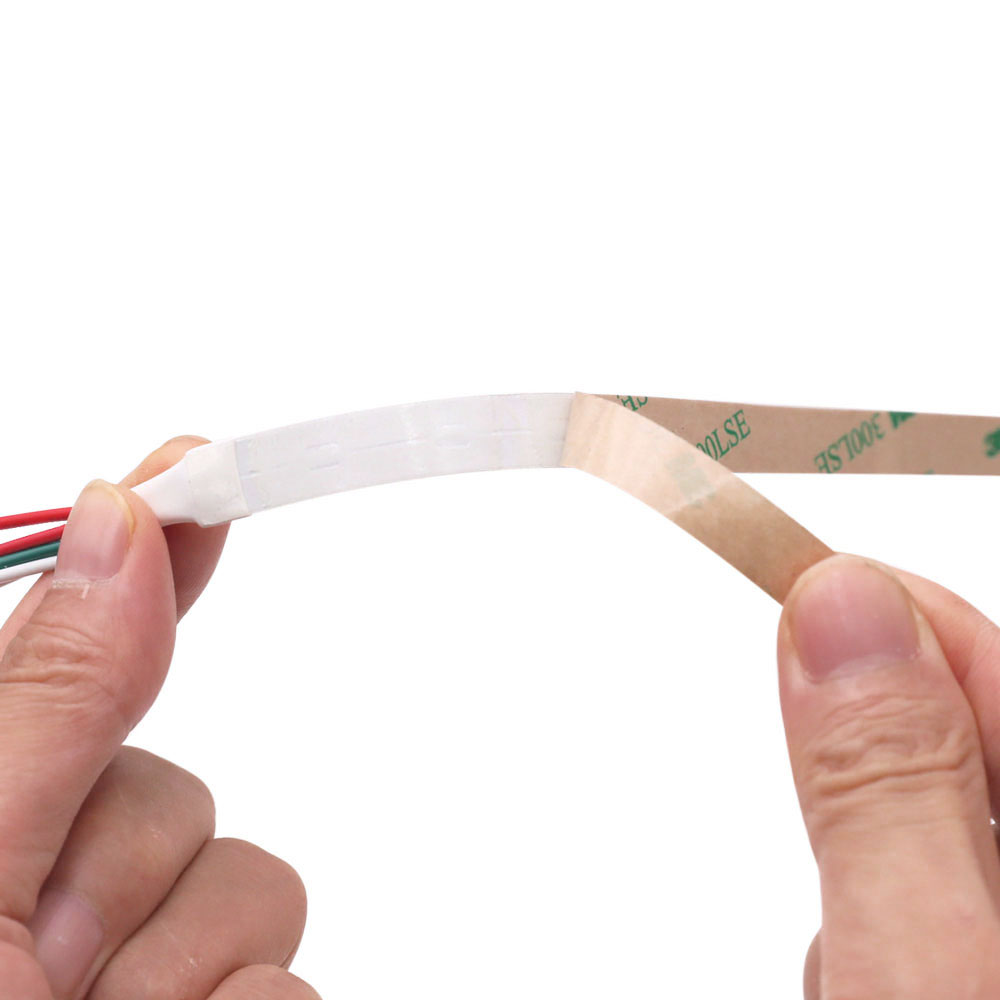

2. This strips soft and easy bent for installation. Available in 5 meters (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan，LED with the low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation. The12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers.
What about the other features of the strip light?
1) Addressable DC12V UCS1903 LED Strips; Long life span 50,000+ hours;
2) Micro LED 3535 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside an SMD3535-RGB LED;
4) UCS1903 has 3 Wires input and output: SPI Data, GND, and Power+;

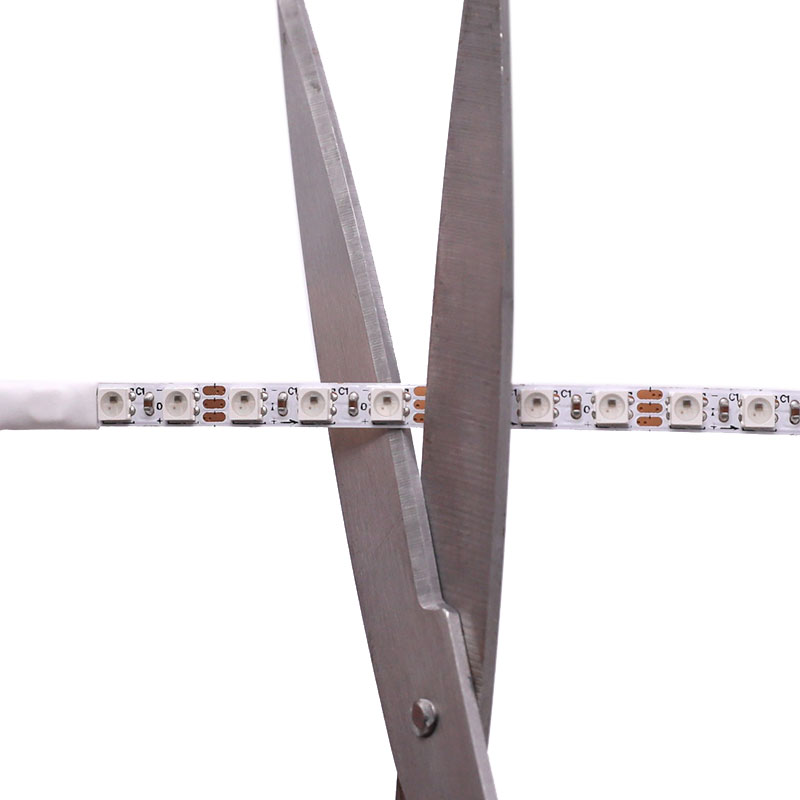

6) Three LEDs one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effects;
8) Each IC control one led, individually controllable;
Standards and Certifications
LED Strip Type: RGB
LED Chip: UCS1903 IC Chip(1 IC drives 1 led chip)
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED quantity: 120leds/Meter Available
IC quantity: 120 pixel /Meter(Individually Addressable)
Input Voltage(V): 12VDC
Working Power: 18W/m
Water Proof: Non-Waterproof IP20/Waterproof IP67
PCB color: White

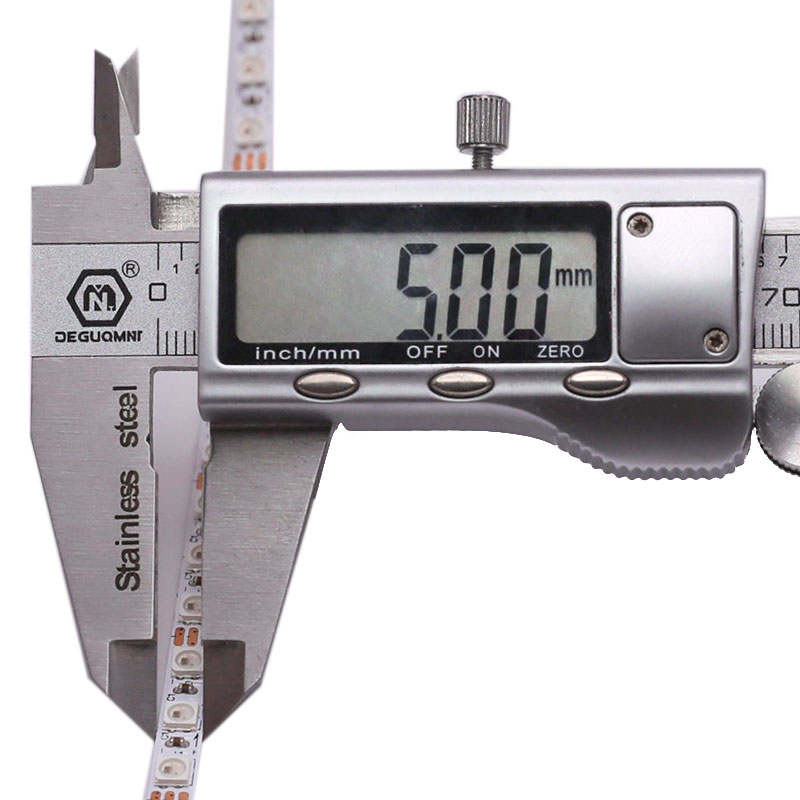

PCB width: 5mm/0.20in

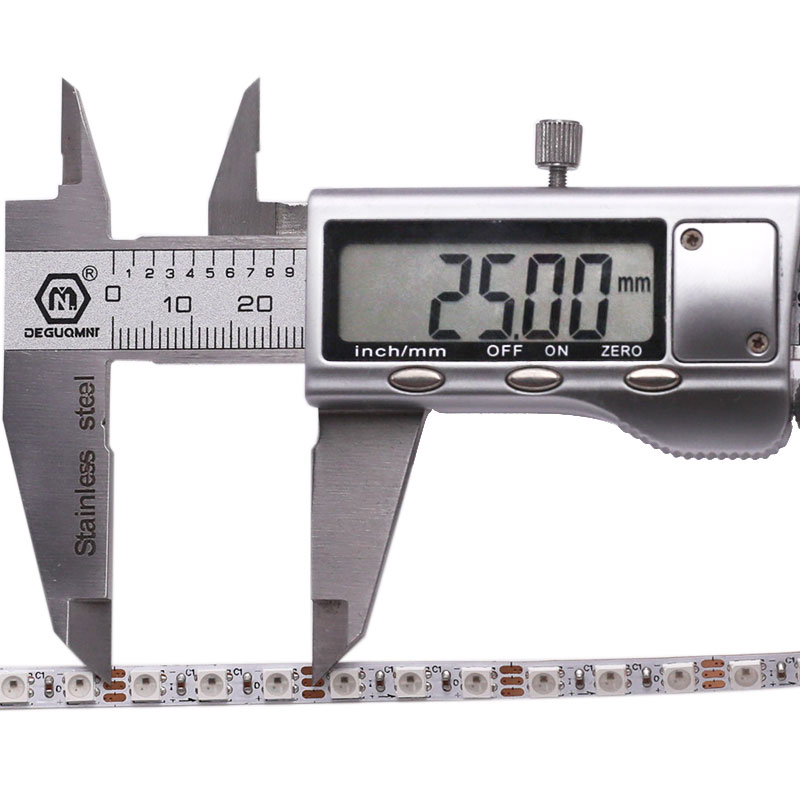

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
Dimensions: L500cm(196.8 in ) x W0.5cm(0.20 in ) x H0.25cm(0.10 in )
Warantty: 3 years
Beam Pattern: 120 degree
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Transparent heat-shrinkable tube waterproof, PCB is Transparent heat shrinkable tube, better waterproof, For Outdoor);
LED strip light wiring diagram
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
