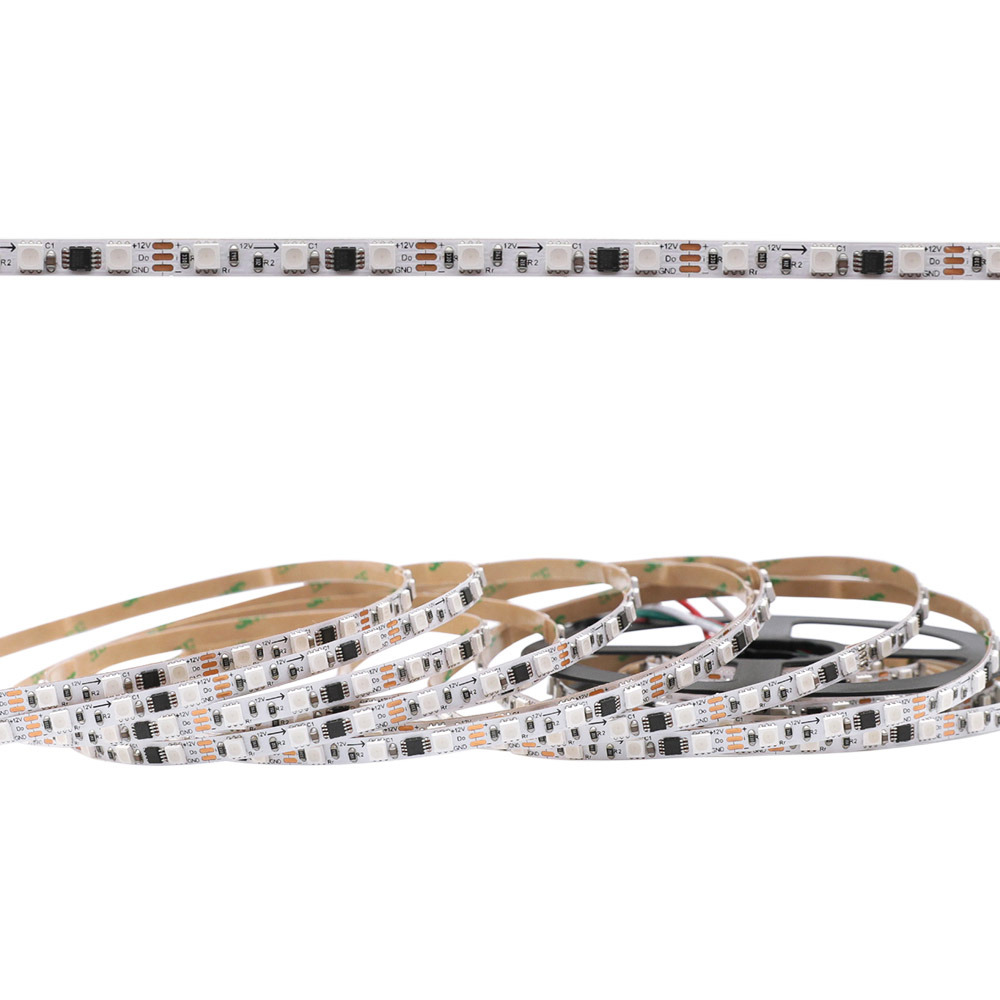

WS2811 DC12V 6MM Ultra-narrow 60LEDs/M Dream Color Programmable Flexible LED Strip Light, 5M/Roll

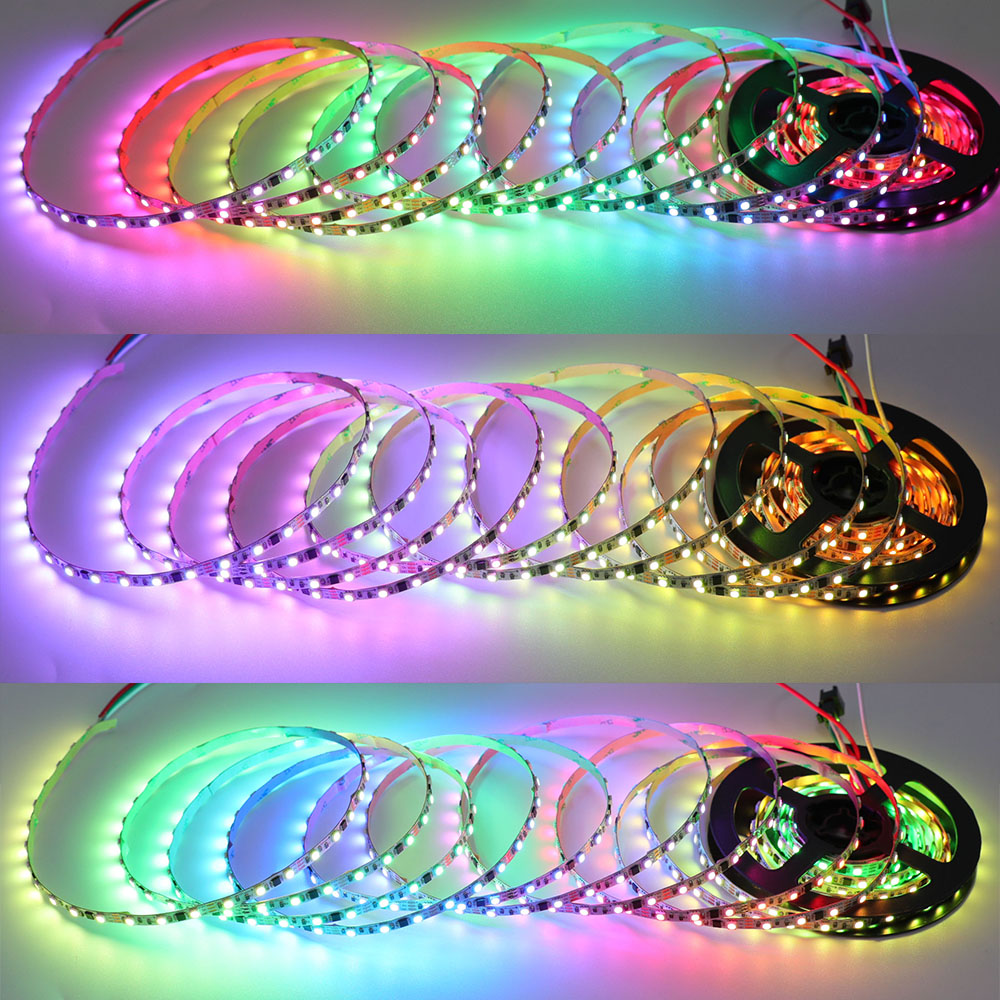

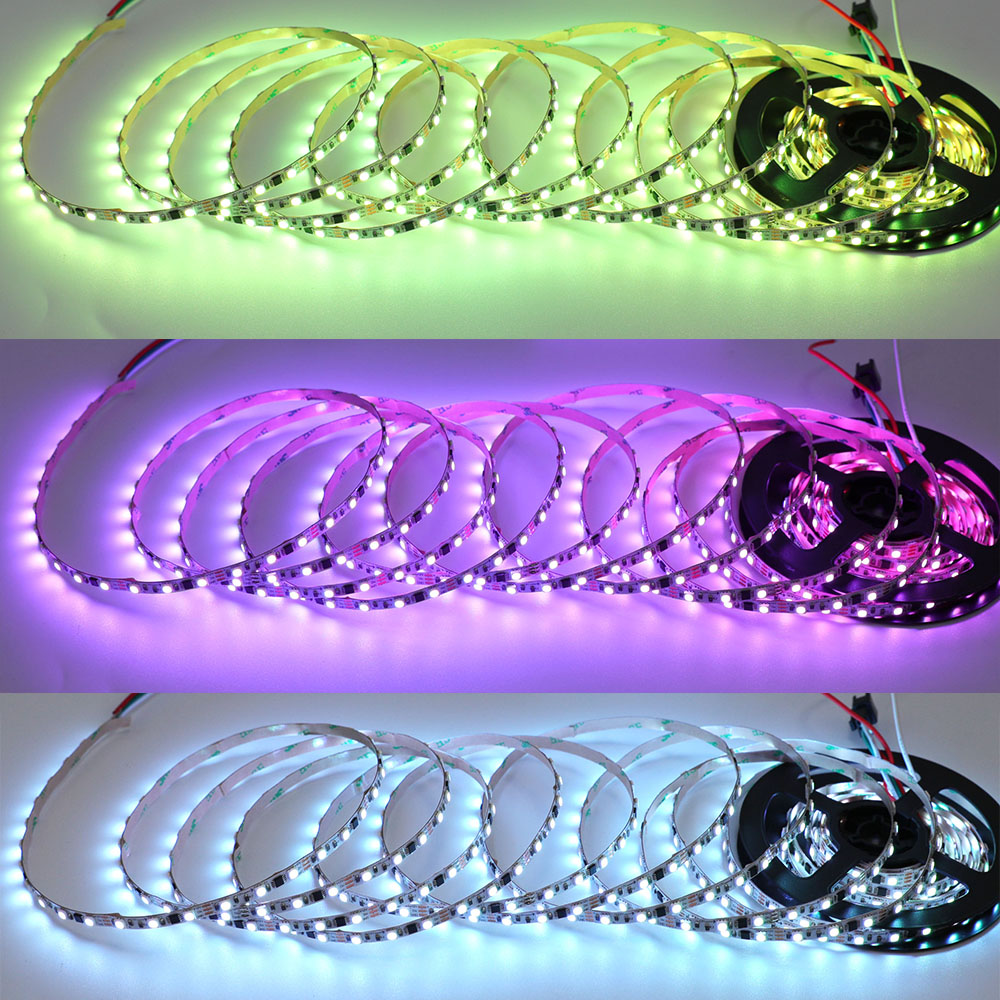

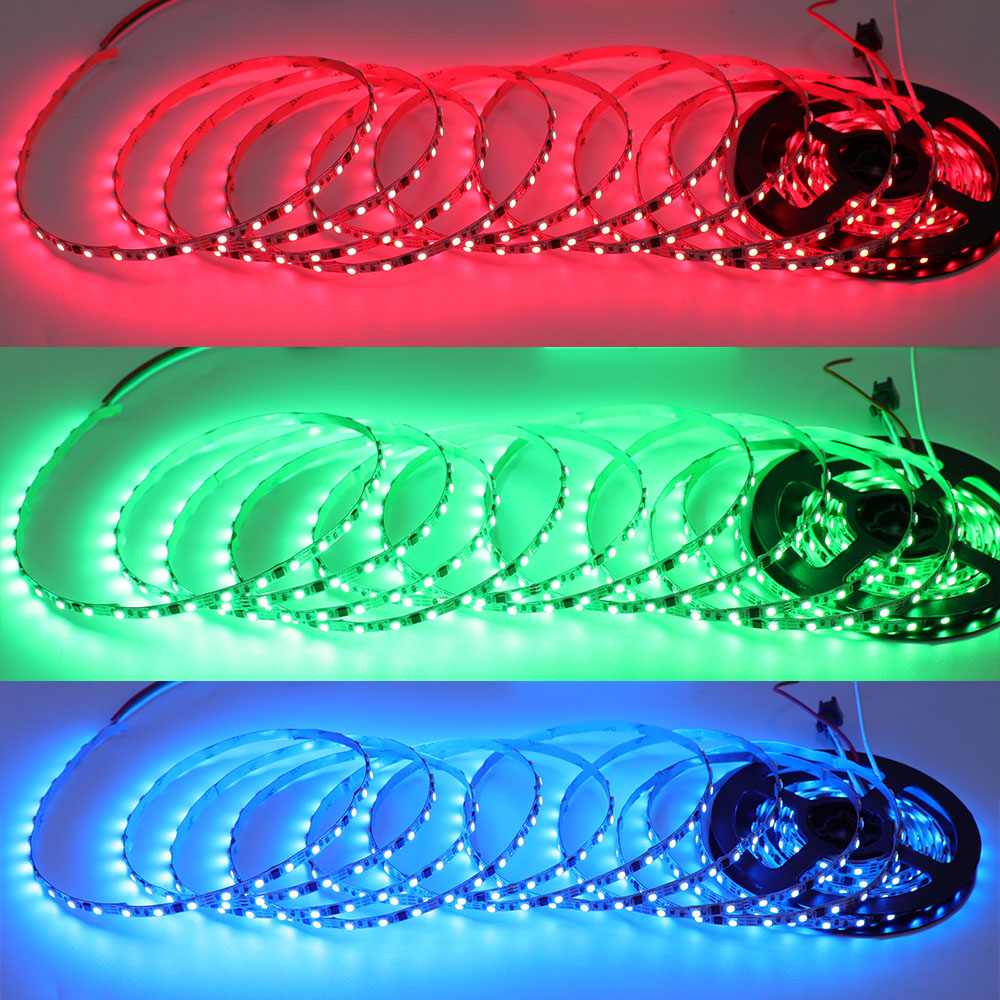

1. The universal WS2811 dynamic color chasing, sorting, changing, and static color modes are provided on the full-color controller and ideal ribbon. Addressable LEDs allow sequencing mode. WS2811 IC chip control, each roll sells 5 meters (16.4 feet).
2. This programmable LED strip is an intelligently controlled LED light source, and its control circuit and RGB chip have been integrated into one package. Its internal includes smart digital port data latch and signal to reshape amplifying drive circuit. It also includes a precision internal oscillator and a DC12V voltage programmable constant current control part, which effectively ensures the uniformity of the light color of the pixels.
3. The led lamp has the advantages of low light decay and long life. LED has the advantages of low driving voltage, environmental protection and energy-saving, high brightness, large scattering angle, good consistency, low power, and long life. The control chip integrated above the LED becomes simpler in the circuit, small in size, and easy to install.
4. This LED strip light has 5MM ultra-narrow properties and can be applied to a narrow space. With 3M adhesive, it can be pasted anywhere. IP67 waterproof casing can be customized, waterproof, and easy to install.
5. 12V voltage, safer to the human body, no radiation, no flicker, long life of the light bar, and stable lighting.Suitable for the 6MM LED aluminum channel
Standards and Certifications
LED Chip: WS2811 IC
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)

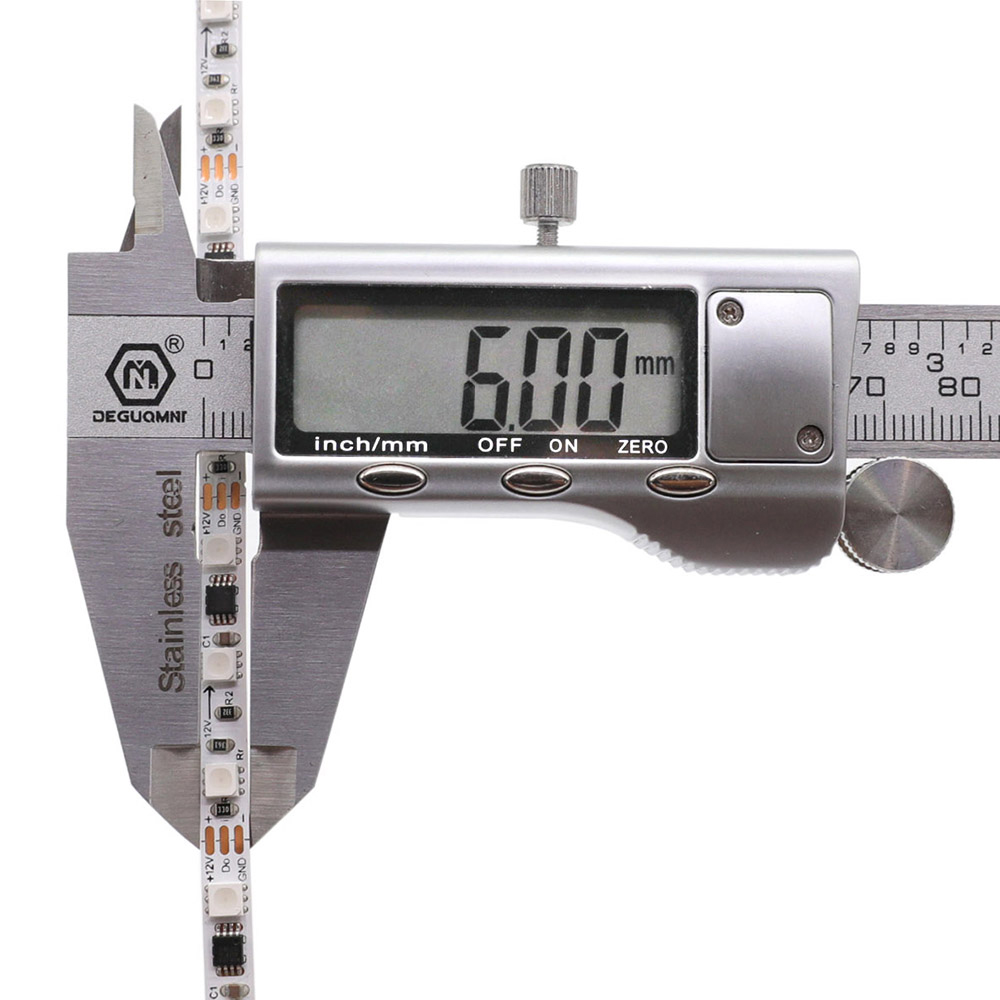

Dimensions: L500cm(196.8 in ) x W0.6cm(0.236 in ) x H0.4cm(0.15 in )
Input Voltage(V): 12VDC
Working Power: 0.24W/per LED, 20.16W/M,100.8W/Roll
Wavelength NM(RGBY): 2000-2500mcd
Board Width: 5mm/0.196in
Beam Angel: 120 degrees
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

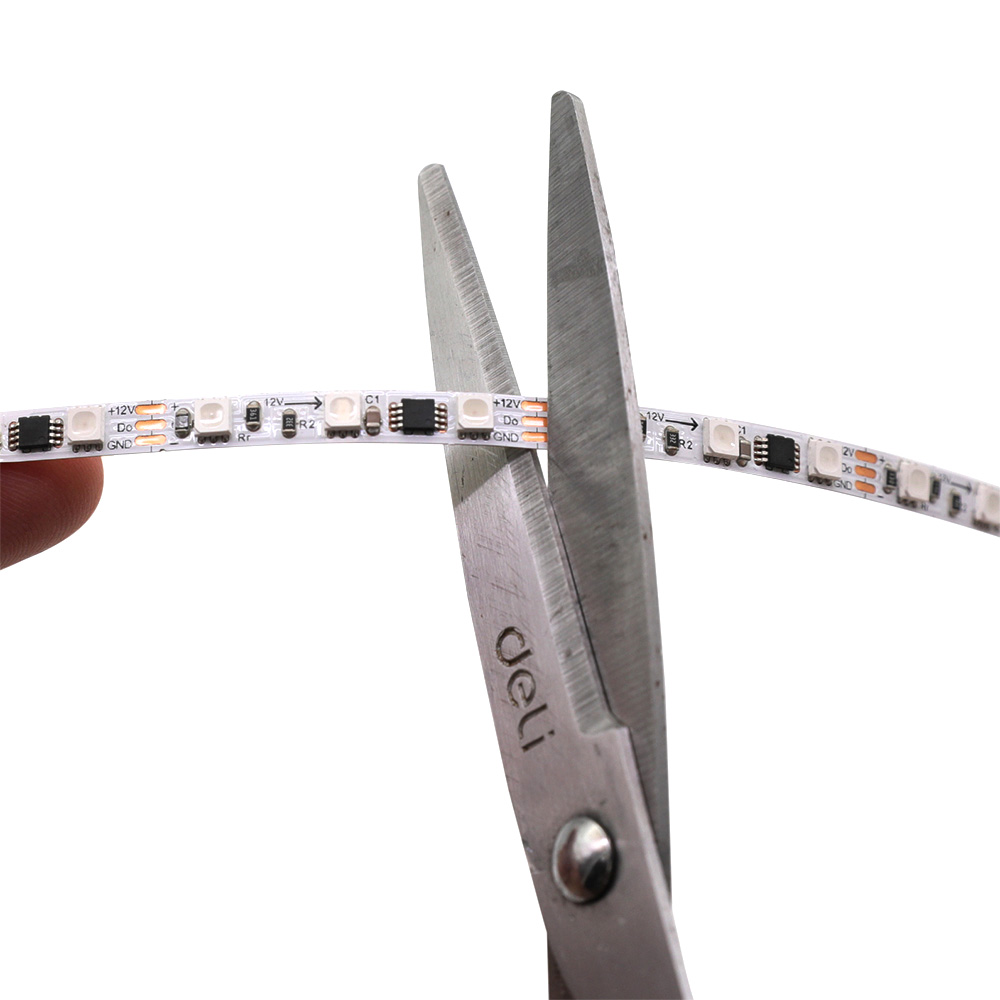

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
