DC5V WS2812 3MM Super Narrow 200LEDs/m Super Density 2020SMD RGB Individually Addressable LED Strip Light, 6.56ft/2m per feet by sales
Related Products
DC5V WS2812 3MM Super...
$49.98
Mean Well LRS-75-5 DC5V...
$28.00
DC5/12/24V, SP105E New...
$12.98
50W10A DC5V Plastic Shell...
$19.98
DC7-24V Double Channels...
$49.98
DC5~24V Touch Remote...
$16.98
K-1000C (T-1000S Updated)...
$54.98-
Special Price: $49.98
Click this link to purchase 1m/3.28ft long 3mm 200LEDs/m 5V WS2812C 2020 ARGB led strip.
Feature
Universal WS2812B dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Non-waterproof flexible LED light strip with 400 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns.
This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 2020 components. It internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receive data from the controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce by 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited to the signal transmission, only depend on the speed of signal transmission.
This light strip is SMD2020, so it can be 3MM ultra-narrow and can be installed in a small space.
WS2811 can be programmed, 3PIN has a data line, can be used for ordinary home lighting.
The color temperature is RGB, which can achieve a dreamy color effect.
The length of the strip light is 2M, and the Total LED is 200 ultra-dense per meter, and there is almost no spot when viewed from a distance. The number of chips is the same as the number of LEDs. Single LED can be cut and individually addressable.
WS2812B Chips Specifications Download
Standards and Certifications
Package list
1*2M/6.56Ft led strip light

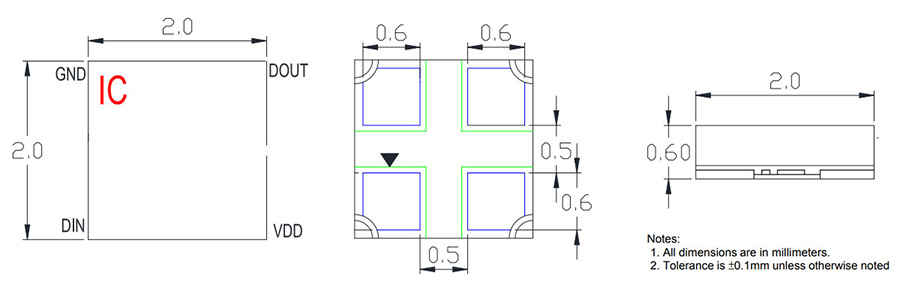

WS2812-2020W3-RGB Size:
TOP SMD internal integrated high-quality external control line serial cascade constant current IC;
The control circuit and the RGB chip in SMD 2020 components, to form a complete control of pixel, color mixing uniformity, and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
Gray-level adjusting circuit (256 level grayscale adjustable);
Red drive special treatment, color balance;
Plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec

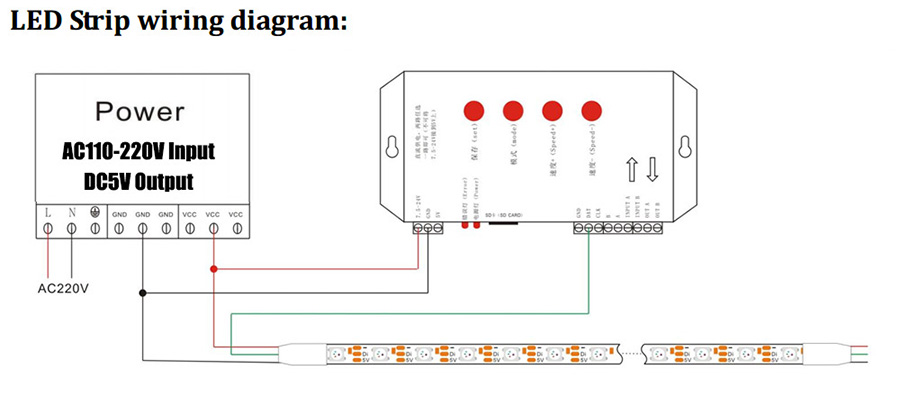

LED strip wiring diagram:
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Installation Instruction
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
