Special Price: $22.98 $19.9813% off

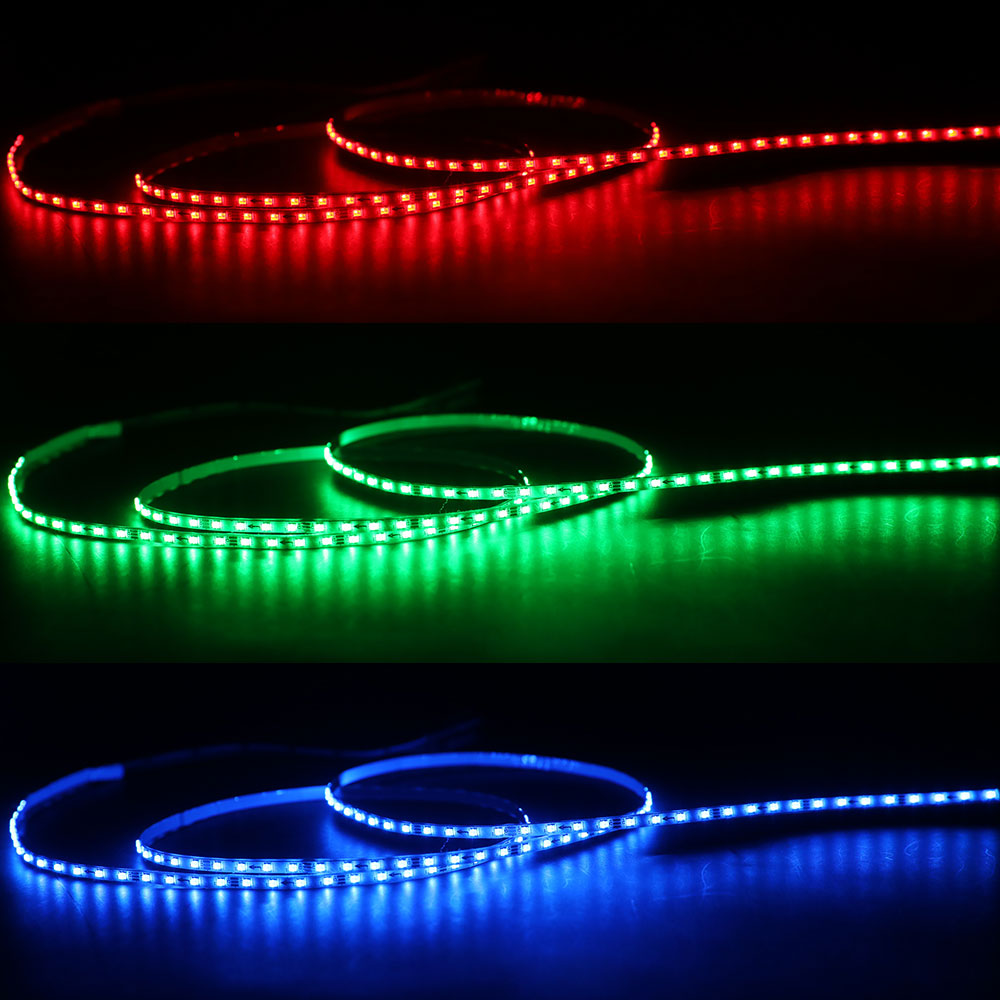

This 3mm flexible led strip is addressable, four SMD2020 RGB LEDs as a unit, every IC area can be its own color and brightness, with 256 brightness display and 24-bit full-color display.

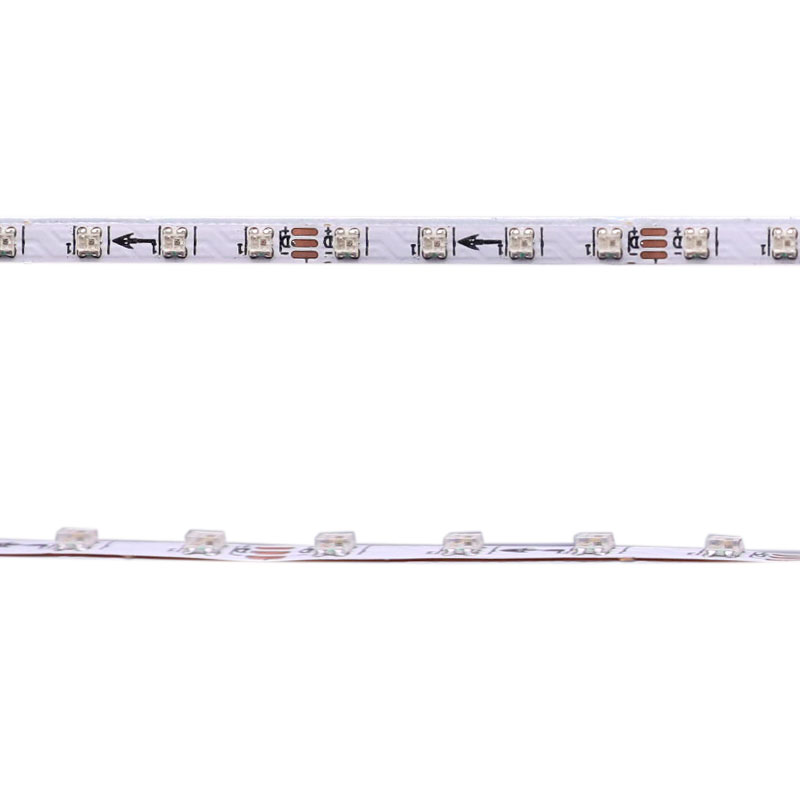

3 pin JST SM connectors at the ends, easy to connect to an addressable controller, or connect multiple led strips together. SPI signal input on one end and signal output on the other end. The arrows on the PCB represent the direction of data transmission.

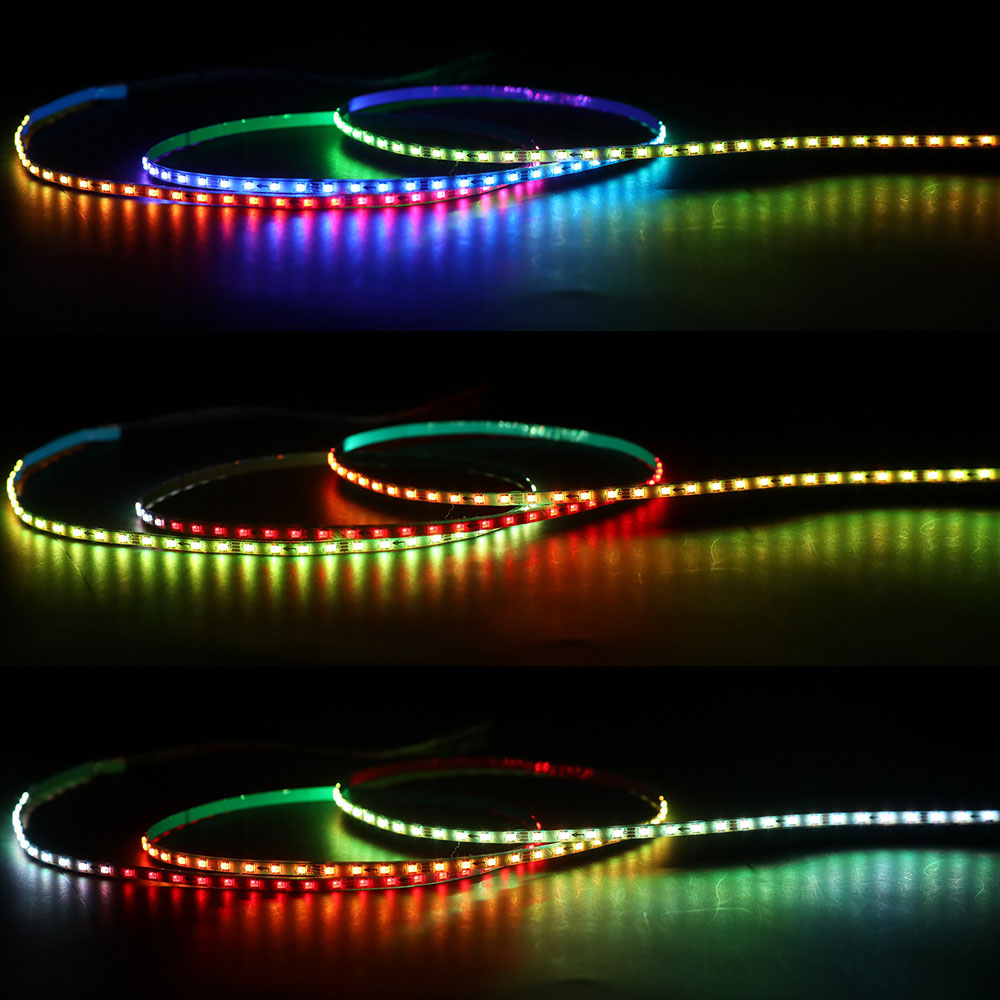

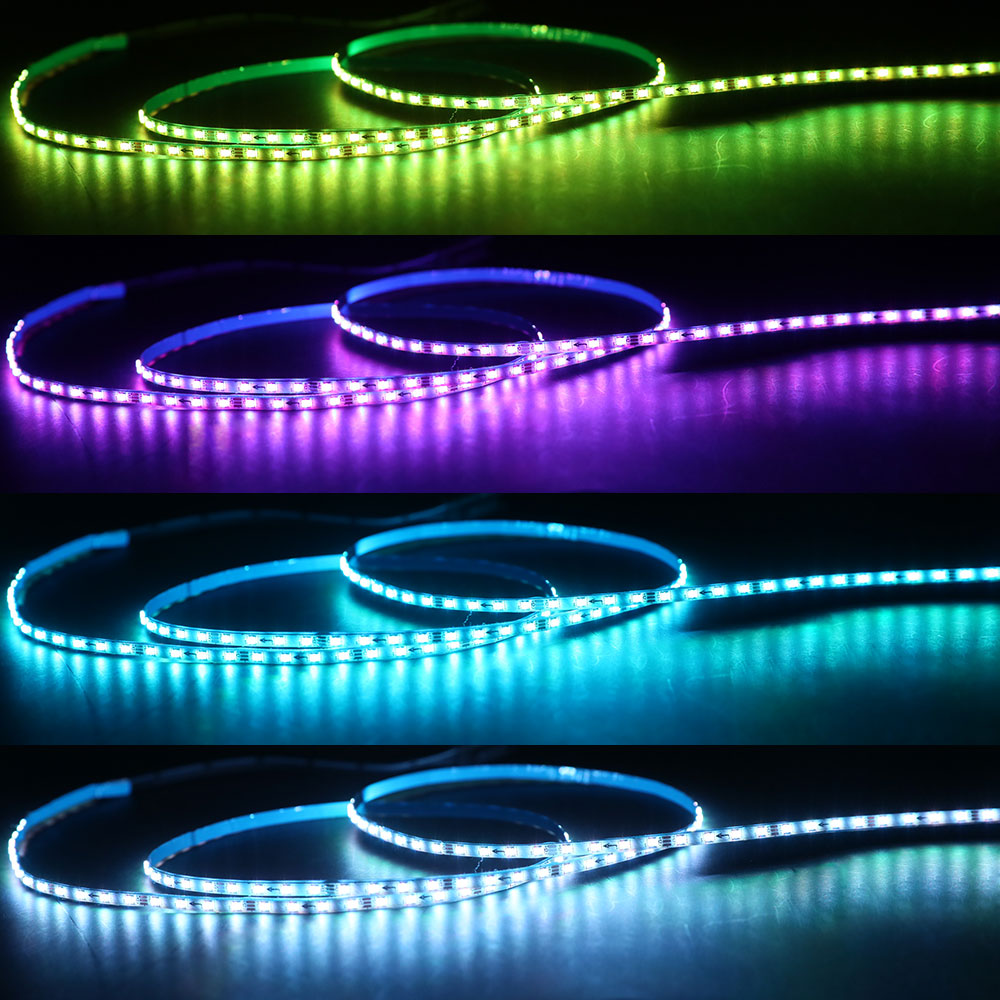

WS2812B RGB led strip lights can achieve various static and dynamic dream color effects through mobile APP control / RF remote control / Artnet computer software control / Arduino or Raspberry Pi cricuit board control, like multi color chasing, running water, jump flash, breathing, etc.

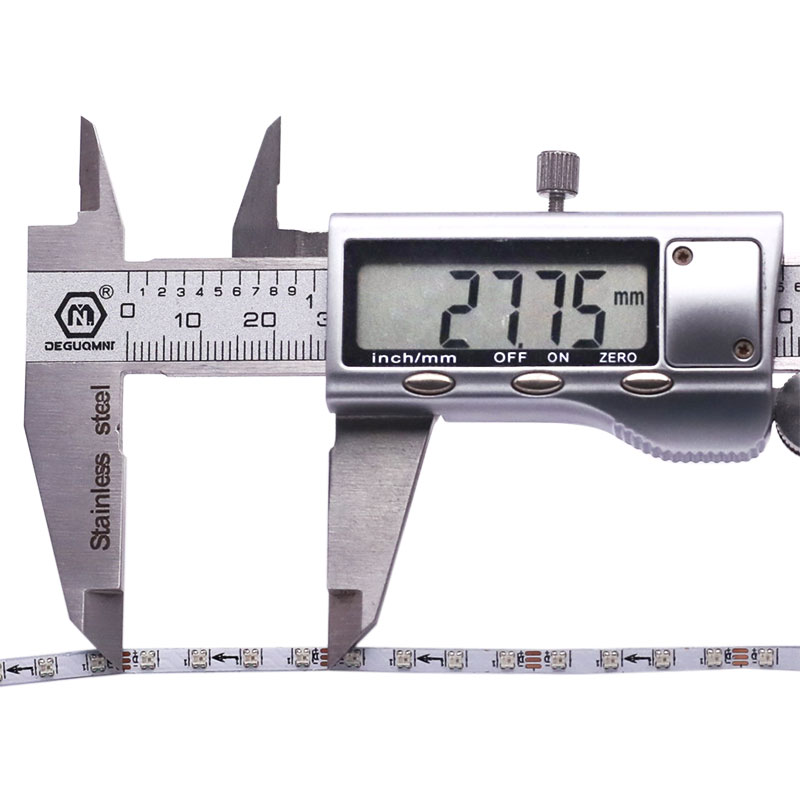

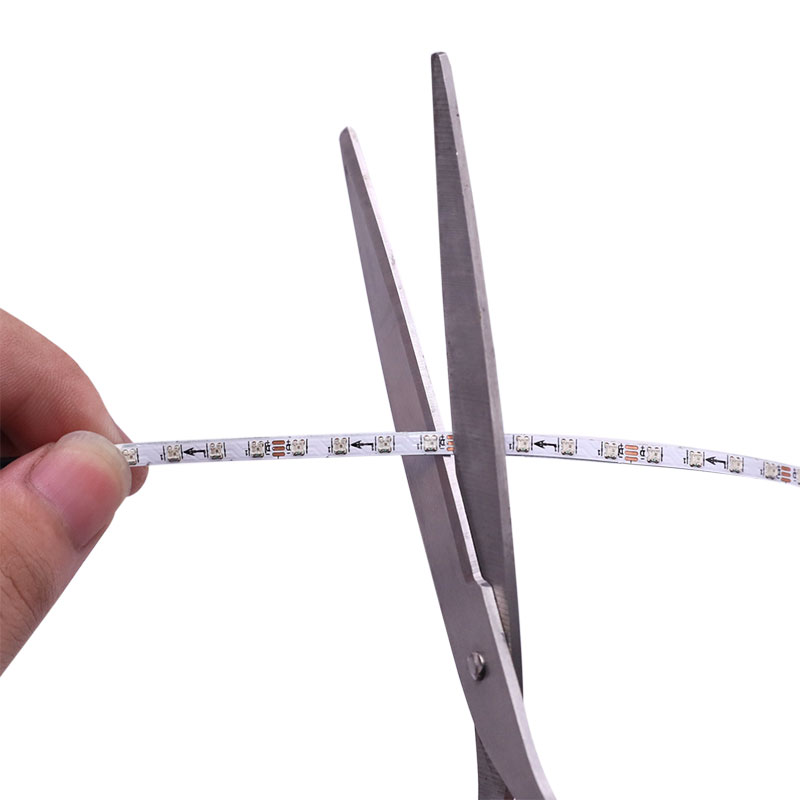

144pcs diodes per emter, high density, no glare light. You can freely cut the strip (4-LED can be cut, 27.7mm/1.1" cut length) to any length for your project. Only work in DC5V. It cannot plug to AC outlet directly, requires an AC110V/220V to DC5V transformer to power. Battery power can also be used if there is no outlet near the installation position.

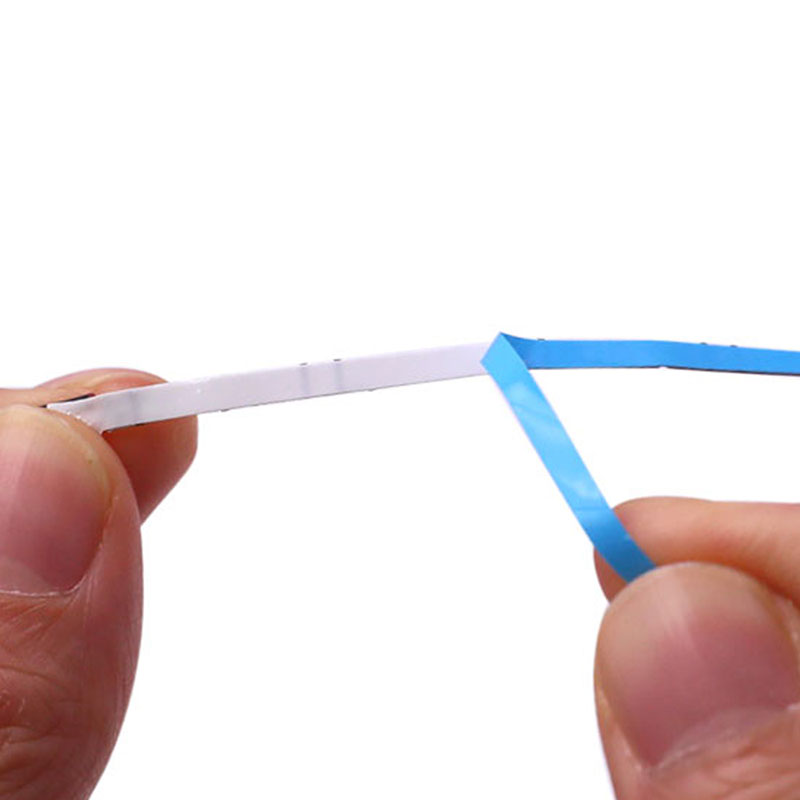

The small addressable RGB led strip with IP20 (for indoor applications) comes with a double-sided adhesive tape at the back, easy to stick where you want to install. You can use clips to mount the thin IP67 strip (for a wet, damp or water location).
Thin led strip lights allow people to let their creativity run wild. They can be installed in any tight space to provide bright lighting.
WS2812B Chips Specifications Download
WS2812B VS WS2811 Specifications Download
Standards and Certifications
Product Specification
LED Strip Type: | 3mm Thin Addressable RGB LED Strip |
LED Chip: | Epistar Chip (SMD2020 ) |
IC Type: | WS2812B (1 IC drives 4 LEDs) |
Input Voltage: | DC5V |
Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
LED Color: | Dream color RGB / Full color |
Wavelength NM(RGB): | Red(620-630nm), Green(515-525nm), Blue(465-475nm) |
LED Quantity: | 144 LEDs per meter |
IC Qnantity: | 36 per meter |

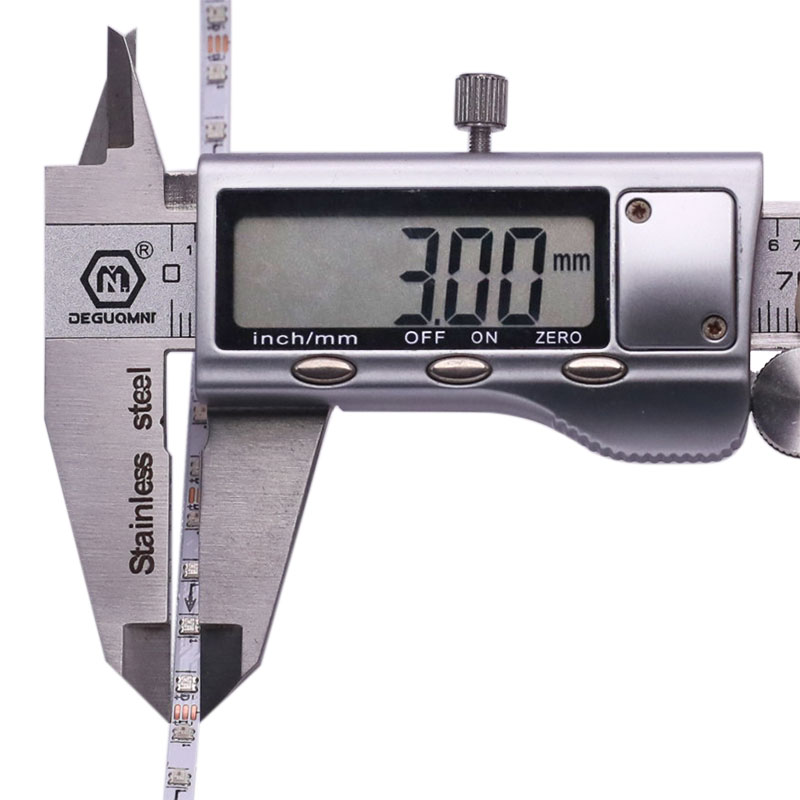

Dimensions: | L100mm(39.3 in) x W3mm(0.12 in) x H2.5mm(0.10 in) |
Cut Length: | 27.7mm / 1.1in |
Working Power: | 22W/m |
Lumen: | R18lm, G58lm, B8lm |
Beam Angle: | 120 degree |
Lifespan: | 50,000+ Hours |
Waterproof Rating: | Non-Waterproof IP20, Waterproof IP67(sealed in silicone tube) |
How To Wire Addressable LED Strip Lights?
If you choose using SPI controller to control the WS2812B RGB lights, please wire the strip according to the following diagram.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
