UCS1903 3000K 4500K 6500K 3in1 24V 5050 White Light Addressable LED Strip
- $30.00 $25.9813% off
- $49.98 $44.9810% off
- $30.00 $26.9810% off

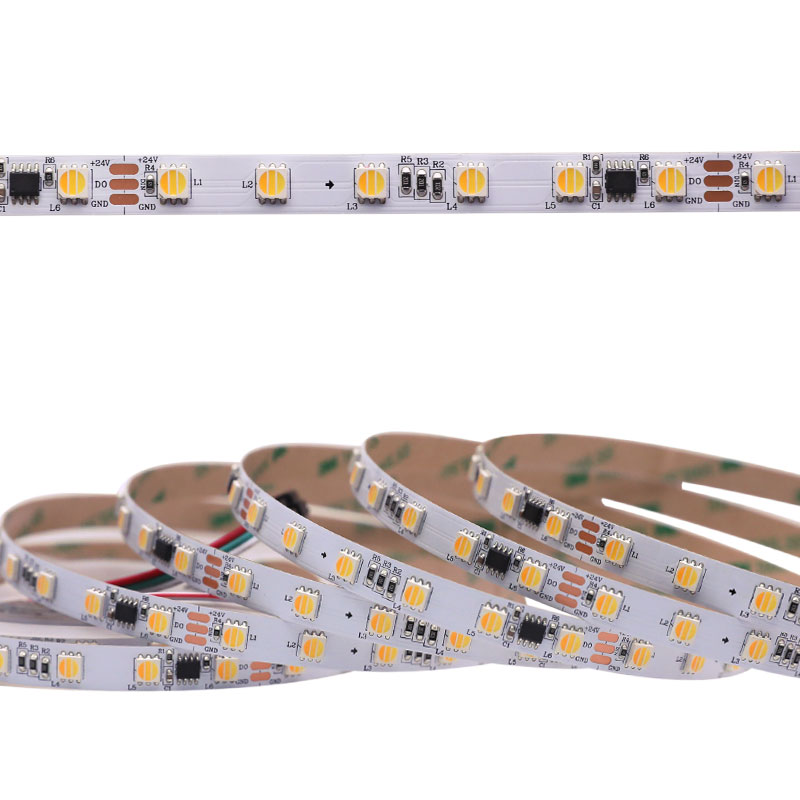

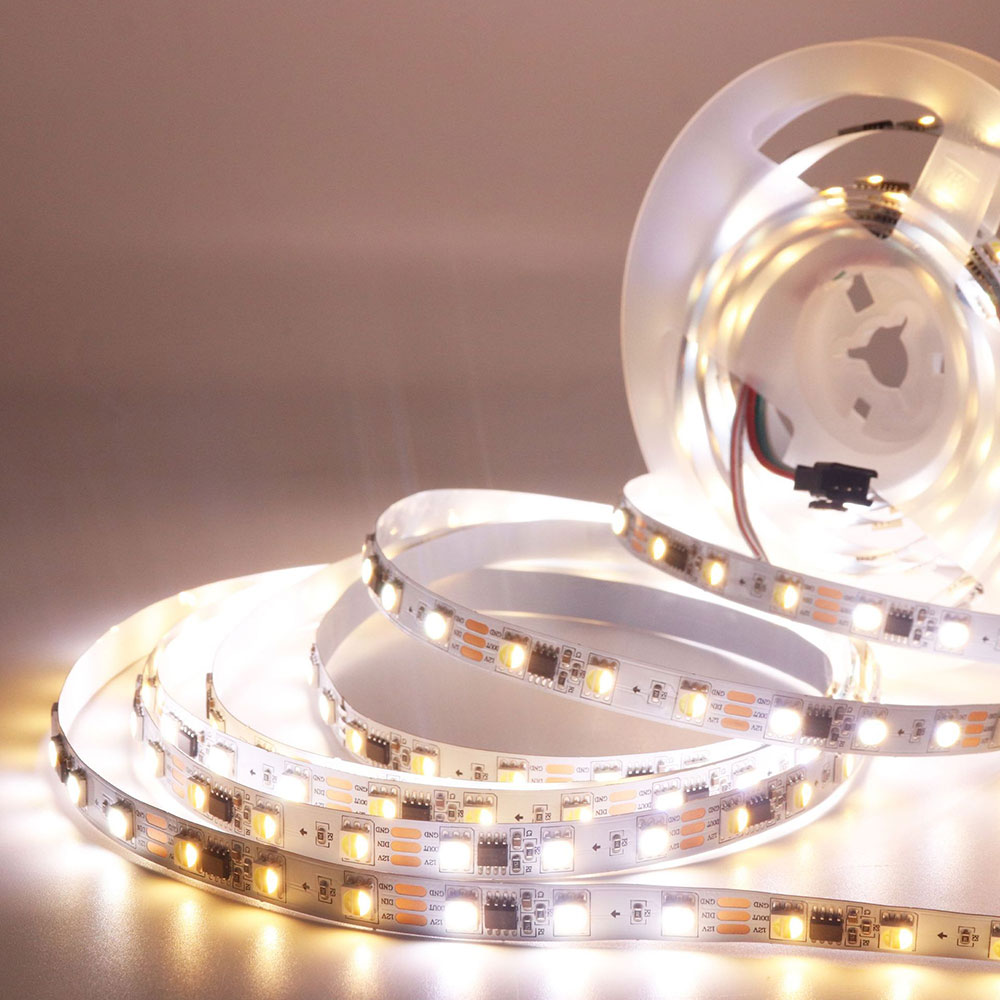

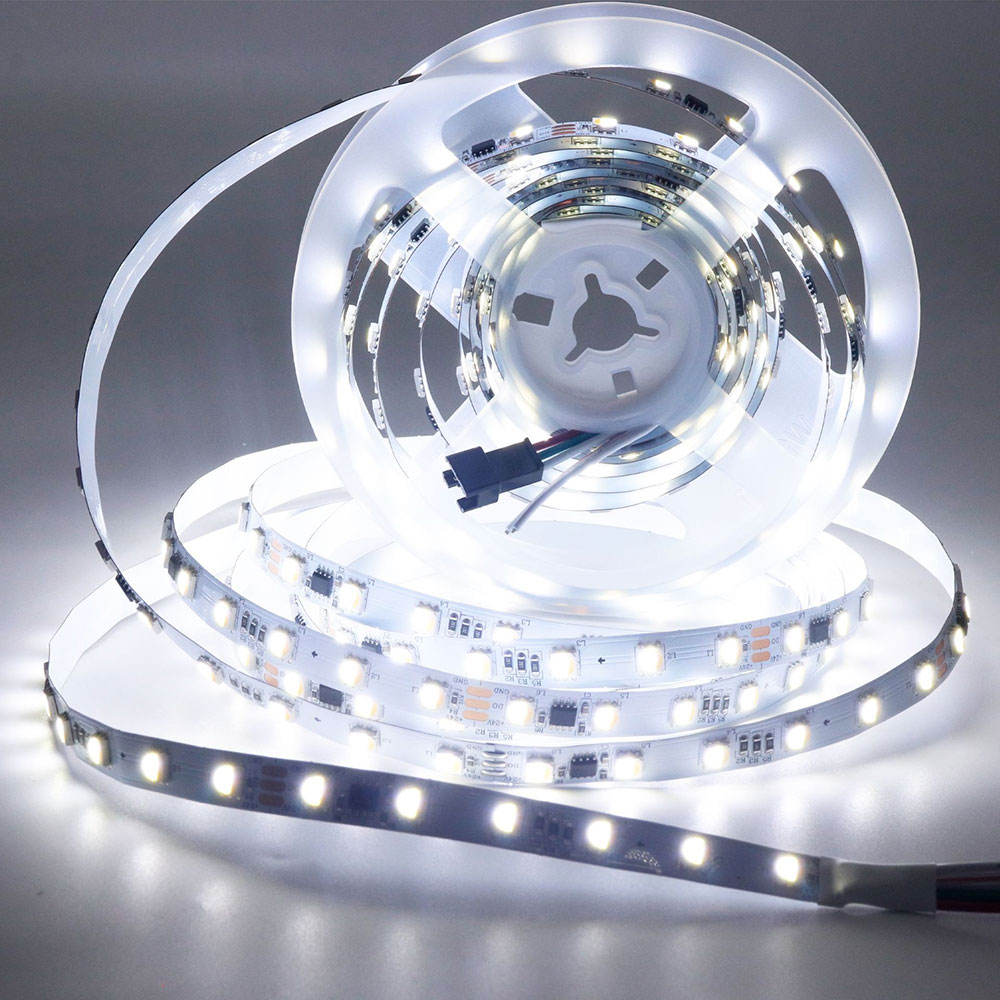

Unique 3-in-1 white light addressable led strip for your home lighting and commercial lighting. There are three color temperatures on each 5050 SMD LED, 2700K-3200K soft white, 4000K-4500K natural white, and 6000K-6500K daylight white. Display a variety of dynamic effects of LED color temperatures (flowing water, color chasing, etc.).

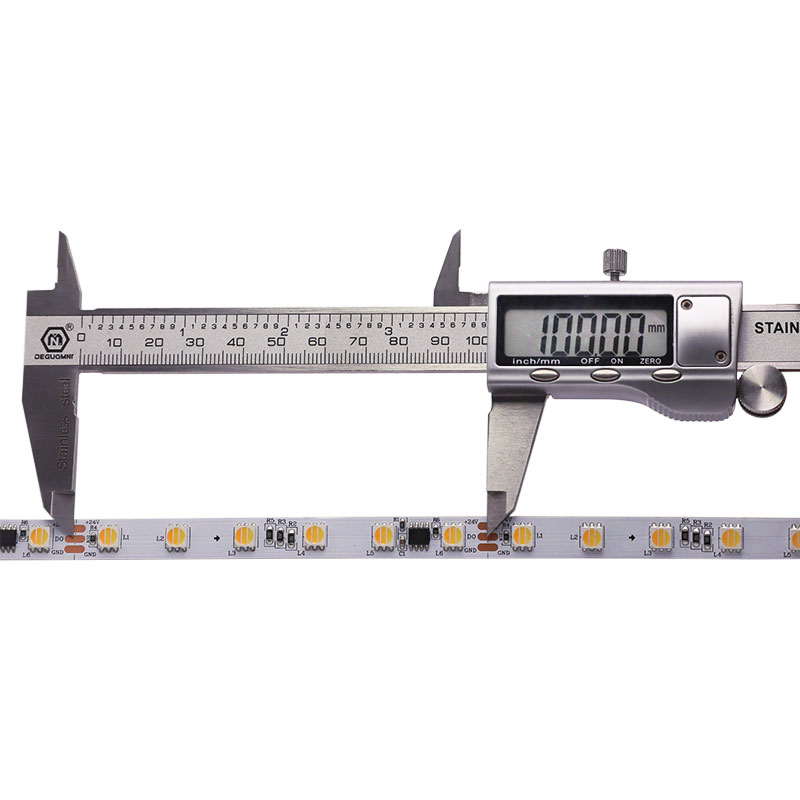

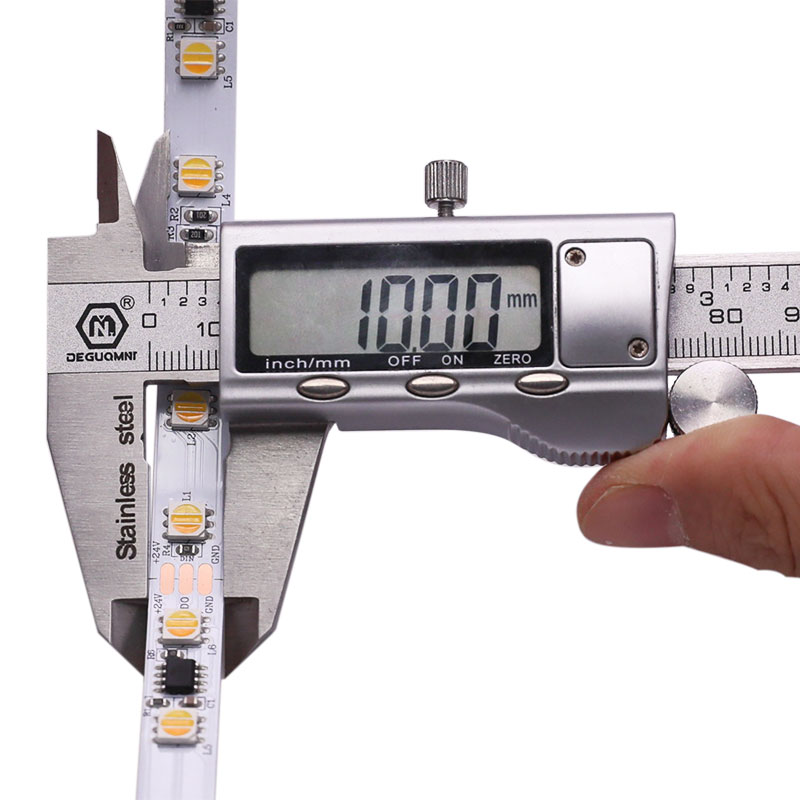

This 10mm wide color temperature addressable light strip is 3-Pin, one GND, one VCC, and one Date. 24V or 12V DC input, 60 lights per meter, total of 300 LEDs per roll. Adapt 5050 3in1 lamp beads, high color rendering, high brightness, and low energy consumption. With flexible FPCB board, stable and foldable, easy to design modeling.

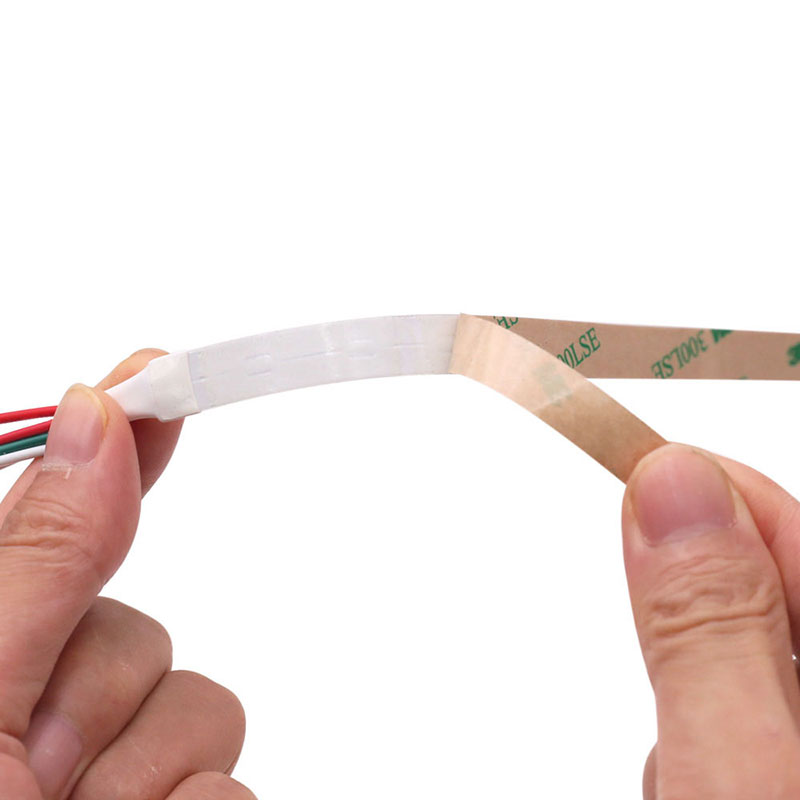

Comes with 3pin JST signal connector at each end, allowing quick connection. This 16.4ft addressable white light strip consumes 10.6W per meter. It requires a SPI controller and a power adapter or a switching power supply (minimum 63.6W capacity) to drive. If you need accessories, please click here to buy.
With 85+ high CRI, it can restore the color of objects under natural light to the greatest extent, and the human eyes can perceive more colors, suitable for under cabinet lighting, kicthen lighting, bedroom lighting, etc. IP20/IP65 is suitable for home & residential installations. IP67/IP68 can be used in outdoor environments.
|Input Voltage||LED Density||IC Quantity||Cut Unit||Power||Power Supply Capacity|

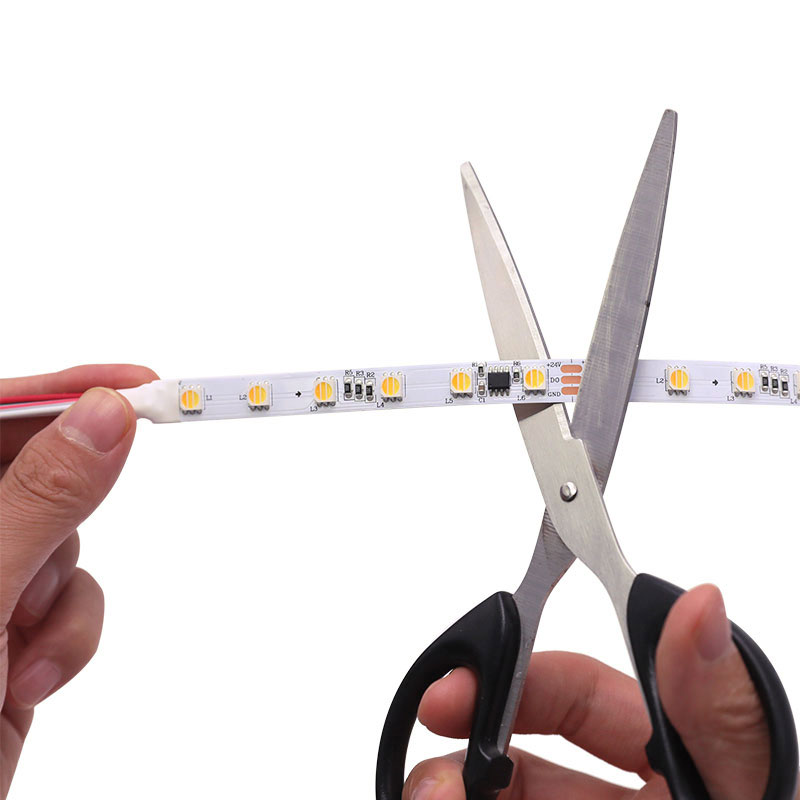

|24VDC||60 LEDs/m||10 pixels per meter, 50 pixels per roll||6 Lights, 100mm cut length||10.6W/m||≥ 63.6W|
|12VDC||60 LEDs/m||20 pixels per meter, 100 pixels per roll||3 Lights, 50mm cut length||11.64W/m||≥ 69.84W|
Related LED Lighting Knowledge Sources:
Standards and Certifications
|LED Strip Type:||3000K+4500K+6500K 3in1 White Addressable LED Strip|
|LED Color Temperature:||Addressable 6500K Daylight White + 4500K Natural White + 3000K Warm White|
|LED Quantity:||60 LEDs/m|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
|Color Rendering Index:||Ra＞85|
3-pin UCS1903 Addressable LED Strip Light Wiring Diagram:
Available Strip Light Fixture:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
Aluminum LED channel also has multiple types to create your linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the LED strip lighting and protect the strip lights.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
