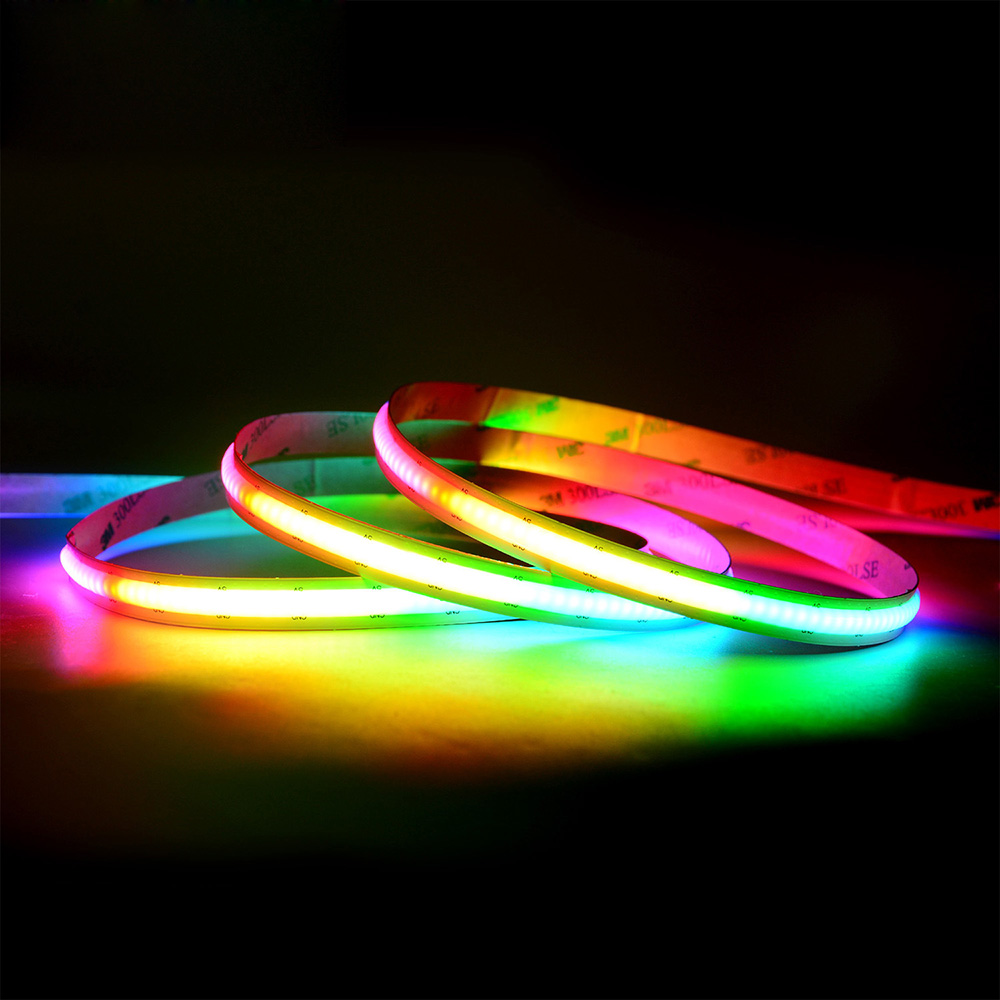

Newest WS2812B 332Chips/m Highest Density Addressable RGB COB LED Light - DC5V Dream Color Flexible COB LED Strips - 1m/3.28ft Per Roll
Check this 5V WS2812B or SK6812 addressable RGB led strip light, 1m (3.28ft) per roll, with 10mm PCB width.
1. High quality LED Chips, adopt high bright LED chip, combine with addressable WS2812B built-in IC, using sing integrated flip chip technology, making the high density of 332 Chips/m FCOB LED lights, with the advantages of high brightness, no light spot, low light decay, longer lifespan, high CRI, and so on.

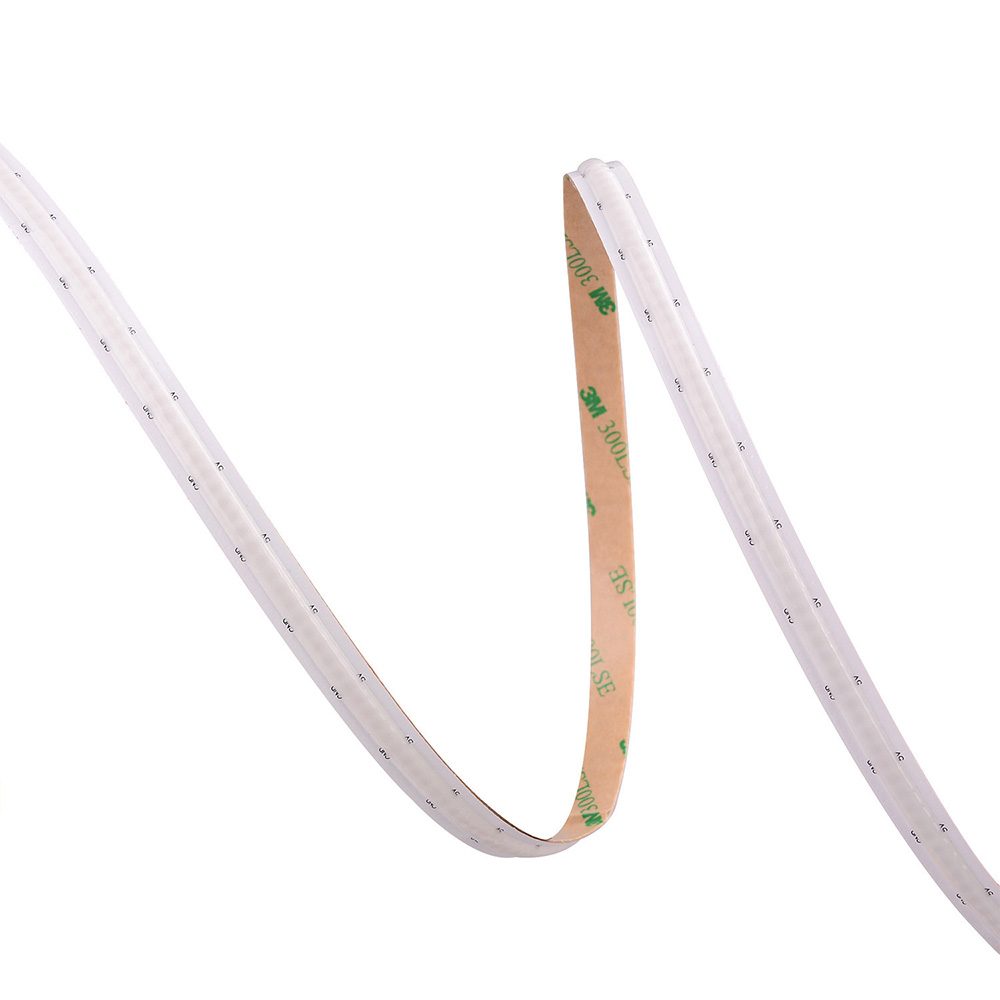

2. Flexible FPC board, with double-side FPC board as the basement, pure gold pure copper wire design, high Oxidation resistance and high temperature resistance, also easy to bend the angle you need.

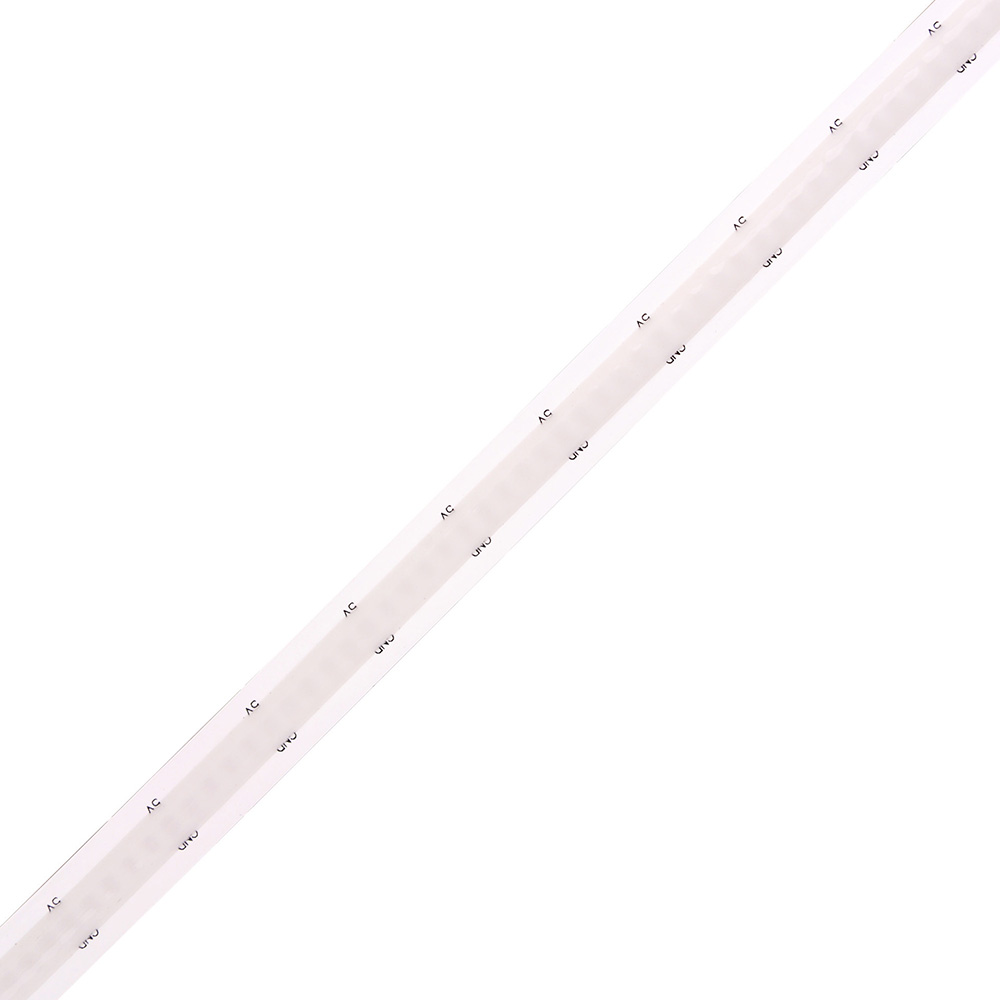

3. Soft silicone cover, strong light transmission, offering better lights, and high color consistency. You can cut the COB LED lights along the cutting marks, meets the demands of different lengths.
4. Dream color effects, via connecting the addressable LED controllers, you can get various dynamic or static color chasing effects as you want, providing you a smarter life.
5. DC5V safe voltage, lower power consumption, save energy, environment friendly.
6. Non-waterproof IP20 LED strips for indoor use, with adhesive 3M backing tapes, you can install the COB LED strip where you need, such as under cabinet lighting. Waterproof IP67 LED lights can use for outdoor LED lighting, need the mounting brackets.
Standards and Certifications
|LED Strip Type||WS2812B DreamColor|
|LED Chip||Epistar Chip|
|Dimensions||L100cm(39.4 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in )|
|COB Dimension||L100cm(39.4 in ) x W0.5cm(0.20 in )|
|Working Power||32W/m Max|
332Chips per 1meter (3.28 ft)
|Wavelength NM(RGBY)||Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)|
|Lamp Luminous Flux(lm)||1000 lumens/m|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft COB LED Strip||
Controller: SP107E Bluetooth controller
You can also visit our Waterproof LED power supply series
Connection Diagram: How to Wire Addressable LED Strip Lights?
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
