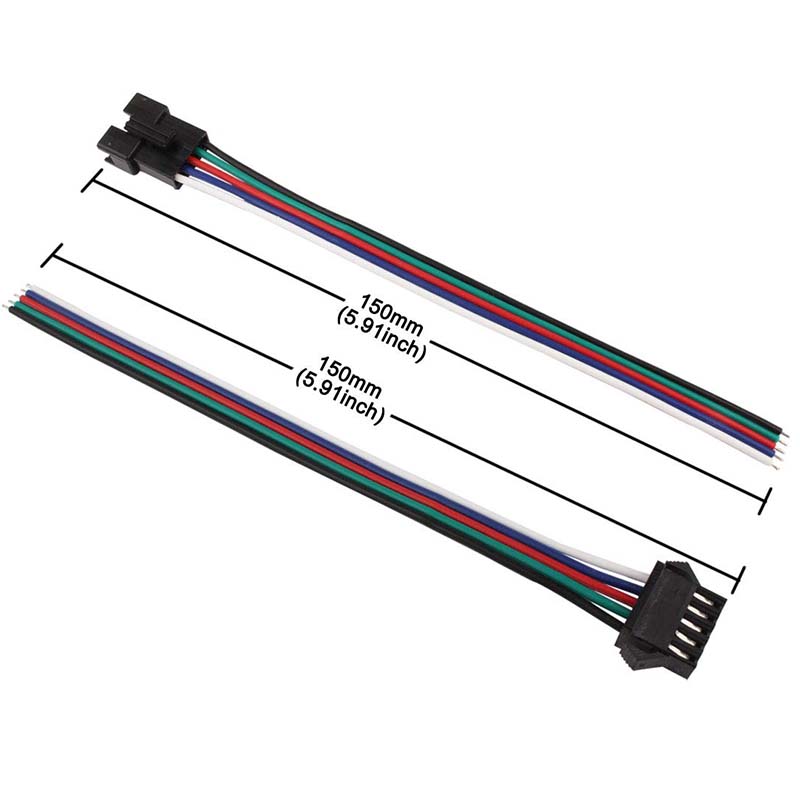

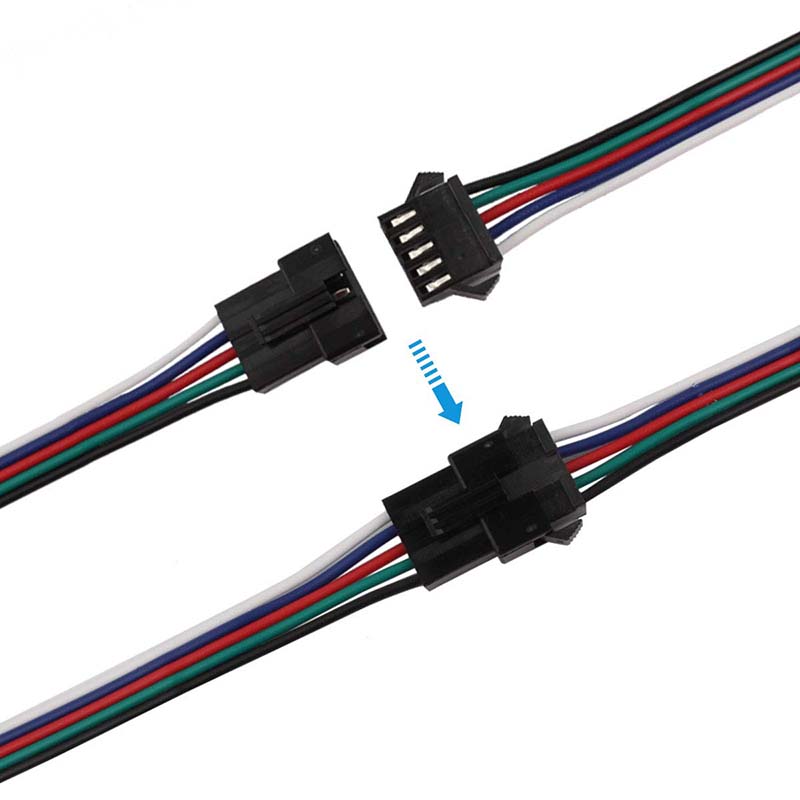

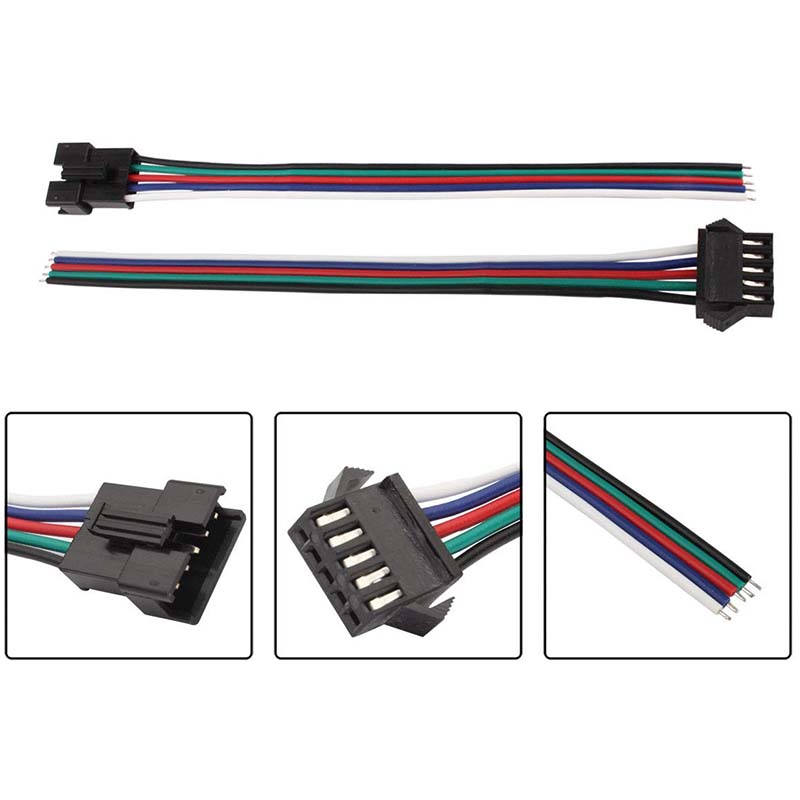

5 Pin Connector LED Power Male to Female SM Wire Cable Adapter for 3528 5050 LED Light Strip 1 Pair
Easy use for LED SMD3528 5050 RGBW RGBWW Flexible Strip
Features: no welding, easy to install, easy to use
Connector Type: 5 pin Male and Female One Set RGBW Connector
Material: PVC outside; Tinned copper inside
Color: White + Blue + Red + Green + Black
Type: No need soldering led connector
Usage: LED lamp driver or led strip connector
Working temperature: 0°C ~ +40°C
Storage temperature: -20°C ~ + 60°C
1. This 5PIN connector for LED strips, LED wall-washers, LED underground light, LED belt light, curtain light, twinkle light and so on.
2. Connect reliable.
3.Suitable for dust, water, high sensing performance requirements of the electrical system, dust-proof, waterproof, high pressure, two on the plug connection is reliable and safe, no loose, lightweight and beautiful appearance.
Please check the colors of the wires and their respective polarities before connecting to your device(s).
