Product Information

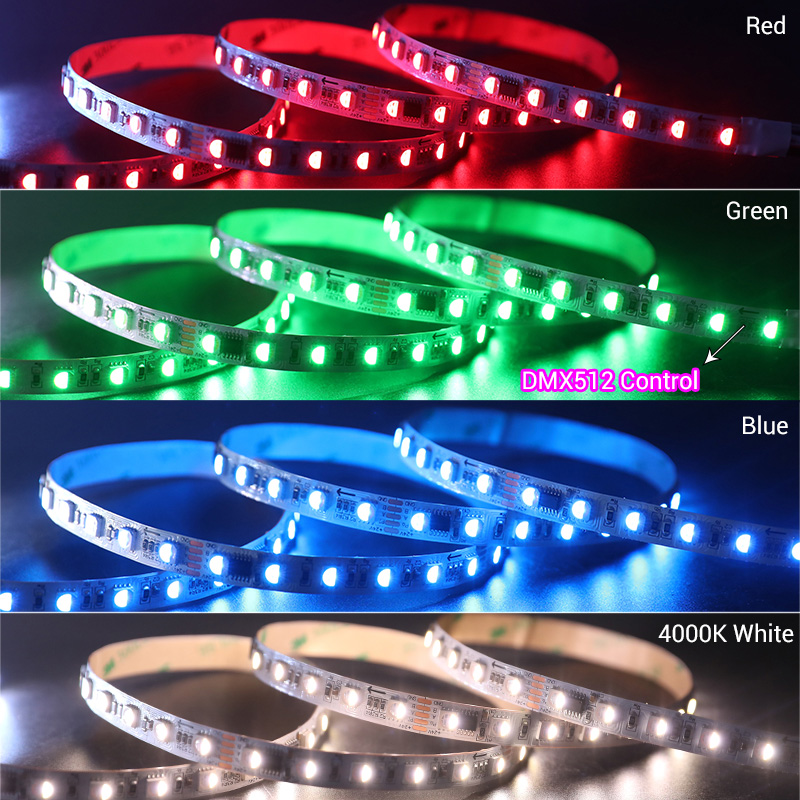

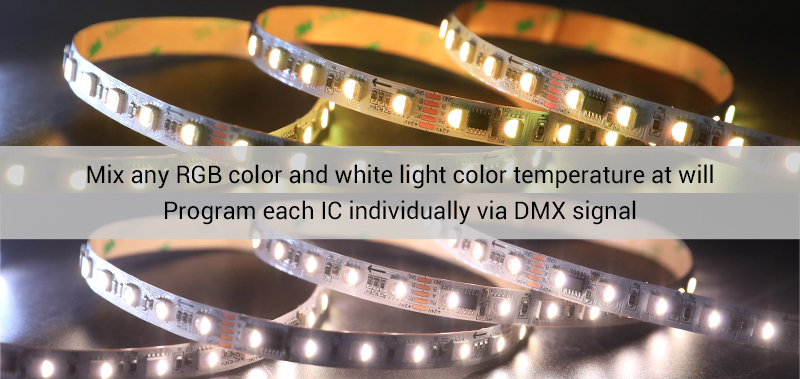

16.4ft DMX controlled led strip for sale. The DMX512 IC can address up to 4096 channels. You can use dmx controller, Artnet controller, Madrix console, or GPS signal to control the dmx lighting.
It adapts 4in1 5050 RGBW LED as light source, high brightness and low power consumption. 72 LED lights per meter, a total of 360 lights per roll. Low voltage 24V DC input, you just need a 24V power supply to run this dmx led tape.
DMX led strip lights are mainly designed for building lighting decorations and stage lighting systems.

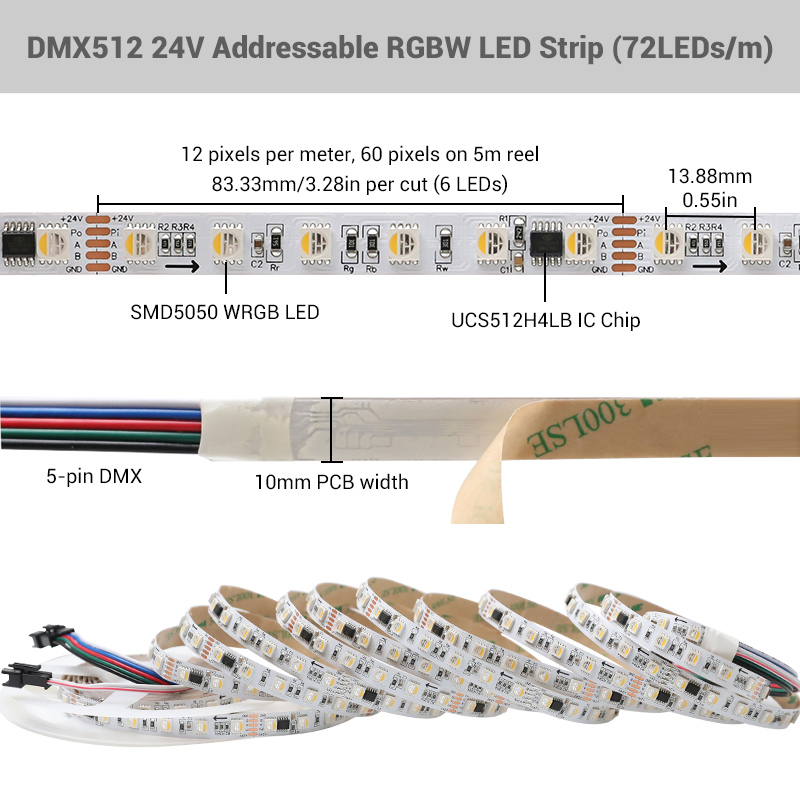

| IC Chip | PCB Width | IC Quantity | Cut Unit | Power |
| 16-pin UCS512C4 (default) | 12mm | 2/m, 10/roll | 500mm, 36LEDs (1 pixel = 36 LEDs) | 16.5W/m, 82.5W/roll |
| 10-pin UCS512H4L | 10mm | 12/m, 60/roll | 83.3mm, 6LEDs (1 pixel = 6 LEDs) | 18W/m, 90W/roll |
DMX512 IC UCS512H4L Datasheet
Standards and Certifications
Product Specification
| LED Strip Type: | RGBW Addressable DMX512 LED Strip |
| LED Chip: | SMD5050 + UCS512C4 / UCS512H4L IC |
| Input Voltage: | DC24V |
| Power: | 16.5W/m / 18W/m |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | RGBW Dream Color |
| PCB Width: | 10mm/12mm |
| LED Quantity: | 72 LEDs/m, 360 LEDs per roll |
| IC Quantity: | 2/12 ICs/m |
| Cut Unit: | 500mm - 36 LEDs can be cut, 83.3mm - 6 LEDs can be cut |
| Waterproof Rating: | Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68 |
| Strip Length: | 5m/16.4ft |
| LED Chip: | Epistar |
| Lifespan: | 30,000+hours |
| Beam Angle: | 120° |
| Lumen: | 22 lm/LED |
How To Wire DMX LED Strip Lights?
DMX Light Wiring Diagram for reference:
Available LED Strip Lighting Fixtures:
Silicone LED diffuser is flexible and IP67 outdoor waterproof, there are different luminous types and light-emitting angles to choose from.
Aluminum LED profile is also available with multiple types to create linear lighting. And they all evenly diffuse the LED lighting and protect the strip lights.
