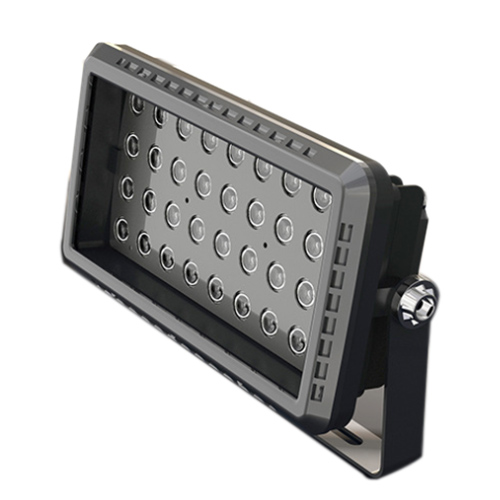

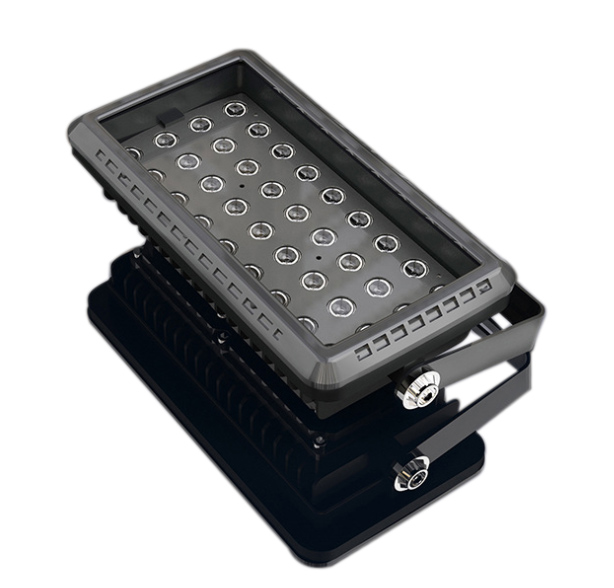

DC24V 48W RGBW Full-color DMX512 3IN1 36LEDs IP65 LED Wall Wash Light
1. This product is DC24V 48W RGBW full-color DMX512 3IN1 36LEDs IP65 LED wall wash light, the lamp bead only uses TX-3535SMD, which has a higher shape than SMD4040, has good light mixing effect, large luminous angle, uniform luminescence, and no spot, which is applicable Installed indoors and outdoors, DC24V low voltage power supply, safe and efficient, harmless to the human body. 48W low power operation, power saving.
2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.
3. Triple waterproof design: The inside of LED Wall Wash Lighting is completely filled with glue and waterproof treatment, waterproof rubber seal, integrated seal design.
4. Thickened tempered glass panel: Strong hardness, high light transmittance, waterproof, and explosion-proof.
5. Thickened aluminum bracket: Simple installation and easy to use.
Standards and Certifications
Input Voltage: 24 (V)
LED Quantity: 36LEDs
Luminous Flux: 1400 (LM)
Working Frequency: 50 (Hz)
Shell Material: aluminum
Beam Angle: 12 (degrees)
Working Temperature: -30℃-50℃
Lifespan: 30000 hours
IP Rating: IP65
Color Temperature: RGBW
Shell Color: gray
Minimum Packaging: 480mm*320mm*460mm
Power Supply Mode: DC
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
