Product Information
The 12W DMX RGBW LED flood light delivers dynamic color changing and clean white illumination for architectural facades, landscaping, and commercial building exteriors. Engineered to operate on an input range of DC 12V to DC 24V and with built-in 350mA constant-current driver, this DMX512 low voltage landscape floodlight fixture prevents voltage drop issues across 15-20pcs long fixture runs, maintaining uniform brightness across entire lighting installations.
Each RGBW light luminaire supports standard DMX512 control protocols, allowing individual pixel addressing alongside our complete range of outdoor LED floodlight systems. Equipped with an integrated heavy-duty heatsink and sealed to an IP66 ingress protection rating, it provides consistent photometric performance across exterior environments.
Core Technical Attributes
Wide DC12-24V Input
Engineered for wide-voltage DC 12V to DC 24V operation to maintain steady current delivery across interconnected fixtures.
DMX512 Pixel Control
Supports standardized multi-channel DMX addressing for synchronized dynamic lighting sequences.
Dual Color Temperature Choices
Available in addressable RGB plus 3000K warm white or RGB plus 6000K daylight white.
Rugged IP66 Weatherproofing
Sealed die-cast construction prevents dust ingress and withstands low-pressure water jets.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | FLDC-DMX512-RGBW12W |
| Housing Construction | Die-Cast Aluminum with Tempered Glass Lens (93% Transmittance) |
| Rated Power Consumption | 12W (Full Power Rated) |
| Input Operating Voltage | DC 12V - DC 24V Constant Voltage |
| Control Protocol | Standard DMX512 Protocol |
| Power efficiency | 90% |
| Beam Angle | 120-degree |
| Emitting Color Options | RGB+3000K Warm White / RGB+6000K Daylight White |
| Color Rendering Index (CRI) | Ra ≥ 80 |
| Ingress Protection Rating | IP66 (Outdoor Wet Locations) |
| LED Emitter Count | 1 Integrated High-Power Module |
| Net Weight | 600 g (1.32 lbs) |
| Fixture Volume | 1800 cm³ |

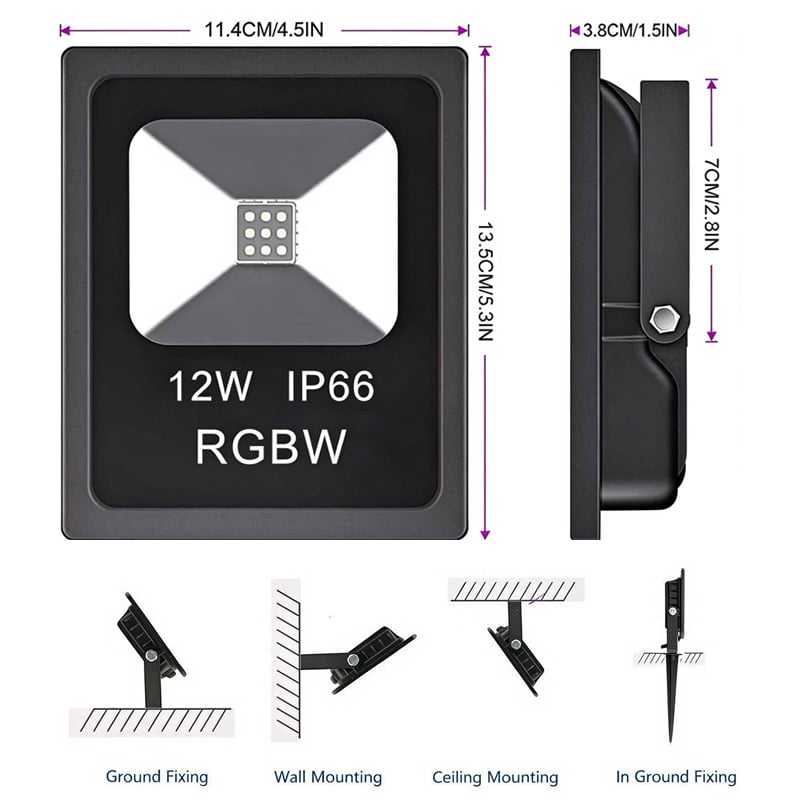

| Dimensions | 135mm*120mm*40mm (5.3in*4.7in*1.57in) |
| Warranty | 1 Year |
| Mounting Type | Adjustable Surface Bracket |
| Lifespan | 35000 Hours |
| Working Temperature | -30℃ ~ 50℃ |
| Humidity | 10%-90%RH |
Target Application Scenarios
How to Install This Fixture
- Select a regulated DC 12V or DC 24V power supply matched to the total wattage of all interconnected floodlight units.
- Fasten the heavy-duty bracket using corrosion-resistant stainless steel bolts, verifying the mounting angle matches your illumination target.
- Disconnect primary mains power from the DC power supply before handling any secondary wiring connections.
- Connect the fixture DC power leads to the power bus, strictly observing positive and negative wire polarities.
- Splice the DMX512 signal cable (Data +, Data -, and Ground/Shield) into your DMX controller network.
- Set the unique DMX starting address on your control console or addressing tool to assign channel control.
- Restore mains power to verify correct RGB color mixing, White channel balance, and DMX address responsiveness.
What's in the Box

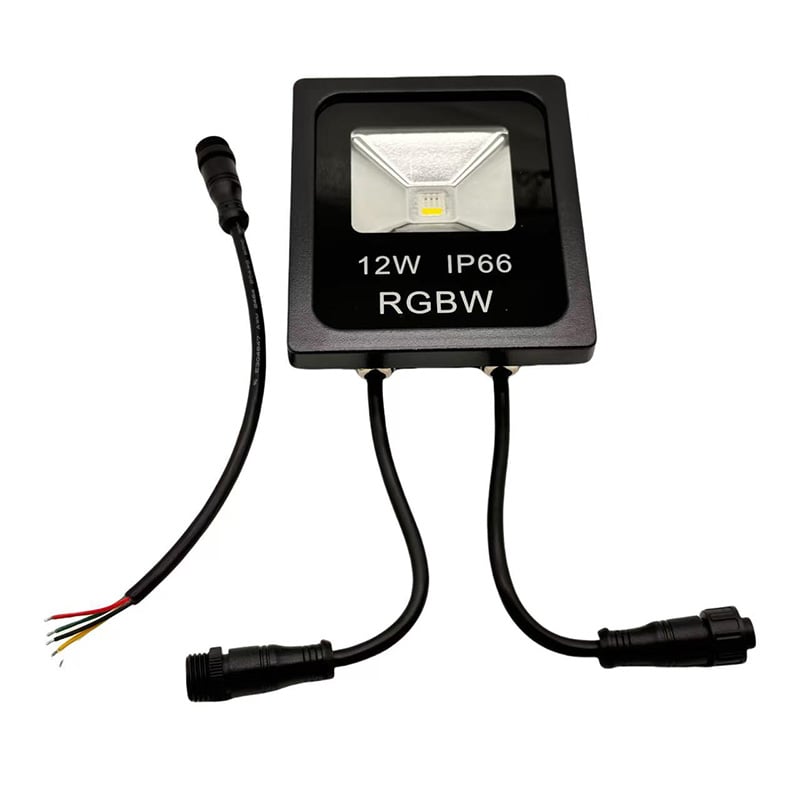

- ✓1 × 12W DMX RGBW LED Flood Light Fixture
- ✓1 × Integrated Angle-Adjustable Mounting Bracket
- ✓2 × Pre-attached Waterproof Cable Connector
- ✓1 × Input Waterproof Cable Lead
Frequently Asked Questions
Q: What power supply is required to run this LED flood light?
A:This fixture operates on a constant voltage DC 12V to DC 24V power supply. It does not connect directly to 120V or 240V mains lines, so an external AC-to-DC driver is required.
Q: How does the wide DC 12V to 24V input benefit long fixture runs?
A:The internal regulator accepts any DC voltage between 12V and 24V, eliminating dimming caused by wire resistance over long exterior cabling distances.
Q: Can this light be submerged inside a fountain or pond?
A:No, an IP66 luminaire is designed for surface-mounted outdoor architectural use and cannot withstand prolonged underwater immersion.
Q: How many DMX channels does each 12W flood light occupy?
A:The fixture operates across 4 DMX channels: Channel 1 for Red, Channel 2 for Green, Channel 3 for Blue, and Channel 4 for the dedicated White emitter.
