Large Commercial LED Rainbow RGBIC Neon Rope Light Smart Outdoor Neon Flex
Related Products
Large Commercial LED...
$97.98
XLG-200-24-A 199.2Watt...
$54.98
Wireless Bluetooth RF...
$82.98
8 Ports Network SD Card...
$132.98
SP328E Bluetooth Mesh SPI...
$15.98
200W16.7A DC12V Constant...
$49.98
DC12/24V Multiple Color...
$130.00 $99.9823% off-
Special Price: $97.98

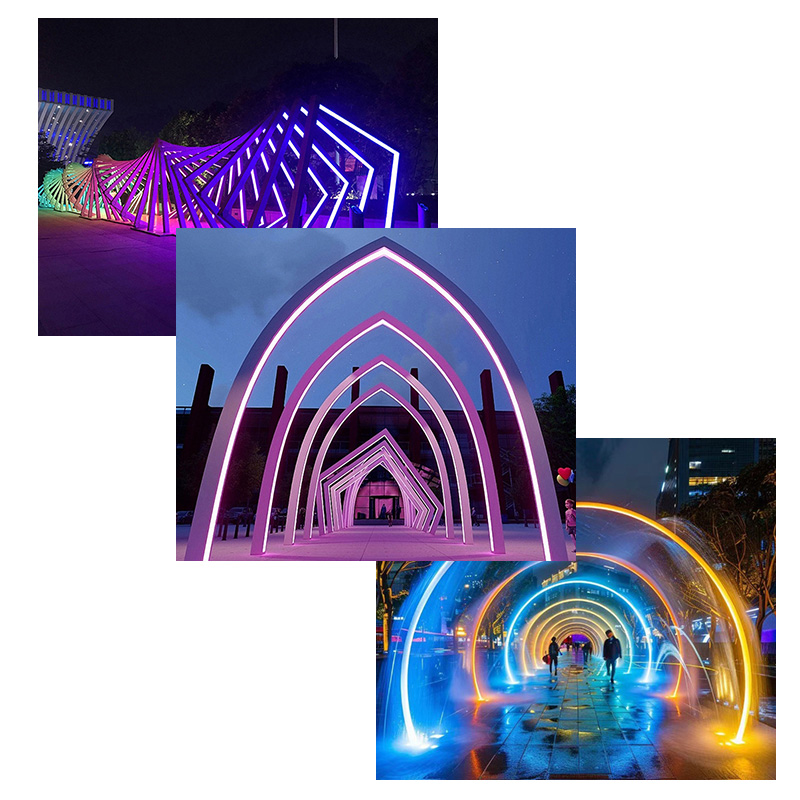

Commercial-grade seamless colorful RGBIC neon rope light designed for city-grade nightscapes. Larger neon tube sizes provide unrivaled intensity and visual impact. We offer a wide selection of neon light sizes, including 40×20, 40×25, 50×20, 50×25, 70×30 mm. The different sizes of commercial neon rope lights are able to satisfy diversified installation needs and space constraints, allowing flexibility in choosing the right size for specific outdoor led neon flex project scenarios to achieve optimal lighting and decorative effects.
WS2811, UCS2903, SM16703 and UCS512C4 are available in 12V and 24V power supply with smart chip control. Each size of RGBIC neon tube has a built-in double-row led strip with 120LEDs or 168LEDs per meter. Such a high-density LED arrangement makes the neon tube's light more even and delicate, and the color performance is richer and more lifelike. You will required a SPI/TTL led controller to program the WS2811, UCS2903 and SM16703 IC chips of the neon lights, a DMX led controller to address the UCS512C4 led pixels.

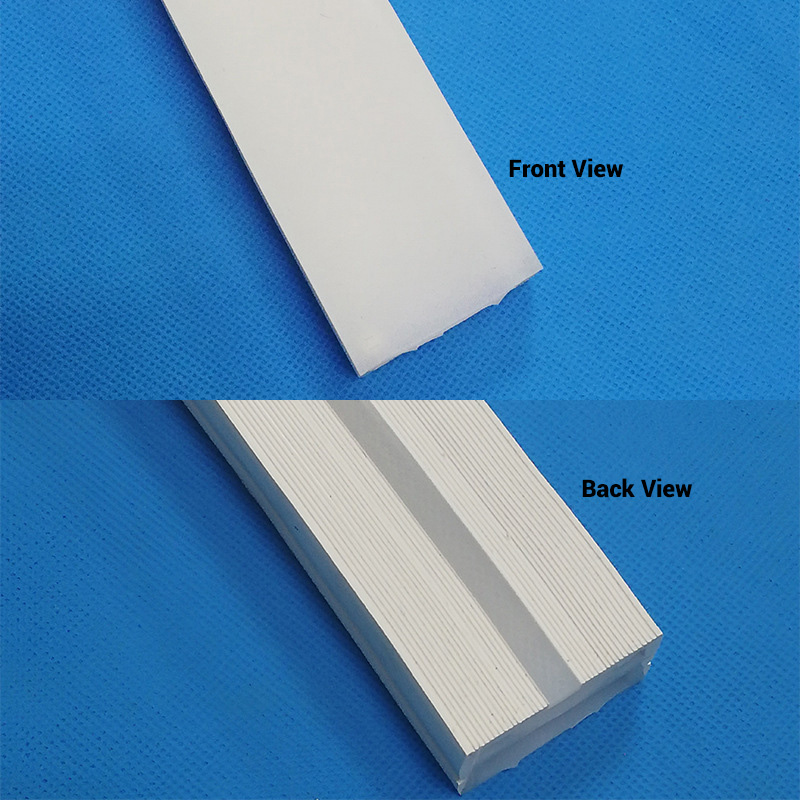

Our large neon lights are made of silicone with an integrated extruded housing, with a protection rating of IP67 and optional IP68, which is effectively dustproof and waterproof, and can still operate stably in harsh urban environments, no matter it is facing the wind and rain, sun and rain, or dust pollution and humid environment, it can still maintain a good working condition.
The standard length of each large neon roll is 5 meters (16.4 feet). Since there is no obvious cutting mark on the neon tube, it is not recommended that you cut it yourself. Feel free to contact us for customization if you have unconventional lighting lengths. Neon flex accessories are here.
Note: "24V - 14*2IC/m - WS2811" means that there are two IC chips in one segment, so it will occupy 14*2*5=140 pixels per roll.
Product Specification
| LED Strip Type: | Large Commercial LED RGBIC Neon Rope Light |
| LED Chip: | SMD5050 RGB |
| IC Type: | WS2811, UCS2903, SM16703, UCS512C4 (DMX512) |
| Bending: | Top bend |
| Material: | Silicone |
| Product Size: |
W40mm/1.57in*H20mm/0.79in, W40mm/1.57in*H25mm/0.98in, W50mm/1.97in*H20mm/0.79in, W50mm/1.97in*H25mm/0.98in, W70mm/0.76in*H30mm/1.18in, |
| Input Voltage: | DC12V, DC24V |
|
Power:
|
28W/m 140W/roll max for UCS512C4, 20W/m 100W/roll max for WS2811/UCS2903/SM16704 |
| LED Quantity: |
120 LEDs/m, "24V - 14*2IC/m - WS2811" is 168 LEDs/m |
| Waterproof Rating: | Outdoor IP67, Underwater IP68 |
| Cut Mark: | No |
| Beam Angle: | 120° |
| Lifespan: | 30,000+ hours |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
