LN-DALIREPEATER-1CH 1 Channel DALI Signal Repeater, LED Dimmer
DALI repeater adopts an advanced computer control chip, this product can enhance the DALI signal, expand the transmission distance of the DALI signal, and extend the transmission distance of the DALI signal from 300m to 600m. It can be used to build a DALI star network.
Power Supply: AC100-240V
Input Signal: standard DALI signal
Output Signal: standard DALI signal
Input Current: ≤3mA
Output Current: ≤250mA

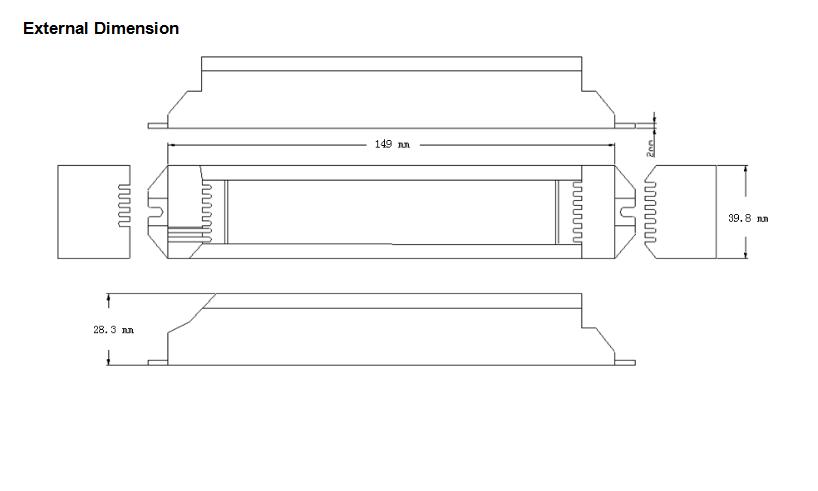

Dimensions: L149 * W40 * H28.3mm
Packing Size: L157*W50*H57mm
Connection Method: spring-type screw-free connection Method, the terminal diameter of 2.6mm
Working Temperature: -20-60 ℃
IP Protection level: IP20
Gross Weight: 130g
Net Weight: 70g
1 DC17V power inside the DALI repeater，The output signal DALI power supply units outside the end without quota

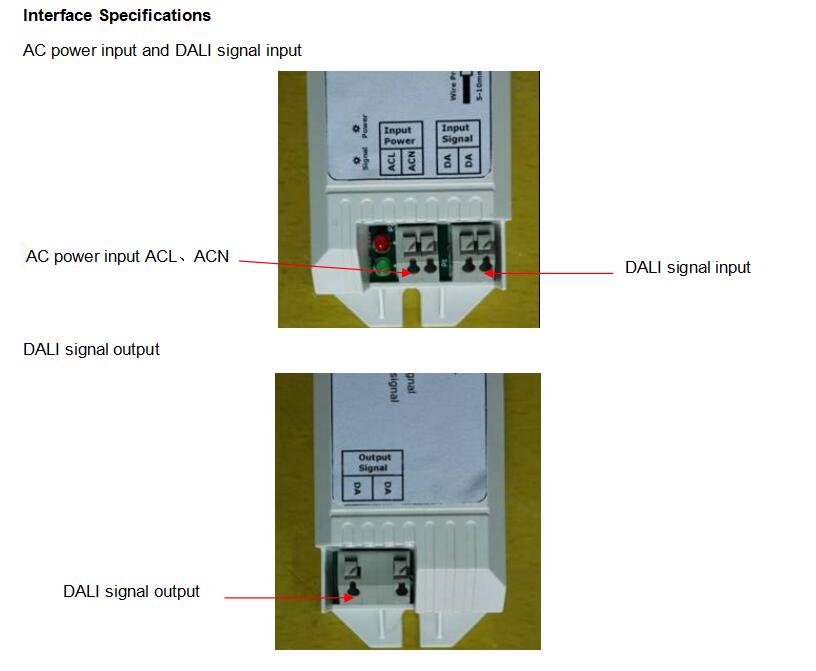

2 Connect the signal wire first，then the output signal wire, finally the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
3 red indicator light：Power light，Normally on representative internal switch power supply is normal work
4 Green indicator light: the signal indicator light，Normally on represents a signal
input，Shine on behalf of the normal communication
5 Because signal delay, so in one line can not connect multiple DALI signal repeaters.
6 64 DALI address can set in DALI BUS, original DALI BUS maximum control equipment number is the same.

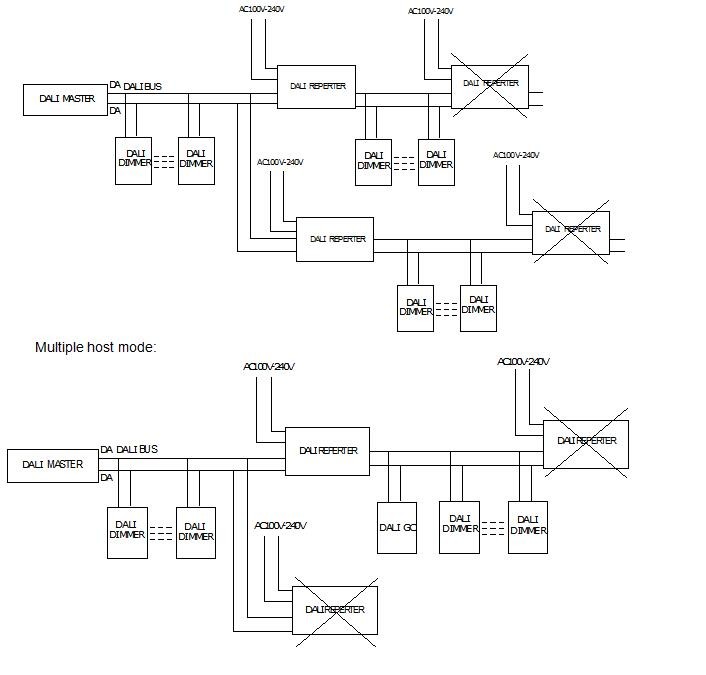

Signal host mode
