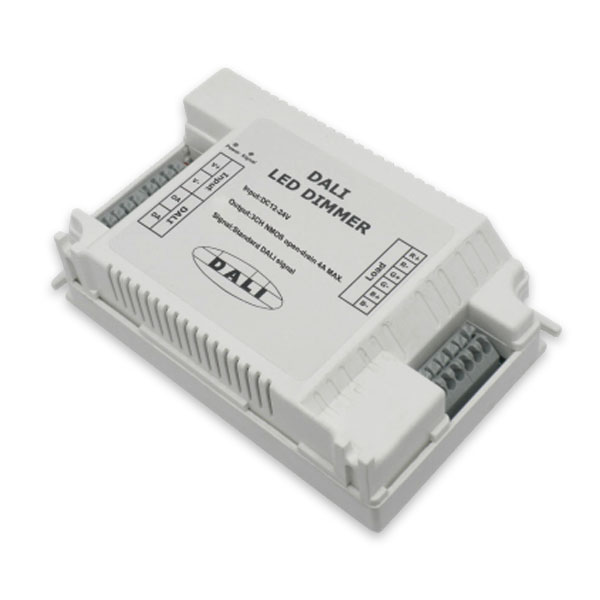

LN-DALIDIMMER-3CH-DCxV 3 Channel DALI Low Voltage RGB Dimmer, DALI Extension Controller
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol, which adopt Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing inquiries, and other powerful state lighting dimming function. Compared with the 0-10v analogue dimming, it’s more precise dimming, addressable, stable, focus control, easy installation and so on.
This product adopt a standard DALI dimming signal to digital LED dimming using standard IEC60929. Compare with the traditional way of LED dimming , with wide range of adjustable dimming, dimming of high precision, can check the current status of LED(such as the current brightness, power intensity, the minimum support brightness, address, etc.), easy distributed control and so on.
Working Temperature: -20~60℃
Supply Voltage: DC12V/24V
Dimming Signal: standard IEC60929 DALI signal
DALI Address: occupy 3 channels
Output: 3 channels (the same voltage and supply voltage)
Dimming Range: 0.1%-100%
Net Weight: 169g
Gross Weight: 280g

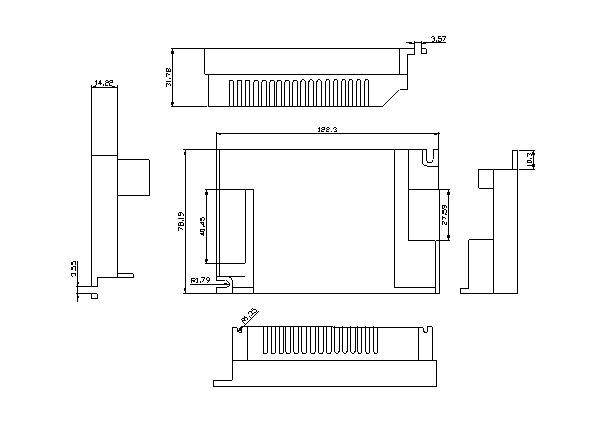

External Dimension: L122.3mm x W78.19 x H31.78mm
Packing Size: L145mm x W95mm x H50mm
Connection Mode: spring-free screw-type wring, terminal block 2.6mm diameter
Output Current: <4A
Output Power: 12V:<144W, 24V:<288W

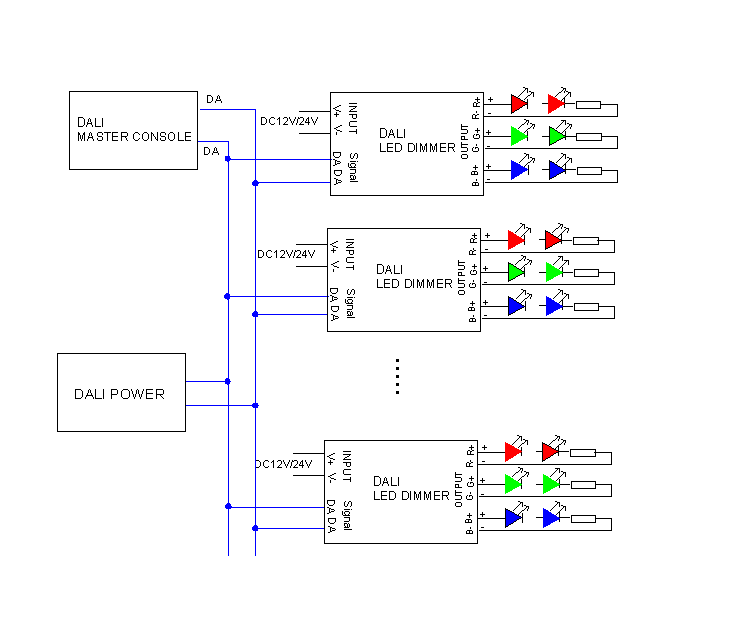

Power input and DALI signal interface:
Load output interface:
