DC5-24V 30A Single Color LED High Power Dimmer
The dimmer uses the PWM circuit knob control to adjust the brightness of mostD12V or DC24V LED products from 0 to 100%. It has no effect on the lamps and solves the trouble of too bright and dazzling luminous characters. It can be adjusted according to your I like to adjust the brightness at will, but the brightness cannot exceed the original brightness of the lamp. It is suitable for the adjustment of KTV, hotel, stage and home decoration lights.
0-100% brightness adjustment, knob type step-less dimming
256 levels of grey, adjust the light soft and stable, no flicker
PWM digital dimming can eliminate current surges and make the LED service life extremely long
Constant current and constant voltage, a signal amplifier can be connected beyond the load range, unlimited power expansion
Mainly used for brightness adjustment of LED light source between 5-24V
Standards and Certifications
Dimmer Type: PWM
If your transformer is 5V, the power that dimmer can carry is within 120W;
If your transformer is 12V, the power that dimmer can carry is within 300W;
If your transformer is 24V, the power that dimmer can be carried Within 610W.
1 x LED Dimmer controller
Dimming controller operating instructions
【1】Connect the output terminal first, then connect the input power cord, make sure that there is no short circuit between the connecting lines before powering on
【2】Using knob control, the functions are as follows:
When the knob is turned to the right, the brightness gradually becomes brighter, and when it is turned to the far right, the brightness is maximum
When the knob is turned to the left, the brightness gradually becomes darker, when it is turned to the left, the light turns off

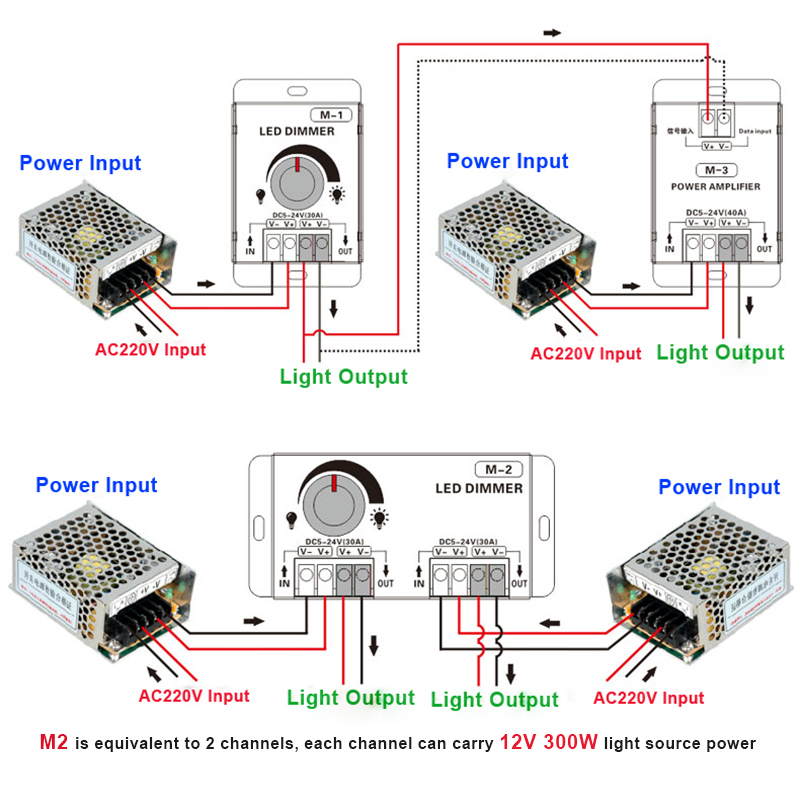

Scenario 1: For example, if there are two 400W transformers, but the actual light source power is within 300W, then one dimmer and one sub-controller can be used, or a high-power dimmer
Scenario 2: For example, if there is a 40W transformer, but the actual light source power is more than 300W, then only a dimmer is needed.
Note: The power connection is 220V input. Please strictly follow the correct installation and test wiring. If you connect the wrong wire, it will burn the power supply and cause safety hazards.

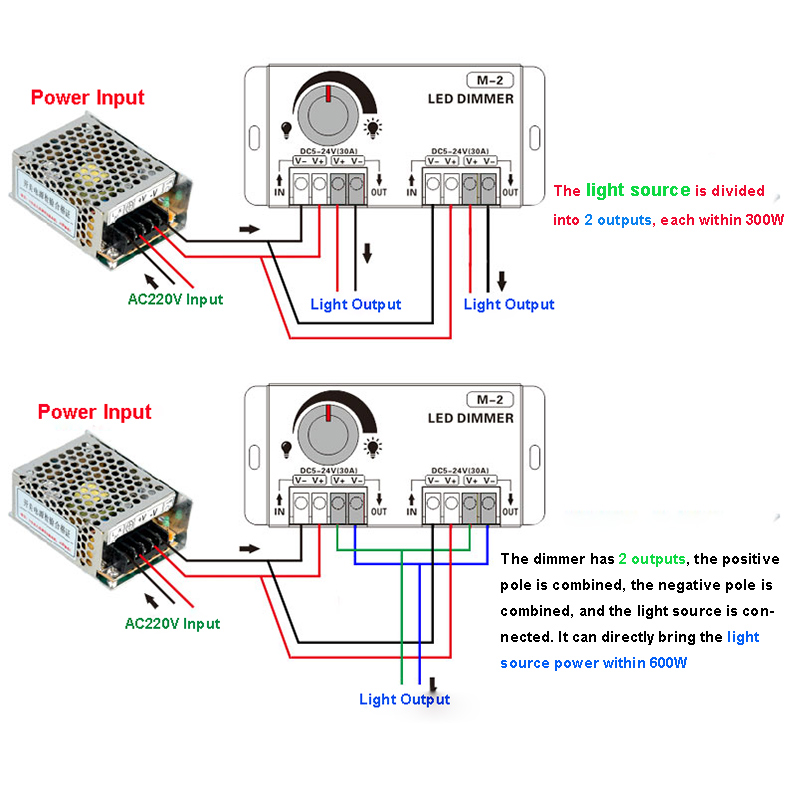

Wiring instructions: Pay attention to the wiring, the dimmer cannot be connected to high voltage, it is connected to the back of the transformer, 12-24V is common. The input and output of the dimmer are divided into positive and negative poles. If the connection is wrong, it won't work. Please connect the wires correctly according to the instructions.
1. Connect the load line first, then the power supply; make sure that there is no short circuit between the connecting lines before powering on
2. The dimmer can be dimmed by pressing the button or by the remote control (supports remote control light function)
