DC24V Triple-Row & Five-Row High Lumen LED Strip Light White 3.28-32.8ft For Commercial Lighting

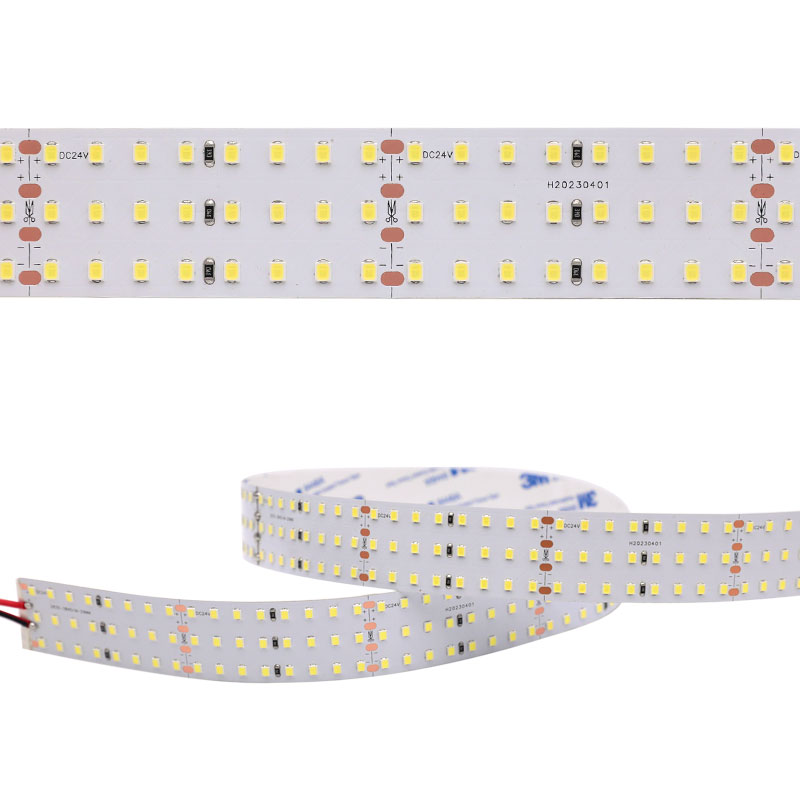

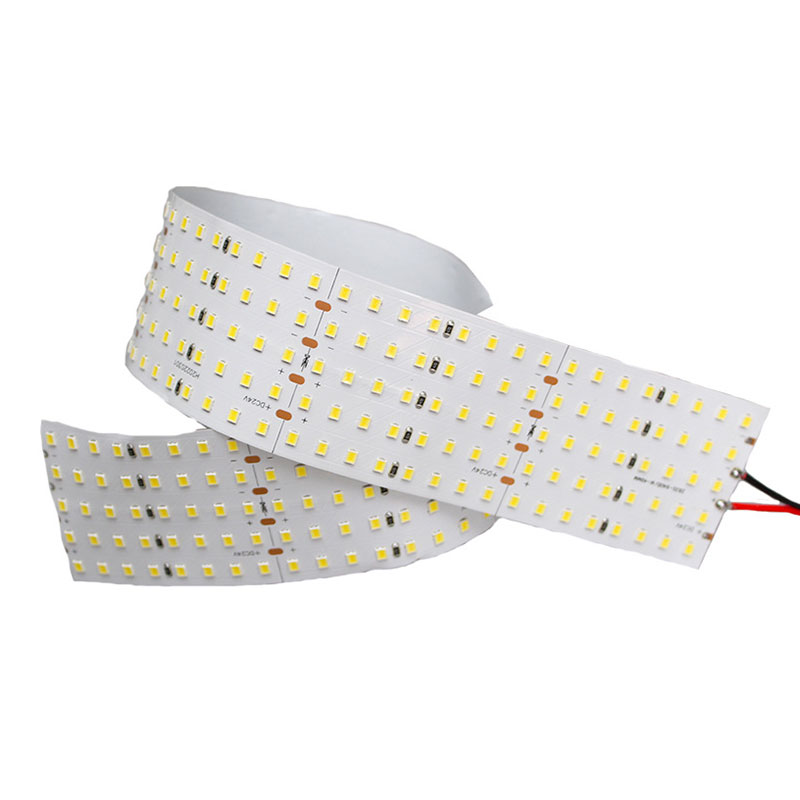

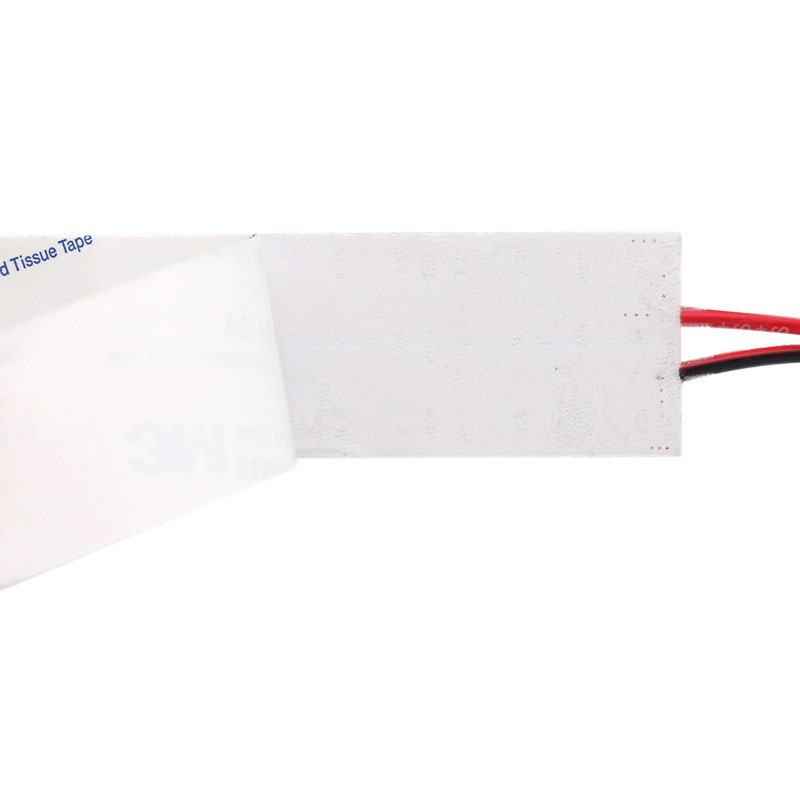

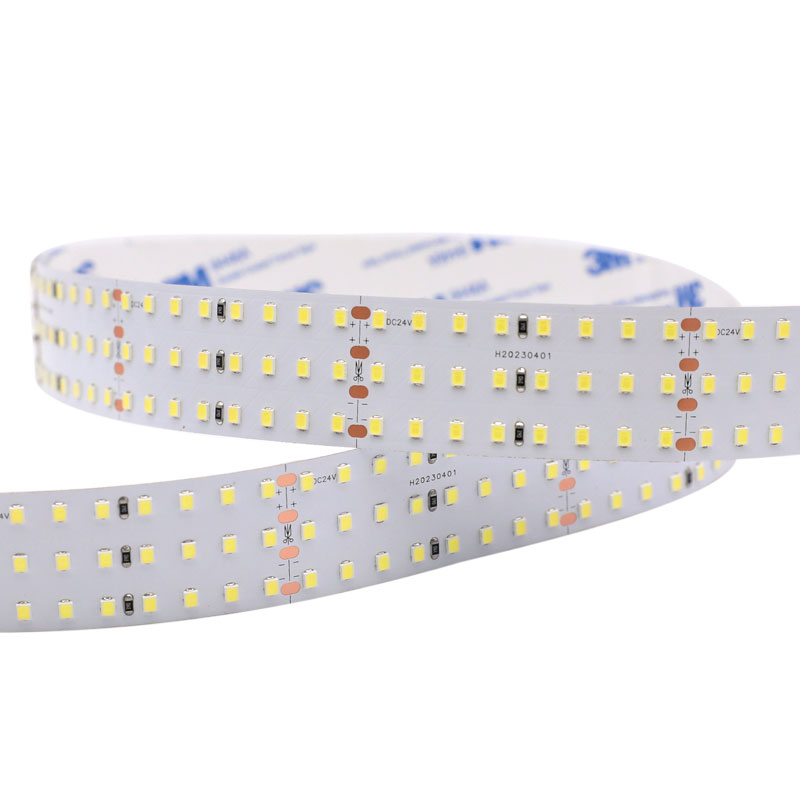

High brightness high lumen white led strip light for commercial lighting projects. With triple rows (384 LEDs per meter) or five rows (640 LEDs per meter) of SMD2835 LEDs, highly efficient, 24-28lm/LED, it can meet any bright lighting requirement of your place. Stick the commercial brightest led strip into a hanging led channel to light up your dining room, restaurant, office, etc. from the ceiling, bringing large illumination for your tasks. Easy installation with double-sided adhesive tape.
As the multi-row led strip light is wider and will be hotter, please choose a suitable housing or track as a heat sink for it. Maybe you need a ultra slim LED power supply or 2-pin led controller (slod separately).
About the IP67 waterproof rated led strip option, it's only available in the triple-row 384LEDs/m type,
The five-row 640LEDs/m led strip type is only IP20.

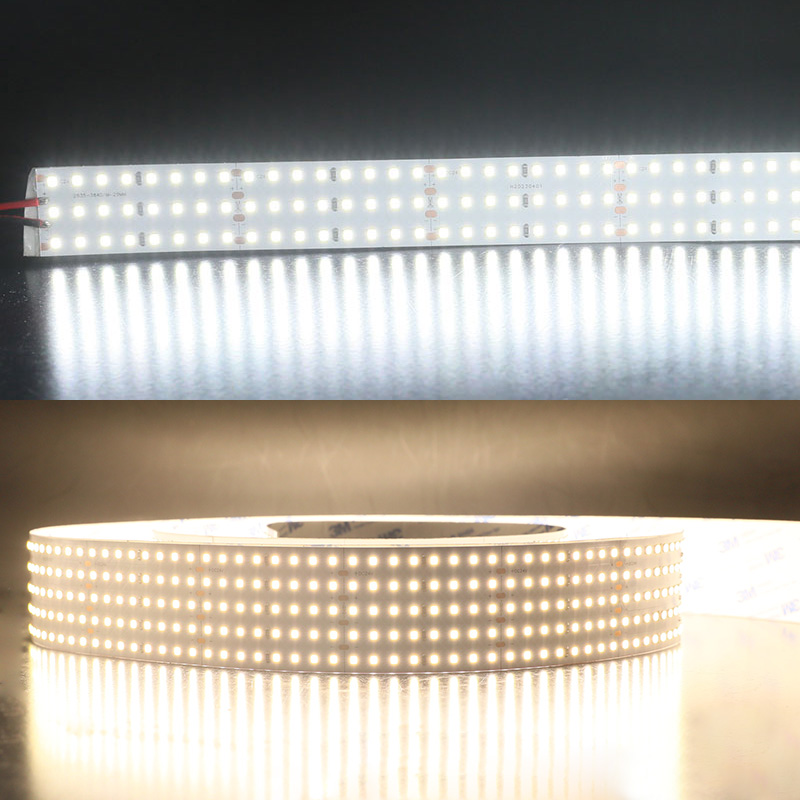

3000K soft white vs 4000K natural white vs 6000K daylight:
Note: We provide power customization service, welcome to contact us.
Standards and Certifications
|LED Strip Type:||Brightest White LED Strip Light|
|LED Chip:||2835 SMD LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|White Light Color Temperature:||Warm White (3000K), Natural White (4000K), Daylight White (6000K)|
384LEDs/m for triple rows
640LEDs/m for five rows

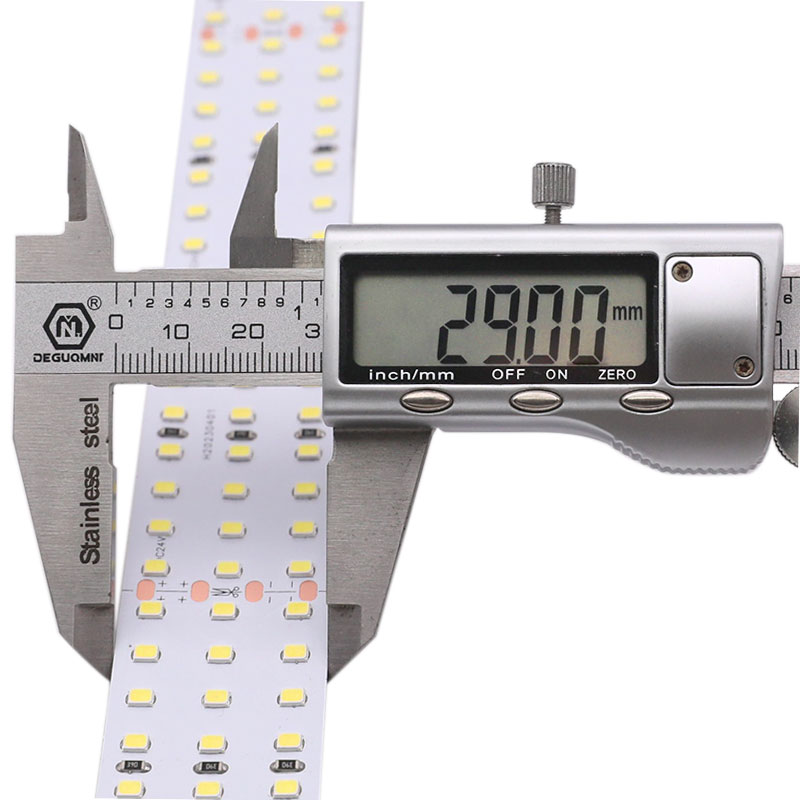

29mm/1.14in for triple rows

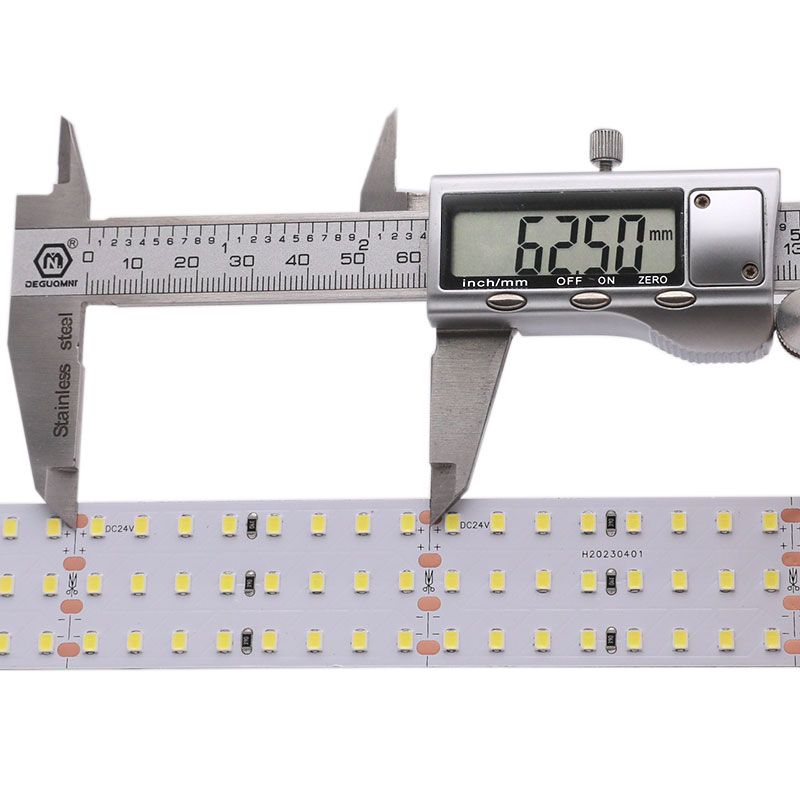

49mm/1.92in for five rows
26W/m 7.9W/ft for triple rows
45W/m 13.7W/ft for five rows
|Beam Pattern:||120 degrees|
|Waterproof Rating:||Non-waterproof IP20 For Indoor Use|
|Lumen:||24-28lm/LED, 2809lm/ft or 4683lm/LED|
1*commercial led strip light

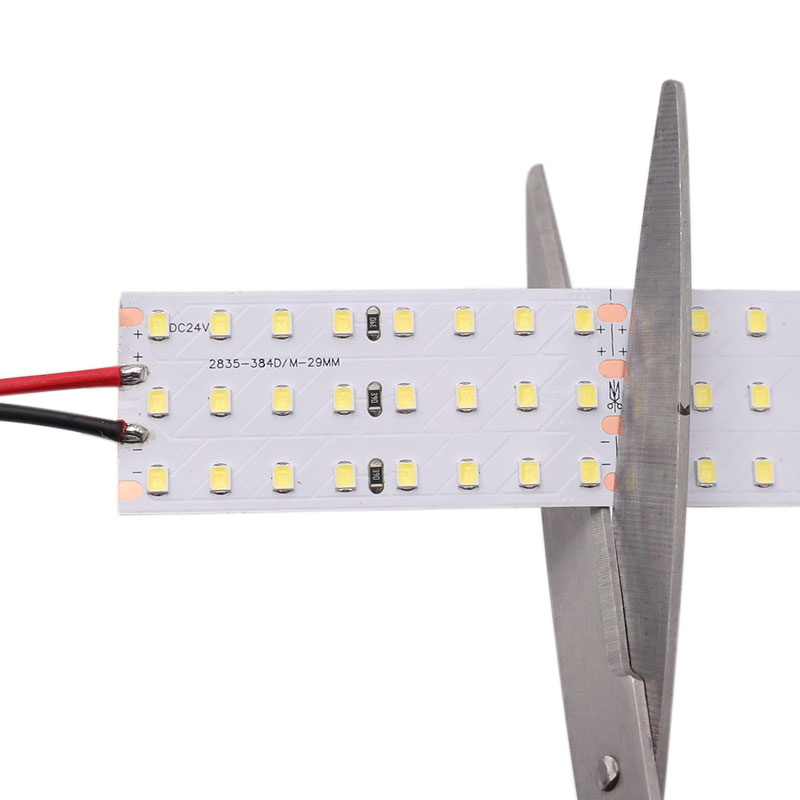

During the wiring process, please pay extra attention that the positive and negative terminals should not be reversed.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
