AC Triac RF+Push Dimmer TRI-C1

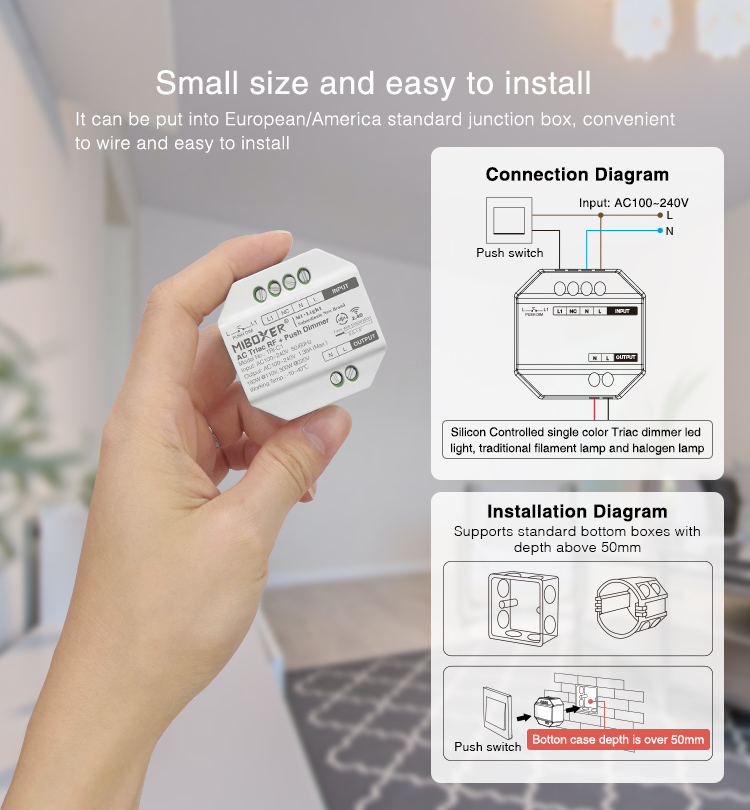

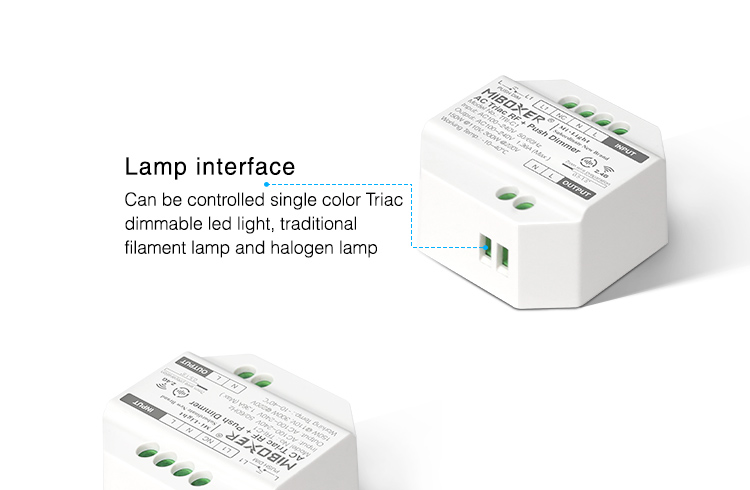

No need to change orignal electric circuit and install signal cable , low cost price, convenient to construct. Dim light through remote and Link code / Unlink code simply. Small and exquisite apperance which is easy to insert into EU and USA standard wire box. It's convenient to wire and install. It has wide application for single color Triac dimmable led light, traditional filament lamp and halogen lamp.
● Support 2.4RF remote dimmable, control distance is 30m
● Support Push dimmable

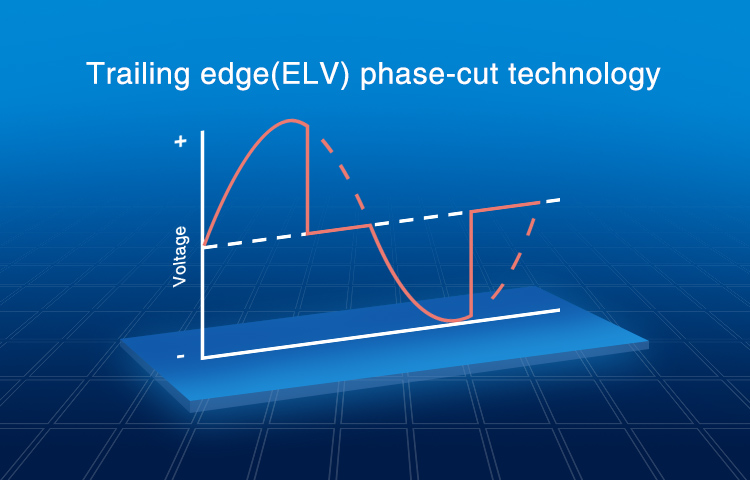

● Trailing edge(ELV) phase-cut
● 0~100% stepless dimming technology
● Set up min brightness via remote quickly

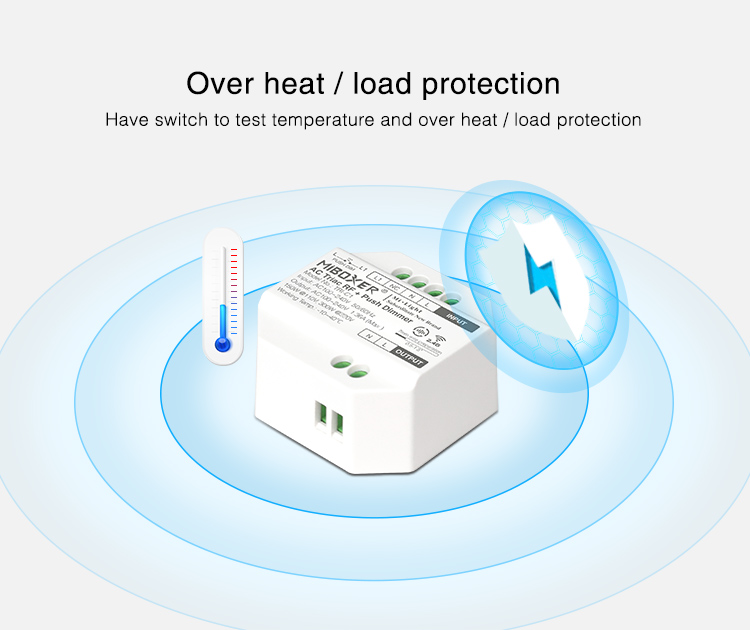

● Have switch to test temperature and over heat/ load protection
● Support auto transmitting and synchronization, it has unlimited control distance
● Output and input with screw connection, install simply
● PC shell is fire-resistance

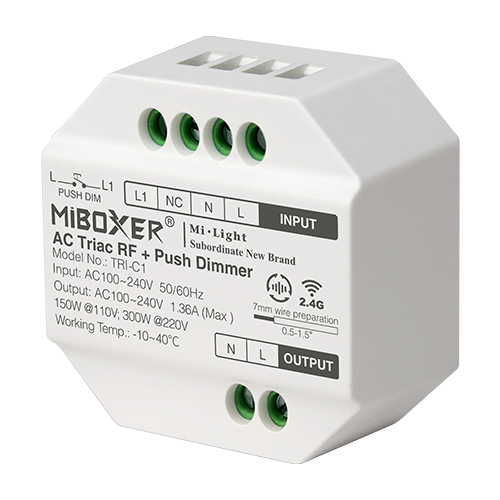

Product Name: AC Triac RF+Push Dimmer
Model No.: TRI-C1
Input Voltage: AC100~240V 50/60Hz
Output Voltage: AC100~240V
Output Current: Max 1.36A
Output Power: 150W @110V；300W @220V
Dim Method: RF wireless dimming, Push dimming
Control Distance: 30m
Working Temperature: -10~40℃
1. Please turn on power while install device.
2. Kindly check input voltage before installation.
3. Don't disassemble device if you are not professtional user, otherwise it will damage device.
4. Don't use it near metal or magnetive area, otherwise it will affect control.
Dimmer can transmit signal to another one within 30m, control distance is unlimited if everything 30m install one dimmer.
