Product Information
Key Features
Intuitive Touch Dimming
Features a highly sensitive touch ring for smooth, stepless brightness adjustment from 1% to 100%.
Long-Range RF Control

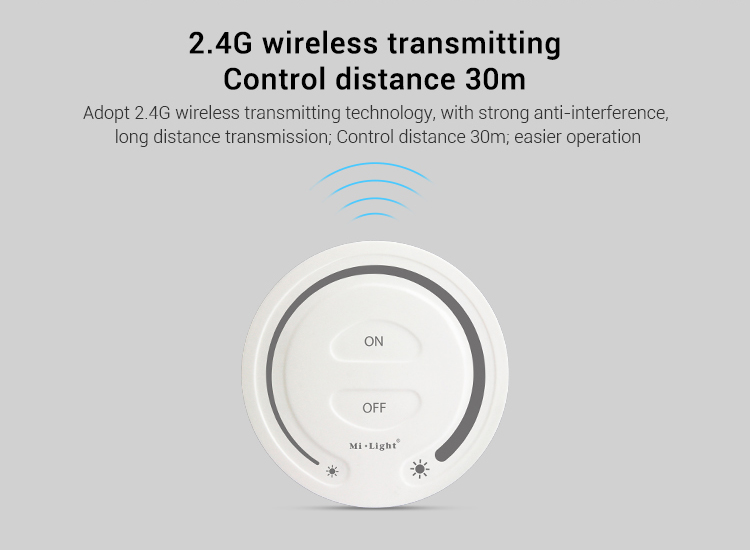

Utilizes a stable 2.4GHz wireless signal that works through walls and objects up to 30 meters (98 ft) away.
Ultra-Low Power Consumption
Engineered for efficiency with an extremely low standby power draw of just 10uA to maximize battery life.
Sleek & Ergonomic Design
A clean, minimalist white remote that fits comfortably in your hand for easy, one-handed operation.
Wide MiBoxer Compatibility
Pairs seamlessly with a range of products in the Miboxer LED Light & Controller ecosystem, including single-color and CCT receivers.
Technical Highlights
- GFSK modulation method ensures stable, interference-resistant communication.
- Operates on the universal 2.4GHz transmission frequency for broad compatibility.
- Designed to function reliably in a wide temperature range from -20 to 60°C.
Product Specifications
| Parameter | Details |
|---|---|

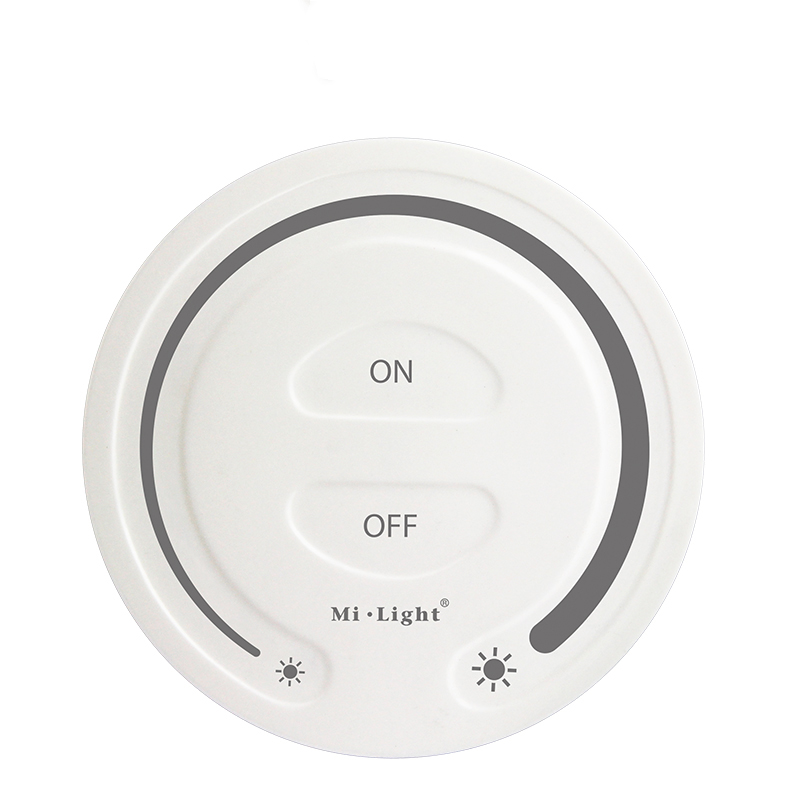

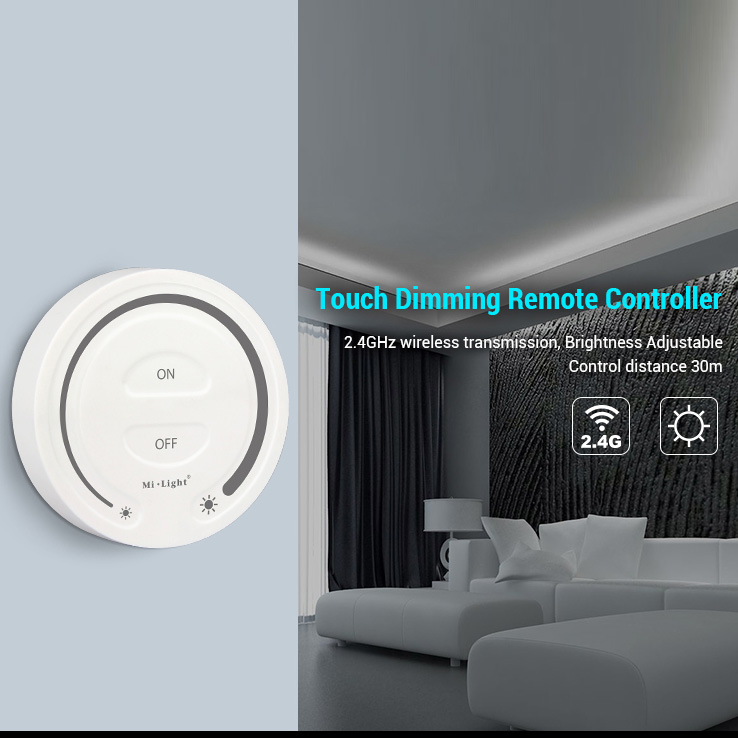

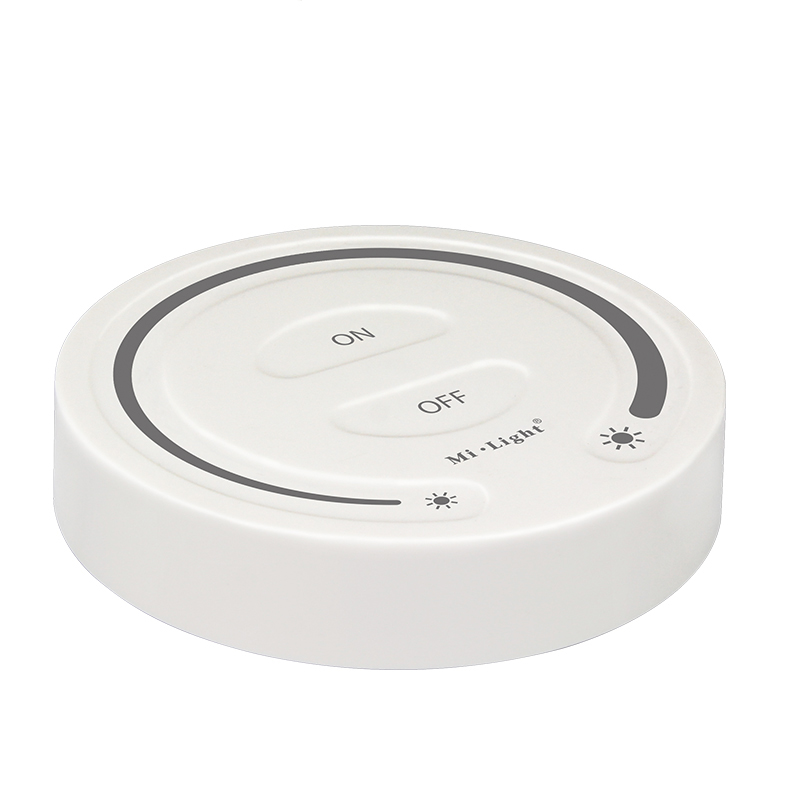

| Product Name | Touch Dimming Remote Controller |
| Model No. | FUT087 |
| Working Voltage | 3V (2 x AAA Battery, not included) |
| Transmission Frequency | 2400-2483.5MHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Standby Power Consumption | 10uA |
| Control Distance | 30m |
| Working Temperature | -20~60℃ |
Ideal Applications for Simple Brightness Control
How to Control & Use This Controller

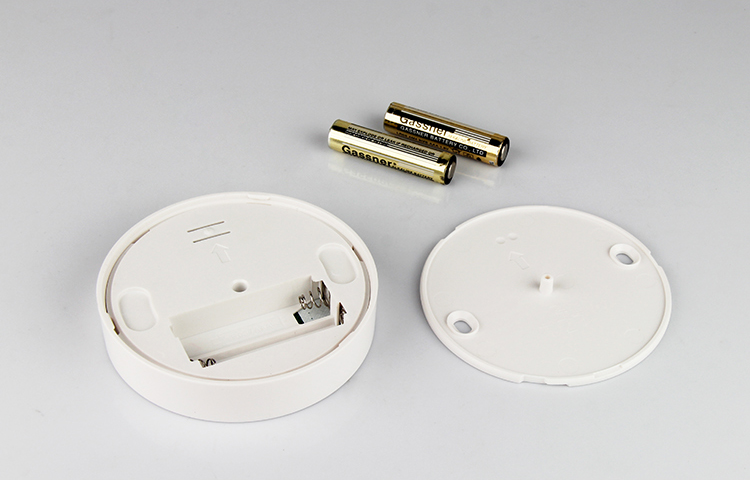

- Power Up: Insert two AAA batteries (not included) into the remote controller, observing the correct polarity.
- Link to Controller: Power off your compatible MiBoxer LED controller. Power it back on, and within 3 seconds, press the 'ON' (I) button on the remote 3 times. The connected lights will blink 3 times to confirm a successful link.
- Adjust Brightness: Simply slide your finger clockwise or counter-clockwise around the touch-sensitive dimming ring to smoothly adjust the brightness of your LED strip lights from 1% to 100%.

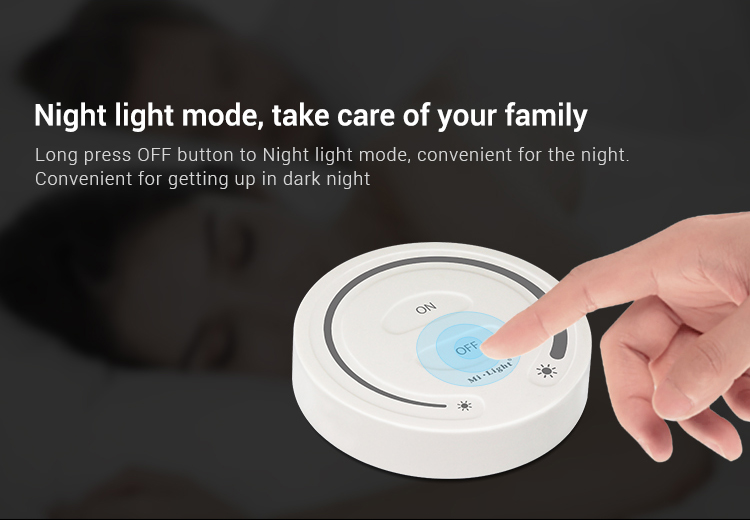

- Turn On/Off: Use the dedicated 'ON' (I) and 'OFF' (O) buttons for simple power control.
- Unlink from Controller: To unlink the remote, follow the linking process but press the 'ON' (I) button 5 times instead of 3. The lights will blink 10 times to confirm the remote is unlinked.
- This remote requires a compatible MiBoxer/Mi-Light single-color or CCT LED controller to function. It does not connect directly to an LED strip.
- The 30m control distance is measured in an open area; walls and other obstacles may reduce the effective range.
- Remove batteries if the remote will not be used for an extended period to prevent potential leakage.
What's in the Box
- ✓1 x FUT087 Touch Dimming Remote Controller
- ✓1 x User Manual
⇩ Downloads & Documents
PDFFUT087
Frequently Asked Questions
Q: Does this remote work with any brand of LED strip lights?
A:No, this remote is specifically designed for the MiBoxer/Mi-Light ecosystem. It must be paired with a compatible MiBoxer single-color or CCT LED controller to operate your lights. For a deeper understanding, see our guide on how to choose LED strip light controllers.
Q: Can this remote control multiple groups of lights independently?
A:The FUT087 is a single-zone remote. It controls one group of lights linked to one or more controllers that are all paired to it.
Q: Can I change colors or color temperature with this remote?
A:This model is a dedicated touch dimmer for brightness control only. It does not have functions to change RGB colors or adjust CCT (color temperature).
Q: What kind of batteries does the FUT087 remote use?
A:It is powered by two standard AAA batteries, which are not included with your purchase.
Q: How do I know if the remote has paired successfully with my controller?
A:After you perform the linking procedure, the LED strip lights connected to your controller will blink three times slowly, which confirms a successful connection.
Q: Is this remote control waterproof?
A:No, the FUT087 is designed for indoor use and is not waterproof. Keep it away from moisture and liquids.
