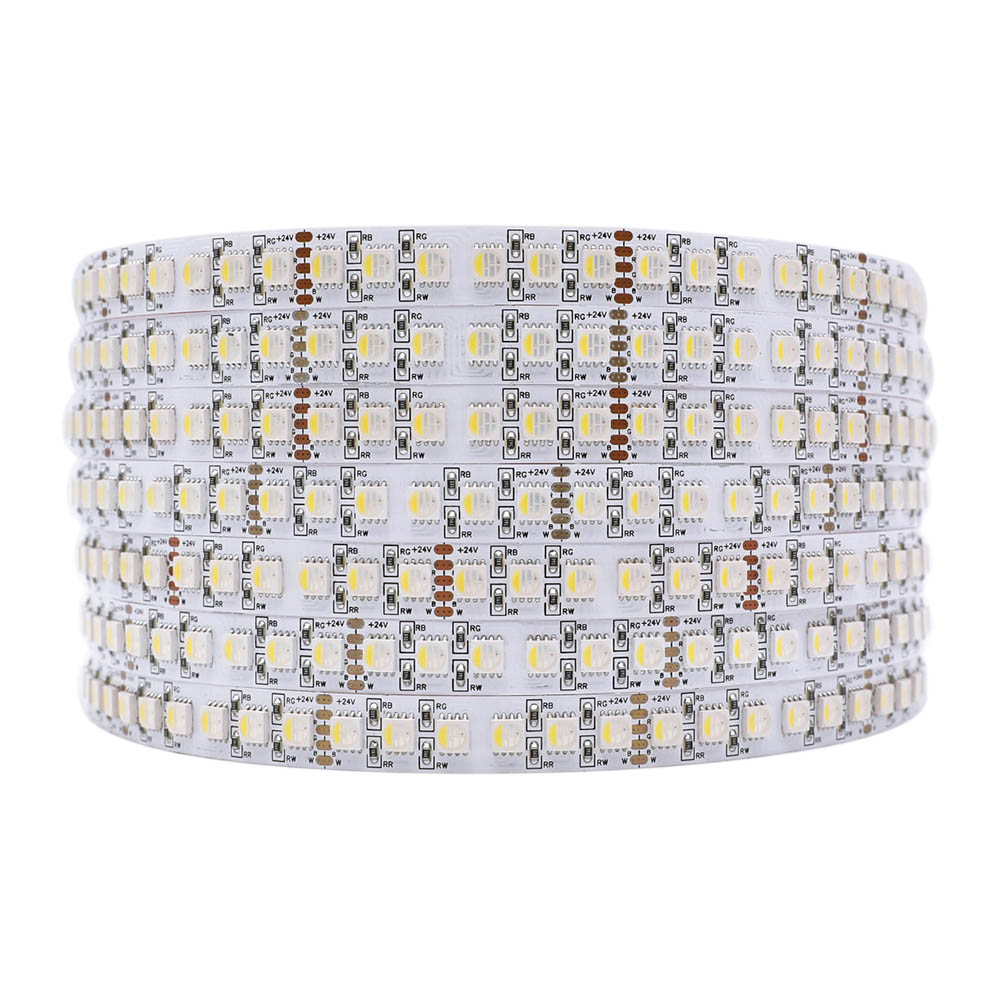

RGBW LED Color Changing Lights - 24V 120LEDs/m High Density LED Strip
RGBW color changing LED strip lights have a wide range of applicability. 4IN1 color-changing RGBW LED lights are suitable for people who have high requirements on color change colors and purer white light, used for decorative lighting and commercial lighting.

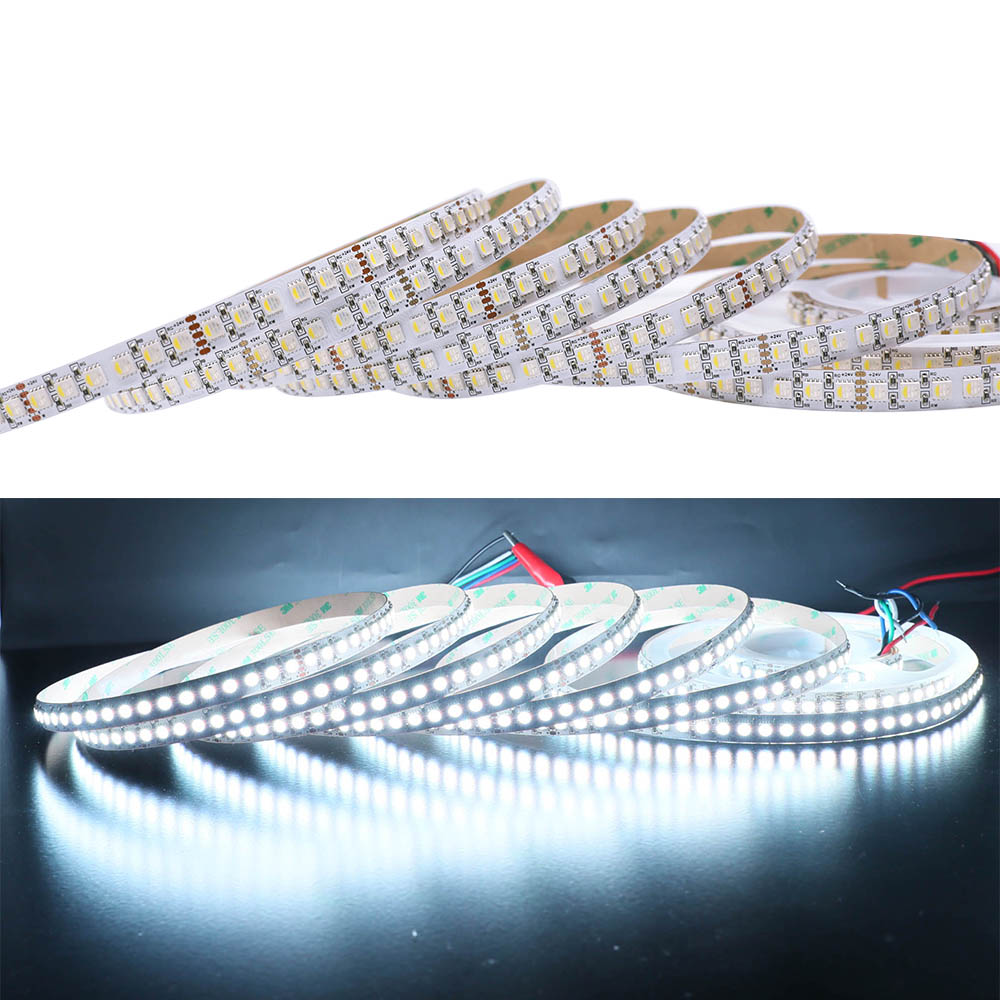

White light 3000K/4000K/6000K can be selected, you can get from warm light to cool white light at will, which is different with RGB mixing produces white light, the color temperature of white color produced by RGB LED strip light, which is as high as 7000K, and the temperature generated by the LED is high, not suitable for frequent use. RGBW LED strips perfectly solve this problem, a purer white color available, which is the most popular type of product on the market at present.
High-density 120LEDs per meter, integrated R/G/B/W in the SMD5050 component, providing super bright white light, R/G/B mixing can produce 16 million colors, matching color changing RGBW LED controller to achieve color control.

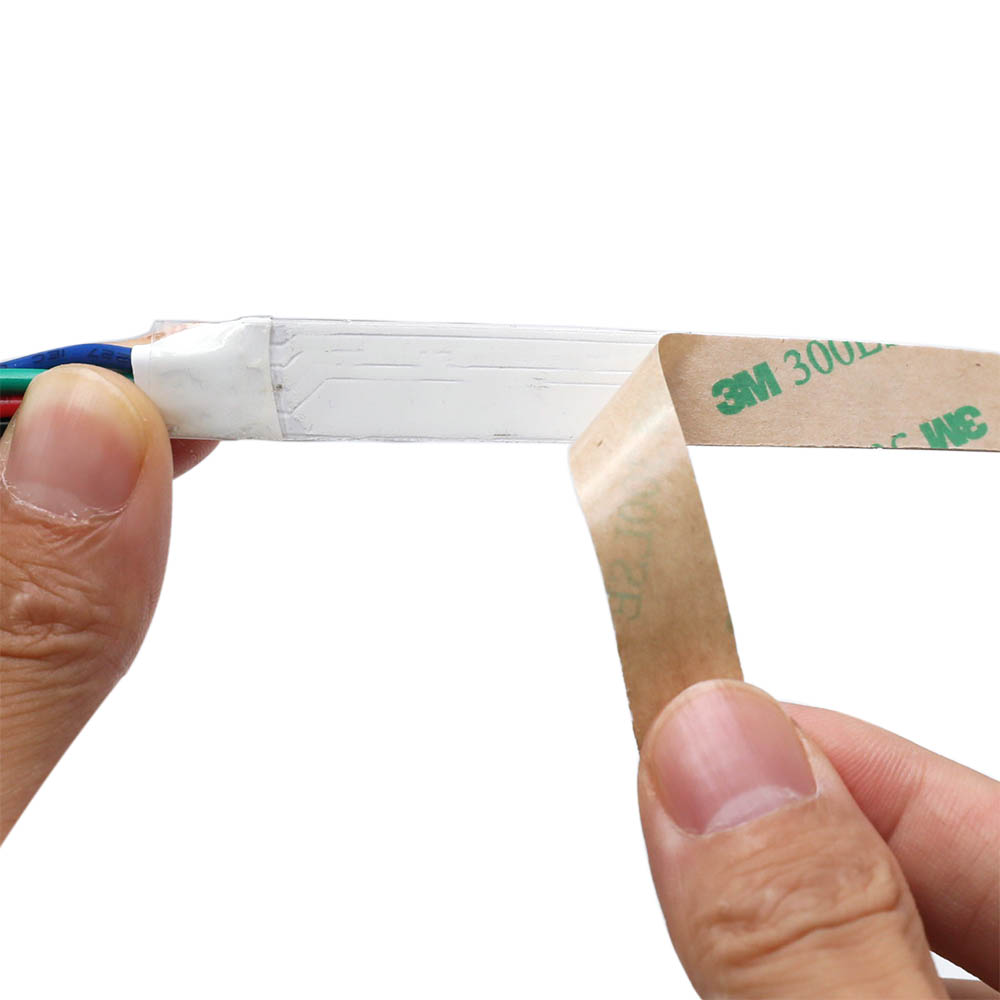

Support DC24V low voltage input, constant voltage drive to ensure stable and efficient operation of the RGBW LED strip lighting; Peel-and-stick 3M adhesive backing enables fast, easy mounting, customized IP67 waterproof LED strips for outdoor use.
|Indoor LED Strip Kit||Outdoor LED Strip Kit|
|RGBW LED Strip + YL5/WL5 + LRS-200-24 + AC Plug||RGBW LED Strip + WL5-WP + PSWP-24V-200W|
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
The maximum running length of the LED strip is 10m/32.8Ft, over 10m/32.8Ft, you need to supply power at two ends.
Standards and Certifications

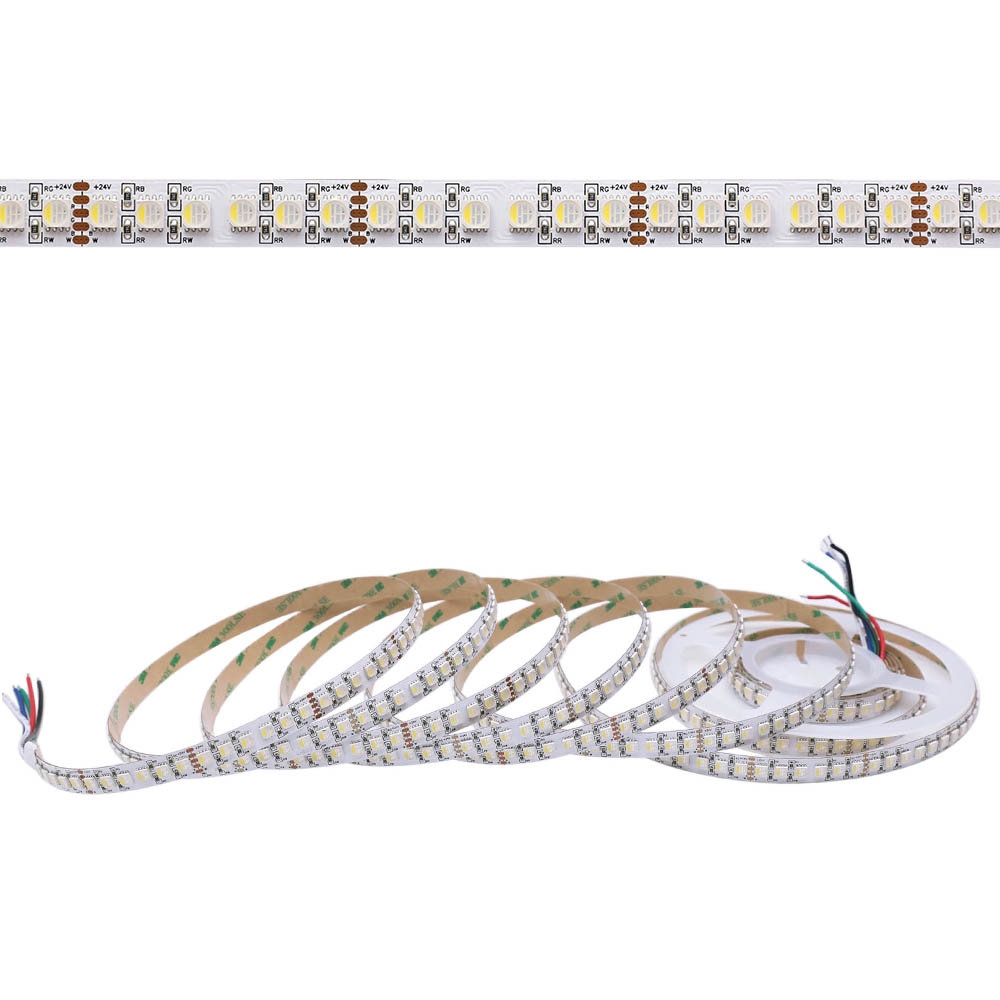

|LED Strip Type:||SMD 5050 4in1 RGBW 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|

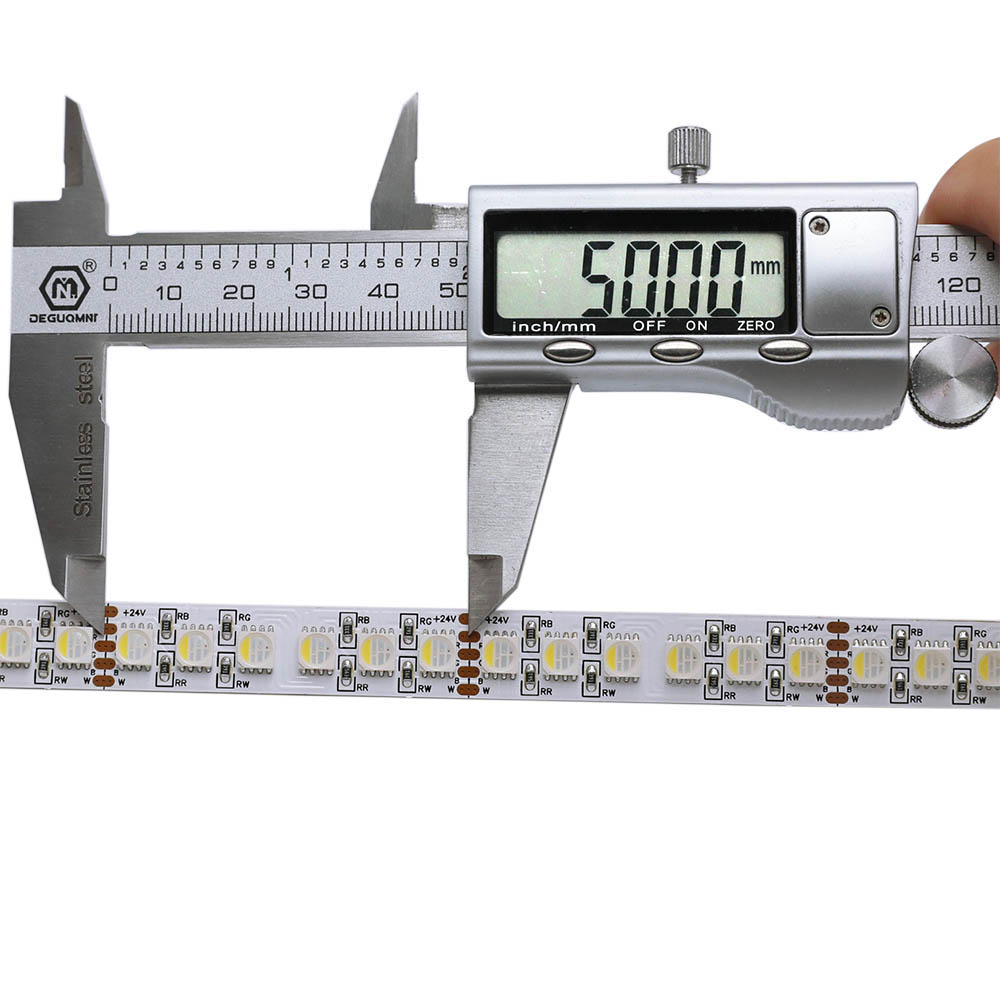

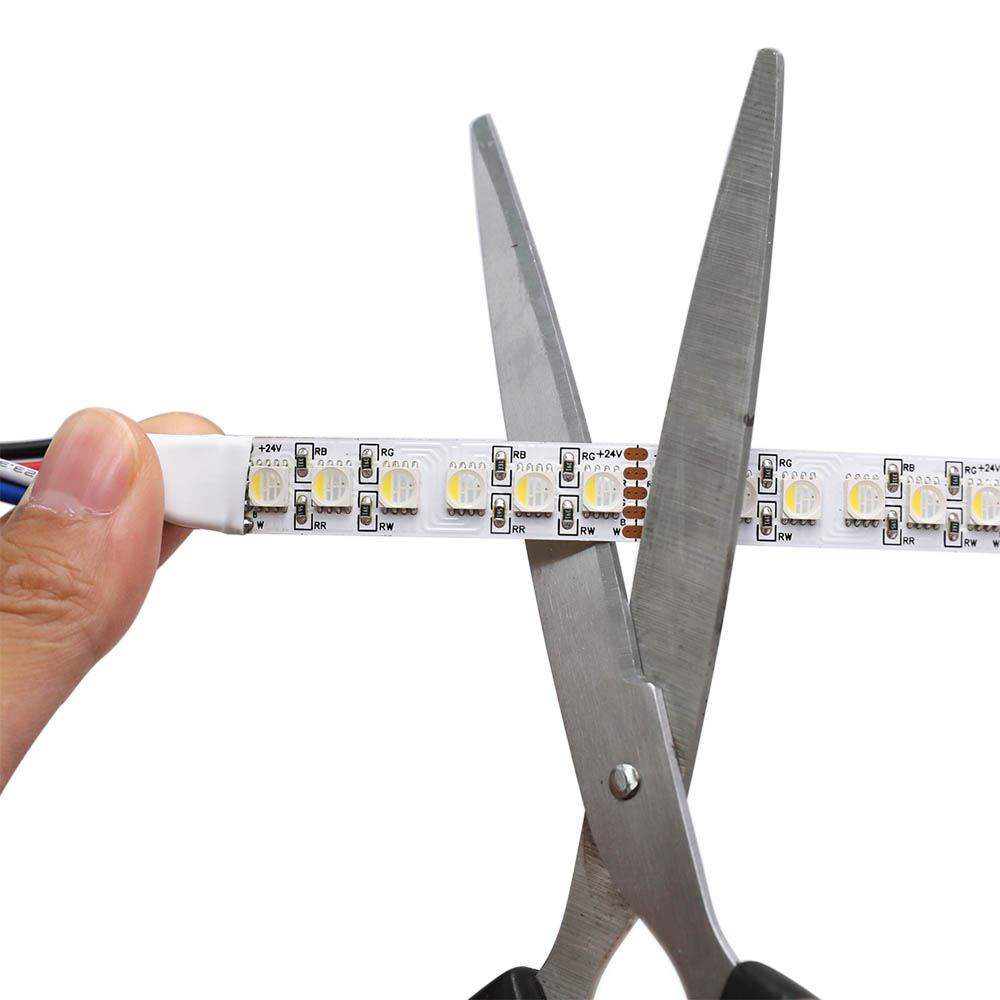

|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|

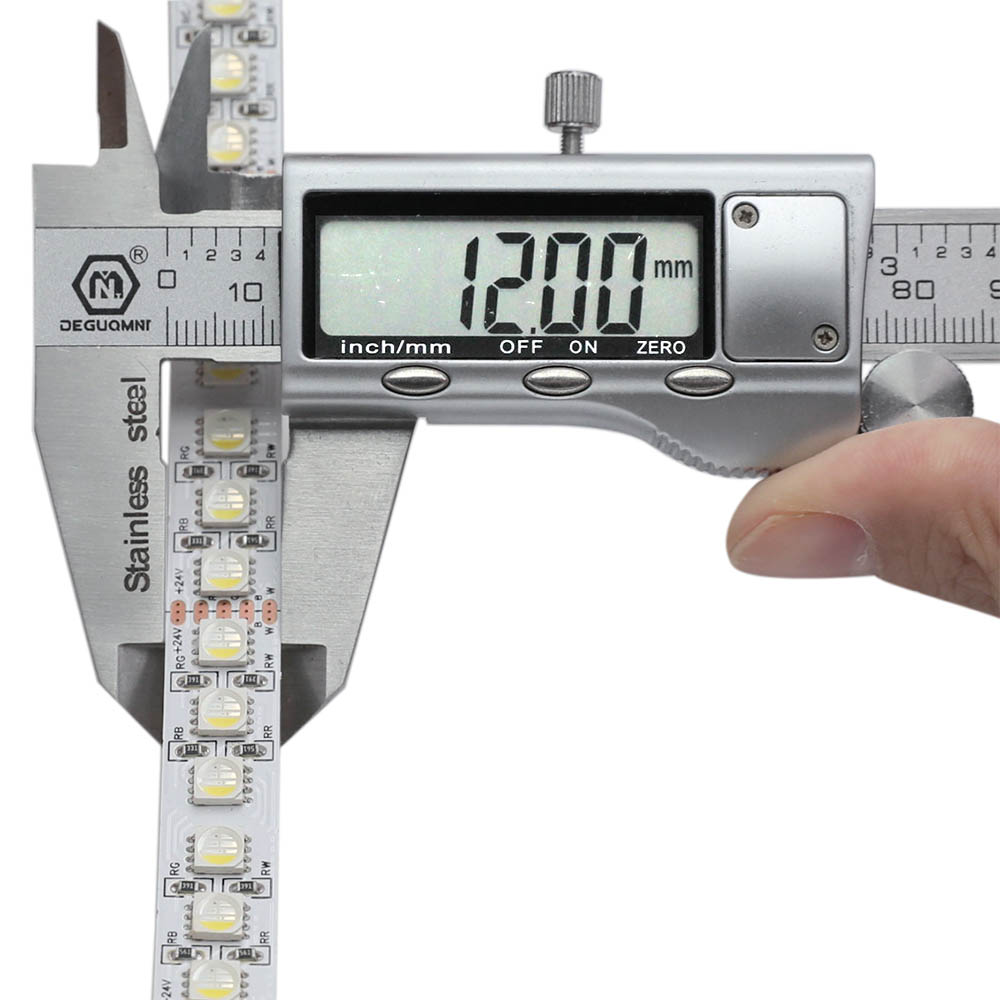

|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||24 VDC|
|Working Power:||150W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|
1. RGBW LED strip wiring diagram:

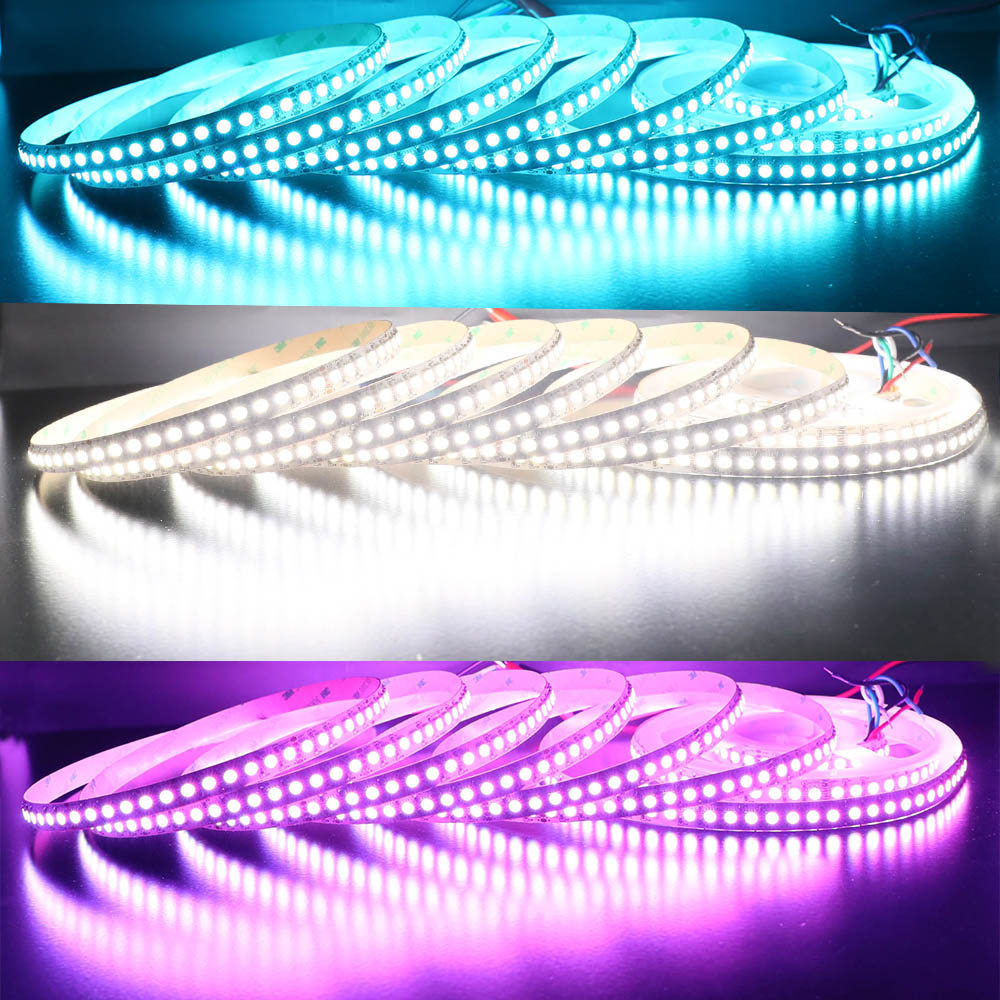

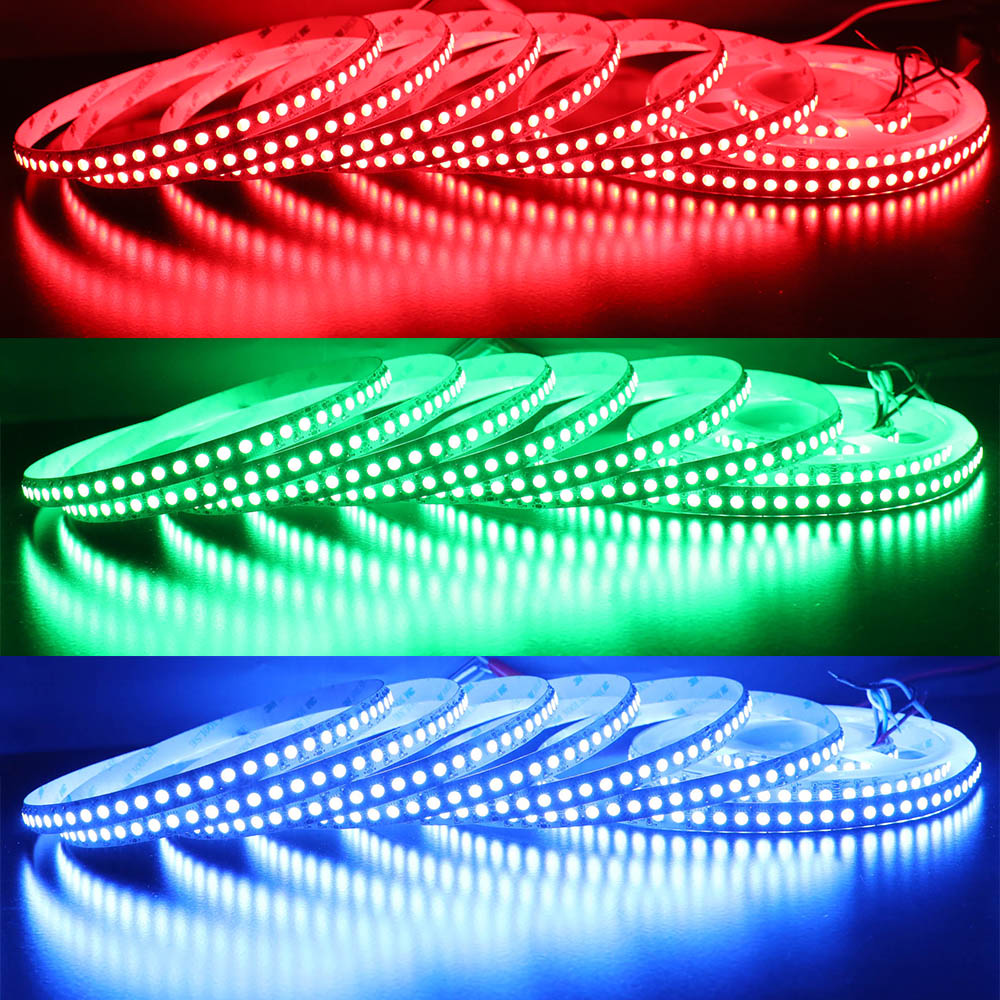

3. RGBW LED strip light effects:
