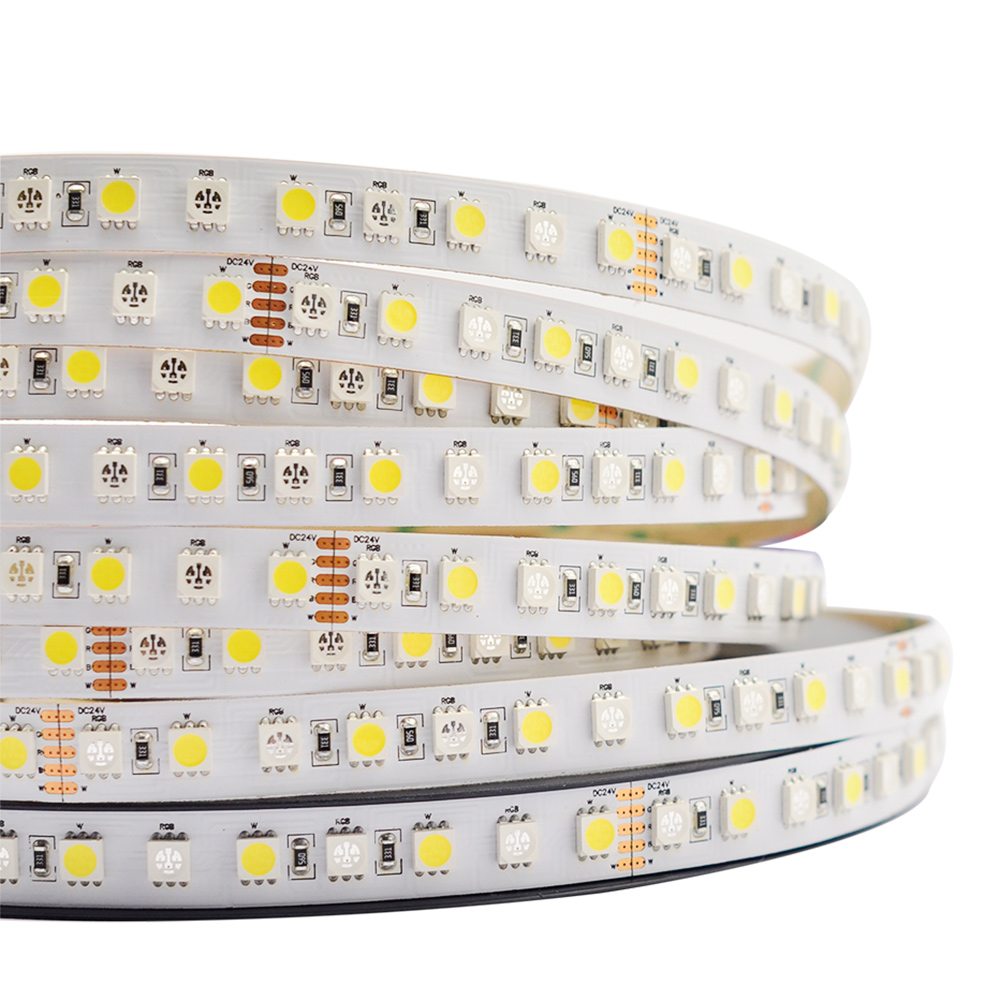

RGB+W Color Changing LED Lights - 120LEDs/m High Density LED Strip - 12V/24V Dual Row

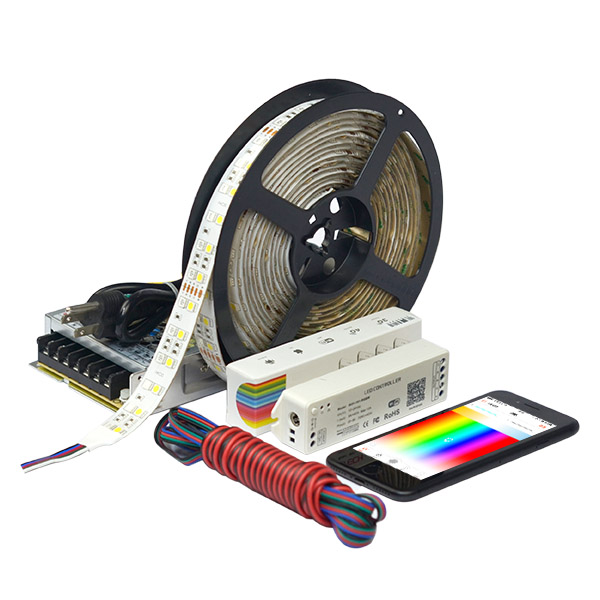

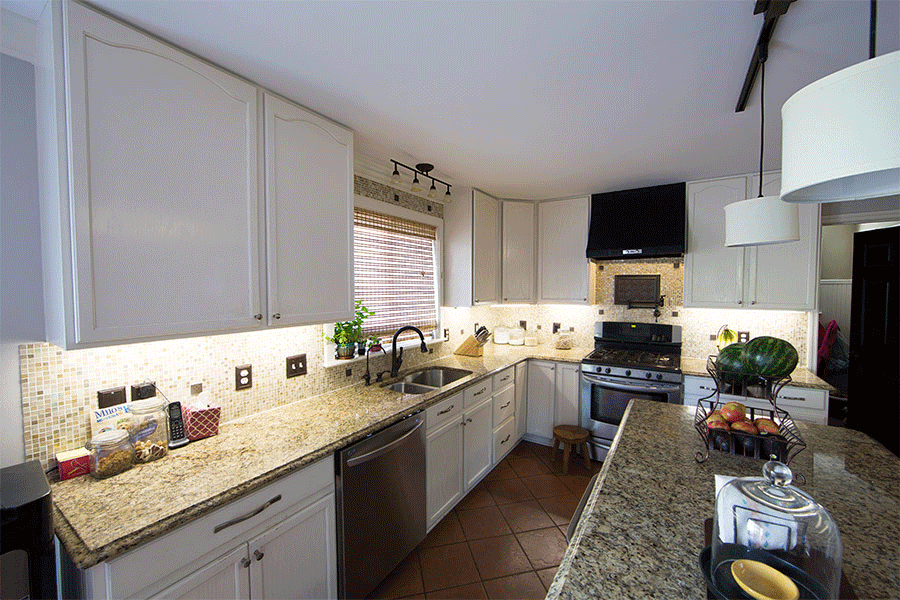

Universal RGB+W color changing LED strip lights adapt 5050 LED RGB lights and 5050 white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. Provide warm white 3000K, natural white 4000K, and daylight white 6000K led color temperatures to choose from.
12V/24VDC operation, safe and stable.

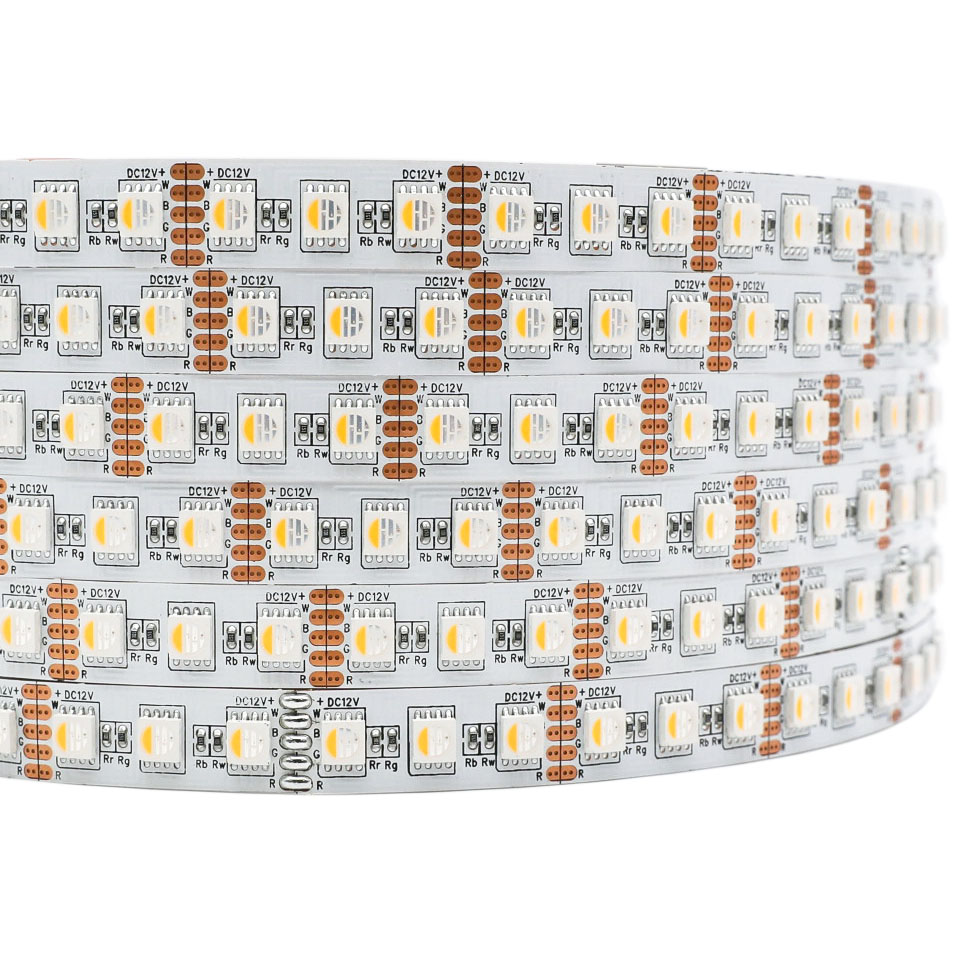

5050 white LEDs + 5050 RGB LEDs

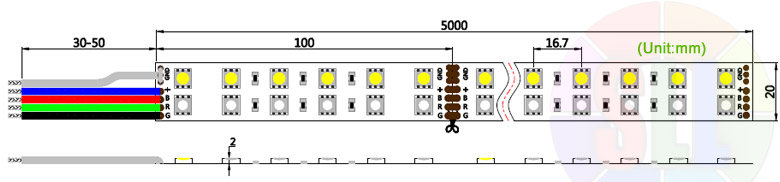

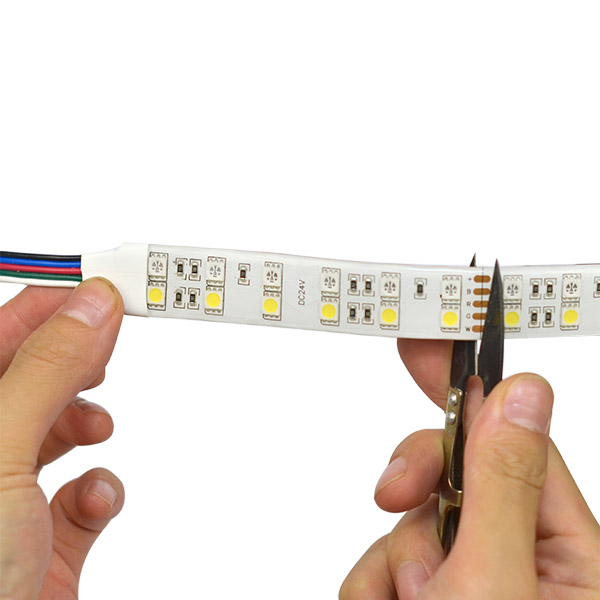

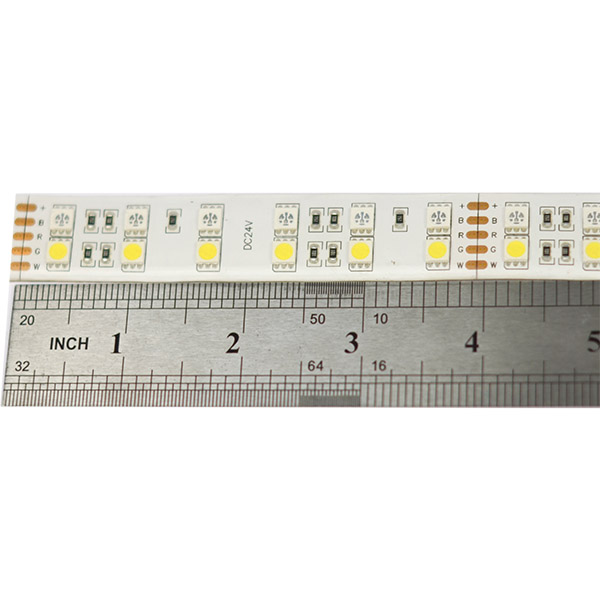

12V RGB+W led strip can be cut into 6-LED segments /50mm, 24V RGB+W led strip is 12-LED segments /100mm.

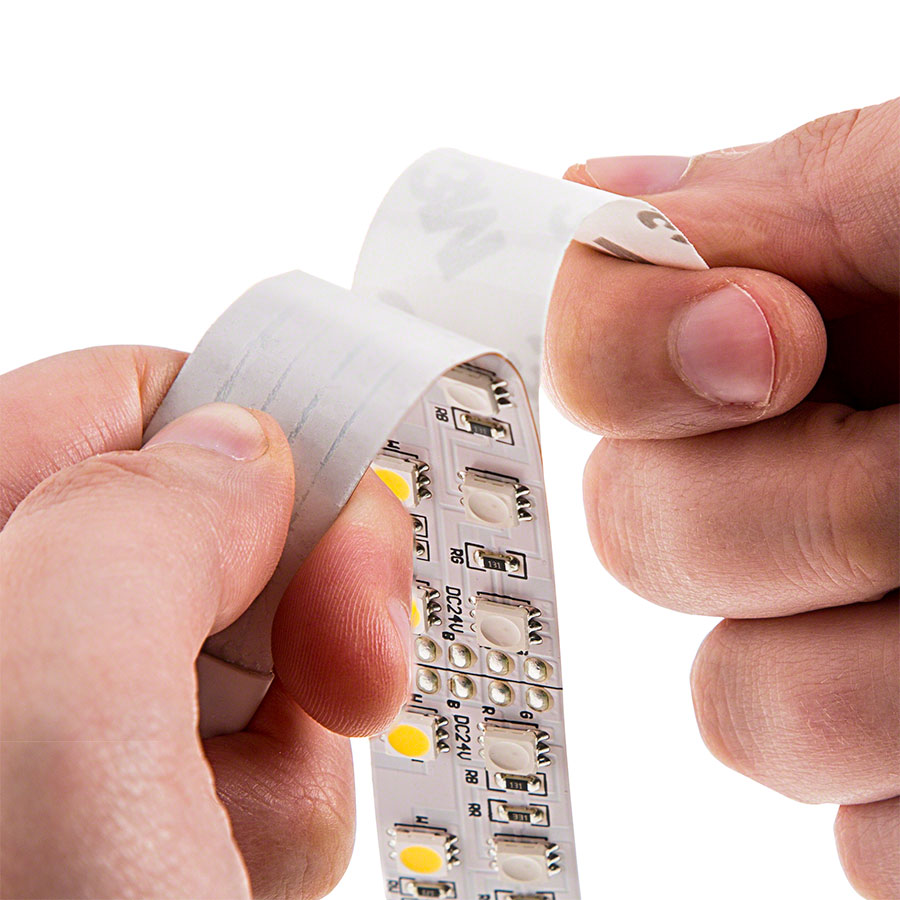

With adhesive backing, soft and easy bent for installation. (IP67/IP68 waterproof led lights type which will come with mounting brackets)

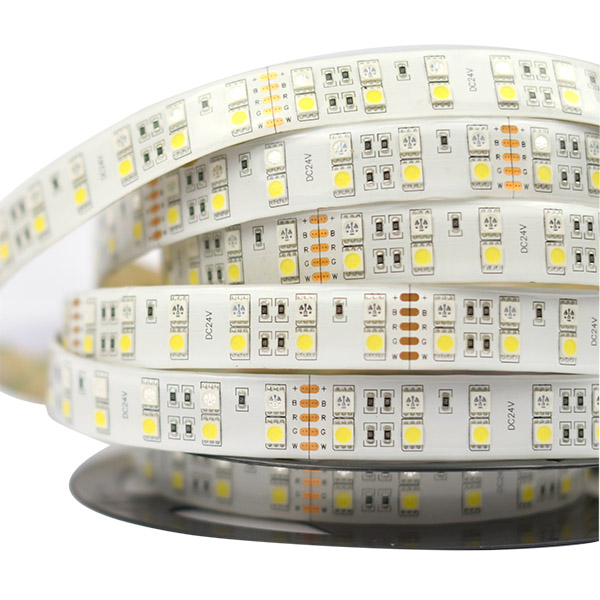

Waterproof optional, suitable for the indoor or outdoor average home lighting as well as lighting professionals.
Standards and Certifications
|LED Strip Type:||SMD 5050 RGB+W 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|
|Dimension:||16.4ft/roll, every 12/6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Strip Width:||20mm (0.78in)|
|Input Voltage(V):||12/24 VDC|

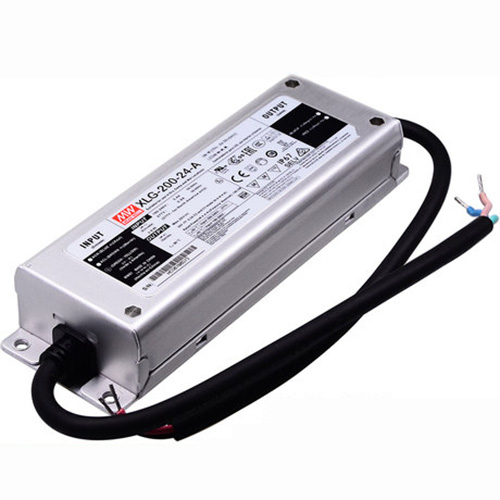

|Working Power:||144W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBW LED strip wiring diagram:
