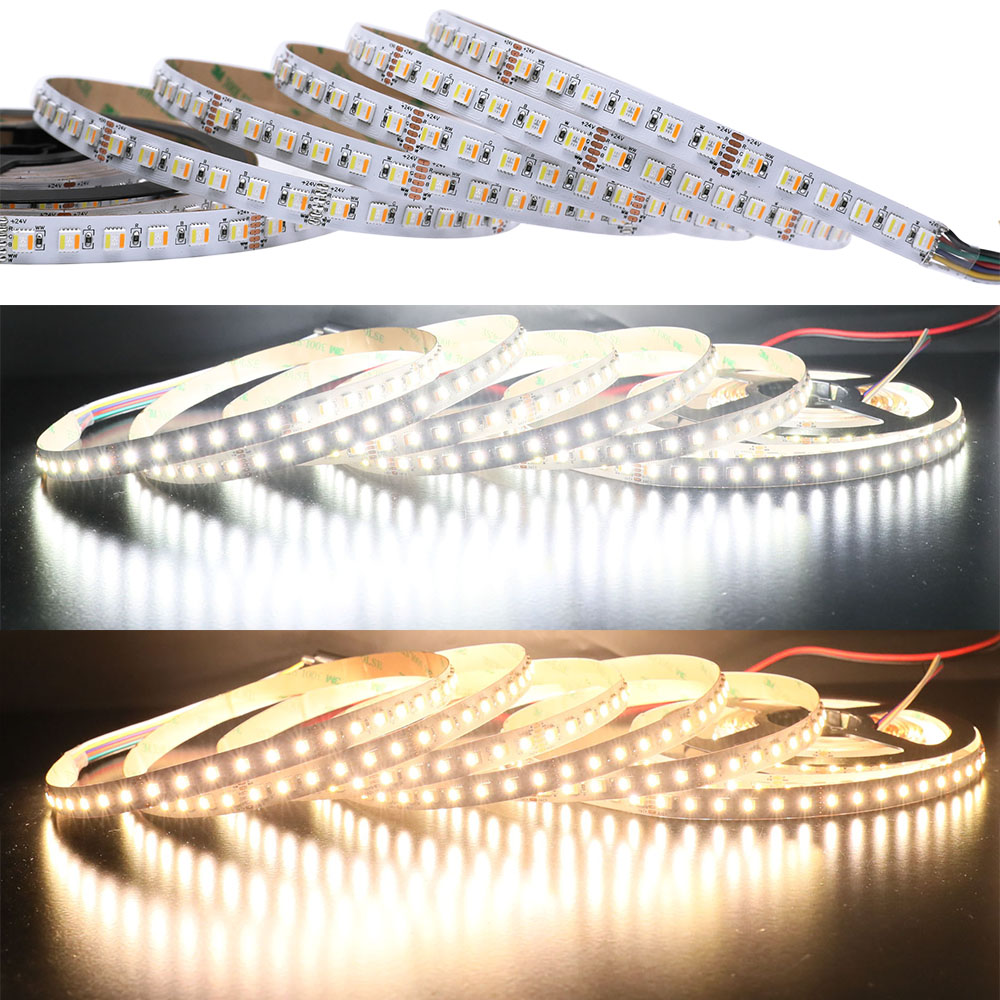

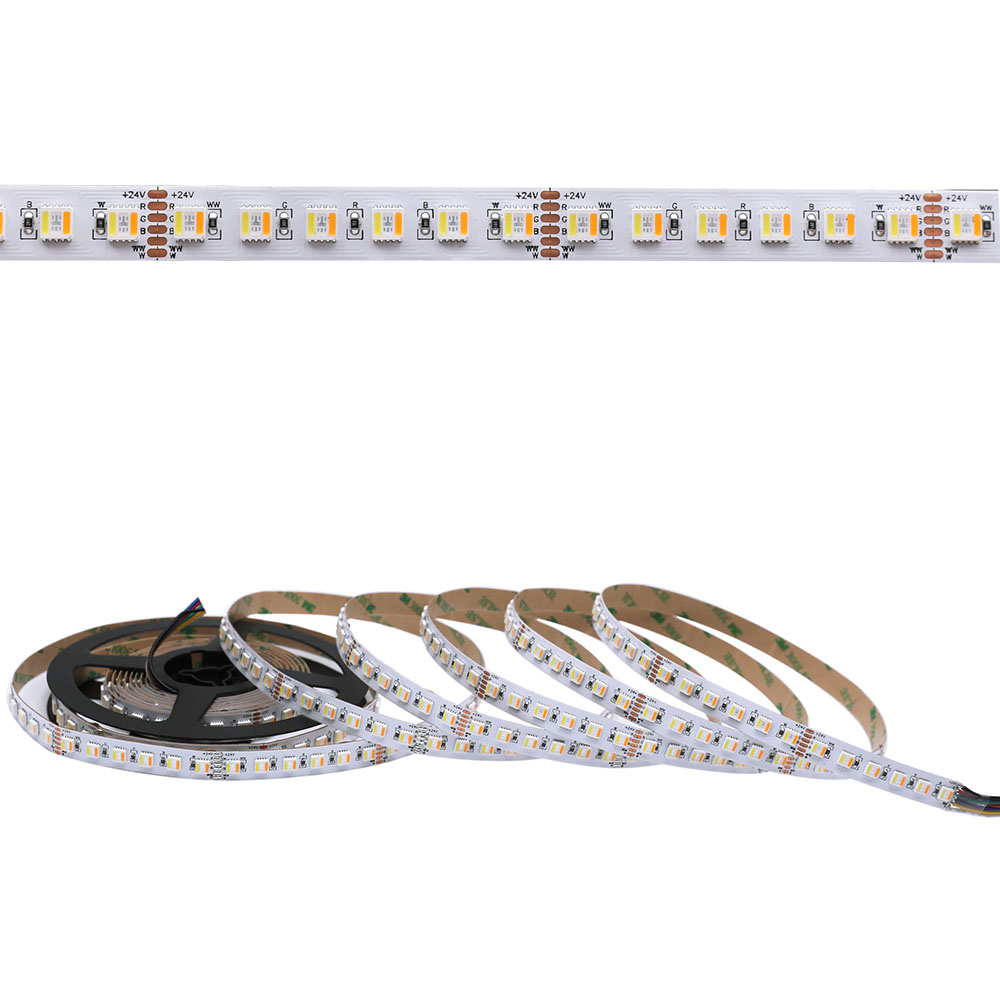

Color Changing RGBCCT 5in1 5050 LED Lights - 12mm 24V LED Strip Light - 96LEDs/m

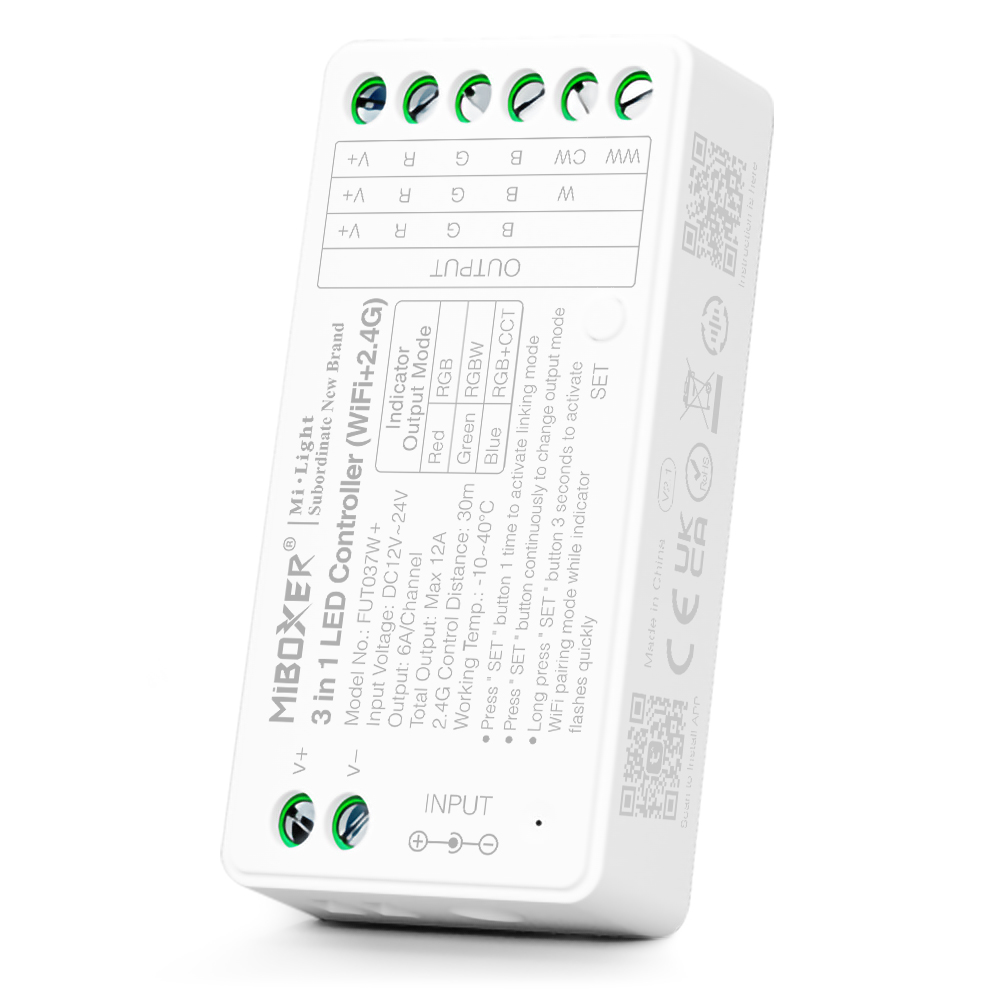

RGBCCT color changing led strip lights with 5in1 5050 SMD LEDs have both RGB color and dimmable white light color, integrate red color, green color, blue color, 3000K warm white color, and 6000K daylight white color five colors in one LED. They have purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, more color options, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 24V DC power supply to drive.
High density 96LEDs/m, super birght LED light

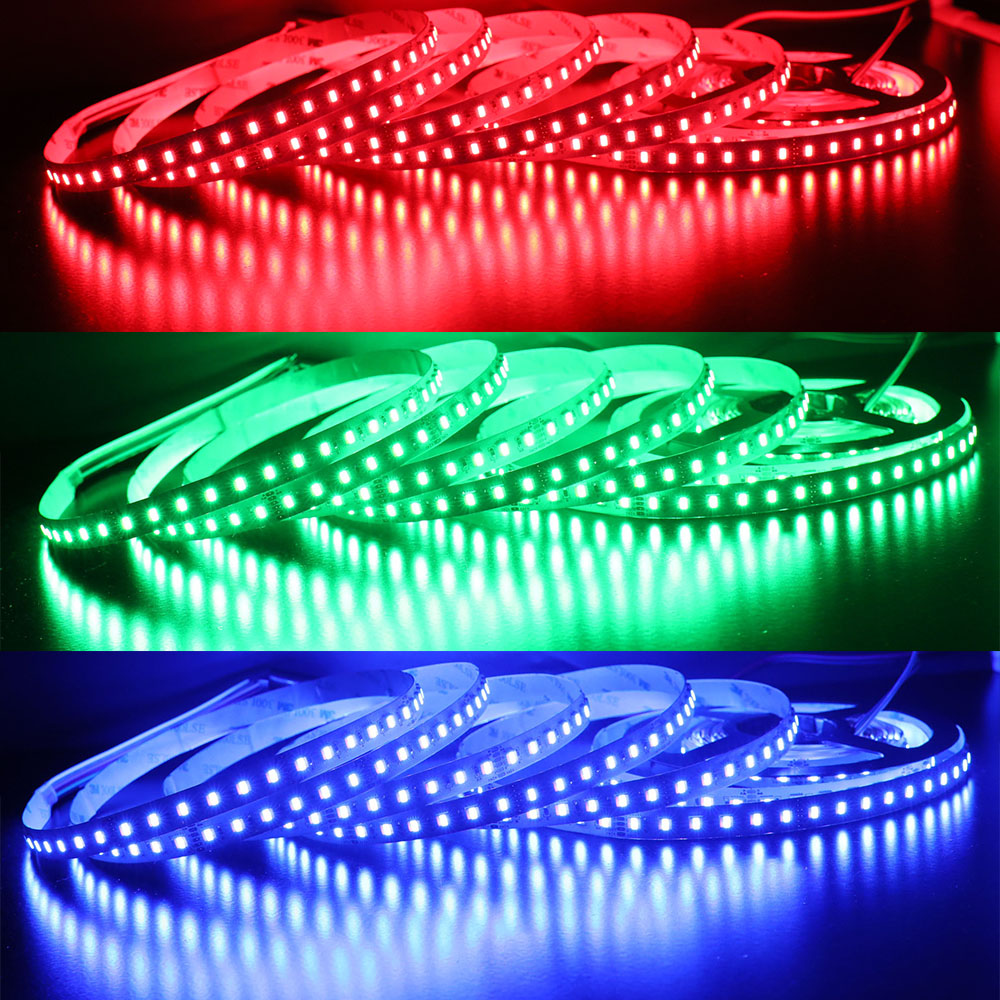

5050 5in1 LED, RGB color + Warm White color + Daylight White color in one LED
More color options, good color mixing
24V DC drive, safe and stable

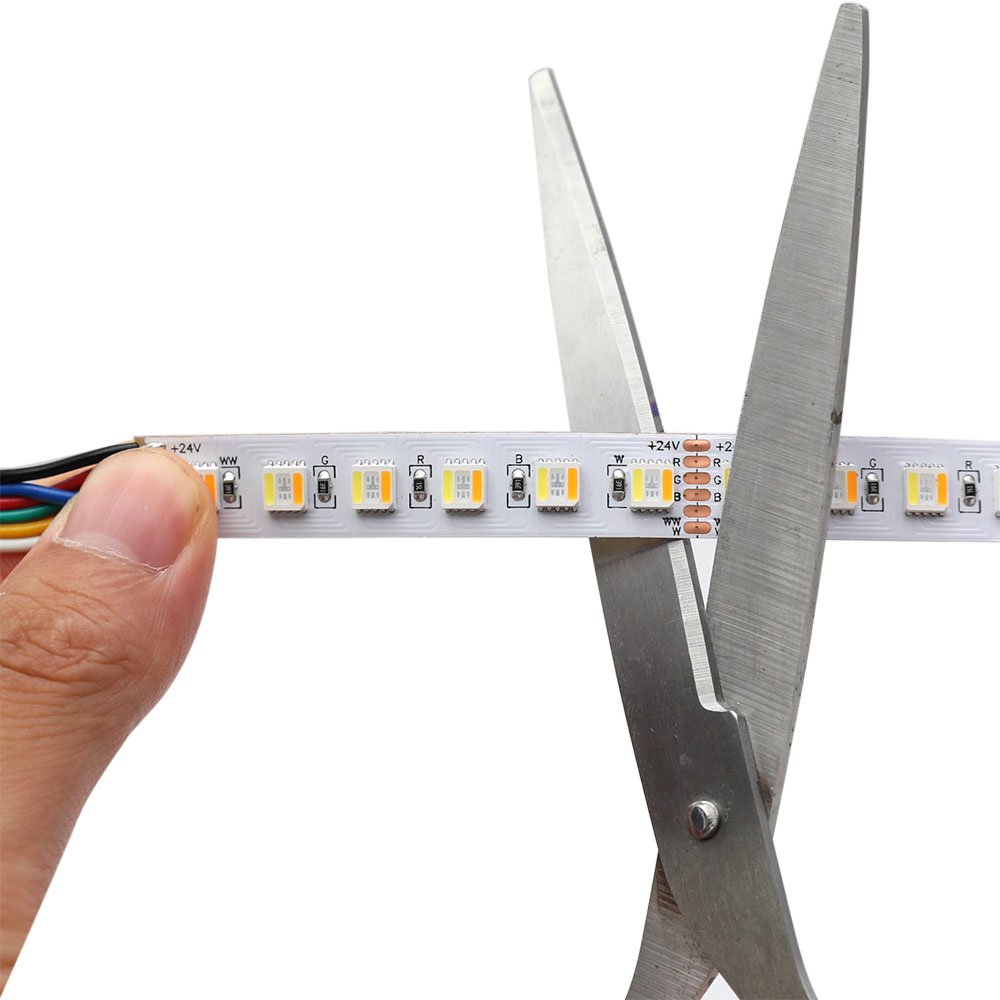

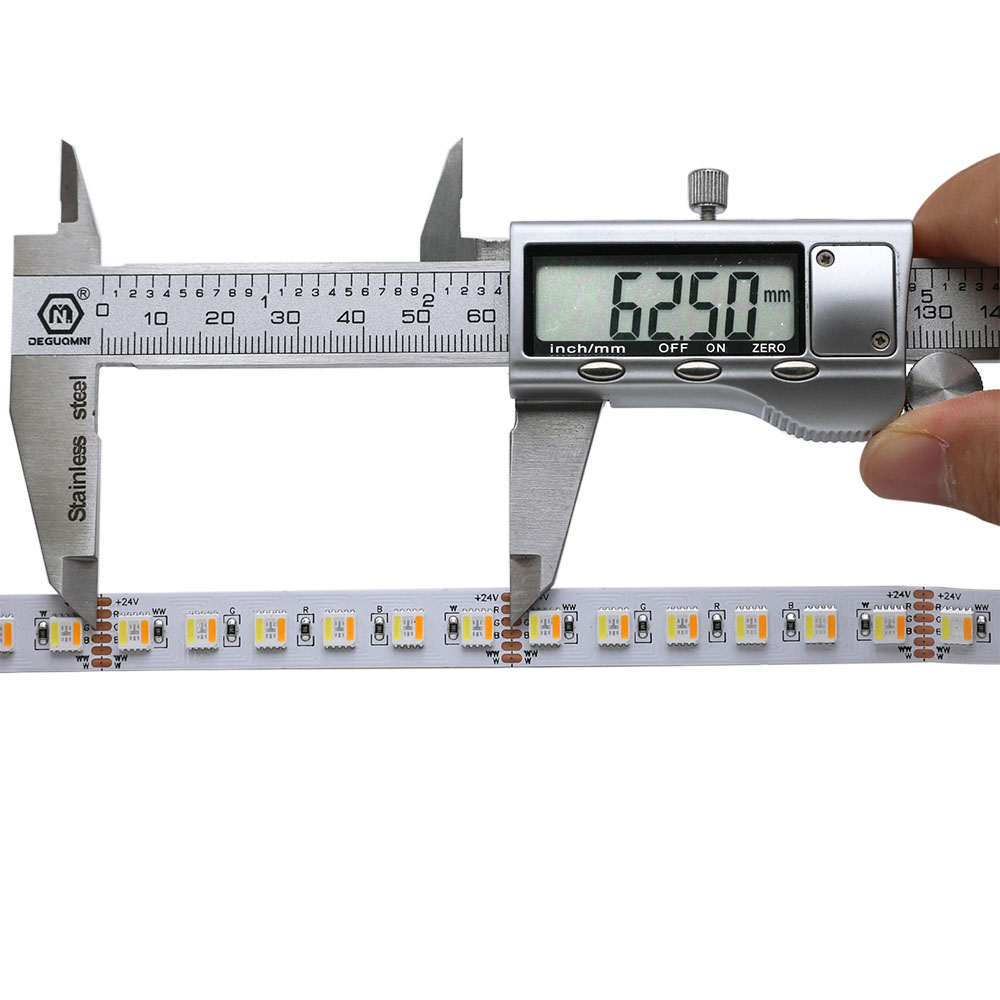

Cut 6 lights per time, 62.5mm cut unit
IP20/IP65/IP67/IP68 waterproof ratings for indoor lighting and outdoor lighting
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBCCT 480LEDs/16.4ft|
|LED Chip:||Epistar Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGBCCT (RGB multi color + 2700K-6500K CCT white light color)|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||96 LEDs per 1meter (3.28 ft)|

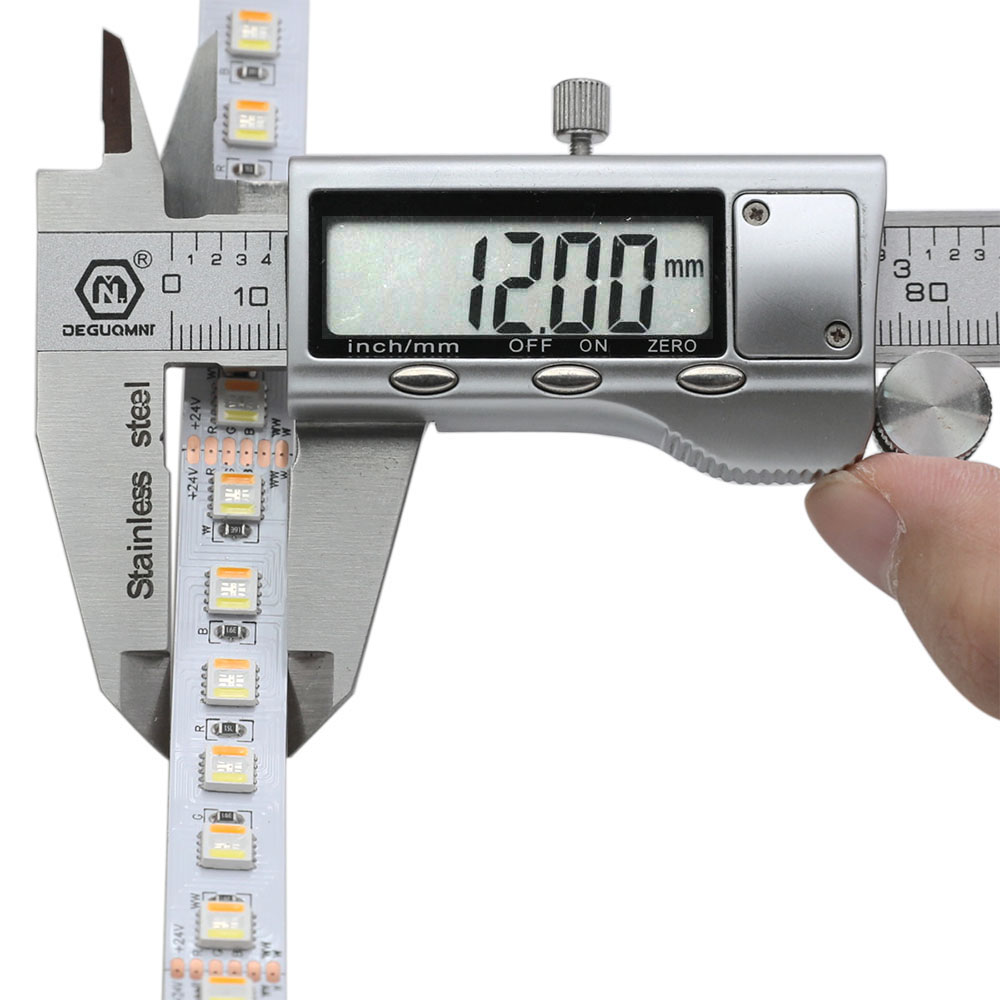

|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||24 VDC|
|Working Power:||5.5A 132W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBCCT led strip wiring diagram:
3. Installing led strip lights: - How To Install LED Strip Lights?
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
