This is our new RGBWW (RGB+Warm White+Daylight) LED strip with 112 lights per meter, 560 per roll, which is the highest density type of 5-IN-1 RGBWW led strips now. Using a 4oz circuit board, each RGBWW LED has 30-35 lumens with super brightness. RGBWW LED light brings you a colorful atmosphere while with warm white and daylight for relaxation and tasks. You can change the light smoothly through an RGBWW controller.
Highest density 5-in-1 RGBWW led strip, 112LEDs/m, 560LEDs/Roll
High lumen per LED and super brightness
Each RGBWW light is available with RGB and CCT colors
Suitable for both atmosphere lighting and mood lighting

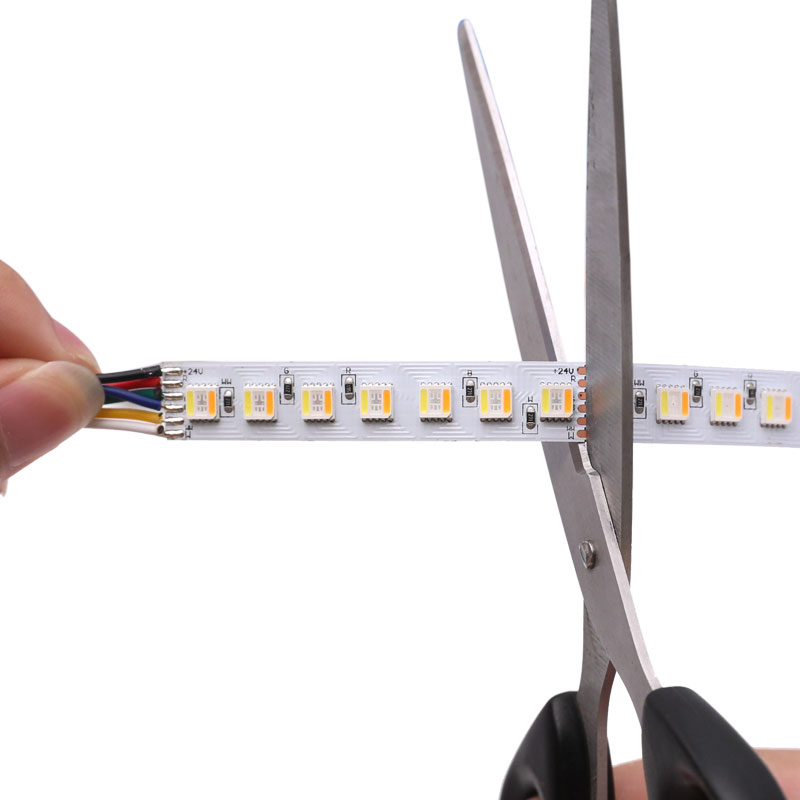

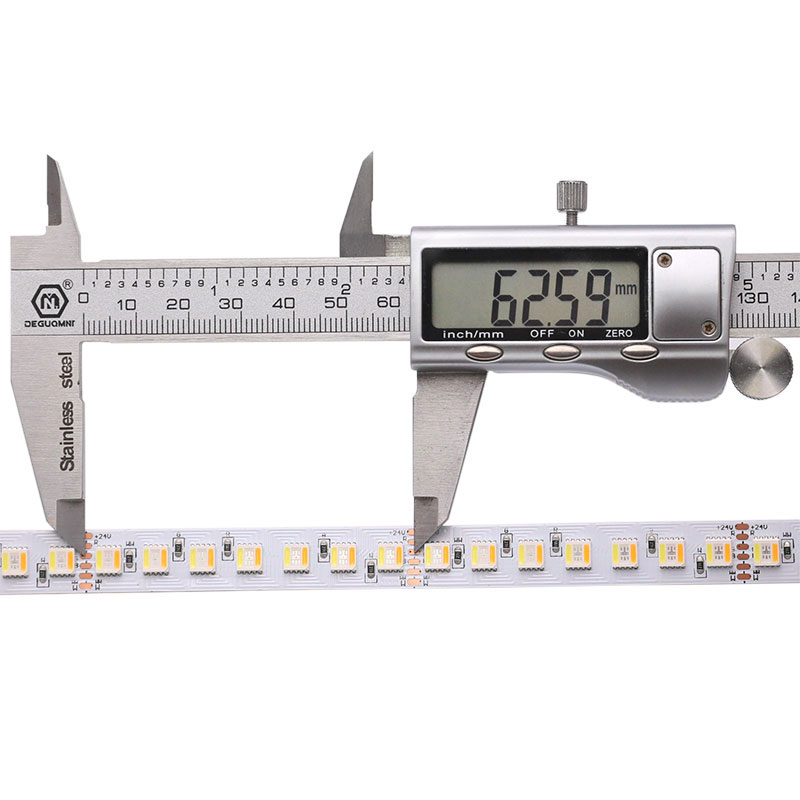

Every 7LEDs can be cut, 62.5mm/2.46in an individual circuit segment
With 12mm PCB width can easily fit into an aluminum channel or neon housing for aesthetic results

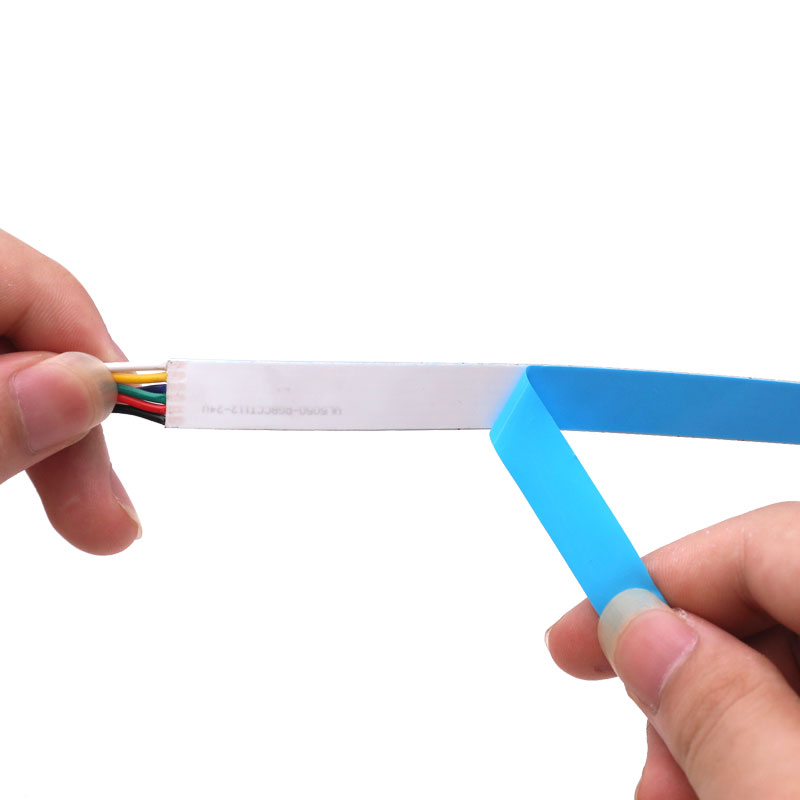

Adhesive tape for easy installation
How to Use:
1. This RGBWW led strip comes with a 10cm long 6-pin wire at both ends, connect it to your RGBWW (RGB+CCT) controller, then you can enjoy the RGBWW light.
2. With DC24V input, you should choose a 24V power supply for this strip.
3. Due to its high LED density and small spacing between two adjacent LEDs, there is no LED connector available yet that can be used for this RGBWW light strip.
Notice: If you select the kit, you will receive: a 16.4ft 112LEDs/m 5-in-1 RGBWW led strip, a WiFi Tuya WB5 smart controller, and a 24V 200W Mean Well power supply.
Standards and Certifications
|LED Strip Type:||5-In-1 Higher Density RGBWW LED Strip|
|LED Chip:||Epistar Chip (SMD5050 5-IN-1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 7PCS LED (62.5mm/2.46in) can be cut|
|LED Quantity:||112 LEDs per meter (3.28ft), 560LEDs per roll|

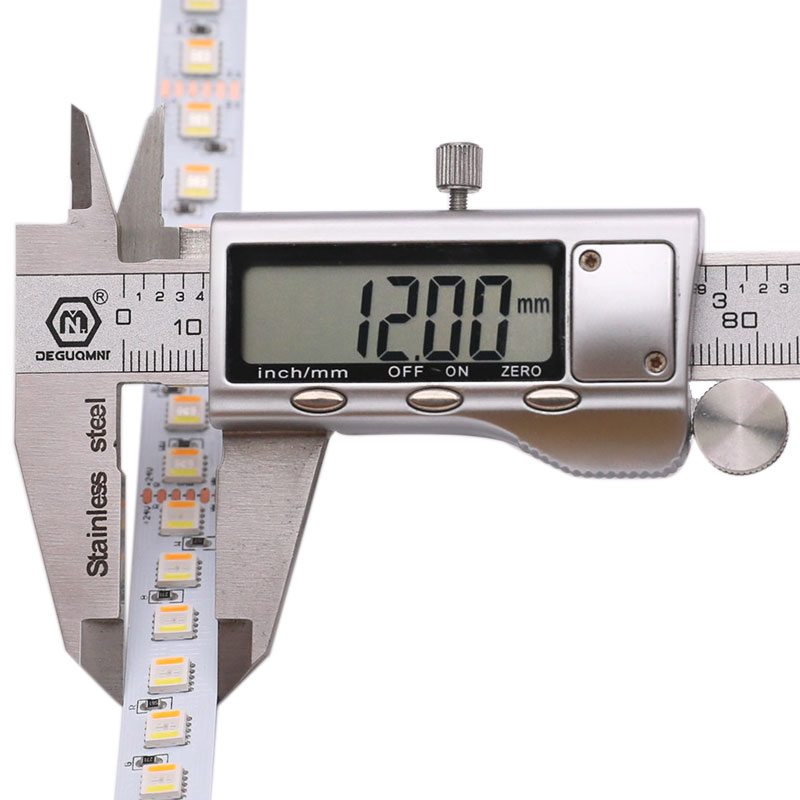

|Strip Width:||12mm (0.47in)|
|Working Power:||36W/m, 180W /16.4ft Max|
|Lamp Luminous Flux(lm):||30-35 Lumen|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67|
RGBWW led strip wiring diagram:
