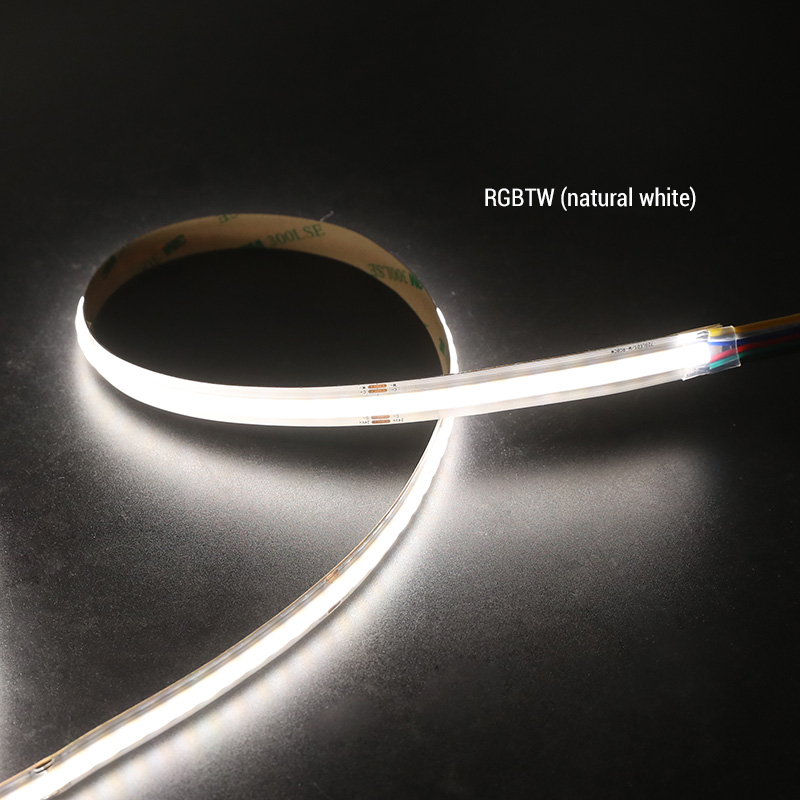

2025 New Release: Advanced RGBTW COB LED Strip with Focused Beam Technology
In the second half of 2025, we proudly introduce our groundbreaking FCOB-24V-RGBCCT-720FB Model – a next-generation COB (Chip-on-Board) LED strip featuring RGBTW color mixing and precision beam control.
Designed for professional lighting applications, it adopts an advanced dam design, cleverly using opaque white silicone on both sides of the linear silicone diffusion encapsulation layer for shielding. This unique structure effectively reduces light reflection on the board, making the light more concentrated and controlled within the required range, avoiding unnecessary light scattering, and improving the overall lighting effect and light utilization.
• Focused Beam Design: 120° Narrow Beam Angle (vs standard 180-deg cob) for precise illumination control, reduced side-scattering
• High-Density RGBCW Color Mixing: 720 LEDs/m density (12mm width) for seamless color blending, RGBTW (Red/Green/Blue/Tunable White 2700K to 6500K) for full-spectrum customization
• 24V Stable Performance: Consistent color rendering across long runs with low voltage drop
Essential Accessories
♦ RGBTW Controller: The color changes of RGBTW cob are achieved through the RGBTW controller. We recommend our M5 button controller in the kit, and you can choose the remote control method that suits your needs here.
♦ Power Supply: To ensure stable operation of the custom color led lights cob strip, we provide a compatible 24V hardwired power supply in the kit. This LRS-150-24 power adapter uses high-quality electronic components to deliver a stable 24V voltage output, with a maximum output current of 6.25A, meeting the power requirements of LED strips of various lengths.
Product Specifications
| LED Strip Type: | RGBTW Color Custom COB Led Concentrated Lighting Strip |
| LED Type: | Chip-on-board |
| Input Voltage: | DC24V |
| PCB Width: | 12mm (0.47in) |
| Strip Height: | 2.9mm (IP20), 6mm (IP67/IP68) |
| Strip Length: | 5m (16.4ft) |
| Power: | 18 W/m, 90 watts /roll |
| Lumen: | 1980lm/m, 110lm/w |
| LED Quantity: | 720/m, 3600/roll |
| LED Color: | RGBCW 2700K-6500K |
| CRI: | Ra>90 |
| PCB color: | White |

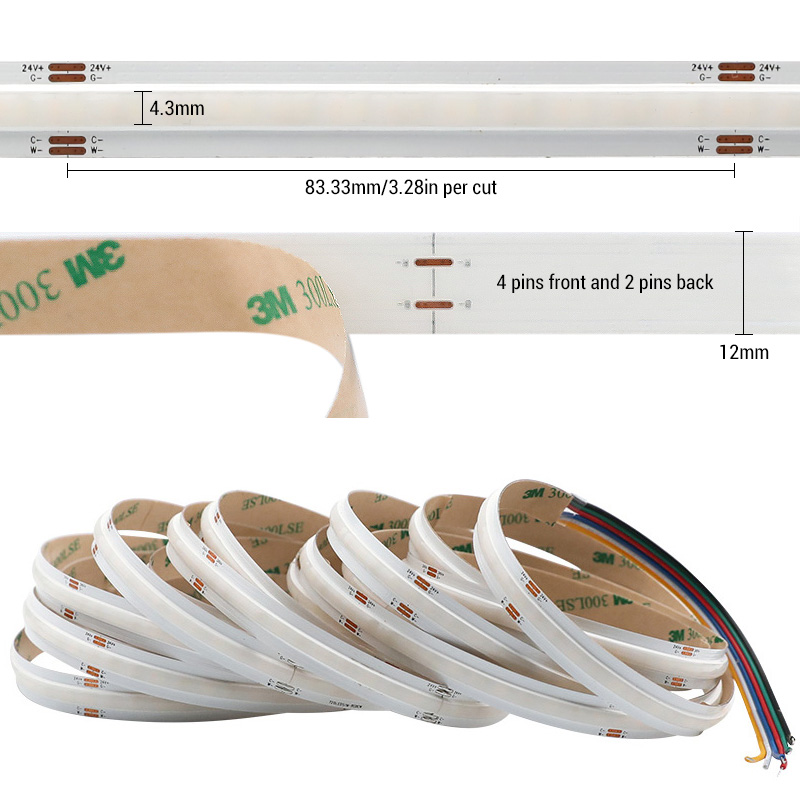

| Cut Length: | 83.33mm (3.28in) |
| Beam Angle: | 120° |
| Connector: | 6pin power wires at both ends (black-V+, red-R, green-G, blue-B, white-6500K, yellow-2700K) |
| Connector Length: | 150mm (5.9in) |
| Waterproof Rating: | IP20 bare board, IP67 silicone tube coated, IP68 fully silicon coated |
| Working Temperature: | -20℃ ~ +45℃ |
