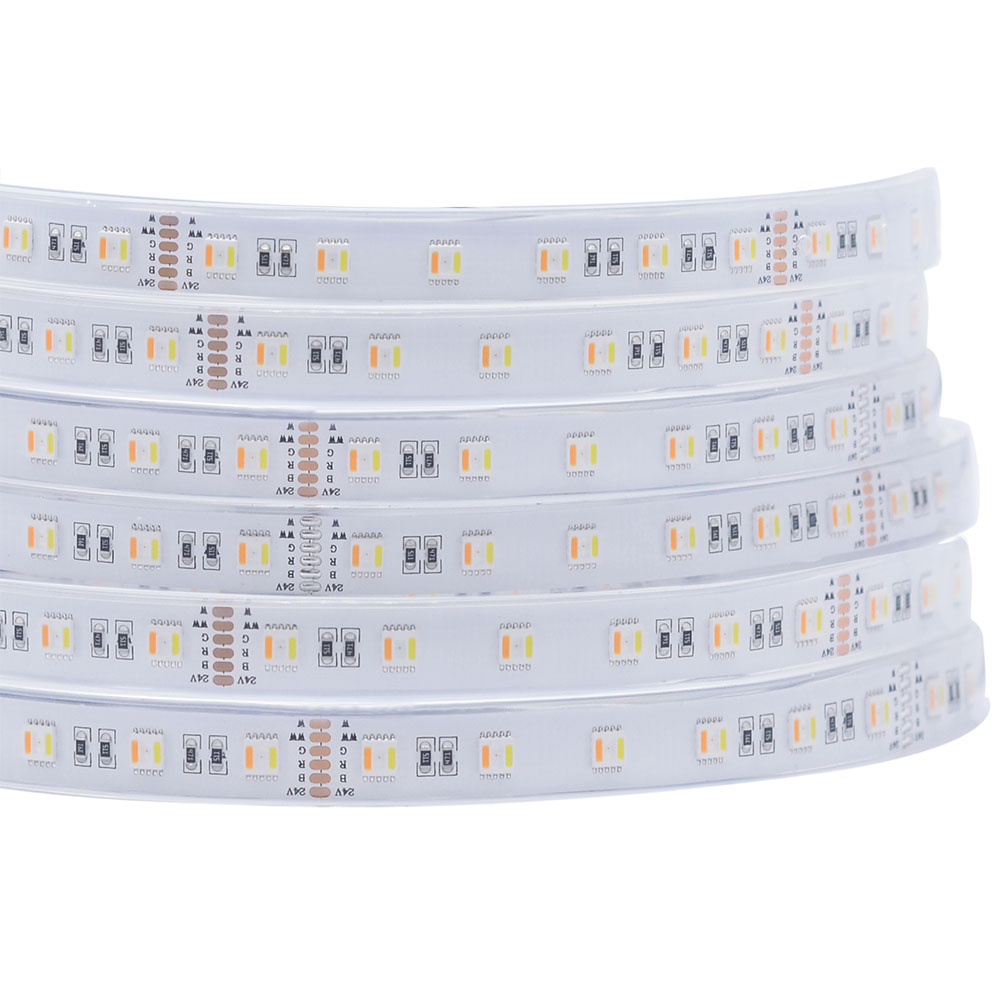

5in1 RGBCCT IP68 Color Changing Outdoor Lights - 15mm 24V Waterproof LED Strip Lights - 60LEDs/m
RGBCCT LED integrates red, green, blue, warm white and daylight white chips 5in1 in SMD5050 LED, combines RGB color and white color to provide more light color options, works with RGBCCT controller to achieve precise color control. Not only can it produce individual R/G/B, but the color temperature of white light can be adjusted in the range of 2700K-6500K.

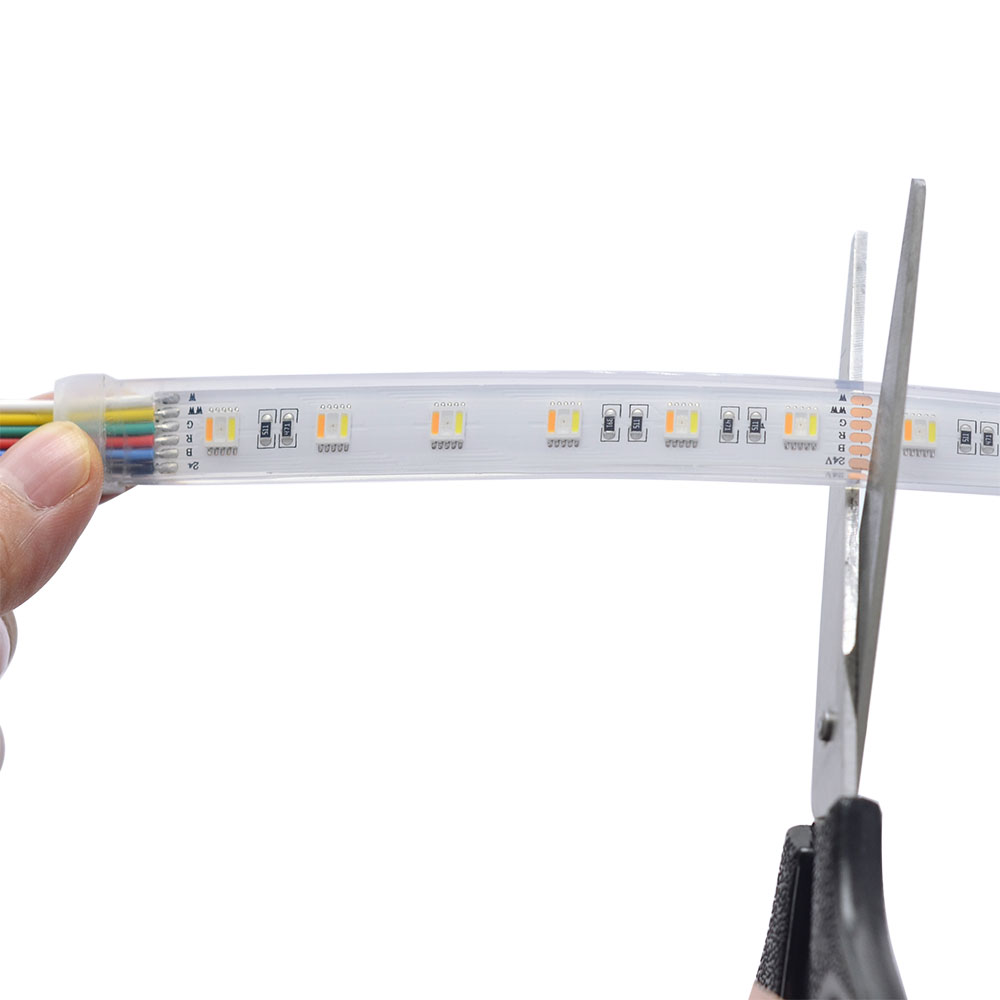

The IP68 RGBCCT color changing LED strip light can be cut every 6LEDs, and the length of the waterproof LED strip can be customized. IP68 waterproof rating can achieve complete waterproof, suitable for indoor and outdoor complex environment; you can use it in the underwater, such as swimming pools.
CCT color temperature:
2000K-3000K: emits a soft white light (Warm white), often yellow in appearance, suitable for living rooms and other home lighting and outdoor environment lighting;
3100K-4500K: emit bright white light (Netural white), suitable for working space and other office lighting, etc;
4600K-6500K: emits bright white light, similar to daylight (Daylight white); suitable for indoor and outdoor lighting;
6500K and above (Cool white): emits bright blue light, suitable for commercial lighting.
Multi color RGBCCT 5in1 LED Strip light
DC24V low input voltage, High bright SMD5050 LED
IP68 waterproof suitable for swimming pool, suitable for outdoor/underwater environment
60 LEDs/m, 6LEDs cuttable, length can be customized
3M tape, easy to install
Long life span, up to 50,000 hours
Multi Color RGBCCT Light Kit:
If you choose the LED controller in the kit, we will send you WL5-WP
If you choose the LED power supply in the kit, we will send you PSWP-24V-100W
How to choose the correct LED power supply?
The power of the RGBCCT LED strip light is 84W/roll, to avoid the power load, the power of the LED power supply must more than 84*1.2=100.8W.
For outdoor environment, you can consider our 100W waterproof LED power supply.
Standards and Certifications
|LED Strip Type:||SMD 5050 RGBWW 300LEDs/16.4ft|
|LED Chip:||Epistar Chip (SMD5050 5 IN 1 LED chip)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Strip Width:||15mm (0.59in)|
|Input Voltage(V):||24 VDC|
|Working Power:||16.8W/m, 84W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Waterproof IP68|
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
