Professional-Grade High-Reflectivity Silver-Ink PCB COB RGBW Light Strip: Redefining Optical Performance And Industrial Design
This new COB product is currently out of stock and requires time and quantity to manufacture.

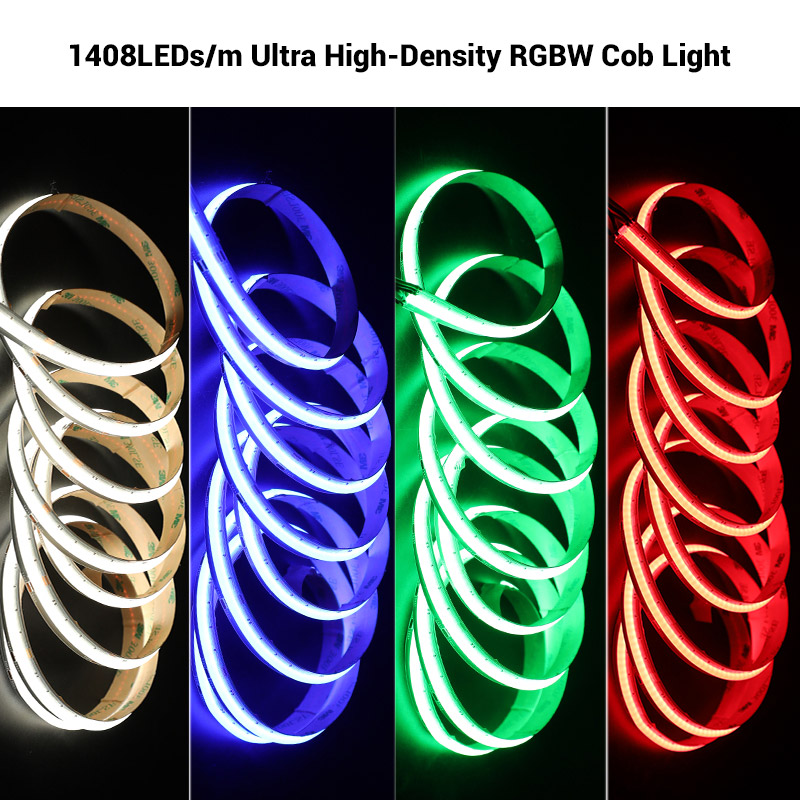

This FCOB-RGBW-1408W12-24V COB RGBW light strip, featuring a patented silver ink PCB, represents a technological breakthrough in high-end decorative lighting and professional engineering applications. High-density chip integration technology (1408 LEDs/m) achieves significantly improved light output efficiency while maintaining an ultra-thin thickness of 3.5mm, ensuring higher brightness and more uniform light distribution within limited space.
This innovative design not only meets the stringent space requirements of installation environments but also provides robust technical support for projects seeking optimal cob lighting effects. Its RGBW color control functionality offers additional white light color temperatures for rich color light variations, meeting personalized lighting needs across various scenarios.
-
Optical performance optimization, reflection enhancement, thermal management assistance
-
Ultra-high performance COB integration, four-in-one RGBW chip
-
Achieves “invisible installation” on metal / stone backgrounds
-
Provides a modern, minimalist texture
RGBW Control and Wiring
To enable convenient lighting control, this cob flex strip light is equipped with an advanced WiFi RGBW controller C04W Model in the kit. Via WiFi connection, users can easily control the color and brightness of the light strip using a mobile app or RC03RF remote, WR01RF panel remote, without the need for complex wiring or operations. Additionally, we provide the LRS-150-24 power supply to ensure stable operation of the super bright rgbw led strip at 24V voltage, delivering continuous and reliable power support.
The kit choice "LED Strip + WiFi Controller + Power Supply" means a cob high output RGBW led strip, a C04W controller (no remote), a LRS-150-24 hardwired led driver.
Product Specification

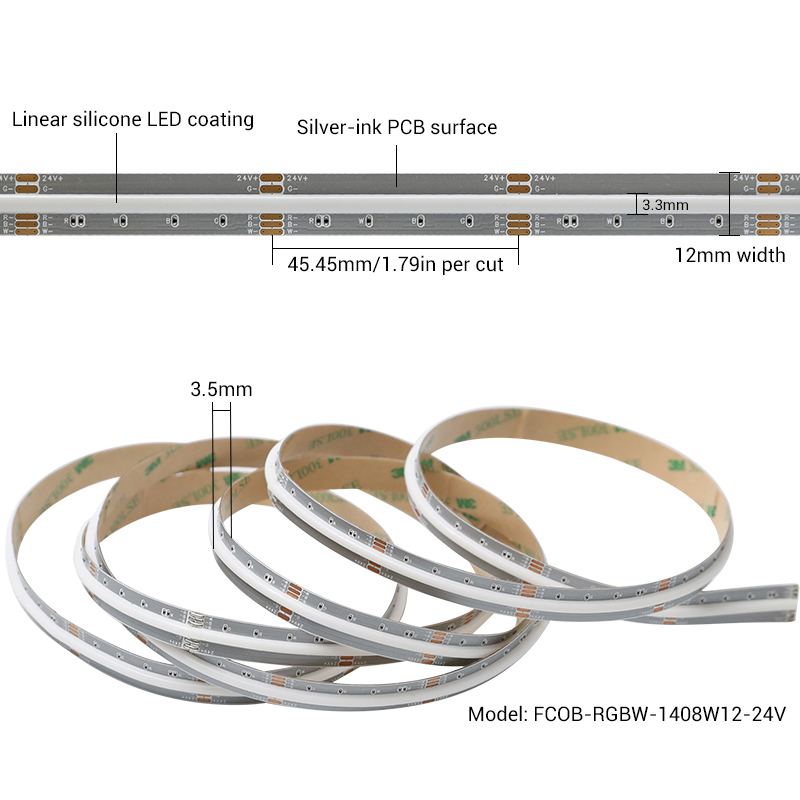

| LED Type: | Silver PCB Cob RGBW LED Strip |
| LED Quantity: | 1408 Chips/m (R 352,G 352,B 352,W 352) |
| Input Voltage: | DC24V |
| Strip Height: | 3.5mm |
| Light Width: | 3.3mm |
| PCB Width: | 12mm/0.47in |
| PCB Color: | Silver |
| White Color: | Warm White 2800-3200K; Netural White 4000-4500K; Daylight White 6000-6500K |
|
Power:
|
18W/m, 90W/Roll
|
| CRI: | Ra＞90 |
|
Cut Length:
|
45.45mm/1.79in
|
| Lumen: | 2816lm/m |
| Length: | 5m/16.4ft reel |
| Outlet Cable: | 5-pin power wires at both sides |
| Beam Angle: | 180° |
| Waterproof Rating: | IP20 indoor, IP67 outdoor, IP68 underwater |
