24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12

Model: FLS-24V-5050-RGBW
24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12
  • 24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12
  • 24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12
  • 24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12
  • 24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12

Select Specifications:

Starting at: $40.98 $38.985% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$38.98
20-49
$38.20
50-99
$37.42
100+
$36.64
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Meet our RGBW LED lighting sheet equipped with 288 individual units of the 5050 SMD LEDs. Each segment of six LEDs (0.8”X4.8”) on this LED panel sheet can be cut with a scissor, making it very convenient to DIY irregular shape for customizable illumination. These paper thin LED light sheets are also super flexible, conforming easily to curved surfaces and sharp corners. With four connectors mounted on the PCB board, multiple sheet lights LED can be connected either by connectors or soldered wires, ideal for large-area lighting projects.

    One sheet lighting requires 24V power supply, and the additional white LED outside RGB provides additional brightness, making the overall white light brighter. To control the colors emitted by this LED light panel sheet, an RGBW controller is necessary. Eight anti-collision silicone particles (12mm/0.47” tall) are included for customers planning to use LED sheets for backlighting stone or glass. And beyond the RGBW color spectrum, we also offer an exceptional range of ultra slim cuttable LED sheets, spanning from single white to the advanced RGBCCT options.



    Features:

    1. SMD5050, 24 LEDs per row, arranged in 12 meticulous rows, totally 288 LEDs, ensuring uniform and bright light output.

    2. Every 6 LEDs (0.8”X4.8”) is a cutting section, 4 PCB-mounted connectors, allowing you to create complex lighting designs with simple cutting and connecting.

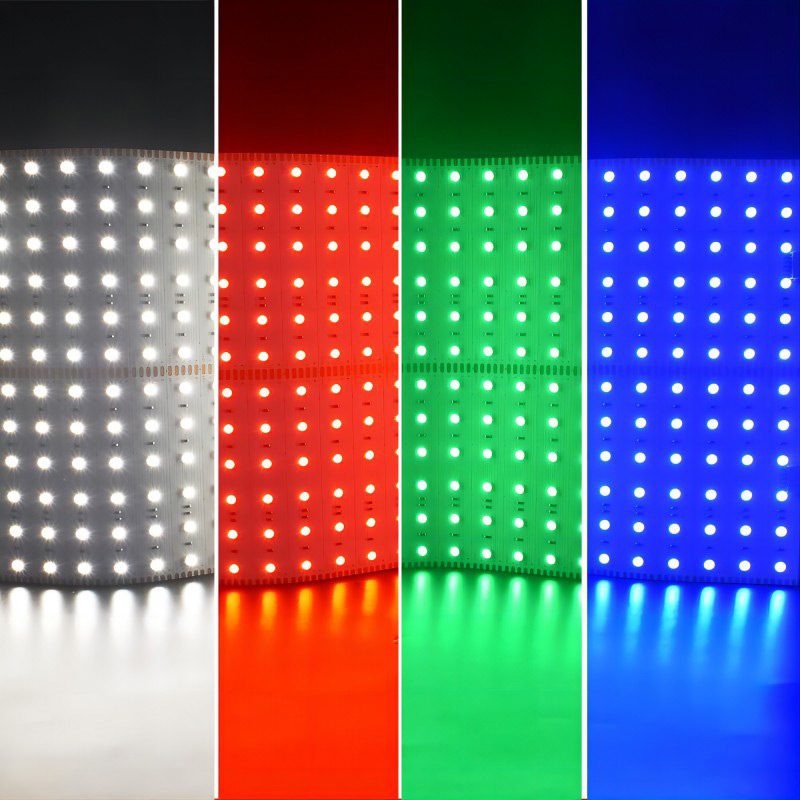

    3. RGBW color helps you explore infinite colors and set the tone for any environments.

    4. 3M adhesive backing, strong and long-lasting adhesion, easy installation.

    5. Available in non-waterproof (IP20) and waterproof (IP54) versions.



    The "24X11" specified in the title indicates that there are 24 LEDs in a row, with a total of 12 rows.

    In addition to the standard options we offer, we can also manufacture RGBW LED sheets with color temperatures ranging from 1800K to 10,000K. Should you have any special requirements, please do not hesitate to contact us.

    RGBW LED Sheet Manual Download PDF

    Video showcasing the CCT color LED sheet used for marble wall backlighting.

    Kindly note that the product featured in the video is different from the one offered here. (mainly color difference) We appreciate your attention to this detail.



    Product Specifications

    LED Strip Type: 24V 5050 4in1 RGBW LED Sheet Cuttable Flexible
    LED Chip: SMD5050
    Input Voltage: 24V DC
    Product Size: L19.2 "x W9.6"X0.3" (490mm*245mm*8mm)
    Light Color: RGBW, CRI 90+ White Color
    Light Efficiency:  20-22LM per LED
    LED Quantity: 288 LEDs per sheet
    Working Power: 48W per sheet
    Cut Unit: 6 LEDs (0.8”X4.8”/ 20.4mm*122.5mm)
    Lifespan:  50,000+hours
    Beam Pattern: 120 degrees
    IP Rating:  Non-waterproof IP20/ Waterproof IP54
    Warranty: 2 years

    RGBW LED Sheet Light Easy Connection With Interconnector

    24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    24V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x1224V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x1224V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x1224V 5050 4in1 RGBW LED Sheet Cuttable Flexible 24x12
