Small 8mm RGBW Cob Under Cabinet Lighting 24V LED Color Changing Closet Light Strip

As a manufacturer and online seller of Fcob Flexible Chip-On-Board LED Light Strips for global sales, we have developed this 8mm rgbw cob fcob light strip with 768 LEDs per meter density in order to accommodate the need for rgb color changing + standalone white light needs in cabinets, closets, shelves, etc. where width requirements are strict.

Common fcob led rgbw strip lights have a width of 12mm, we have reduced this width to 8mm, which allows rgbw cob lights to be used with smaller aluminum profile bars and achieve a uniform light effect.

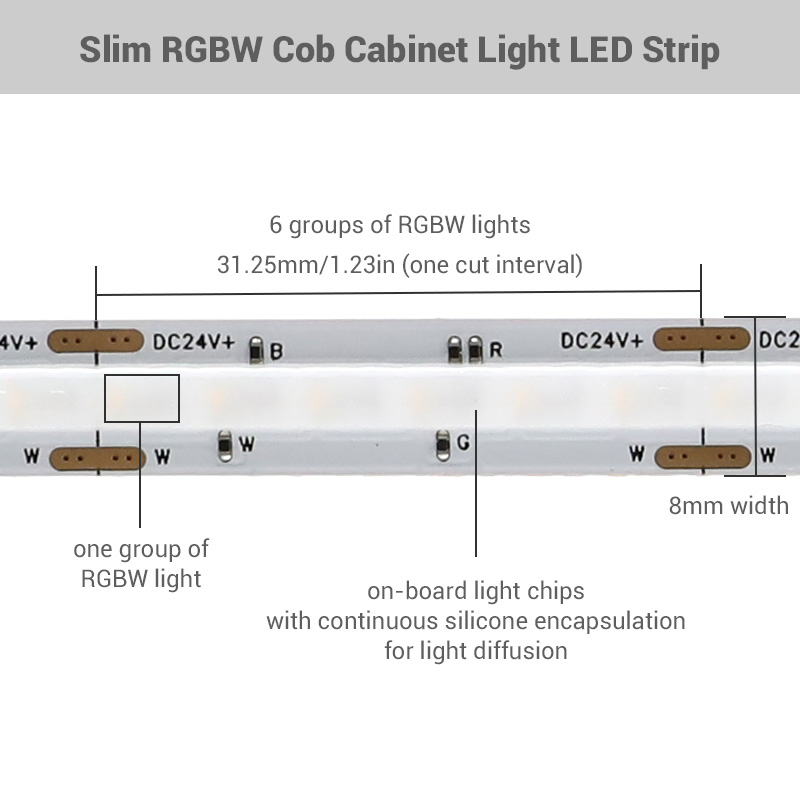

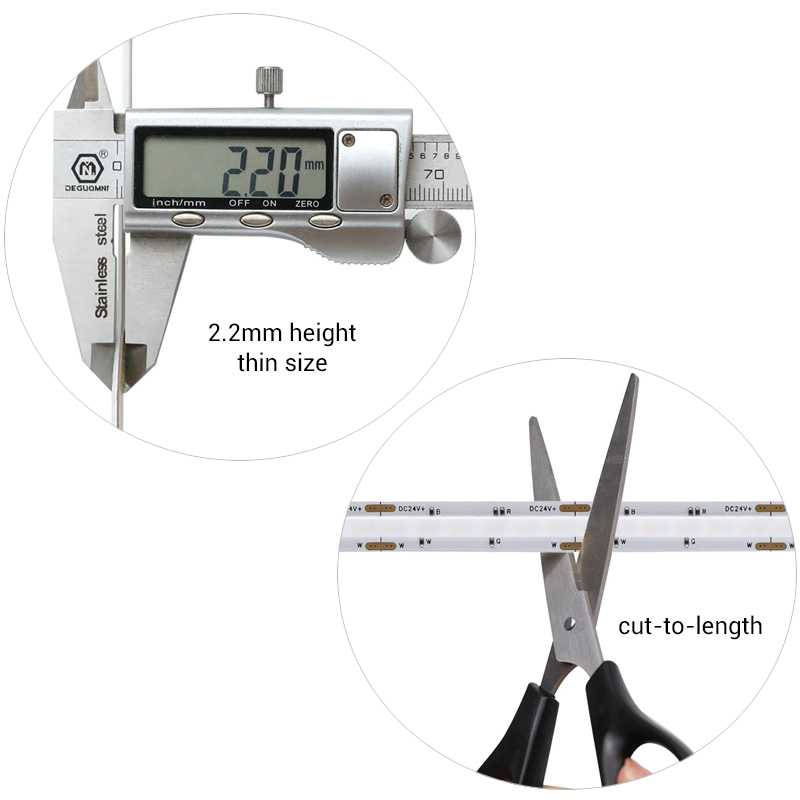

In this cob strip, a red chip, a green chip, a blue chip, and a white chip make up a group of RGBW lights. There are 160 groups of these rgbw cob lights on a five meter roll of tape (32 groups per meter), and every 6 groups can be cut down to 31.25mm. The led light chips are encapsulated in translucent silicone and the overall height of the strip is 2.2 mm.

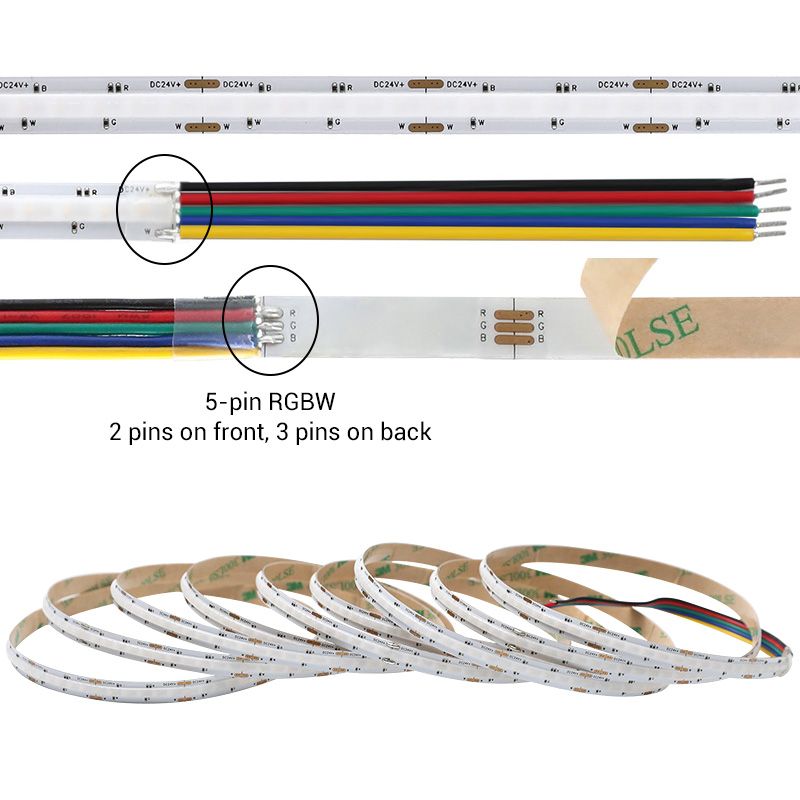

Due to the width limitation, the solder joints of this 8mm rgbw fcob tape are designed with two pin points on the surface of the PCB and three pin points on the back, no available quick connectors for the time being. To facilitate your cabinet RGBW lighting needs, we offer length customization service, please read this guide or contact us. The strip comes with 5-pin wires for hardwired connection.

Note: for RGBW4000K and RGBW6500K, there is no stock, and the MOQ is 500 meters.

Product Specification

Rgbw led light bars under cabinet information

When applying cuttable light strips to aluminum profiles, please make sure that the strip can be cut to a length that matches the length of the profile you need.

To ensure optimum use and safety, we recommend that you carefully measure the length of the required aluminum profile and cut the strips at precise intervals before installing under cabinet lighting, closet lighting, shelf lighting, etc.

Under cabinet rgbw led lighting kit

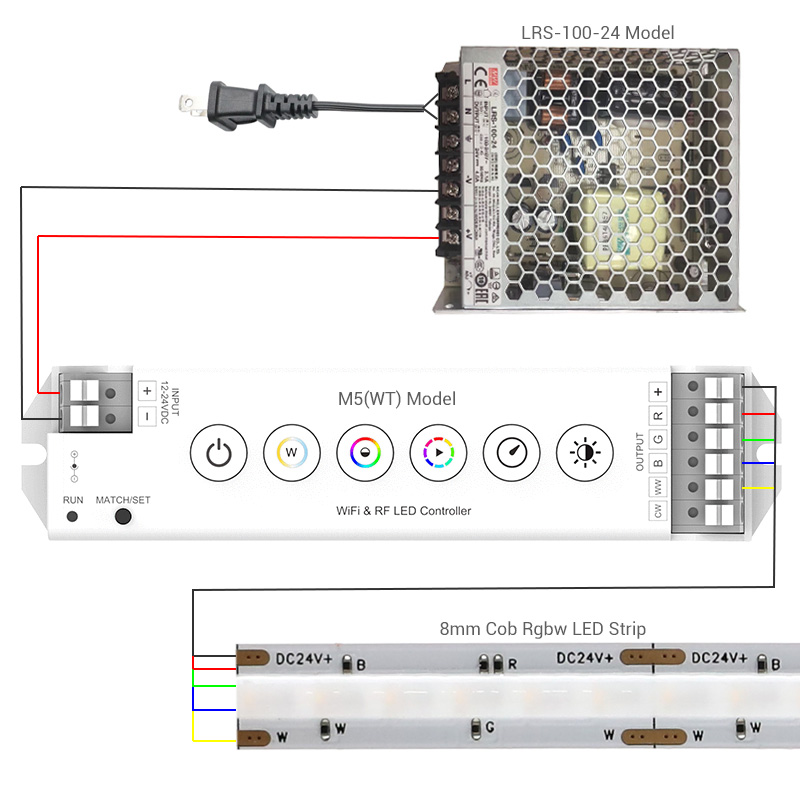

In the kit, we have matched this narrow cob RGBW light strip with a button controller compatible with WiFi and RF wireless signals. You can control it remotely via Tuya APP or adjust the light manually for convenient RGBW light management. With the LRS-100-24 model 24-volt DC power supply, the controller M5(WT) model is able to provide stable constant voltage output for the fcob strip and support rich color changing functions.

Motion sensing is very interesting for light triggering, you can also buy a RF-compatible wireless PIR motion sensor for the M5(WT) model such as the EV-R model, the PIR sensor and the controller are connected wirelessly, you can place the motion sensor in the right position to trigger the light automatically by your movement.
